self tooth forming PIV positive infinitely variable chains
Self-tooth-forming| P.I.V. chains

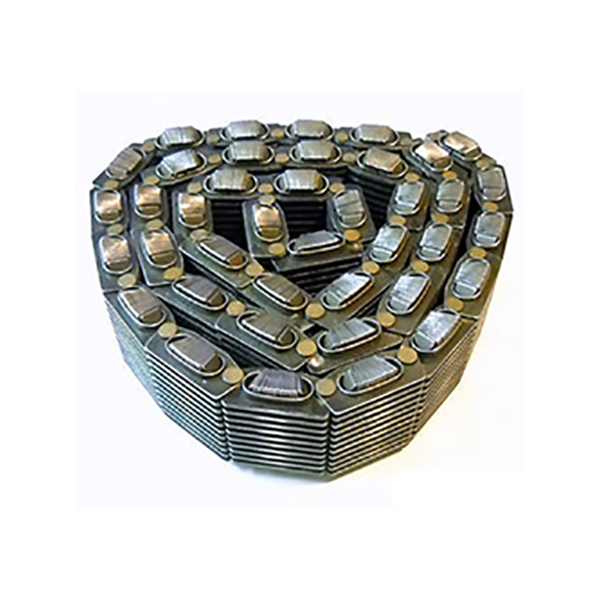

self tooth forming PIV chains PIV Chains (positive infinitely variable chains) comply with the ZBJ18003-89 standard for the application of chain driven gear boxes. These chains are used for the roller type infinite speed variators of the textile industry, on automotive variable speed drives as well as in variable pitch V grooves.

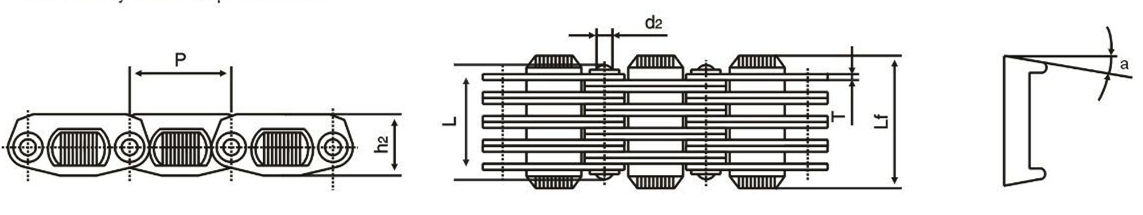

P.I.V-P.I.V infinitely variable speed chains
| Chain
No. |
Pitch | Pin
diameter |
Pin length | Plate depth | Width over friction plate | Angle of friction plate | Ultimate tensille strength | Weight per meter |
| P | d2
max |
L
max |
h2
max |
Lf | a
max |
Q
min |
q | |
| mm | mm | mm | mm | mm | 0 | kN | kg/m | |
| AO | 18.75 | 3.00 | 19.5 | 9.5 | 24.0 | 15 | 9.0 | 1.00 |
| A1 | 19.0 | 3.00 | 25.6 | 10.7 | 30.5 | 15 | 12.0 | 1.41 |
| A1-2 | 25.0 | 3.00 | 30.1 | 13.5 | 37.8 | 15 | 21.0 | 2.23 |
| A3 | 28.6 | 3.00 | 35.3 | 16.0 | 44.2 | 15 | 38.5 | 3.04 |
| A4 | 36.0 | 4.00 | 48.5 | 20.5 | 58.5 | 15 | 61.5 | 5.54 |
| A5 | 36.0 | 4.00 | 60.5 | 20.5 | 70.0 | 15 | 71.0 | 5.54 |
| A6 | 44.0 | 5.40 | 70.0 | 24.0 | 77.0 | 15 | 12.5 | 9.00 |
| L0 | 15.2 | 2.80 | 25.2 | 9.0 | 30.6 | 15 | 10.0 | 1.24 |
| L2 | 20.1 | 3.00 | 28.0 | 12.7 | 37.5 | 15 | 21.0 | 1.97 |

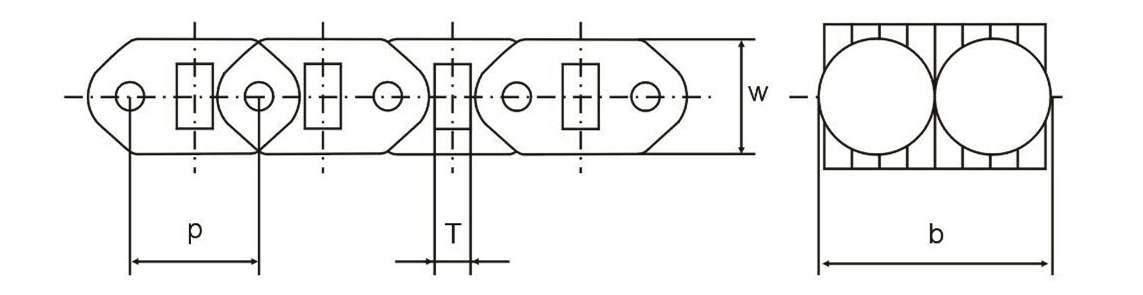

Roller type infinitely variable speed chains
self tooth forming PIV chains
| Chain No. |
P mm |
W | b min | T
max |
| PSR0 | 10.1 | 9.2 | 12.0 | 2.9 |
| PSR1 | 12.0 | 12.0 | 16.0 | 4.0 |
| PSR4 | 13.3 | 17.7 | 25.0 | 4.9 |
| PSR5 | 14.0 | 20.5 | 31.0 | 5.3 |
| PSR6 | 16.2 | 22.5 | 31.0 | 5.3 |
