Series FAF Helical Gear Reducers
Our F series shaft mounted helical gearbox has a wide range of transmission ratios. And it can reach a larger transmission ratio by combining with the R series helical gear reducer to meet the requirements of low-speed output and high torque. And F series helical gear reducer has various types of installation positions for options, including foot installation, flange installation, or shaft installation. Its output methods include solid shaft output, hollow shaft output, output with a large flange, output with a small flange, etc. So it is suitable for a multitude of applications. FAF series is one type of F series helical gear reducer with flange-mounted hollow shaft output.

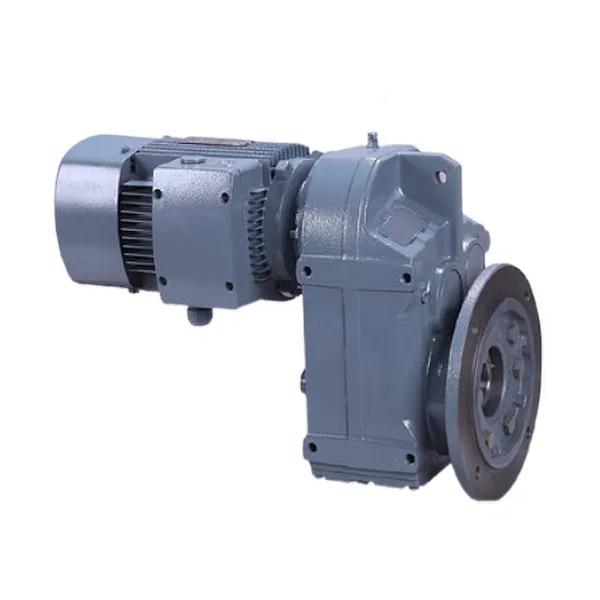

FAF Series Helical Gearbox with Flange Mounted Hollow Shaft Output
Our F series shaft mounted helical gearbox(Series FAF Helical Gear Reducers) has a wide range of transmission ratios. And it can reach a larger transmission ratio by combining with the R series helical gear reducer to meet the requirements of low-speed output and high torque. And F series helical gear reducer has various types of installation positions for options, including foot installation, flange installation, or shaft installation. Its output methods include solid shaft output, hollow shaft output, output with a large flange, output with a small flange, etc. So it is suitable for a multitude of applications. FAF series is one type of F series helical gear reducer with flange-mounted hollow shaft output.
Our housing of the F series helical gear reducer is made of high-strength cast iron, and the gears and gear shafts adopt the carburizing quenching fine grinding process, so the helical gear reducer has a large load capacity, high efficiency, and low noise. Under the conditions of correct model selection, normal use and maintenance, the main parts of the helical gear reducer (except the wearing parts, oil seal bearings, etc.) can have a long service life, generally over 20,000 hours.
FAF Series Hollow Shaft Helical Gearbox Specifications:
FAF Series Hollow Shaft Helical Gearbox Specifications:| Product name: | FAF series parallel shaft helical gearbox |
| Model: | FAF37/47/57/67/77/87/97/107/127/157 |
| Mounting ways: | Foot-mounted, flange-mounted, or shaft mounted |
| Input ways: | Motor input, AM (IEC) flange input, and shaft input |
| Output way: | Solid shaft output, hollow shaft output, output with large flange, output with small flange |
| Efficiency: | 96% for basic two-stage, 94% for three-stage |
| Housing material: | HT250 high-strength cast iron |
| Gear material: | 20CrMnTi |
| Surface hardness of gears: | HRC58-62 |
| Input/Output shaft: | 40Cr steel |
| Heat treatment: | Carburizing and quenching |
| Bearing: | C&U or another brand |
| Oil seal: | NAK or another brand |
| Lubricating oil: | Gear oil |
| Packing: | Plywood case |
FAF Series Shaft Mounted Helical Gearbox Parameters:
| Input power and permissible torque chart | ||||||||||
| Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 |
| Structure | F FA FF FAF FAZ | |||||||||
| Input power (kW) |
0.18-3.0 | 0.18-3.0 | 0.18-5.5 | 0.18-5.5 | 0.37-11 | 0.75-22 | 1.1-30 | 2.2-45 | 7.5-90 | 11-200 |
| Ralio | 3.81-128.51 | 5.06-189.39 | 5.18-199.70 | 4.21-228.99 | 4.30-281.71 | 4.12-270.68 | 4.68-280.76 | 6.20-254.76 | 4.63-172.17 | 11.92-267.43 |
| Permissible torque(N.M) |
200 | 400 | 600 | 820 | 1500 | 3000 | 4300 | 7840 | 12000 | 18000 |
Features of Series FAF Helical Gear Reducers
- High efficiency: 92%-94%;
- Parallel output, compact structure, large output torque, smooth operation, low noise, and long service life.
- High precision: the gear is made of high-quality alloy steel forging, carbonitriding and hardening treatment, and grinding process to ensure high precision and stable running.
- High interchangeability: highly modular, serial design, strong versatility, and interchangeability.

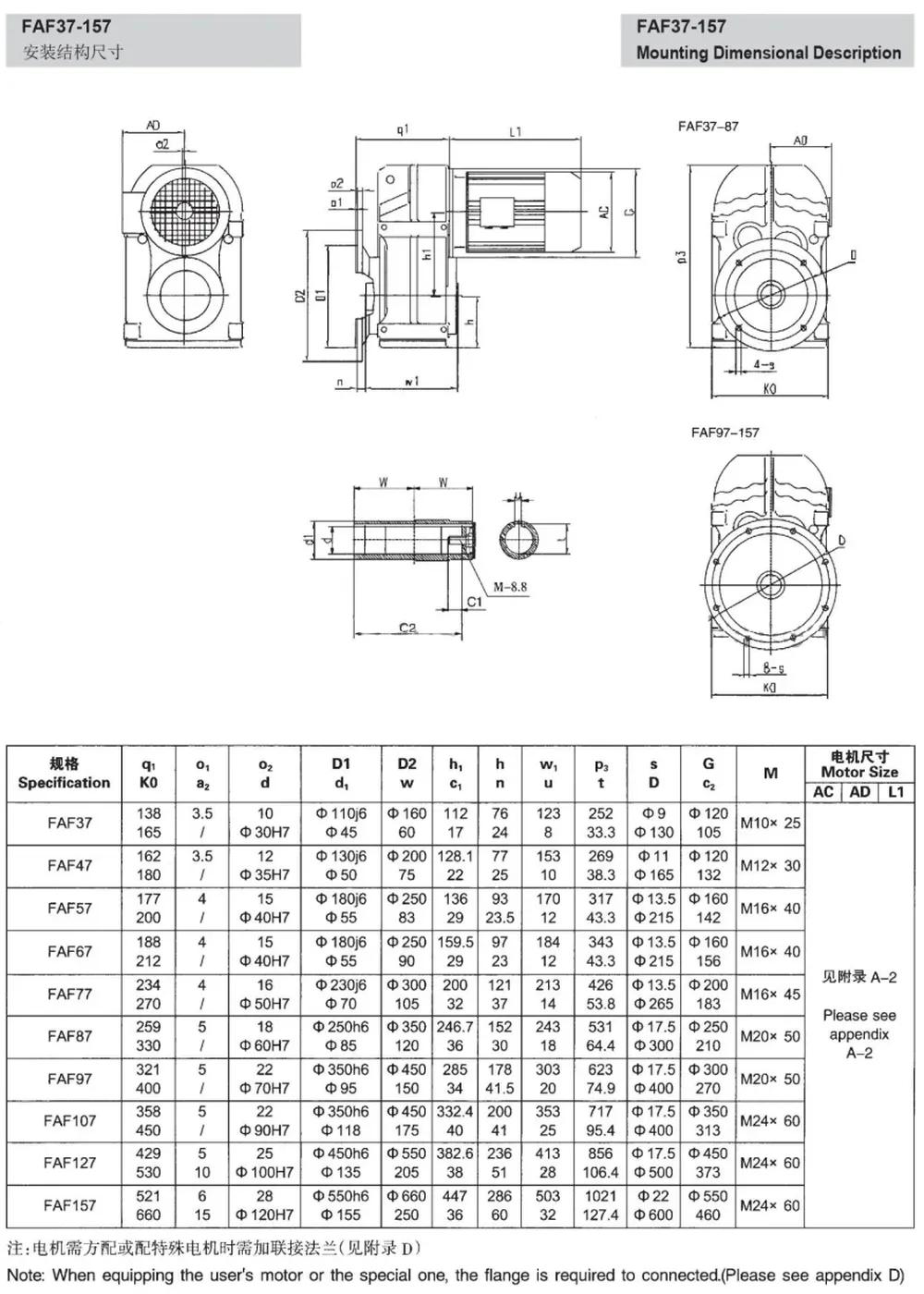

FAF Series Hollow Shaft Helical Gearbox Mounting Size
We also Provide Other Series of Helical Gearbox

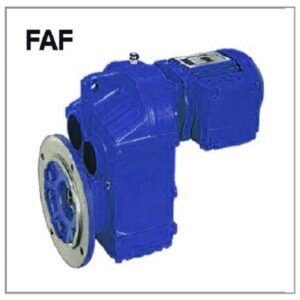

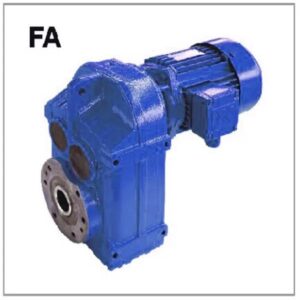

We also Provide Other Series of Helical Gearbox| FAF Series Helical Gearbox | FA Series Helical Gearbox |
 |
 |

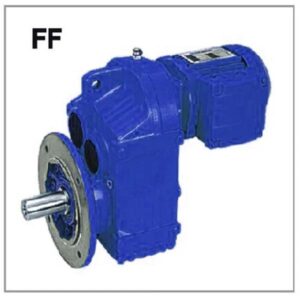

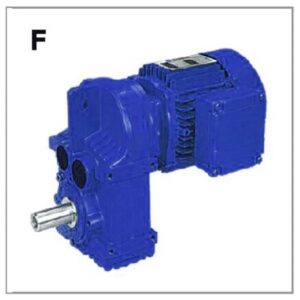

| FF Series Helical Gearbox | F Series Helical Gearbox |
 |
 |
FAF Series Hollow Shaft Helical Gearbox Application Area
- Chemistry, Chemical Industry, Petroleum, Pharmacy, and Dyeing
- Environmental Protection, Sewage treatment, Tap water purification, and Garbage treatment
- Rubber, Plastics, Tyre, Tanning, and Papermaking
- Security door, Garage door, Automatic window, and Lifting stage
- Cement equipment, mine, and Coal Mine
- Railway, Road, Construction, Bridge, Underground, and Tunnel
- Port and dock, Shipbuilding industry, and Deepwater dock unloading
- Water conservancy Construction, Nuclear power industry, and Hydropower industry
- Automobile industry and Garage
- Machine tool industry
- Textile industry
- Food, Brewage industry, and Packing industry
- Professional transmission mechanism for Hoisting machine
- Steel and Smelting
