Series FS Helical Gear Reducers

FA series hollow shaft helical gearbox is manufactured in combination with international technical requirements, it’s space-saving, reliable and durable. It has a high carrying capacity, input power of more than 90KW, and efficiency of more than 95%. It owns the advantages of low energy consumption, superior performance, low vibration, and low voice. Since the F series gearbox has various input and output forms and can start forward and reverse, it is very suitable for application in limited installation space. It is widely used in various conveying and processing occasions, such as mixing equipment.

Description

Series FS Helical Gear Reducers

FS series hollow shaft helical gearbox(FS Series Helical Gear Reducers) is manufactured in combination with international technical requirements. It’s space-saving, reliable and durable. FS Series Helical Gearbox with Hollow Shaft Output have a high carrying capacity, input power of more than 90KW. And efficiency of more than 95%.

It owns the advantages of low energy consumption, superior performance, low vibration, and low voice. Since the F series gearbox has various input and output forms. The reducers can start forward and reverse. It is very suitable for application in limited installation space. It is widely working in various conveying and processing occasions, such as mixing equipment.

FS Series Helical Gear ReducersFA Series Hollow Shaft Helical Gearbox Specifications

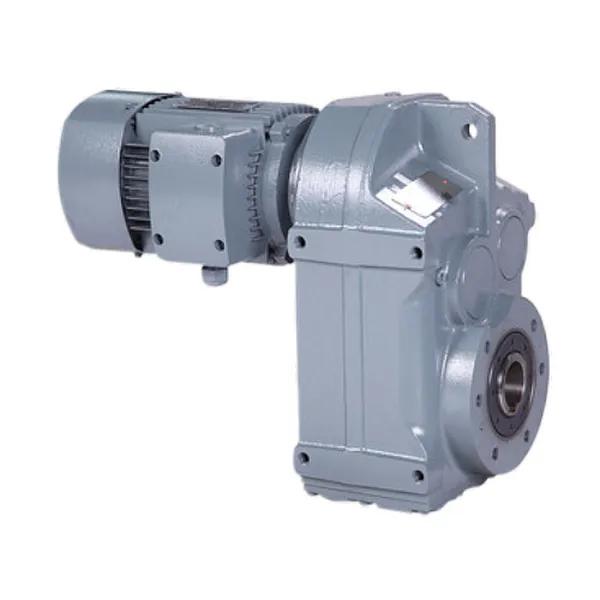

Product name: FA series helical gearbox
Model: FA37/47/57/67/77/87/97/107/127/157
Mounting ways: Foot mounted, flange mounted or shaft mounted
Input ways: Motor input, AM (IEC) flange input and shaft input
Output way: Solid shaft output, hollow shaft output, output with large flange, output with small flange
Efficiency: 96% for basic two-stage, 94% for three-stage
Housing material: HT250 high-strength cast iron
Gear material: 20CrMnTi
Surface hardness of gears: HRC58-62
Input/Output shaft: 40Cr steel
Heat treatment: Carburizing and quenching
Bearing: C&U or another brand
Oil seal: NAK or another brand
Lubricating oil: Gear oil
Packing: Plywood case

FA Series Hollow Shaft Helical Gearbox Parameters

Input power and permissible torque chart
Size 37 47 57 67 77 87 97 107 127 157
Structure F   FA   FF   FAF   FAZ
Input power
(kW)
0.18-3.0 0.18-3.0 0.18-5.5 0.18-5.5 0.37-11 0.75-22 1.1-30 2.2-45 7.5-90 11-200
Ralio 3.81-128.51 5.06-189.39 5.18-199.70 4.21-228.99 4.30-281.71 4.12-270.68 4.68-280.76 6.20-254.76 4.63-172.17 11.92-267.43
Permissible
torque(N.M)
200 400 600 820 1500 3000 4300 7840 12000 18000

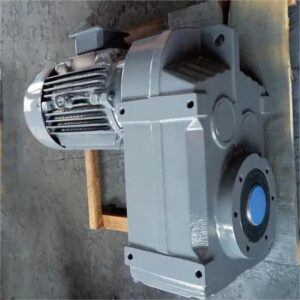

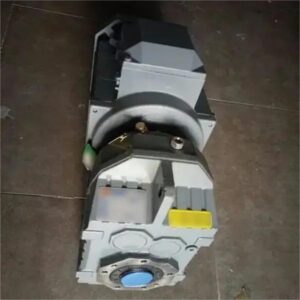

FA Series Hollow Shaft Helical Gearbox Characteristics

  1. High efficiency: 92%-94%;
  2. Parallel output, compact structure, large output torque, smooth operation, low noise, and long service life.
  3. High precision: the gear is made of high-quality alloy steel forging, carbonitriding and hardening treatment, and grinding process to ensure high precision and stable running.
  4. High interchangeability: highly modular, serial design, strong versatility, and interchangeability.

Parallel Shaft Helical Gearbox Catalogue and Structure:

Structure  Description
F…Y… :  Foot installation of inline helical gearbox with solid shaft
FA…Y… :  Flange mounted inline helical gearbox with hollow shaft
FAZ…Y… :  Short flange mounted parallel shaft helical gearbox with hollow shaft
FF…Y… :  Flange mounted parallel shaft helical gearbox with solid shaft
FAF…Y… :  Flange mounted parallel shaft helical gearbox with hollow shaft
F(FA, FF, FAF, FAZ)S… :  Shaft input parallel shaft helical gearbox
F(FA,FF,FAF, FAZ)…R…Y… :  Foot mounted combinatorial, shaft input helical gearbox with solid shaft
F(FA, FF, FAF, FAZ)S…R… :  Shaft input combinatorial parallel shaft helical gearbox
F(FA, FF, FAF, FAZ)…Y… :  Other motor or other drive connect with gearbox, flange required to be connected

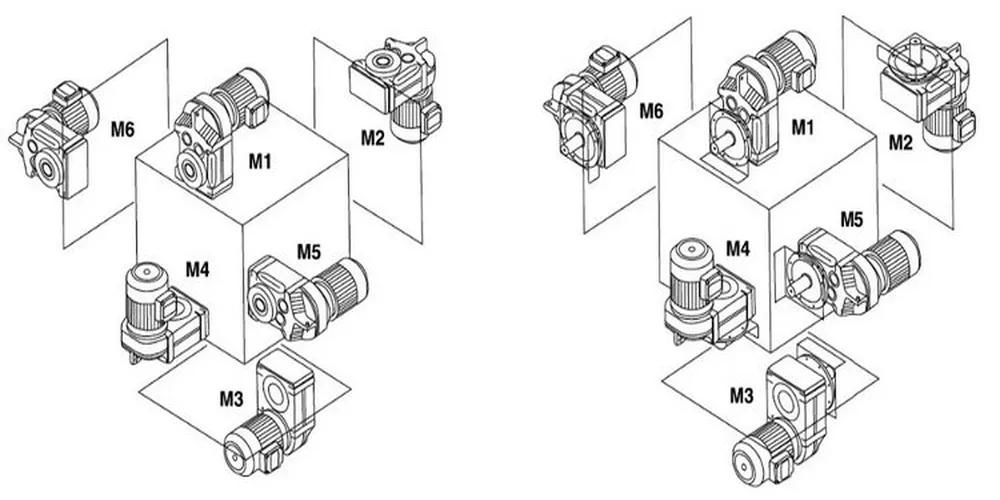

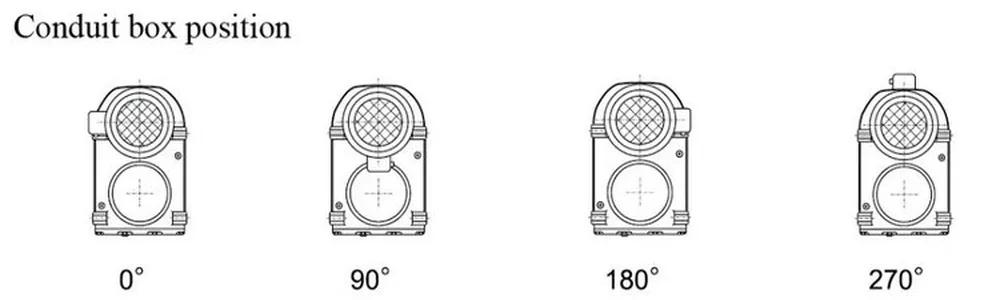

FA Series Hollow Shaft Helical Gearbox Mounting Position

FA Series Hollow Shaft Helical Gearbox Application Industry

FA series hollow shaft helical gearbox can modularly compose with other reducers and variator, get a large reduction ratio drive and variation, Conveyors, Cranes and Hoists, Elevators, Escalators, Fans, Gates, Irrigators, Machinery, Mixers, Packaging Equipment, Pools, Specialty Trucks and Vehicles, Wind X-Ray Equipment, Airports, Boats and Yachts, Energy Installations Foundries, Off-shore Oil Rigs, Mining Sites, Factories, Supermarkets, Refineries, Ports, Railways.
