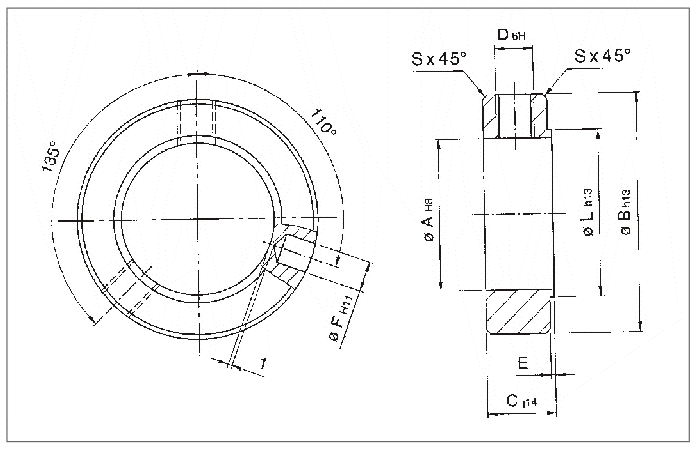

Standardized Shaft Collars Form H-AB
Diameter

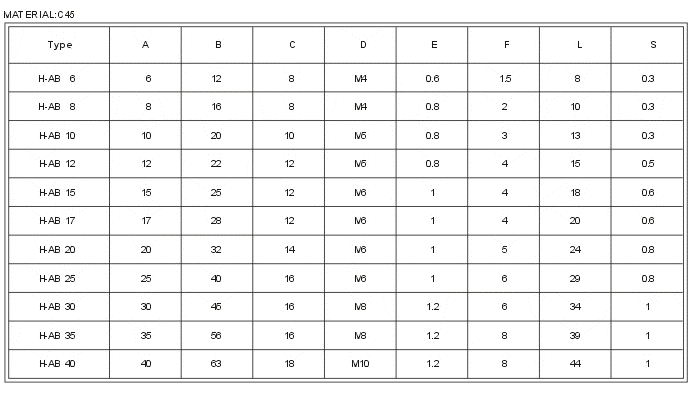

Type | A | B | C | D | E | F | L | S |
H-AB | 6 | 12 | 8 | M4 | 0.6 | 15 | 8 | 0.3 |
H-AB 8 | 8 | 16 | 8 | M4 | 0.8 | 2 | 10 | 0.3 |
HAB 10 | 10 | 20 | 10 | M5 | 0.8 | 3 | 13 | 0.3 |
HAB 12 | 12 | 22 | 12 | M5 | 0.8 | 4 | 15 | 0.5 |
HAB 15 | 15 | 25 | 12 | M6 | 1 | 4 | 18 | 0.6 |
HAB 17 | 17 | 28 | 12 | M6 | 1 | 4 | 20 | 0.6 |
HAB 20 | 20 | 32 | 14 | M6 | 1 | 5 | 24 | 08 |
HAB 25 | 25 | 40 | 16 | M6 | 1 | 6 | 29 | 0.8 |
HAB 30 | 30 | 45 | 16 | M8 | 1.2 | 6 | 34 | 1 |
HAB35 | 35 | 56 | 16 | M8 | 1.2 | 8 | 39 | 1 |
HAB4D | 40 | 63 | 18 | M10 | 1.2 | 8 | 44 | 1 |
