Metric Series One Split Shaft Collar
|
|

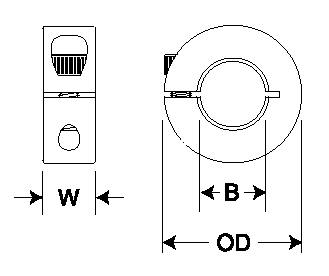

Metric Series One Split Shaft Collar Specifications
PART NUMBER STEEL | ||||||
---|---|---|---|---|---|---|
MCL-3-F | MCL-3-A | 3 | 16 | 9 | M3X8 | |
MCL-4-F | MCL-4-A | 4 | 16 | 9 | M3X8 | |
MCL-5-F | MCL-5-A | 5 | 16 | 9 | M3X8 | |
MCL-6-F | MCL-6-A | 6 | 16 | 9 | M3X8 | |
MCL-7-F | MCL-7-A | 7 | 18 | 9 | M3X8 | |
MCL-8-F | MCL-8-A | 8 | 18 | 9 | M3X8 | |
MCL-9-F | MCL-9-A | 9 | 24 | 9 | M3X10 | |
MCL-10-F | MCL-10-A | 10 | 24 | 9 | M3X10 | |
MCL-11-F | MCL-11-A | 11 | 28 | 11 | M4X12 | |
MCL-12-F |
MCL-12-A | 12 | 28 | 11 | M4X12 | |
MCL-13-F | MCL-13-A | 13 | 30 | 11 | M4X14 | |
MCL-14-F | MCL-14-A | 14 | 30 | 11 | M4X14 | |
MCL-15-F | MCL-15-A | 15 | 34 | 13 | M5X16 | |
MCL-16-F | MCL-16-A | 16 | 34 | 13 | M5X16 | |
MCL-17-F | MCL-17-A | 17 | 36 | 13 | M5X16 | |
MCL-18-F | MCL-18-A | 18 | 36 | 13 | M5X16 | |
MCL-19-F | MCL-19-A | 19 | 40 | 15 | M6X16 | |
MCL-20-F | MCL-20-A | 20 | 40 | 15 | M6X16 | |
MCL-21-F | MCL-21-A | 21 | 42 | 15 | M6X16 | |
MCL-22-F | MCL-22-A | 22 | 42 | 15 | M6X16 | |
MCL-23-F | MCL-23-A | 23 | 45 | 15 | M6X16 | |
MCL-38-F |
||||||
Note: Sizes MCL-40 through MCL-80 do not have backslot. |
