Shaft Collars with One Piece Split Metric Series-1
The metric series one piece shaft collars are mechanical components used to secure two objects together on a common shaft or rod. These one piece shaft collars are designed to fit onto metric-sized shafts and are typically used in applications where precise positioning and alignment are critical. The one piece design of these shaft collars means that they are constructed from a single piece of material, which makes them easy to install and remove. They are typically made from materials like stainless steel, aluminum, or plastic, which makes them durable and resistant to corrosion. The metric series one piece shaft collars can be used in a wide range of applications, including robotics, automation, and machinery.

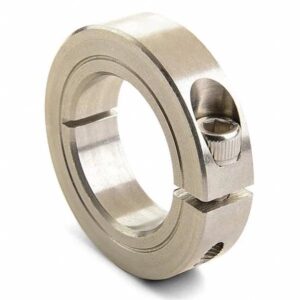

One Piece Shaft Collars (Shaft Clamps) Metric Series
The Metric One Split Shaft Collars are mechanical components working to secure two objects together on a common shaft or rod. Designed to fit onto metric-sized shafts and are typically working in applications. Where precise positioning and alignment are critical. The one piece design of these shaft collars means that they are constructed from a single piece of material. Which makes them easy to install and remove. They are typically made from materials like stainless steel, aluminum, or plastic, which makes them durable and resistant to corrosion.
The metric series one piece shaft collars can be working in a wide range of applications, including robotics, automation, and machinery. They are designed to provide a secure and precise fit on the shaft, which helps to minimize vibration and ensure consistent performance. Overall, the metric series one piece shaft collars are a reliable and cost-effective solution for securing objects on a common shaft or rod in a range of industrial applications. If you are looking for a reliable and durable way to secure a rotating shaft, metric series one piece shaft collars are a great option.
 |
 |

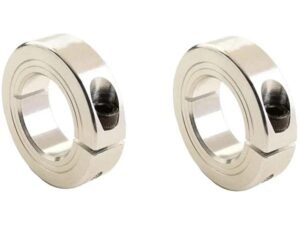

One Piece Shaft Collar Sizes Chart (Metric Series)
 |
 |
PART NUMBER STEEL PART NUMBER ALUMINUM PART NUMBER STAINLESS STEEL BORE
B (mm)OUTER DIAM. OD (mm) WIDTH
W (mm)FORGED CLAMP SCREW MCL-3-F MCL-3-A MCL-3-SS 3 16 9 M3X8 MCL-4-F MCL-4-A MCL-4-SS 4 16 9 M3X8 MCL-5-F MCL-5-A MCL-5-SS 5 16 9 M3X8 MCL-6-F MCL-6-A MCL-6-SS 6 16 9 M3X8 MCL-7-F MCL-7-A MCL-7-SS 7 18 9 M3X8 MCL-8-F MCL-8-A MCL-8-SS 8 18 9 M3X8 MCL-9-F MCL-9-A MCL-9-SS 9 24 9 M3X10 MCL-10-F MCL-10-A MCL-10-SS 10 24 9 M3X10 MCL-11-F MCL-11-A MCL-11-SS 11 28 11 M4X12 MCL-12-F
MCL-12-A MCL-12-SS 12 28 11 M4X12 MCL-13-F MCL-13-A MCL-13-SS 13 30 11 M4X14 MCL-14-F MCL-14-A MCL-14-SS 14 30 11 M4X14 MCL-15-F MCL-15-A MCL-15-SS 15 34 13 M5X16 MCL-16-F MCL-16-A MCL-16-SS 16 34 13 M5X16 MCL-17-F MCL-17-A MCL-17-SS 17 36 13 M5X16 MCL-18-F MCL-18-A MCL-18-SS 18 36 13 M5X16 MCL-19-F MCL-19-A MCL-19-SS 19 40 15 M6X16 MCL-20-F MCL-20-A MCL-20-SS 20 40 15 M6X16 MCL-21-F MCL-21-A MCL-21-SS 21 42 15 M6X16 MCL-22-F MCL-22-A MCL-22-SS 22 42 15 M6X16 MCL-23-F MCL-23-A MCL-23-SS 23 45 15 M6X16 MCL-24-F MCL-24-A MCL-24-SS 24 45 15 M6X16 MCL-25-F MCL-25-A MCL-25-SS 25 45 15 M6X16 MCL-26-F MCL-26-A MCL-26-SS 26 48 15 M6X16 MCL-28-F MCL-28-A MCL-28-SS 28 48 15 M6X16 MCL-30-F
MCL-30-A MCL-30-SS 30 54 15 M6X18 MCL-32-F MCL-32-A MCL-32-SS 32 54 15 M6X18 MCL-34-F MCL-34-A MCL-34-SS 34 57 15 M6X18 MCL-35-F MCL-35-A MCL-35-SS 35 57 15 M6X18 MCL-36-F MCL-36-A MCL-36-SS 36 57 15 M6X18 MCL-38-F MCL-38-A MCL-38-SS 38 60 15 M6X18 MCL-40-F MCL-40-A MCL-40-SS 40 60 15 M6X18 MCL-42-F MCL-42-A MCL-42-SS 42 73 19 M8X25 MCL-45-F MCL-45-A MCL-45-SS 45 73 19 M8X25 MCL-48-F MCL-48-A MCL-48-SS 48 78 19 M8X25 MCL-50-F MCL-50-A MCL-50-SS 50 78 19 M8X25 MCL-54-F MCL-54-SS 54 82 19 M8X25 MCL-55-F MCL-55-SS 55 82 19 M8X25 MCL-60-F MCL-60-SS 60 88 19 M8X25 MCL-65-F MCL-65-SS 65 93 19 M8X25 MCL-70-F MCL-70-SS 70 98 19 M8X25 MCL-75-F MCL-75-SS 75 103 19 M8X25 MCL-80-F MCL-80-SS 80 108 19 M8X25 Note: Sizes MCL-40 through MCL-80 do not have backslot.
Benefits of One Piece Clamping Shaft Collars
One piece clamping shaft collars offer several benefits over other types of shaft collars:
-
Easy to install: One piece clamping shaft collars are designed to be easy to install and remove, making them a convenient option for applications where frequent adjustments or maintenance is required.
-
Secure fit: One piece clamping shaft collars provide a secure and precise fit on the shaft, which helps to minimize vibration and ensure consistent performance.
-
Durable: Because they are constructed from a single piece of material, one piece clamping shaft collars are typically more durable than multiple-piece collars, which can be prone to cracking or breaking under stress.
-
Cost-effective: One piece clamping shaft collars are often more cost-effective than other types of collars, making them a budget-friendly option for many industrial applications.
-
Corrosion-resistant: One piece clamping shaft collars are often made from materials like stainless steel, which makes them resistant to corrosion and able to withstand harsh environments.
-
Versatile: On piece clamping shaft collars can be used in a wide range of applications, including robotics, automation, and machinery, making them versatile solutions for many industrial needs.
Overall, one piece clamping shaft collars are a reliable and convenient option for securing objects on a common shaft or rod in a range of industrial applications.
Applications of One Piece Clamping Shaft Collars
One piece clamping shaft collars are commonly working in various industries and applications due to their simplicity, versatility, and cost-effectiveness. Here are some of the applications of one piece clamping shaft collars:
- Power transmission: One piece clamping shaft collars are often working in power transmission systems to secure components such as pulleys, gears, and sprockets to shafts. They provide a secure grip on the shaft and prevent slippage, ensuring smooth and efficient power transmission.
- Robotics: Used in robotics applications to secure various components such as motors, gearboxes, and linkages to shafts. They provide a precise and secure grip on the shaft, allowing for accurate and repeatable movements.
- Medical devices: One piece clamping shaft collars are working in medical devices such as surgical instruments and diagnostic equipment. They provide a secure and precise grip on the shaft, allowing for accurate and reliable performance.
- Aerospace: Used in aerospace applications to secure components such as sensors, actuators, and control systems to shafts. They provide a lightweight and reliable solution for high-performance applications.
- Manufacturing: One piece clamping shaft collars are also used in manufacturing applications such as CNC machines, lathes, and milling machines. They provide a secure and precise grip on the shaft, ensuring accurate and repeatable machining operations.
Overall, one piece clamping shaft collars offer a versatile and cost-effective solution for securing components to shafts in various industries and applications. They provide a secure and precise grip on the shaft, ensuring accurate and reliable performance.
 |
 |
 |

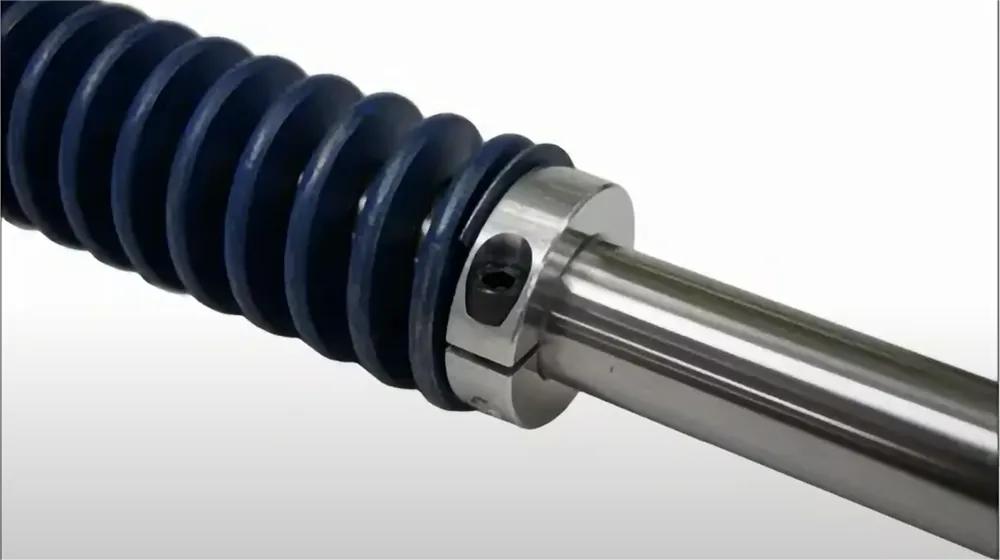

One Piece Clamping Shaft Collar Mounting Matters
The mounting of one piece clamping shaft collars is an important consideration to ensure their proper function and performance. Here are some key factors to consider when mounting one piece clamping shaft collars:
-
Shaft diameter: One piece clamping shaft collars are designed to fit specific shaft diameters. It is important to select the correct shaft collar size that matches the shaft diameter to ensure a secure and precise grip on the shaft.
-
Shaft material: The material of the shaft can also affect the performance of one piece clamping shaft collars. For example, softer materials, such as aluminum, may require a wider collar to provide a secure grip, while harder materials, such as steel, may require a narrower collar.
-
Collar placement: The placement of the one piece shaft collar on the shaft is also important. The shaft collar should be positioned in a way that allows for a symmetrical and even distribution of force around the shaft, which helps to prevent damage to the shaft or collar.
-
Tightening torque: One piece clamping shaft collars are designed to be tightened to a specific torque to ensure a secure grip on the shaft. It is important to follow the manufacturer’s instructions for tightening the shaft collar to prevent under-tightening or over-tightening, which can affect the shaft collar’s performance.
-
Alignment: Proper alignment of the one piece shaft collar with other components such as pulleys, gears, or sprockets is also important to prevent misalignment or slippage, which can affect the performance of the entire system.
Overall, proper mounting of one piece clamping shaft collars is crucial to ensure their proper function and performance. It is important to select the correct shaft collar sizes, consider the shaft material. Place the shaft collar properly on the shaft. Tighten it to the correct torque, and ensure proper alignment with other components. By following these guidelines, one can ensure that the shaft collar provides a secure and reliable grip on the shaft. Which is essential for various applications.
