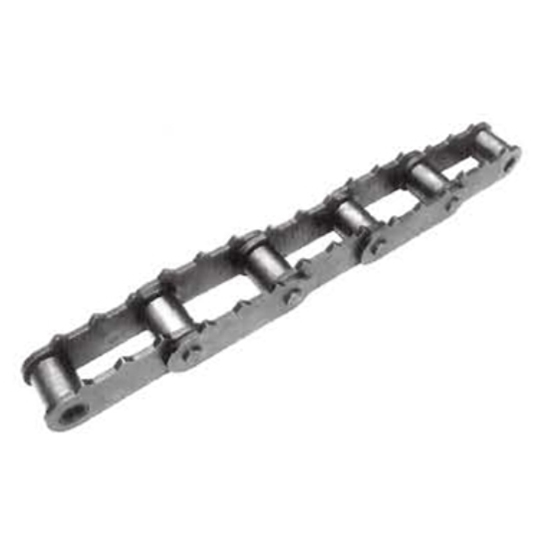

Sharp top chain and attachment
Our solid bushings offer a smoother, more cylindrical inside surface, enhancing wear life and overall durability.
- Precise tooth sharpness delivers optimal grip with minimal penetration, ensuring effective and efficient cutting.
- Solid center-plate design minimizes breakage by reducing the impact of sawdust and chip compaction.
- Low tip profile reduces material loss due to bruising, improving the quality of each cut.

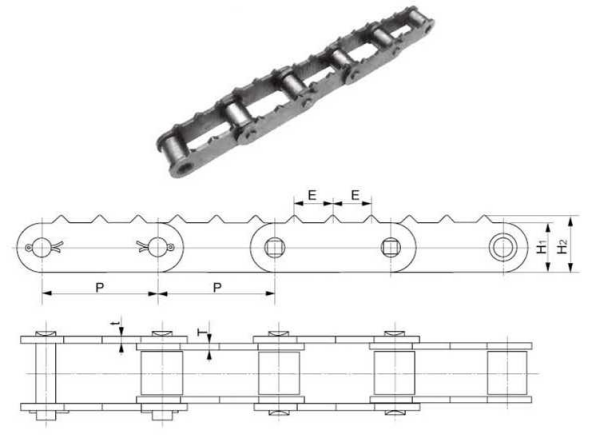

P | E | t/T | H1 | H2 | |
chain NO. | mm | mm | mm | mm | mm |
81X-STD | 66.27 | 22.23 | 4 | 28.6 | 33.35 |

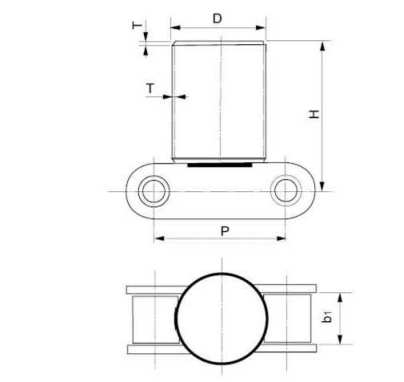

P | D | H | T | b1 | |
chain NO. | mm | mm | mm | mm | mm |
81XH | 66.27 | 48 | 114.3 | 2 | 23.02 |
81XHH | 66.27 | 48 | 114.3 | 2 | 23.02 |
Check dimensions b1 of inner width of inner link after welding.
