Short Pitch Conveyor Chain Attachments

Short Pitch Conveyor Chain Attachments

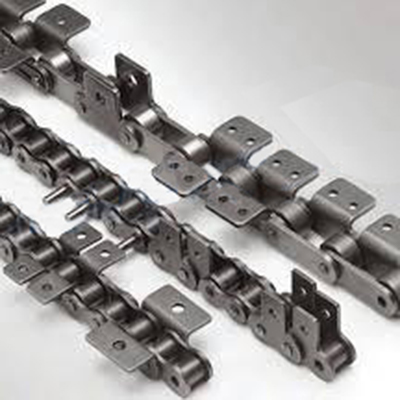

Short Pitch Conveyor Chain Attachments may be adapted to conveying applications by the addition of attachments. The standard attachment types include bent or straight-type attachments on one or both sides, extended pins, and wide contour attachments.Standard Roller Chain Attachment: A1, A2, K1, K2, SA1, SA2, SK1, SK2, WA1, WA2, WK1, WK2, D1, D5, GK1.The purpose of using roller chain attachments is to offer a wider range of capabilities for your roller chains. We offer a lot of attachments that can be used with roller chains that are specific to certain special functions. When you couple attachments with roller chains, you’ll find that your roller chains are even more capable of moving heavy equipment while remaining cost-effective, reliable, and sturdy.

Roller Chain Attachment Types

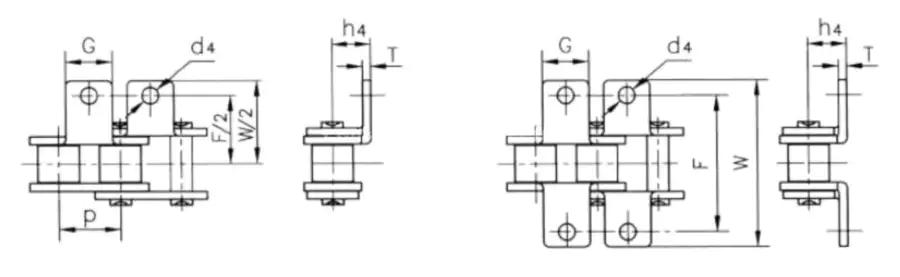

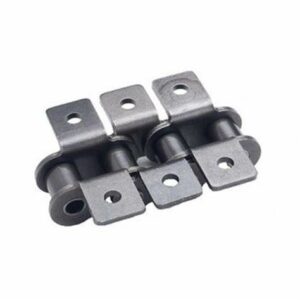

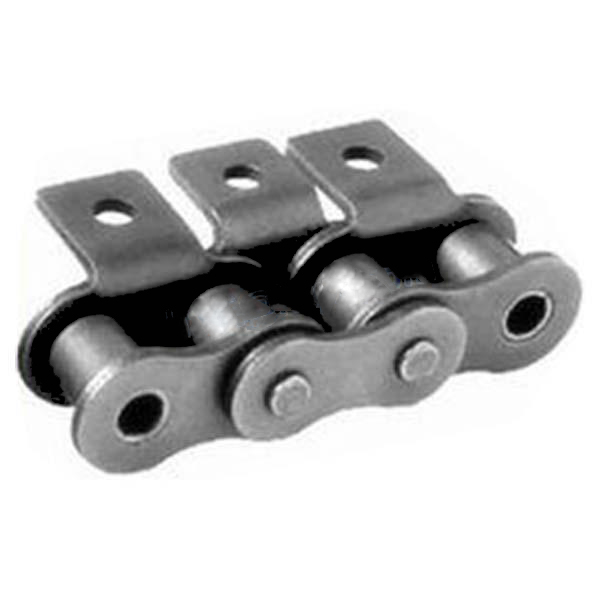

(1) Roller Chain with A-1 K-1 Attachment
A-1	K-1

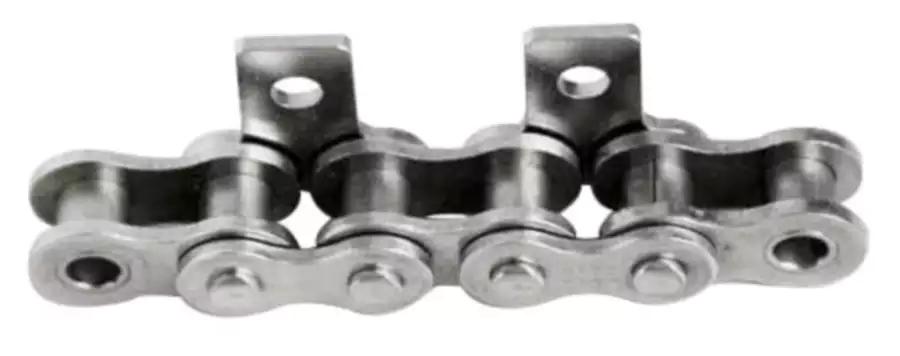

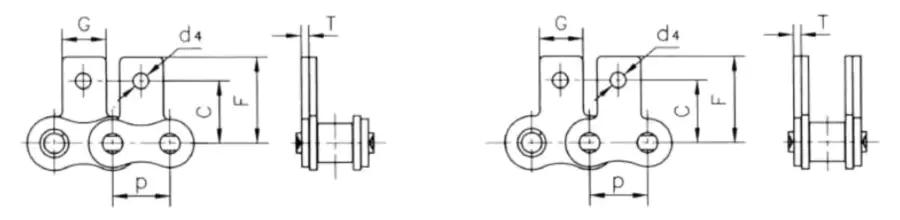

(2) Roller Chain with SA Attachment

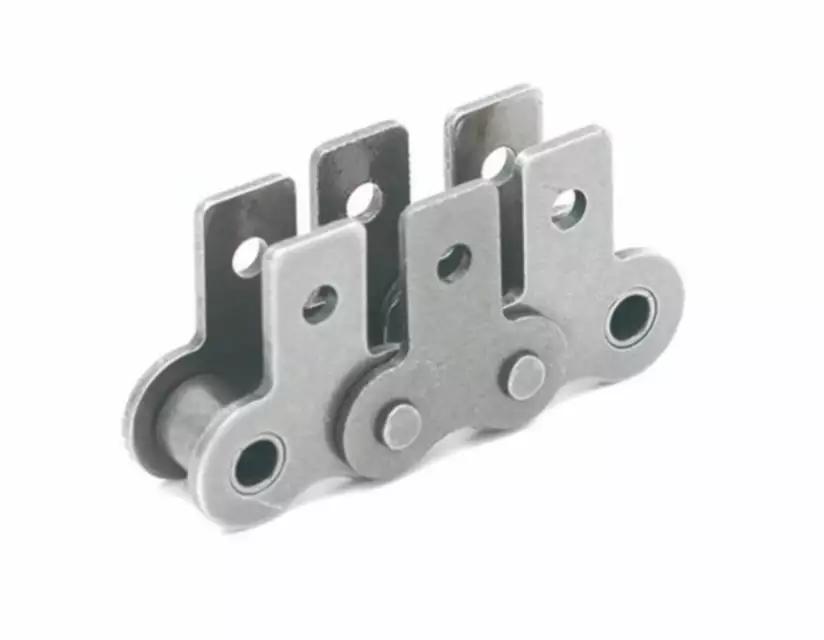

SA-1/M1(One Side)	SK-1/M1(Two SIde)

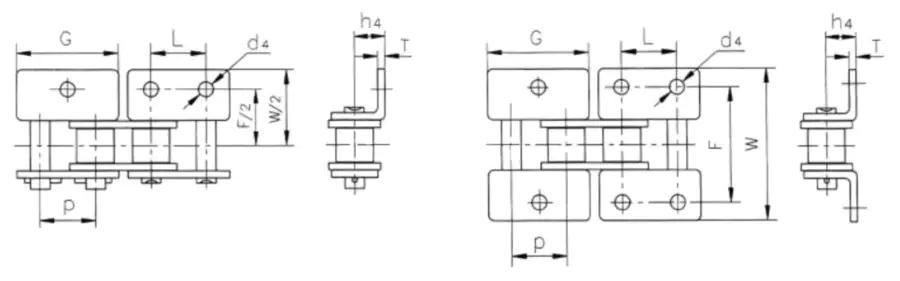

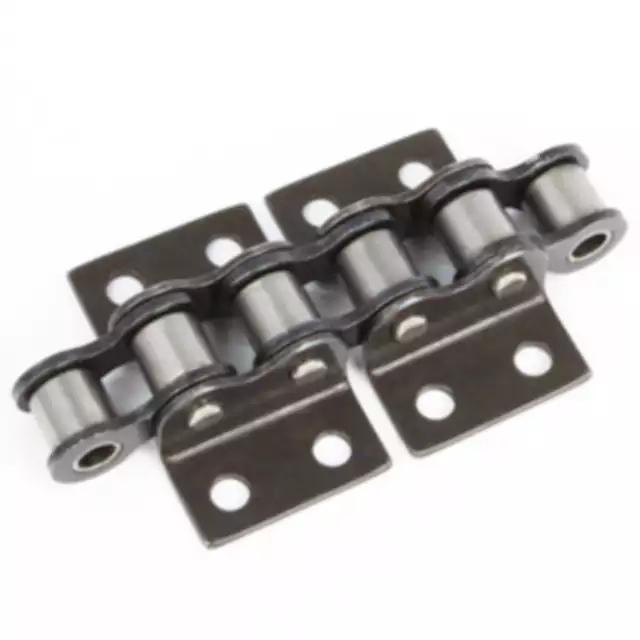

(3) Roller Chain with WA WK Attachment
WA-1	WK-1

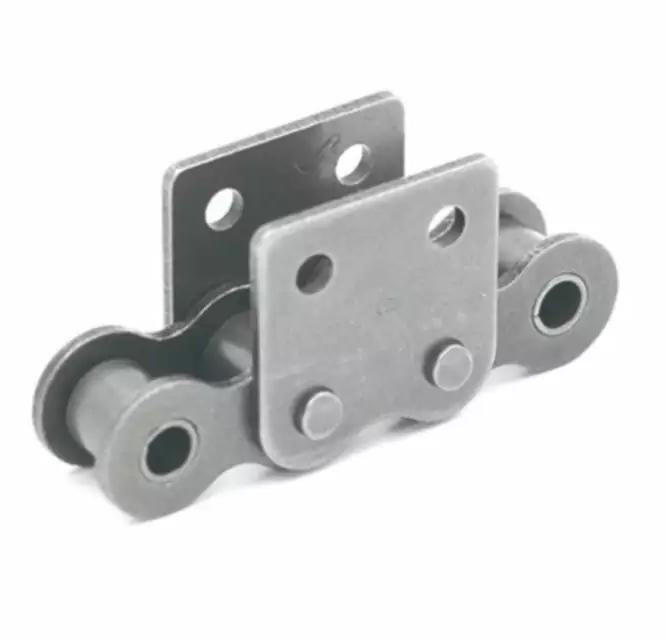

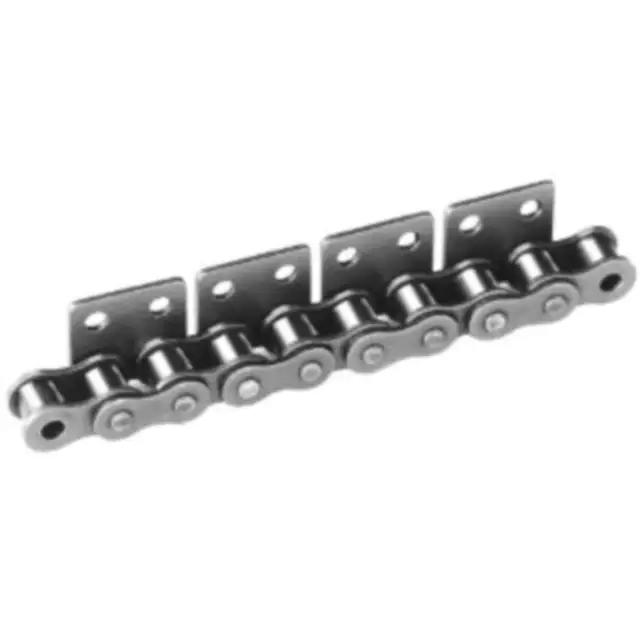

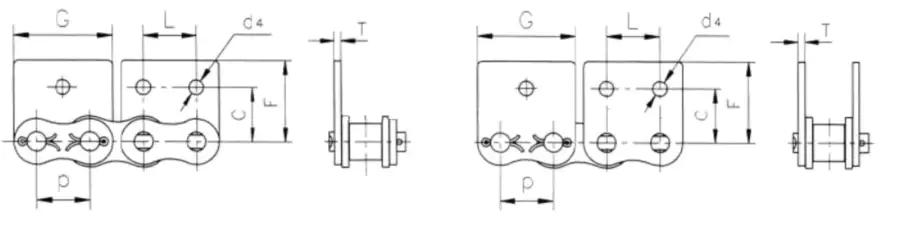

(4) Roller Chain with WSA WSK Attachment
WSA-1	WSK-1

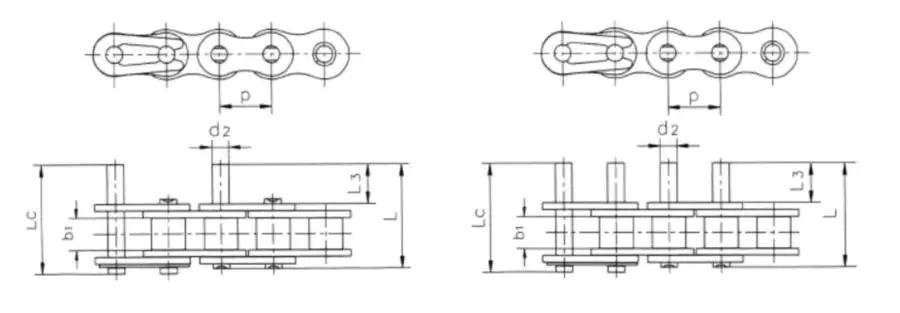

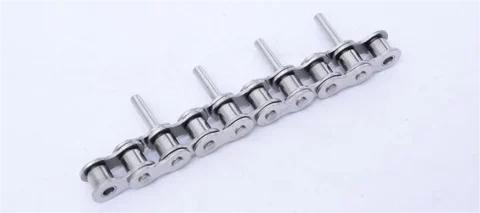

(5) Roller Chain with D-1 Attachment

Roller Chain Attachments Features

• A1/A2, K1/K2, SA1/SA2, and SK1/SK2 style attachments
• Heat-treated and shot-peened components
• Solid bushings and rollers for carbon steel
• Stainless steel / Carbon steel with a corrosion-resistant coating is available.
• Matched and tagged available
• Custom design attachments at request

What is Roller Chain Pitch?

The size of a chain is determined by three measurements: pitch, gauge and drive link count. Roller chain pitch is the distance between three rivets divided by two. Gauge is the thickness of the drive links where they connect to form a loop. Drive link count refers to how many drive links are in a chain loop. The drive sprocket must be the same pitch as the chain, and if applicable, the bar nose sprocket must also match.

How Do You Attach a Roller Chain?

For starters, you’re going to need an angle grinder, either a chain or punch screw, chain vise and either a level, straight edge or laser alignment piece of equipment. For the first step, you’ll take the riveted part of the two pins and grind them with the grinder, removing any cotter pins if you have to. Then, make sure the chain is secure in the vise. Use the secondary and primary punches and remove one of the pin sets. For step three, check both the parallel shaft and sprocket axial alignments using either the level, straight edge or laser tool. A misaligned chain will hold uneven loads across its width, resulting in uneven wear on roller link plates and sprockets. Sprockets should be placed as close as possible to bearings. Then you’ll install both chain ends to the sprocket and link them together and fasten them with cotters or a spring clip (you might need some help to support the chain).

Common Applications For Attachment Roller Chain

1. Round bottom drag conveyors
2. Combines
3. Bakery equipment
4. Lumber Conveyors
5. Printing & Labeling Machines
6. Automation equipment
7. Car manufacturing assembly lines
8. PPE manufacturing equipment

Related Products

Automobile chains	Drive chains	Conveyor chains
Engineering chains	Traction chains	Agricultural machinery chains
Stainless steel chains	Escalator chains	Chain wheel

We Also Provide Sprockets to Match Your Roller Chains

Agricultural Sprockets	Cast iron sprockets	Conveyor sprockets	Double pitch sprockets
Finished bore sprocket	Idler sprockets	QD sprocket	Plastic Sprockets
Plate wheel sprockets	Steel Sprockets	Welded steel chain sprockets	Specialty Sprockets

Packaging Display of Roller Chains

Our chain is most commonly supplied in 10ft boxes, including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability, please contact us at any time.

Production Workshop of Roller Chains

Our company is an industry-leading, reliable and outstanding roller chain supplier that aims to provide high-quality products at more competitive prices and better service. We have a full line of premium quality stainless steel roller chain attachments in stock. We have ANSI #25 – #80 attachments, double-pitch stainless steel roller chain attachments, and metric roller chain attachments. Typically we stock these attachments in 304-grade stainless steel, but 316-grade is available upon request. We can also supply stainless steel roller chains with stainless steel attachments already assembled onto the chain; just allow a few days for assembly. To get a quote or for more information, please contact us, and we will be happy to assist you.
