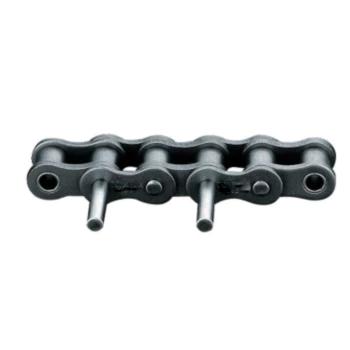

Short Pitch Conveyor Chains with Extended Pins

Short pitch conveyor chains with extended pins are made from stainless steel and are used in various industrial sectors. This type of chain is suitable for both hot and cold temperature environments and has high corrosion resistance. They have an extended life cycle and are ideal for conveying various products. They have an average plate thickness and a thicker roller than the standard ones.

Description

Short Pitch Conveyor Chains with Extended Pins

Short pitch conveyor chains with extended pins are making from stainless steel and are used in various industrial sectors. This type of chain is suitable for both hot and cold temperature environments and has high corrosion resistance. They have an extended life cycle and are ideal for conveying various products. They have an average plate thickness and a thicker roller than the standard ones.

Dimensions of Short Pitch Conveyor Chains with Extended Pins

DIN/ISO Chain No.	ANSI Chian No.	P	b₁	d₂	L₃	L	Lc
DIN/ISO Chain No.	ANSI Chian No.	mm	mm	mm	mm	mm	mm
06C	35	9.525	4.77	3.58	9.5	20.8	21.6
08A	40	12.700	7.85	3.96	9.5	25.1	26.2
10A	50	15.875	9.40	5.08	11.9	31.3	33.1
12A	60	19.050	12.57	5.94	14.3	38.6	40.6
16A	80	25.400	15.75	7.92	19.1	50.3	53.3
20A	100	31.750	18.90	9.53	23.8	61.8	66.1
24A	120	38.100	25.22	11.10	28.6	76.4	80.4
28A	140	44.450	25.22	12.70	33.3	84.8	89.4
32A	160	50.800	31.55	14.27	38.1	99.6	104.4
08B		12.700	7.75	4.45	9.5	25.1	26.6
10B		15.875	9.65	5.08	11.9	30.1	31.5
12B		19.050	11.68	5.72	14.3	35.4	37.1
16B		25.400	17.02	8.28	19.1	53.0	54.3
20B		31.750	19.56	10.19	41.0	79.9	83.6
24B		38.100	25.40	14.63	50.7	101.4	105.8
28B		44.450	30.99	15.90	61.9	124.0	128.4
32B		50.800	30.99	17.81	64.8	126.8	131.8

Chains and Sprockets

Chains and sprockets are mainly working in all applications such as transportation, machinery and other motor applications.
Maintained with grease and oil spray to provide smoother and better operation.
It makes the wheels run as the motor rotates and is considering as Rotation Per Minute (RPM).

Chains and sprockets are mainly used in the transport industry and machine building industry to rotate wheels by means of motors or engines. These chains and sprockets both help the wheelbase to run fast according to the engine speed. The chain hangs between the motor and the sprocket, the motor turns the sprocket and the chain is connected to the sprocket teeth, which can turn simultaneously with the motor wheel, thus making the vehicle or machine run smoothly. We’re one of the leading manufacturers and suppliers in China. We can offer various high-quality chains and sprockets for sale. Contact now!

Agricultural Sprockets	Cast iron sprockets	Conveyor sprockets	Double pitch sprockets

Finished bore sprocket	Idler sprockets	QD sprocket	Plastic Sprockets

Plate wheel sprockets	Steel Sprockets	Welded steel chain sprockets	Specialty Sprockets

Packaging of Short Pitch Conveyor Chains

Our chain is most commonly packing in 10ft boxes, including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability, please contact us at any time.
