Short Pitch Precision Stainless Steel Roller Chains (A Series)
Short Pitch Precision Roller chains are known for their high strength and long-lasting fatigue durability. Dimensions fully comply with BS standards. It can be assembled into single row, double row, and multi-row, suitable for transmission power and different configuration space. According to the different working environments, there are different chains with zinc plating, nickel plating, chromium plating, and Dacromet treatment. Short pitch precision roller chain (Short Pitch Precision chains a series) ANSI standard short pitch power transmission roller chain is the most popular chain in driving, transmission deceleration, tensioning, shuttle traction, and other applications. ANSI standard roller chains are made of high-quality steel in accordance with ISO 606A, ANSI b29.1m, and DIN 8188, combined with the latest manufacturing technology. We can provide single strand, multi-strand, and three-strand, riveted, or split products with spacing dimensions of 6.35 to 76.2 mm(Short Pitch Precision chains).

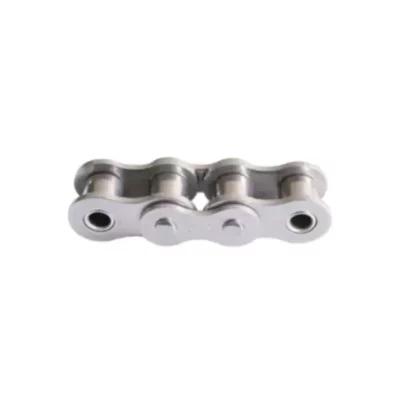

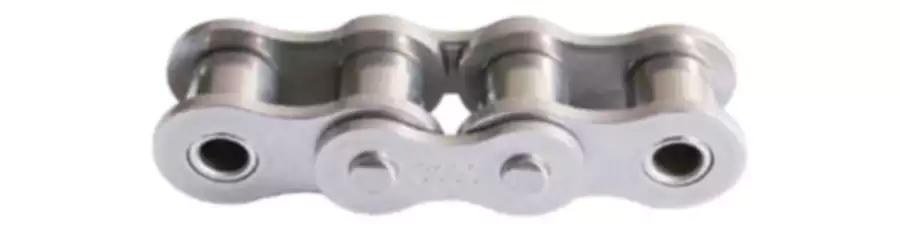

Simplex Stainless Steel Roller Chain
 |
 |
| simplex Stainless Steel Roller Chains& bushing chains | ||||||||||||
| DIN ISO | ANSI | pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | T(max) | Q(min) | Q0 | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | ||
| *04CSS-1 | *25SS | 6.35 | 3.3 | 3.18 | 2.31 | 7.9 | 8.4 | 6 | 0.8 | 2.1 | 2.76 | 0.15 |
| *06CSS-1 | *35SS | 9.525 | 5.08 | 4.77 | 3.58 | 12.4 | 13.17 | 9 | 1.3 | 4.74 | 6.48 | 0.33 |
| 085SS-1 | 41SS | 12.7 | 7.77 | 6.25 | 3.58 | 13.75 | 15 | 9.91 | 1.3 | 4 | 7.56 | 0.41 |
| 08ASS-1 | 40SS | 12.7 | 7.95 | 7.85 | 3.96 | 16.6 | 17.8 | 12 | 1.5 | 8.46 | 10.5 | 0.62 |
| 10ASS-1 | 50SS | 15.875 | 10.16 | 9.4 | 5.08 | 20.7 | 22.2 | 15.09 | 2.03 | 13.32 | 17.64 | 1.02 |
| 12ASS-1 | 60SS | 19.05 | 11.91 | 12.57 | 5.94 | 25.9 | 27.7 | 18 | 2.42 | 19.08 | 49.88 | 1.5 |
| 16ASS-1 | 80SS | 25.4 | 15.88 | 15.75 | 7.92 | 32.7 | 35 | 24 | 3.25 | 34.02 | 41.64 | 2.6 |
| 20ASS-1 | 100SS | 31.75 | 19.05 | 18.9 | 9.53 | 40.4 | 44.7 | 30 | 4 | 53.1 | 65.52 | 3.91 |
| 24ASS-1 | 120SS | 38.1 | 22.23 | 25.22 | 11.1 | 50.3 | 54.3 | 35.7 | 4.8 | 76.2 | 93.78 | 5.62 |
| 28ASS-1 | 140SS | 44.45 | 25.4 | 25.22 | 12.7 | 54.4 | 59 | 41 | 5.6 | 103.44 | 127.2 | 7.5 |
| 32ASS-1 | 160SS | 50.8 | 28.58 | 31.55 | 14.27 | 64.8 | 69.6 | 47.8 | 6.4 | 136.08 | 167.34 | 10.1 |
| 36ASS-1 | 180SS | 57.15 | 35.71 | 35.48 | 17.46 | 72.8 | 78.6 | 53.6 | 7.2 | 168.12 | 205.08 | 13.456 |
| 40ASS-1 | 200SS | 63.5 | 39.68 | 37.85 | 19.85 | 80.3 | 87.2 | 60 | 8 | 212.28 | 258.96 | 16.15 |
| 48ASS-1 | 240SS | 76.2 | 47.63 | 47.35 | 23.81 | 95.5 | 103 | 72.39 | 9.5 | 306.18 | 373.5 | 23.2 |

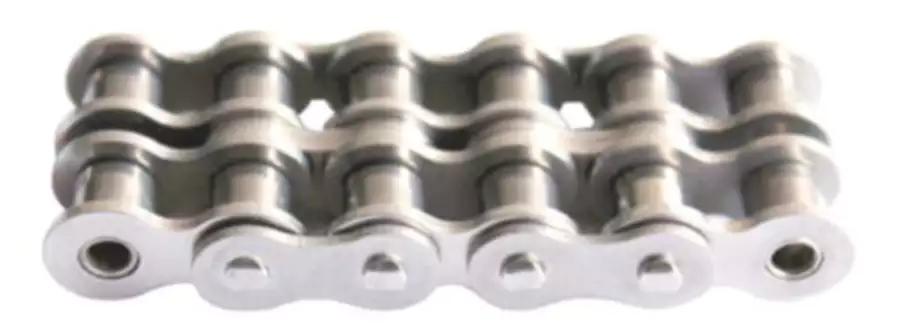

Duplex Stainless Steel Roller Chain
 |
 |

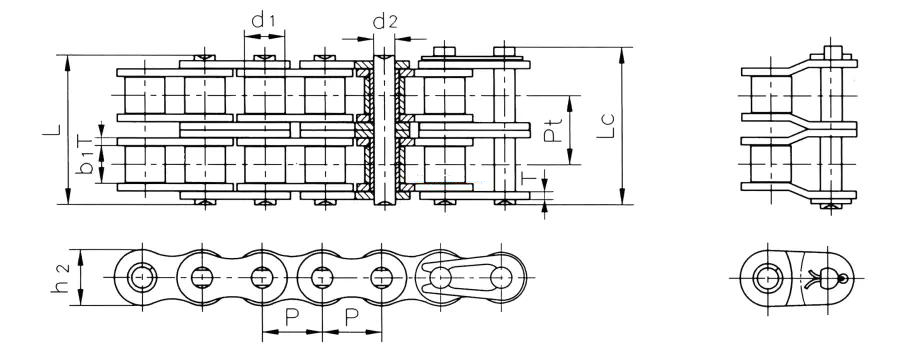

| Duplex Stainless Steel Roller Chains & bushing chains | |||||||||||||
| IDN ISO Chain No. | ANSI Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | T(max) | Pt | Q(min) | Q0 | q | ||
| mm | mm | mm | mm | mmm | mm | mm | mm | mm | kN | kN | kg/m | ||
| *04CSS-2 | *25SS-2 | 6.35 | 3.3 | 3.18 | 2.31 | 14.5 | 15 | 6 | 0.8 | 6.4 | 4.2 | 5.16 | 0.28 |
| *06CSS-2 | *35SS-2 | 9.525 | 5.08 | 4.77 | 3.58 | 22.5 | 23.3 | 9 | 1.3 | 10.13 | 9.48 | 11.82 | 0.63 |
| 085SS-2 | 41SS-2 | 12.7 | 7.77 | 6.25 | 3.58 | 25.7 | 26.9 | 9.91 | 1.3 | 11.95 | 8 | 10.14 | 0.81 |
| 08ASS-2 | 40SS-2 | 12.7 | 7.95 | 7.85 | 3.96 | 31 | 32.2 | 12 | 1.5 | 14.38 | 16.92 | 21.54 | 1.12 |
| 10ASS-2 | 50SS-2 | 15.875 | 10.16 | 9.4 | 5.08 | 38.9 | 40.4 | 15.09 | 2.03 | 18.11 | 26.46 | 34.86 | 2 |
| 12ASS-2 | 60SS-2 | 19.05 | 11.91 | 12.57 | 5.94 | 48.8 | 50.5 | 18 | 2.42 | 22.78 | 38.16 | 49.26 | 2.92 |
| 16ASS-2 | 80SS-2 | 25.4 | 15.88 | 15.75 | 7.92 | 62.7 | 64.3 | 24 | 3.25 | 29.29 | 68.04 | 85.08 | 5.15 |
| 20ASS-2 | 100SS-2 | 31.75 | 19.05 | 18.9 | 9.53 | 76.4 | 80.5 | 30 | 4 | 35.76 | 106.2 | 131.64 | 7.8 |
| 24ASS-2 | 120SS-2 | 38.1 | 22.23 | 25.22 | 11.1 | 95.8 | 99.7 | 35.7 | 4.8 | 45.44 | 152.4 | 188.94 | 11.7 |
| 28ASS-2 | 140SS-2 | 44.45 | 25.4 | 25.22 | 12.7 | 103.3 | 107.9 | 41 | 5.6 | 48.87 | 206.88 | 256.5 | 15.14 |
| 32ASS-2 | 160SS-2 | 50.8 | 28.58 | 31.55 | 14.27 | 123.3 | 128.1 | 47.8 | 6.4 | 58.55 | 272.16 | 337.44 | 20.14 |
| 36ASS-2 | 180SS-2 | 57.15 | 35.71 | 35.48 | 17.46 | 138.6 | 144.4 | 53.6 | 7.2 | 65.84 | 336.3 | 417 | 29.22 |
| 40ASS-2 | 200SS-2 | 63.5 | 39.68 | 37.85 | 19.85 | 151.9 | 158.8 | 60 | 8 | 71.55 | 424.56 | 526.44 | 32.24 |
| 48ASS-2 | 240SS-2 | 76.2 | 47.63 | 47.35 | 23.81 | 183.4 | 190.8 | 72.39 | 9.5 | 87.83 | 612.36 | 753.18 | 45.23 |

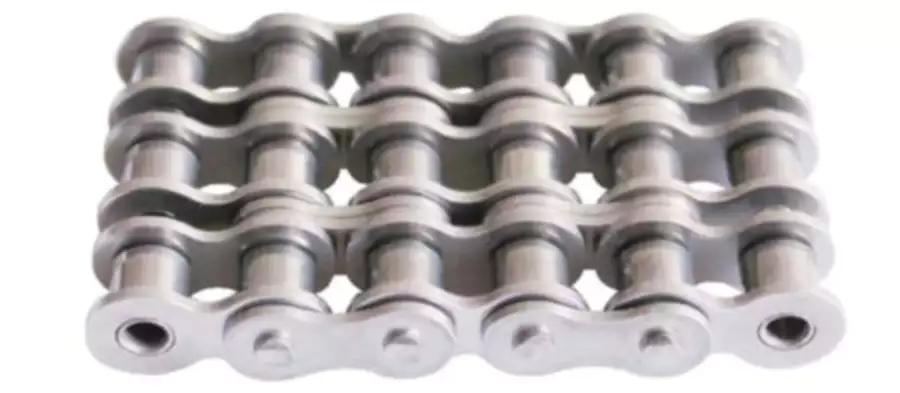

Triplex Stainless Steel Roller Chain
 |
 |
| Triplex Stainless Steel Roller Chains & bushing chains (Short Pitch Precision chains) | |||||||||||||
| DIN ISO Chain No. | ANSI Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | T(max) | Pt | Q(min) | Q0 | q | ||
| mm | mm | mm | mm | mmm | mm | mm | mm | mm | kN | kN | kg/m | ||
| *04CSS-3 | *25SS-3 | 6.35 | 3.3 | 3.18 | 2.31 | 21 | 21.5 | 6 | 0.8 | 6.4 | 6.3 | 7.56 | 0.44 |
| *06CSS-3 | *35SS-3 | 9.525 | 5.08 | 4.77 | 3.58 | 32.7 | 33.5 | 9 | 1.3 | 10.13 | 14.22 | 17.16 | 1.05 |
| 08ASS-3 | 40SS-3 | 12.7 | 7.95 | 7.85 | 3.96 | 45.4 | 46.6 | 12 | 1.5 | 14.38 | 25.38 | 30 | 1.9 |
| 10ASS-3 | 50SS-3 | 15.875 | 10.16 | 9.4 | 5.08 | 57 | 58.5 | 15.09 | 2.03 | 18.11 | 39.96 | 46.68 | 3.09 |
| 12ASS-3 | 60SS-3 | 19.05 | 11.91 | 12.57 | 5.94 | 71.5 | 73.3 | 18 | 2.42 | 22.78 | 57.24 | 66.66 | 4.54 |
| 16ASS-3 | 80SS-3 | 25.4 | 15.88 | 15.75 | 7.92 | 91.7 | 93.6 | 24 | 3.25 | 29.29 | 102.06 | 119.04 | 7.89 |
| 20ASS-3 | 100SS-3 | 31.75 | 19.05 | 18.9 | 9.53 | 112.2 | 116.3 | 30 | 4 | 35.76 | 159.3 | 185.76 | 11.77 |
| 24ASS-3 | 120SS-3 | 38.1 | 22.23 | 25.22 | 11.1 | 141.4 | 145.2 | 35.7 | 4.8 | 45.44 | 228.6 | 262.32 | 17.53 |
| 28ASS-3 | 140SS-3 | 44.45 | 25.4 | 25.22 | 12.7 | 152.2 | 156.8 | 41 | 5.6 | 48.87 | 342.72 | 355.98 | 22.2 |
| 32ASS-3 | 160SS-3 | 50.8 | 28.58 | 31.55 | 14.27 | 181.8 | 186.6 | 47.8 | 6.4 | 58.55 | 408.24 | 468.36 | 30.02 |
| 36ASS-3 | 180SS-3 | 57.15 | 35.71 | 35.48 | 17.46 | 204.4 | 210.2 | 53.6 | 7.2 | 65.84 | 504.42 | 590.16 | 38.22 |
| 40ASS-3 | 200SS-3 | 63.5 | 39.68 | 37.85 | 19.85 | 223.5 | 230.4 | 60 | 8 | 71.55 | 636.84 | 730.68 | 49.03 |
| 48ASS-3 | 240SS-3 | 76.2 | 47.63 | 47.35 | 23.81 | 271.3 | 278.6 | 72.39 | 9.5 | 87.83 | 918.54 | 1053.9 | 71.6 |
