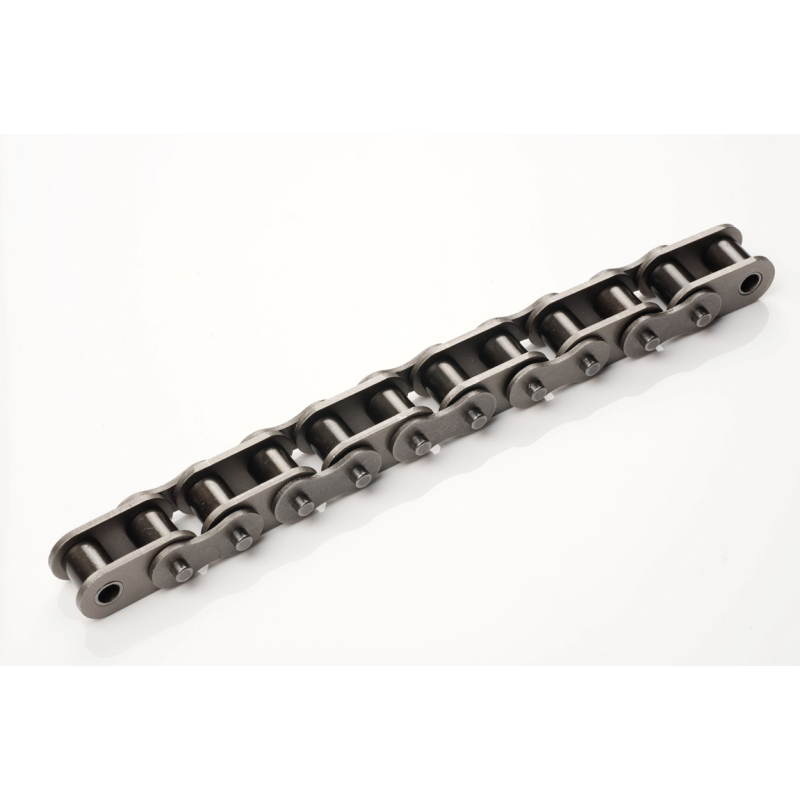

side bow chain
Curved conveyors often endure frequent failures. side bow chains can help keep them up and running longer, for less. Featuring a flexible design that allows them to bend, twist and convey product in multiple directions, side bow chains can help you upgrade chain service life and functionality in one step. Return on investment is often quick, with potential payback in as little as two weeks.

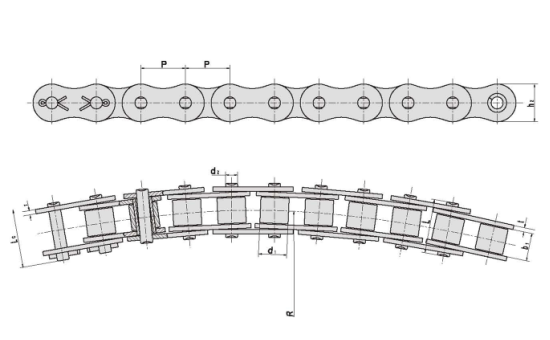

Dimensional parameters
Pitch | Roller diameter | Width between inner plates | Pin diameter |
Pin length | Inner plate depth | Plate thickness | Radius side bow | Ultimate tensile strength | Average tensile strength | Weight per meter | ||
P | d1 | b1 | d2 | L | Lc | h2 | t/T | R | Q | Qo | q | |
Chain | max | min | max | max | max | max | max | min | min | |||
No. | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m |
40SB | 12.70 | 7.95 | 7.85 | 3.96 | 16.7 | 17.75 | 12.0 | 1.5 | 315 | 9.0 | 9.9 | 0.80 |
43SB | 12.70 | 7.95 | 7.85 | 3.45 | 18.3 | 19.5 | 12.0 | 1.5 | 305 | 12.0 | 13.2 | 0.57 |
5OSB | 15.875 | 10.16 | 9.40 | 4.37 | 21.0 | 22.2 | 15.0 | 2.03 | 400 | 15.0 | 16.5 | 0.98 |
60SB | 19.05 | 11.91 | 12.57 | 5.34 | 26.0 | 27.5 | 18.0 | 2.42 | 500 | 22.4 | 24.6 | 1.47 |
63SB | 19.05 | 11.91 | 12.68 | 5.08 | 28.8 | 30.6 | 17.2 | 2.42/2.03 | 350 | 12.5 | 20.0 | 1.40 |
MSB | 25.40 | 15.88 | 15.75 | 7.19 | 33.5 | 35.6 | 24.1 | 3.25 | 650 | 40.9 | 42.0 | 2.40 |
08BSB | 12.70 | 8.51 | 7.75 | 3.97 | 17.4 | 18.7 | 11.8 | 1.6 | 400 | 11.2 | 12.3 | 0.71 |
08BSBY1 | 12.70 | 8.51 | 7.75 | 3.97 | 16.3 | 17.6 | 11.8 | 1.6/1.2 | 400 | 12.8 | 14.1 | 0.65 |
10BSB | 15.875 | 10.16 | 9.65 | 4.50 | 20.1 | 21.5 | 14.7 | 1.7 | 400 | 15.0 | 16.5 | 0.93 |
12BSB | 19.05 | 12.07 | 11.68 | 5.12 | 23.1 | 24.8 | 16.0 | 1.85 | 500 | 20.5 | 22.6 | 1.16 |
C2050SB | 31.75 | 10.16 | 9.40 | 5.08 | 21.0 | 22.2 | 15.0 | 2.03 | 750 | 15.0 | 16.5 | 0.70 |
Copper-plated,zinc-plated, nickle-plated and chrome-plated chain, and stainless steel chain.
