Sideflexing Flat-top Chain with Low Noise Accumulation Rollers
Besides automating operations at your workplace, a side flexing chain with low noise accumulation rollers conveyor offers much more perks, including adaptability, higher levels of operations control, and risk reduction. Conveyor machinery is highly adaptable to various processing functions and boasts the flexibility to adjust to multiple material sizes and weights. Also, by minimizing the probability of human error in the movement of materials, a side flexing chain with low noise accumulation rollers conveyor allows you to take higher control of operations at your workplace.
Sideflexing Flat-top Chain with Low Noise Accumulation Rollers
Besides automating operations(Sideflexing Flat-top Chainwith Low Noise Accumulation Rollers) at your workplace, a side flexing chain with low noise accumulation rollers conveyor offers much more perks, including adaptability, higher levels of operations control, and risk reduction. Conveyor machinery is highly adaptable to various processing functions and boasts the flexibility to adjust to multiple material sizes and weights. Also, by minimizing the probability of human error in the movement of materials, a side flexing chain with low noise accumulation rollers conveyor allows you to take higher control of operations at your workplace. As a result, you can focus more on boosting operation efficiency instead of worrying about material damages and human errors. Finally, conveyors help eliminate hazards at your workplace by minimizing lifting heavy and cumbersomely shaped material.

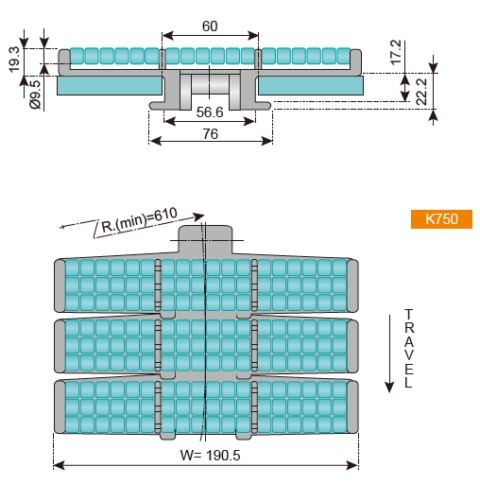

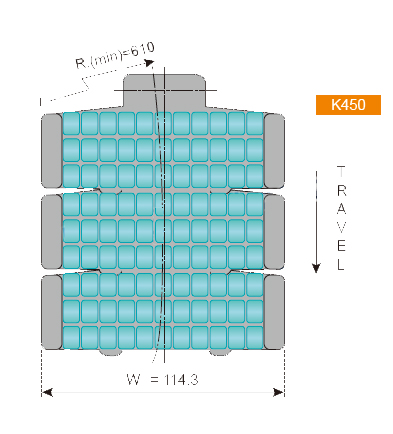

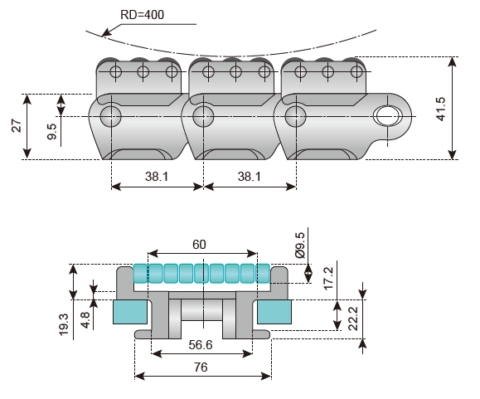

(1) LBP882TAB Sideflexing Flat-top Chain with Low Noise Accumulation Rollers
|
 |
 |
 |
 |
 |
Product Specifications
| Chain No. | Width ( W ) | Weight | |
| mm | inch | kg/m | |

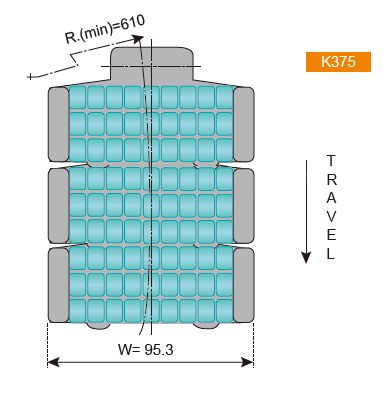

| LBP882TAB – K375 | 95.3 | 3.75 | 3.3 |
| LBP882TAB – K450 | 114.3 | 4.5 | 3.5 |
| LBP882TAB – K600 | 152.4 | 6.0 | 4.0 |
| LBP882TAB – K750 | 190.5 | 7.5 | 4.5 |

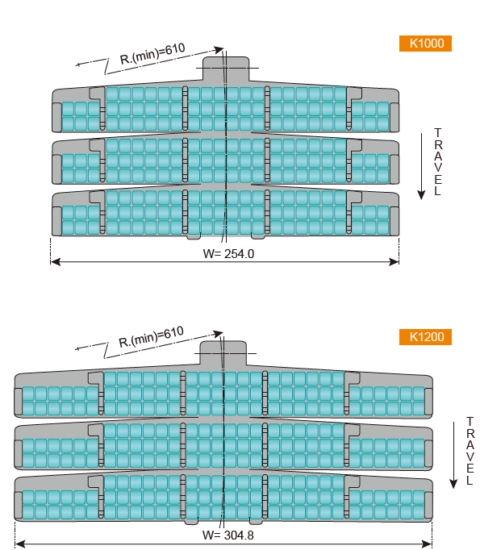

| LBP882TAB – K1000 | 254 | 10 | 5.7 |
| LBP882TAB – K1200 | 304.8 | 12 | 6.3 |

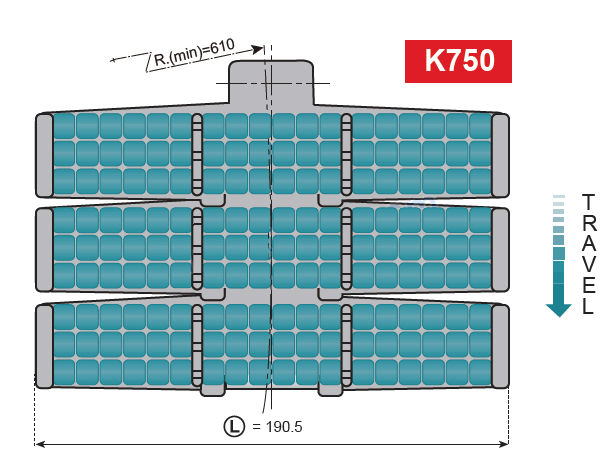

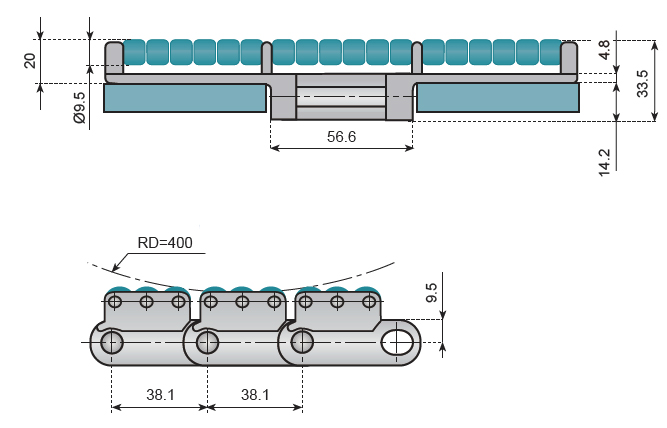

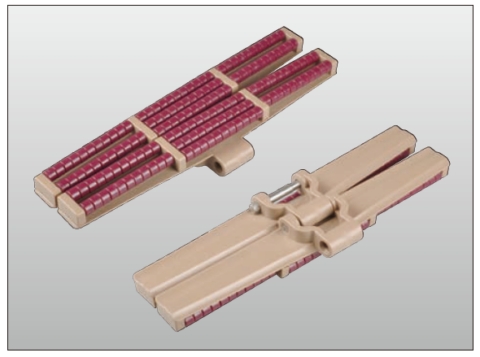

(2) LBP882M Sideflexing Chains for Magnetic System Heavy Duty Single Hinge with Low Noise Accumulation Rollers
 |
 |
 |
 |
 |
Product Specifications
| Chain No. | Width ( W ) | Weight | |
| mm | inch | kg/m | |
| LBP882M – K750 | 190.5 | 7.5 | 4.2 |

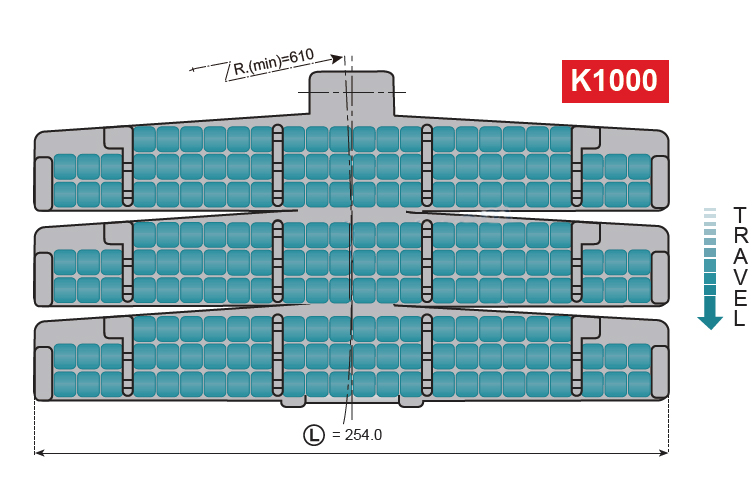

| LBP882M – K1000 | 254.0 | 10 | 5.2 |

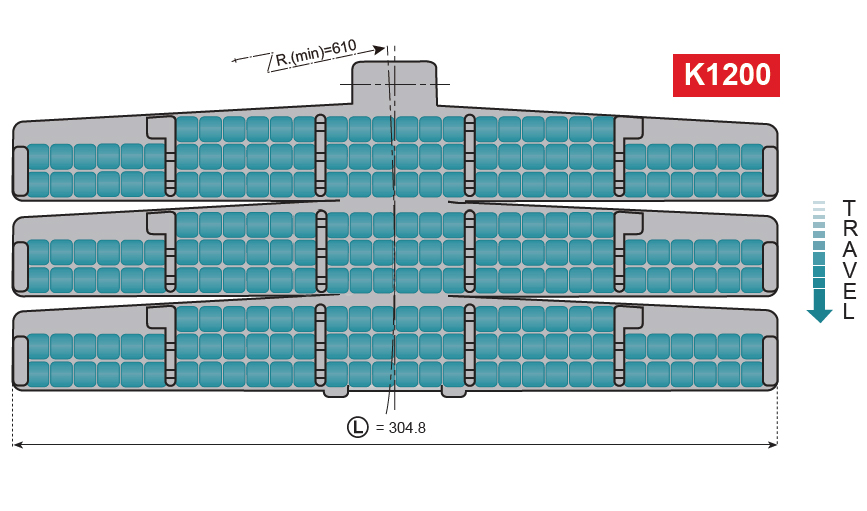

| LBP882M – K1200 | 304.8 | 12 | 5.8 |
Mainly used for all kinds of the food industry, such as beverage, bottle, can and other conveyors wrap packing.
The longest distance: 12M
Working load: 2750N
Pin material: austenitic stainless steel
Plate and rollers material: POM acetal
(Temperature: -40 ~ 90℃)
Packing: 10 feet = 3.048 M/box 26pcs/M

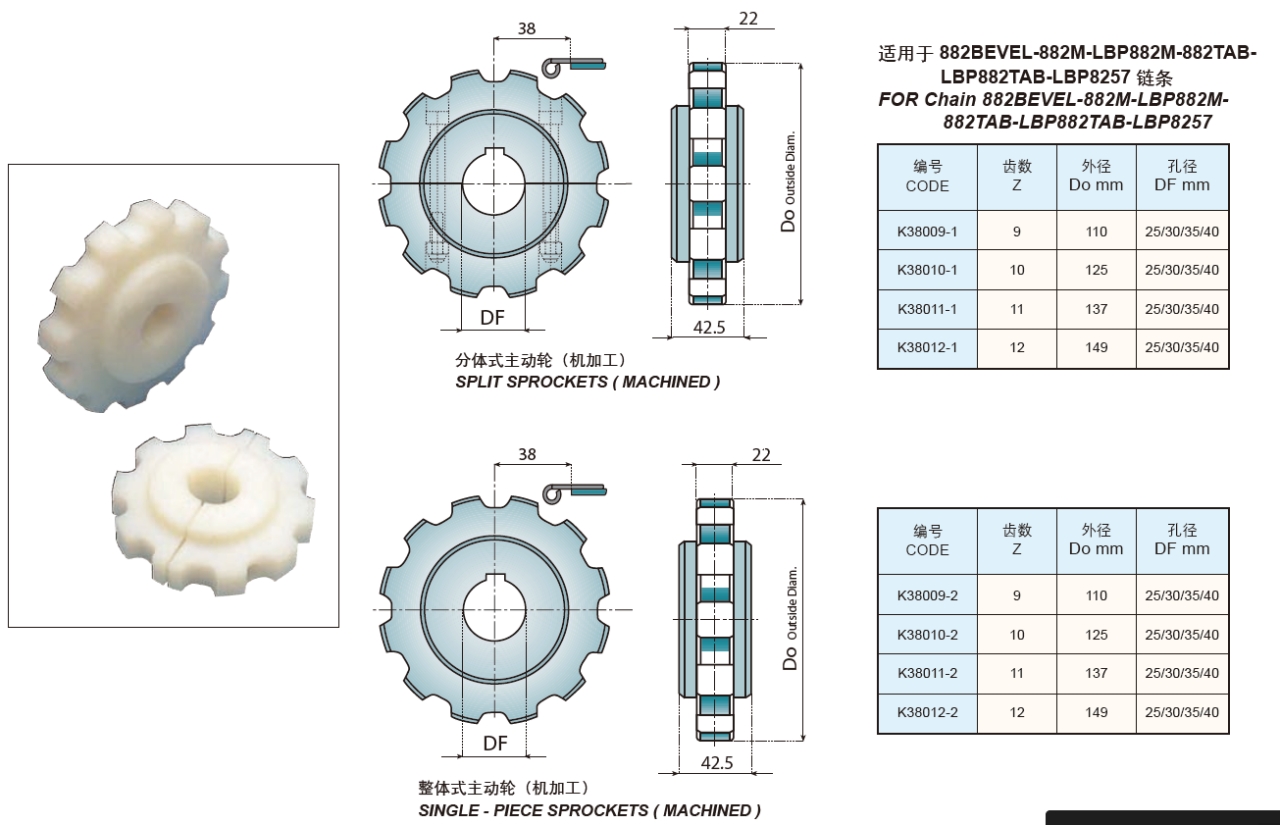

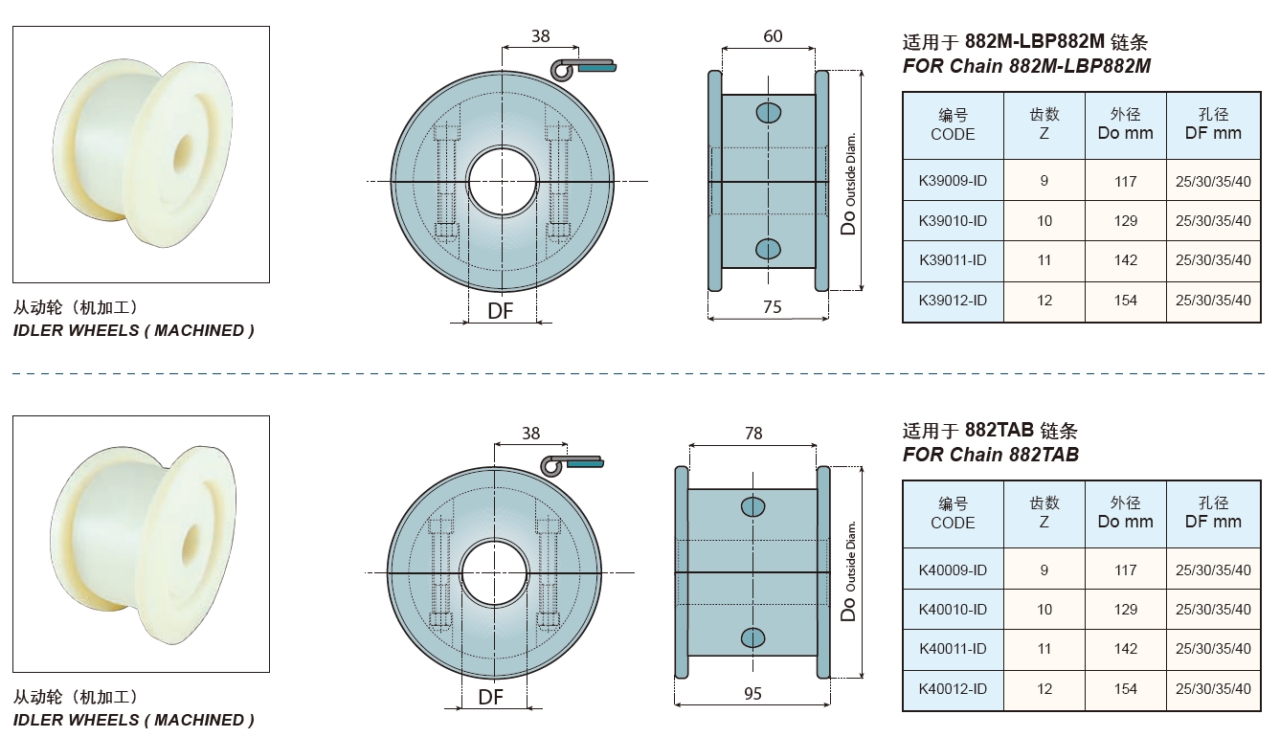

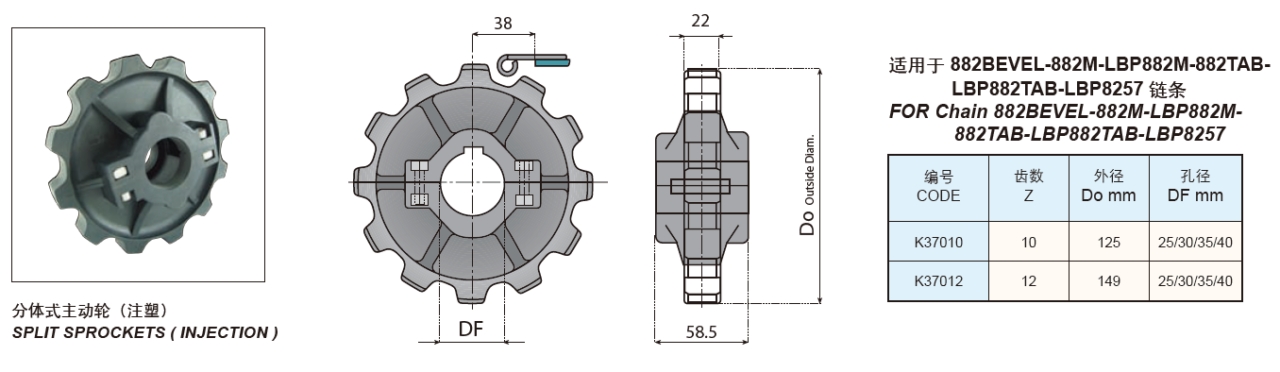

We Can Also Provide Matching sprockets and Idler Wheels.
A drive chain and sprocket drive is a type of power transmission in which a roller chain meshes with two or more gears or sprockets used in an engine as the drive from the crankshaft to the camshaft. Using the right sprocket is just as important as choosing a suitable chain. We offer a wide selection of standard roller chain sprockets at unbeatable prices. Our sprockets are engineered to perform well under pressure and to last.
