Silent chains

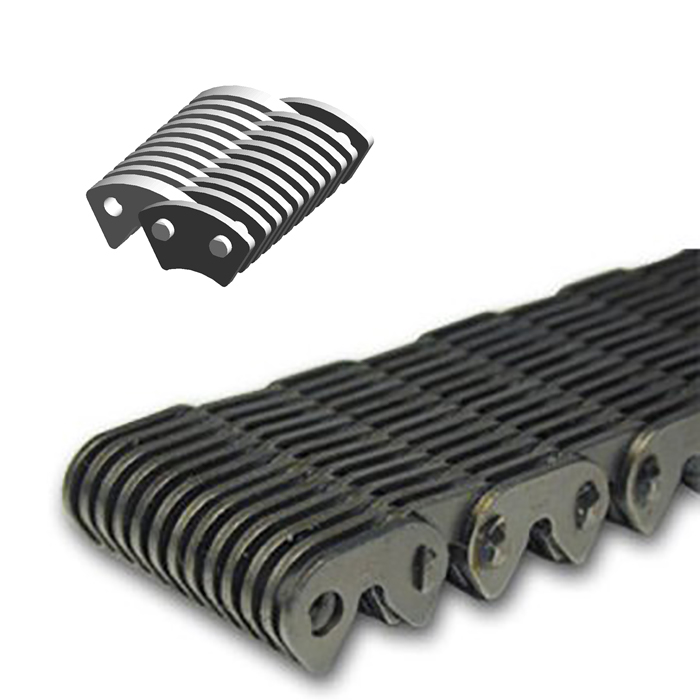

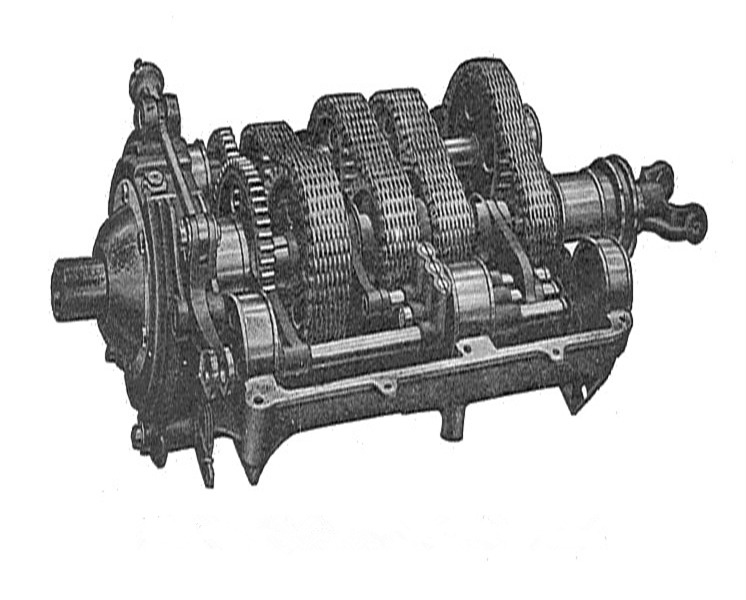

Silent chain is a type of chain with teeth formed on its links to engage with the teeth in the sprockets. It drives not truly silent. The links in a silent chain drive. However, engage with the sprocket teeth with little impact or sliding. And as a result a silent chain produces less vibrations and noise than other chains.
The amount of noise generated by a silent chain drive depends of many factors including sprocket size, speed, lubrication, etc. A link belt silent chain includes removable links joined by rivets or interlocking tabs. These chains offer the advantage of installation without dismantling drive components, reducing inventory, and increasing temperature ranges.

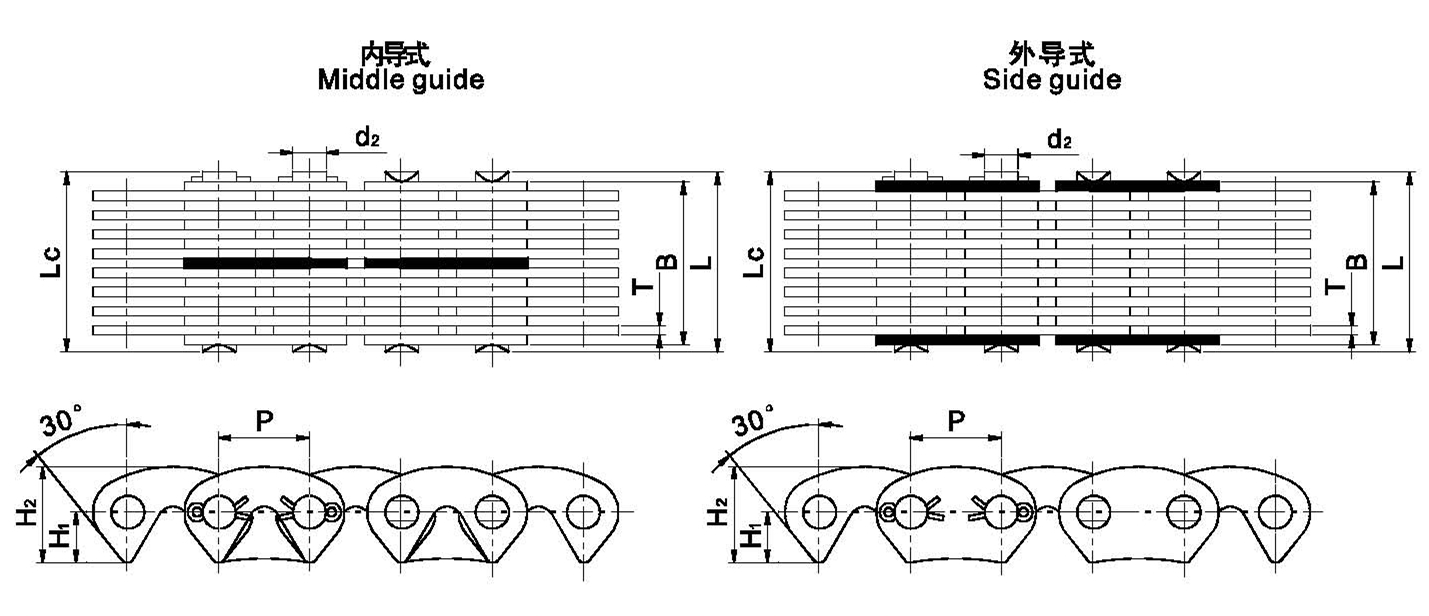

Dimensional parameters
| GB CHAIN NO. | PITCH | WIDTH | PIN DIAMETER | PIN LENGTH | INNER PLATE DEPTH | INNER PLATE DEPTH | GUIDE FORM | NUMBER OF PLATES | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | WEIGHT PER METER | |
| P | B MIN | D2 MAX | L MAX | LC MAX | H1 | H2 MAX | Q | Q0 | Q | |||
| MM | N | KN | KN | KG/M | ||||||||
| CL06 | 9.525 | 13.5 | 3.95 | 18.5 | 20 | 5.3 | 10 | OUTSIDE | 9 | 10 | 11.3 | 0.6 |
| 16.5 | 21.5 | 23 | OUTSIDE | 11 | 12.5 | 14.2 | 0.73 | |||||
| 19.5 | 24.5 | 26 | OUTSIDE | 13 | 15 | 16.9 | 0.85 | |||||
| 22.5 | 27.5 | 29 | OUTSIDE | 15 | 17.5 | 19.6 | 1 | |||||
| 28.5 | 33.5 | 35 | INSIDE | 19 | 22.5 | 25.2 | 1.26 | |||||
| CL08 | 12.7 | 19.5 | 5.08 | 24.5 | 26 | 7 | 13.4 | OUTSIDE | 13 | 23.4 | 26.1 | 1.15 |
| 22.5 | 27.5 | 29 | OUTSIDE | 15 | 27.4 | 30.6 | 1.33 | |||||
| 25.5 | 30.5 | 32 | OUTSIDE | 17 | 31.3 | 35.2 | 1.5 | |||||
| 28.5 | 33.5 | 35 | INSIDE | 19 | 35.2 | 39.4 | 1.68 | |||||
| 34.5 | 39.5 | 41 | INSIDE | 23 | 43 | 48.3 | 2.04 | |||||
| 40.5 | 45.5 | 47 | INSIDE | 27 | 50.8 | 56.9 | 2.39 | |||||
| 46.5 | 51.5 | 53 | INSIDE | 31 | 58.6 | 65.8 | 2.74 | |||||
| 52.5 | 57.5 | 59 | INSIDE | 35 | 66.4 | 74.4 | 3.1 | |||||
| CL10 | 15.875 | 30 | 5.92 | 37 | 38.2 | 8.7 | 16.7 | INSIDE | 15 | 45.6 | 50.6 | 2.21 |
| 38 | 45 | 46.2 | INSIDE | 19 | 58.6 | 65 | 2.8 | |||||
| 46 | 53 | 54.2 | INSIDE | 23 | 71.7 | 79.5 | 3.39 | |||||
| 54 | 61 | 62.4 | INSIDE | 27 | 84.7 | 94.3 | 3.99 | |||||
| 62 | 69 | 70.4 | INSIDE | 31 | 97.7 | 108.4 | 4.58 | |||||
| CL12 | 19.05 | 38 | 6.9 | 45 | 46.5 | 10.5 | 20 | INSIDE | 19 | 70 | 77.4 | 3.37 |
| 46 | 53 | 54.5 | INSIDE | 23 | 86 | 95.4 | 4.08 | |||||
| 54 | 61 | 62.8 | INSIDE | 27 | 102 | 113.3 | 4.78 | |||||
| 62 | 69 | 70.8 | INSIDE | 31 | 117 | 129.8 | 5.5 | |||||
| 70 | 77 | 78.8 | INSIDE | 35 | 133 | 147.8 | 6.2 | |||||
| CL16 | 25.4 | 45 | 8.9 | 52 | 53.5 | 14 | 26.7 | INSIDE | 15 | 111 | 123.3 | 5.31 |
| 51 | 58 | 59.5 | INSIDE | 17 | 125 | 138.7 | 6.02 | |||||
| 57 | 64 | 65.5 | INSIDE | 19 | 141 | 156.6 | 6.37 | |||||
| 69 | 76.2 | 77.7 | INSIDE | 23 | 172 | 190.8 | 8.15 | |||||
| 81 | 88.2 | 89.7 | INSIDE | 27 | 203 | 225.3 | 9.57 | |||||
| 93 | 100.2 | 101.7 | INSIDE | 31 | 235 | 260.9 | 10.98 | |||||
| CL20 | 31.75 | 57 | 10.84 | 66.6 | 69.6 | 17.5 | 33.4 | INSIDE | 19 | 165 | 183.1 | 8.42 |
| 69 | 78.6 | 81.6 | INSIDE | 23 | 201 | 223.2 | 10.19 | |||||
| 81 | 90.6 | 93.6 | INSIDE | 27 | 237 | 263.2 | 11.96 | |||||
| 93 | 102.6 | 105.6 | INSIDE | 31 | 273 | 303.3 | 13.73 | |||||
| 105 | 114.6 | 117.6 | INSIDE | 35 | 310 | 341 | 15.5 | |||||
| 117 | 126.6 | 129.6 | INSIDE | 39 | 346.0 | 380.6 | 17.27 | |||||
