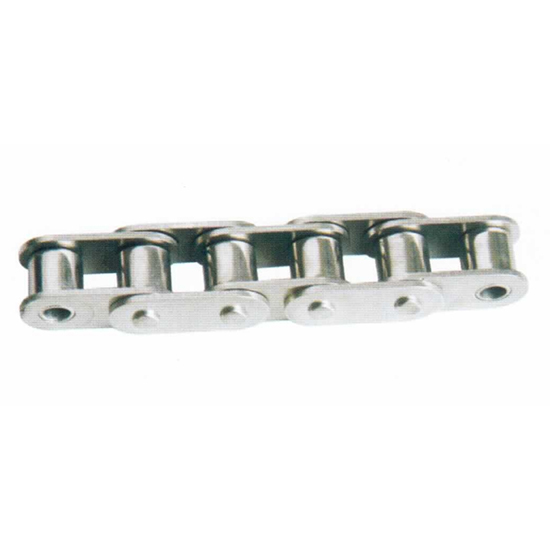

Simplex roller chain C40SS1 C50SS1 C60SS1 C80SS1 C100SS1 C120SS1 C08BSS1 C10BSS1 C12BSS1 C16BSS1 C20BSS1 C24BSS1
Simplex roller chain C40SS1 C50SS1 C60SS1 C80SS1 C100SS1 C120SS1 C08BSS1 C10BSS1 C12BSS1 C16BSS1 C20BSS1 C24BSS1
Using a chain that delivers a longer wear life can indeed help reduce CO2 emissions indirectly. By extending the lifespan of the chain, you decrease the frequency of replacements and the resources needed for manufacturing, transportation, and disposal of new chains. This can lead to a reduction in the overall environmental impact associated with the chain’s lifecycle. Additionally, longer-lasting chains often result in improved efficiency and less downtime, contributing to overall energy savings in machinery operations.

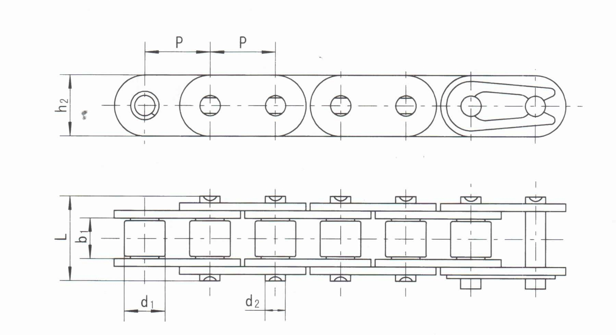

Diameter Data
| Pitch | Roller diameter | Width between inner plates | Pin | Inner plate depth | Ultimate
tensile strength |
Average
tensile strength |
Weight Per meter | ||
| Chain | dia | length | |||||||
| No. | P
mm |
d1(max)
mm |
b1(min)
mm |
d2
mm |
L
mm |
h2(max)
mm |
Q(min)
KN |
Qo
KN |
q
kg/m |
| C40SS-1 | 12.7 | 7.95 | 7.85 | 3.96 | 16.6 | 12 | 9.8 | 12 | 0.72 |
| C50SS-1 | 15.875 | 10.16 | 9.40 | 5.08 | 20.5 | 15 | 16.2 | 21.3 | 1.22 |
| C60SS-1 | 19.05 | 11.91 | 12.57 | 5.94 | 25.3 | 18 | 21 | 25.3 | 1.80 |
| C80SS-1 | 25.4 | 15.88 | 15.75 | 7.92 | 32.7 | 24 | 36 | 45.7 | 3.10 |
| C100SS-1 | 31.75 | 19.05 | 18.9 | 9.53 | 39.8 | 30.18 | 58.9 | 66.6 | 4.55 |
| C120SS-1 | 38.1 | 22.23 | 25.22 | 11.1 | 50.3 | 35.7 | 92.8 | 98.3 | 6.87 |
| C08BSS-1 | 12.7 | 8.51 | 7.75 | 4.45 | 16.8 | 11.8 | 12 | 12.2 | 0.82 |
| C10BSS-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.2 | 14.6 | 14.9 | 16.2 | 1.07 |
| C12BSS-1 | 19.05 | 12.07 | 11.68 | 5.72 | 22 | 16 | 17.4 | 17.7 | 1.33 |
| C16BSS-1 | 25.4 | 15.88 | 17.02 | 8.28 | 35.6 | 21 | 40.6 | 46.7 | 3.10 |
| C20BSS-1 | 31.75 | 19.05 | 19.56 | 10.19 | 40.4 | 26 | 56 | 64.3 | 4.18 |
| C24BSS-1 | 38.1 | 25.4 | 25.4 | 14.63 | 53.4 | 33.4 | 96 | 115.6 | 7.48 |
