Single Hinge Straight Running Plastic Flat Top Chains
Single Hinge Straight Running Plastic Flat Top Chains are making of engineering plastic and are connected using stainless steel pins. The plastic flat top chains constitute a lightweight yet a strong and silent alternative to steel chains. These chains are primarily used in the food and packaging industry for conveying many kinds of containers. Examples are PET bottles, PET petaloid bottles, Aluminum, steel, cans, Cartons, Trays, Packaged products (cartons, shrink packs), Glass, and Plastic containers. Benefits:
-Accuracy of the molding process guarantees optimum flatness
-High wear resistance and low friction
-High working load

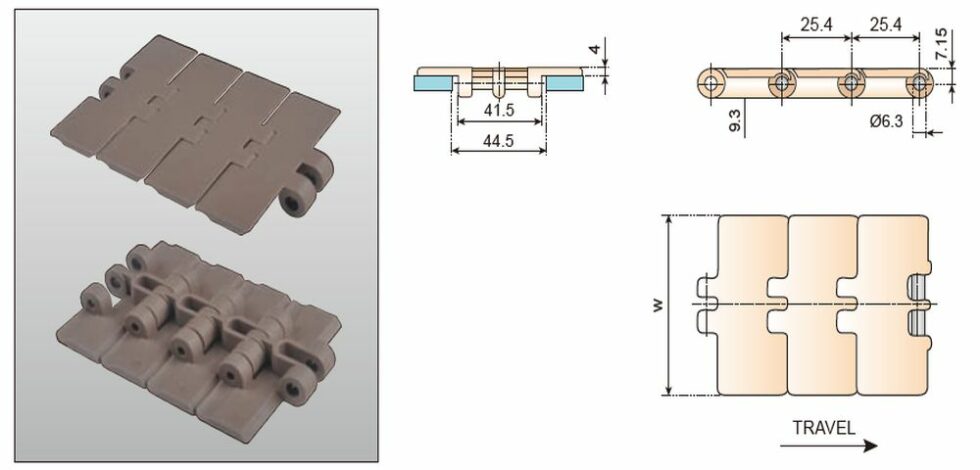

(1) Lf520 Single Hinge Straight Running Chain
Product Specifications
Chain No. | Width ( W ) | Weight | ||
mm | inch | kg/m | lbs/ft | |
LF520-K325 | 82.6 | 3.25 | 0.75 | 0.51 |
Mainly used for all kinds of the food industry, such as beverage, bottle, can, and other conveyors.
The longest distance: 12M
Max. speed: lubricant 80M/min
dryness 50M/min
Working load: 1250N
Pin material: austenitic stainless steel
Plate material: POM acetal
(Temperature: -40 ~ 90℃)
Packing: 10 feet = 3.048 M/box 39pcs/M
(2) Lf 810 Single Hinge Straight Running Chain
Product Specifications
Chain No. | Width ( W ) | Weight | ||
mm | inch | kg/m | lbs/ft | |
LF810-K200 | 50 | 2 | 0.42 | 0.28 |
Mainly used for all kinds of the food industry, such as beverage, bottle, can, and other conveyors.
The longest distance: 8M
Max. speed: lubricant 80M/min
dryness 50M/min
Working load: 800N
Pin material: austenitic stainless steel
Plate material: POM acetal
(Temperature: -40 ~ 90℃)
Packing: 10 feet = 3.048 M/box 52pcs/M

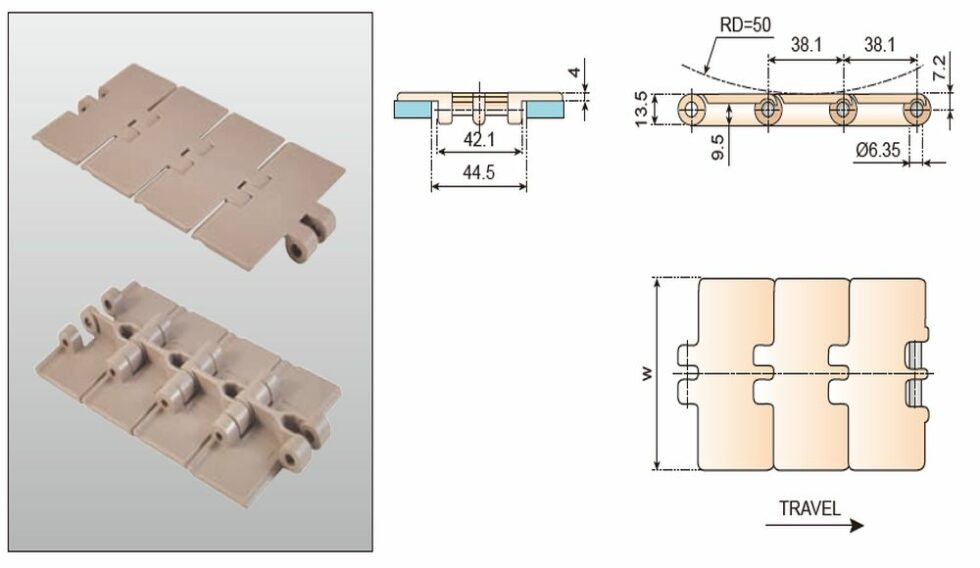

(3) Lf820 Single Hinge Straight Running Chain
Product Specifications
Chain No. | Width ( W ) | Weight | ||
mm | inch | kg/m | lbs/ft | |
LF820 – K250 | 63.5 | 2.50 | 0.79 | 0.53 |
LF820 – K325 | 82.6 | 3.25 | 0.86 | 0.58 |
LF820 – K330 | 83.8 | 3.30 | 0.87 | 0.59 |
LF820 – K350 | 88.9 | 3.50 | 0.89 | 0.60 |
LF820 – K400 | 101.6 | 4.00 | 0.92 | 0.62 |
LF820 – K450 | 114.3 | 4.50 | 1.01 | 0.68 |
LF820 – K600 | 152.4 | 6.00 | 1.22 | 0.82 |
LF820 – K750 | 190.5 | 7.50 | 1.45 | 0.98 |
Mainly used for all kinds of the food industry, such as beverage, bottle, can, and other conveyors.
The longest distance: 12M
Max. speed: lubricant 90M/min
dryness 60M/min
Working load: 2250N
Pin material: austenitic stainless steel
Plate material: POM acetal
(Temperature: -40 ~ 90℃)
Packing: 10 feet = 3.048 M/box 26pcs/M

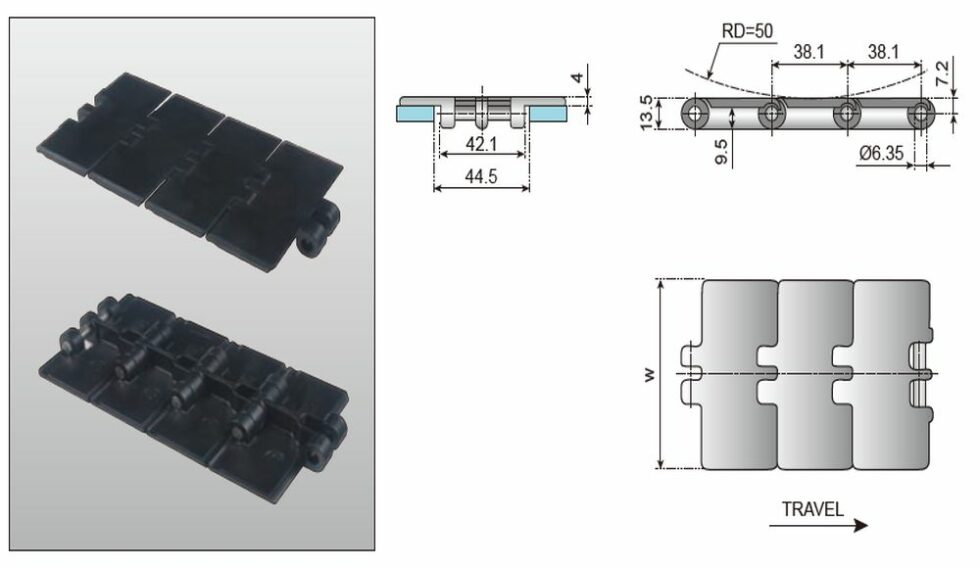

(4) Lf820e Anti-static Single Hinge Straight Running Chain
Product Specifications
Chain No. | Width ( W ) | Weight | ||
mm | inch | kg/m | lbs/ft | |
LF820 – K250E | 63.5 | 2.50 | 0.79 | 0.53 |
LF820 – K325E | 82.6 | 3.25 | 0.86 | 0.58 |
LF820 – K350E | 88.9 | 3.50 | 0.89 | 0.60 |
LF820 – K400E | 101.6 | 4.00 | 0.92 | 0.62 |
LF820 – K450E | 114.3 | 4.50 | 1.01 | 0.68 |
LF820 – K600E | 152.4 | 6.00 | 1.22 | 0.82 |
LF820 – K750E | 190.5 | 7.50 | 1.45 | 0.98 |
Mainly used for different kinds of anti-static conveyor lines.
The longest distance: 12M
Max. speed: lubricant 80M/min
dryness 50M/min
Working load: 2250N
Pin material: austenitic stainless steel
Plate material: anti-static POM
Packing: 10 feet = 3.048 M/box 26pcs/M

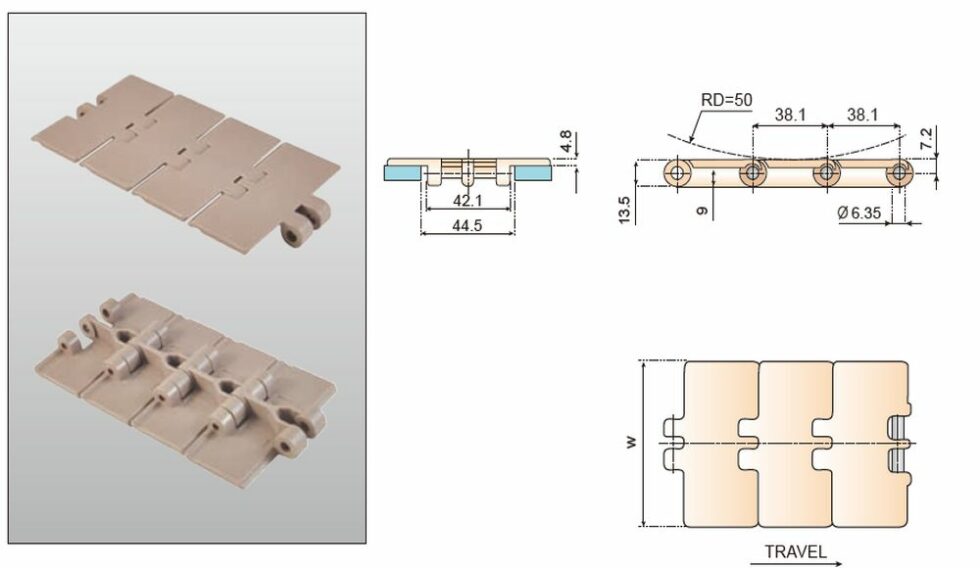

(5) Lf831 Single Hinge Straight Running Chain
Product Specifications
Chain No. | Width ( W ) | Weight | ||
mm | inch | kg/m | lbs/ft | |
LF831 – K325 | 82.6 | 3.25 | 0.95 | 0.64 |
LF831 – K450 | 114.3 | 4.50 | 1.11 | 0.75 |
LF831 – K750 | 190.5 | 7.50 | 1.6 | 1.08 |
Mainly used for all kinds of the food industry, such as beverage, bottle, can and other conveyors.
The longest distance: 12M
Max. speed: lubricant 90M/min
dryness 60M/min
Working load: 2250N
Pin material: austenitic stainless steel
Plate material: POM acetal
(Temperature: -40 ~ 90℃)
Packing: 10 feet = 3.048 M/box 26pcs/M
We Can Also Provide Matching Sprockets and Idler Wheels.
A drive chain and sprocket drive is a type of power transmission in which a roller chain meshes with two or more gears or sprockets used in an engine as the drive from the crankshaft to the camshaft.
A broken industrial chain sprocket can stop your machine from running. Many machines cannot operate without drive sprockets, and replacing them can cost a lot of time and money. Furthermore, the performance of a conveyor or drive depends on the interaction of the sprocket chain. Using the right sprocket is just as important as choosing the right chain. We offer a wide selection of standard roller chain sprockets at unbeatable prices. Our sprockets are engineered to perform well under pressure and to last.
