Single Hinge Straight Running Plastic Mini Flat Top Chains
Plastic flat top chains are made of engineering plastic and are connected using stainless steel pins. The plastic flat top chains constitute a lightweight yet a strong and silent alternative to steel chains. These chains are primarily used in the food and packaging industry for conveying many kinds of containers.
Single Hinge Straight Running Plastic Mini Flat Top Chains
The Plastic Mini Flat Top Chains constitute a lightweight yet a strong and silent alternative to steel chains. Plastic flat top chains are made of engineering plastic and are connected using stainless steel pins. These chains are primarily used in the food and packaging industry for conveying many kinds of containers.
This kind of flat-top chain can be used in the following industries:
1. Foods and soft drinks applications
2. Packaging Manufacturing
3. Pulses and granular products
4. Various dip tank applications
5. Tobacco, medicine, and chemical industry
6. Beverage and beer factory
7. Electronics. automobiles and logistics, etc.
8. Bakery, dairy, fruit, vegetable, meat, poultry seafood
9. Other fields related to modular plastic belts.

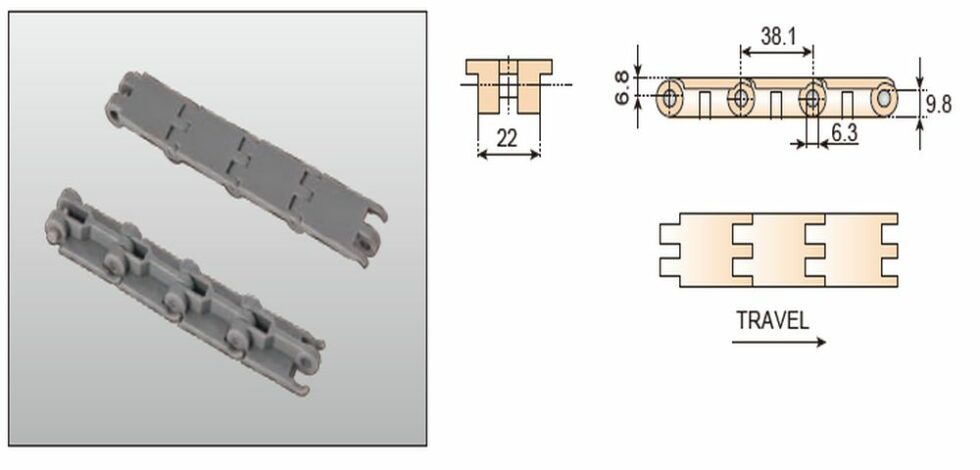

(1) Lf820 Straight Running Plastic Mini Chain
Product Specifications
| Chain No. | Width ( W ) | Weight | ||
| mm | inch | kg/m | lbs/ft | |
| LF820mini – K118 | 30 | 1.18 | 0.46 | 0.31 |
They are mainly used for food, beverages, pet, and bottle conveying.
Packing: 10 feet = 3.048m / box 1meter = 26pcs
Max. conveyor length≤12m Max. tensile strength≤1230N

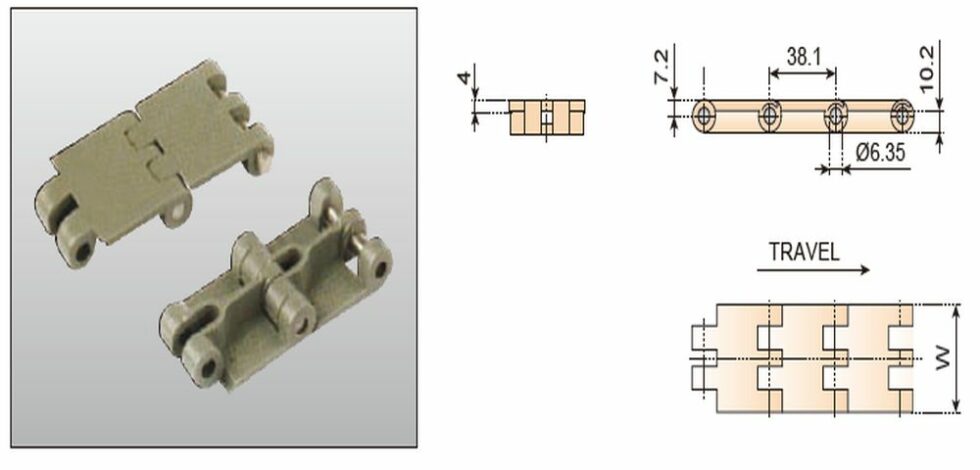

(2) Lf820 Straight Running Single Hinge Mini Chain
Product Specifications
| Chain No. | Width ( W ) | Weight | ||
| mm | inch | kg/m | lbs/ft | |
| LF820mini – K126 | 32 | 1.26 | 0.5 | 0.34 |
Mainly used for food, beverages, pet, and bottle conveying.
Packing: 10 feet = 3.048m / box 1meter = 26pcs
Max. conveyor length≤12m Max. tensile strength≤1230N

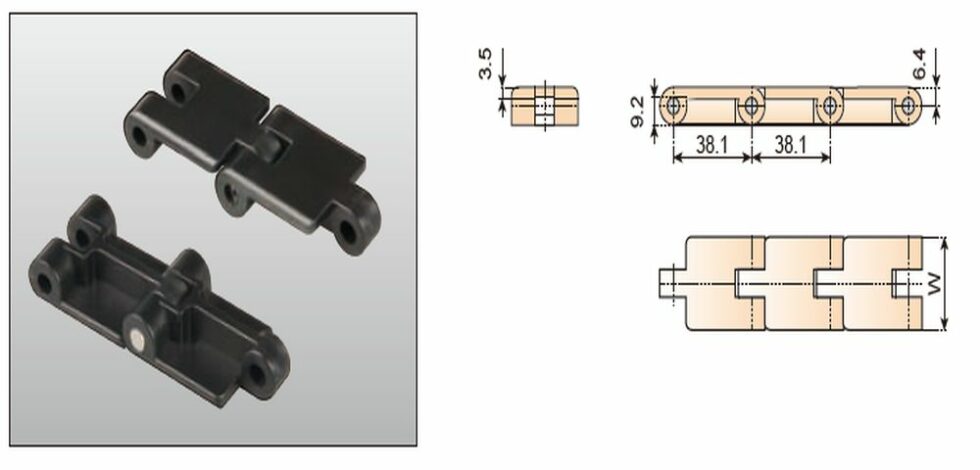

(3) Lf820 Straight Running Single Hinge Mini Chain
Product Specifications
| Chain No. | Width ( W ) | Weight | ||
| mm | inch | kg/m | lbs/ft | |
| LF820mini – K157 | 40 | 1.57 | 0.52 | 0.35 |
Mainly used for food, beverages, pet, and bottle conveying.
Packing: 10 feet = 3.048m / box 1meter = 26pcs
Max. conveyor length≤12m Max. tensile strength≤1230N

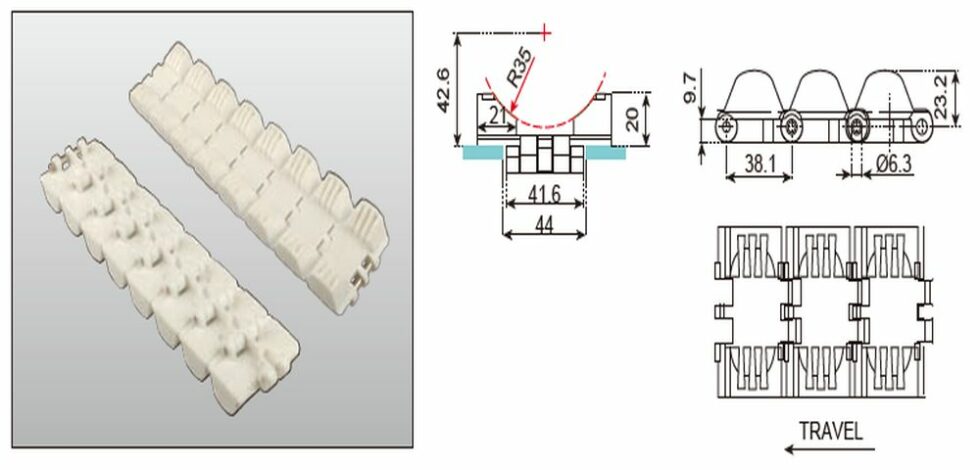

(4) Lf820 Straight Running Plastic Chain
Product Specifications
| Chain No. | Width ( W ) | Weight | ||
| mm | inch | kg/m | lbs/ft | |
| LF820 – K283 | 72 | 2.83 | 1.57 | 1.06 |
Mainly used for food, beverages, pets, bottles, and aluminum can conveying.
Packing: 10 feet = 3.048m / box 1meter = 26pcs
Max. conveyor length≤9m Max. tensile strength≤2000N

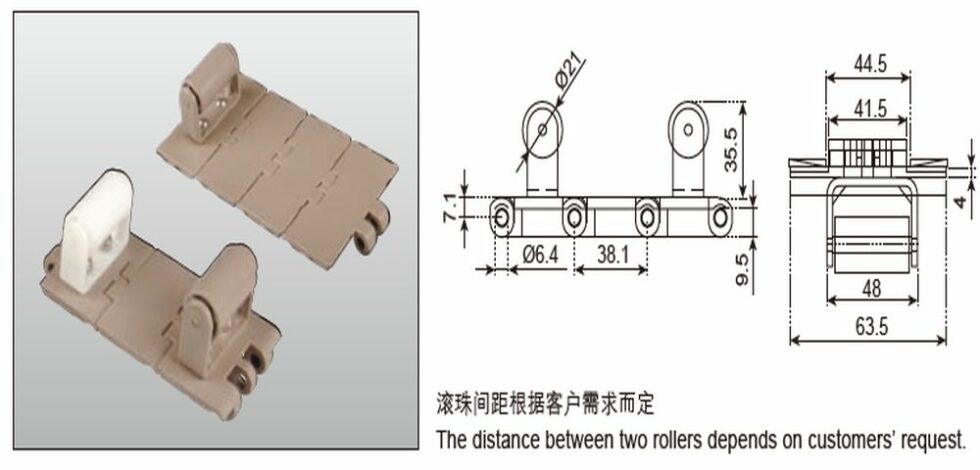

(5) Lf820 Plastic Lifting Chain With Rollers
Product Specifications
| Chain No. | Width ( W ) | Weight | ||
| mm | inch | kg/m | lbs/ft | |
| LF820 – K325 – R | 82.6 | 3.25 | 0.85 | 0.57 |
Mainly used for food, beverage, pet, bottles, and aluminum can conveying.
Packing: 10 feet = 3.048m / box 1meter = 26pcs
Max. conveyor length≤9m Max. tensile strength≤2000N

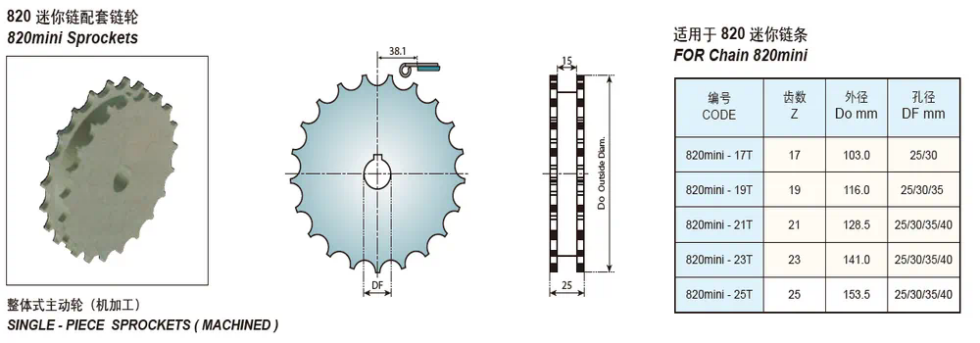

We Can Also Provide Matching Sprockets.
A drive chain and sprocket drive is a type of power transmission in which a roller chain meshes with two or more gears or sprockets used in an engine as the drive from the crankshaft to the camshaft.
A broken industrial chain sprocket can stop your machine from running. Many devices cannot operate without drive sprockets, and replacing them can cost a lot of time and money. Furthermore, the performance of a conveyor or drive depends on the interaction of the sprocket chain. Using the right sprocket is just as important as choosing a suitable chain. We offer a wide selection of standard roller chain sprockets at unbeatable prices. Our sprockets are engineered to perform well under pressure and to last.
