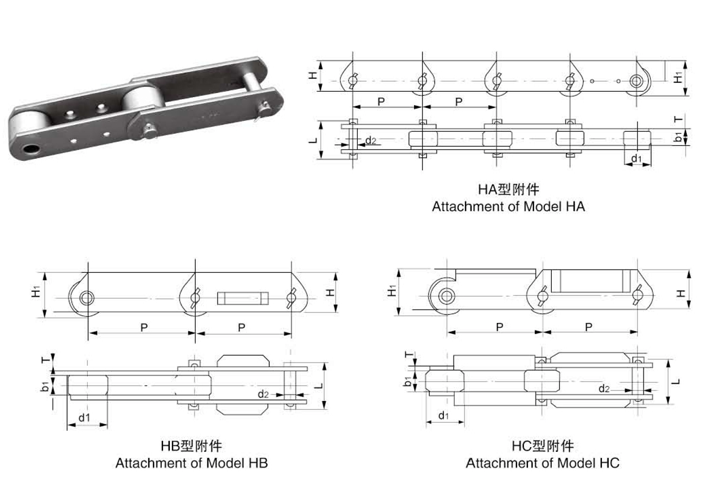

Skid chain for automobile manufacture
Skid chain for automobile manufacture
Benefits of Using Loading Chains
- High Strength: Capable of handling heavy loads and providing reliable performance in demanding conditions.
- Durability: Designed to withstand wear and tear, making them suitable for harsh environments.
- Versatility: Adaptable to various lifting and securing tasks across different industries.
- Safety: When used correctly, they provide a safe and effective method for handling heavy loads.
Diameter Data
| Chain
No. |
Pitch
P mm |
Inner Width of Inner Link b1(min) mm | Diameter of Roller d1 mm | Height of Chain H1 mm | Height of Sidebar H
mm |
Thickness of Sidebar T
mm |
Length of Pin L1 mm | Diameter of Pin d2 mm | Tensile Strength Q(min) KN | Weight per Meter
q kg/m |
| W100 | 100 | 16.1 | 31.8 | 36.9 | 32 | 3.2 | 39 | 7.92 | 30 | |
| W100 | 100 | 22 | 40 | 44 | 40 | 4.5 | 44.5 | 11.10 | 70 | |
| W150 | 150 | 22 | 40 | 44 | 40 | 4.5 | 44.5 | 11.10 | 70 | |
| W125 | 125 | 38.5 | 60 | 66 | 60 | 6.0 | 76 | 11.10 | 160 | |
| W160 | 160 | 38.5 | 60 | 66 | 60 | 6.0 | 76 | 14.27 | 160 | 15.8 |
| W200 | 200 | 37.1 | 65 | 73.5 | 68 | 8 | 88 | 15.9 | 190 | 13.3 |
| W250 | 250 | 37.1 | 65 | 73.5 | 68 | 8 | 90.5 | 15.9 | 190 | 18.8 |
| W250 | 250 | 51.4 | 80 | 90 | 80 | 10 | 106 | 19.10 | 250 | |
| W300 | 300 | 51.4 | 80 | 90 | 80 | 10 | 106 | 19.10 | 250 | |
| W300 | 300 | 57.2 | 85 | 95.5 | 95 | 10 | 126 | 22.20 | 285 | |
| W250 | 250 | 66.7 | 110 | 112 | 102 | 12.7 | 136 | 25.40 | 485 | |
| W300 | 300 | 66.7 | 100 | 112 | 102 | 12.7 | 136 | 25.40 | 485 | |
| W400 | 400 | 66.7 | 100 | 112 | 102 | 12.7 | 136 | 25.40 | 485 |
