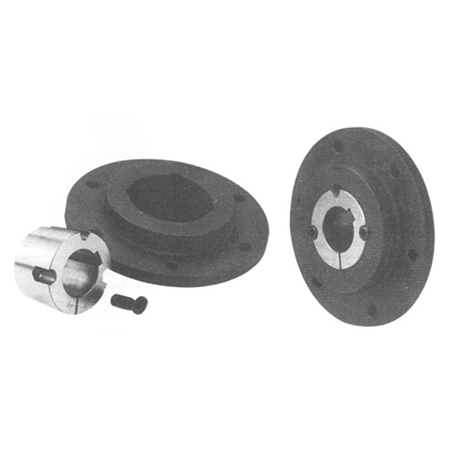

SM type weld on hubs
SM type weld-on hubs are essential components for creating durable and reliable shaft connections in mechanical systems, ensuring efficient power transmission and operational stability.

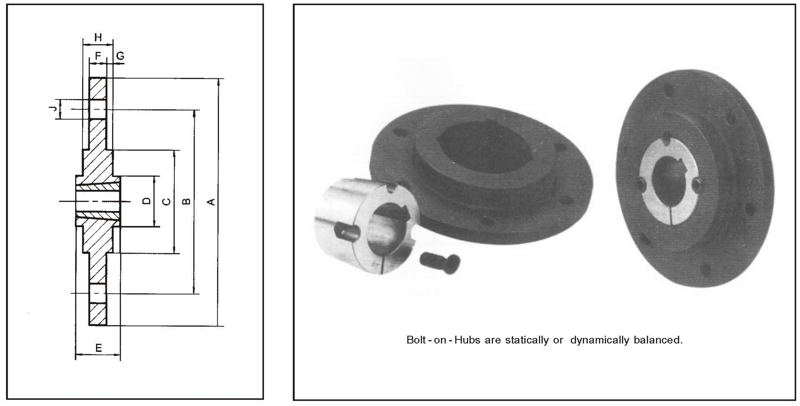

specification | Bush No. | main dimension | screw hole nxJ | |||||||
A | B | C hp | D | E | F | G | H | |||
SM1200 | 1210 | 180 | 135 | 90 | 75 | 25 | 6.5 | 2.5 | 11.5 | 6Xφ7.5 |
SM1600 | 1615 | 200 | 150 | 110 | 85 | 38 | 7.5 | 2.5 | 12.5 | 6Xφ7.5 |
SM2000 | 2012 | 270 | 190 | 140 | 110 | 32 | 8.5 | 2.5 | 13.5 | 6Xφ9.5 |
SM2500 | 2517 | 340 | 240 | 170 | 125 | 45 | 9.5 | 2.5 | 14.5 | 8Xφ11.5 |
SM30-1 | 3020 | 430 | 300 | 220 | 160 | 51 | 13.5 | 2.5 | 18.5 | 8Xφ13.5 |
SM30-2 | 3020 | 485 | 340 | 250 | 160 | 51 | 13.5 | 2.5 | 18.5 | 8Xφ13.5 |
SM1210 | 1210 | 120 | 100 | 80 | 75 | 25 | 6.5 | 2.5 | 11.5 | 8Xφ7.5 |
SM1610 | 1610 | 130 | 110 | 90 | 85 | 25 | 7.5 | 2.5 | 12.5 | 8Xφ7.5 |
SM2012* | 2012 | 145 | 125 | 115 | 110 | 32 | 8.5 | 2.5 | 13.5 | 8Xφ7.5 |
SM2517 | 2517 | 185 | 155 | 130 | 125 | 45 | 9.5 | 2.5 | 14.5 | 8Xφ11.5 |
SM3020 | 3020 | 220 | 190 | 160 | 160 | 51 | 13.5 | 2.5 | 18.5 | 8Xφ13.5 |
* Can only be installed from one side
