Motor bases series absorb the advanced technology home and abroad, integrated with the characteristics of all kinds of motors. This product is made of high quality steel plate. It is suitable for different kinds of motors with compact structure, beautiful appearance, easy installation and flexible tension adjustment

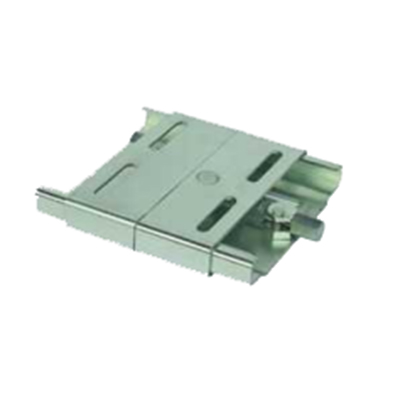

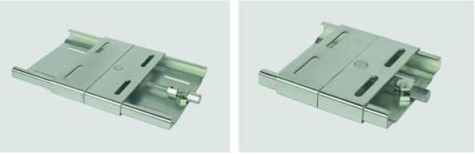

SMA Common Motor Base
- Characteristics: galvanization finish, with split plates sliding, it’s convenient for bolts fixing of motors.
- Application: fixing and adjustment of all series motors.
TIPO | A | B | C | CH | D | E | F | G | H | L | M | N | O | P | Q | Kg |
SMA2I0B | 210 | 150 | 20 | 19 | 3O | 25 | 25 | 10 | 27 | 65 | 50 | 25 | 25 | 80 | 2.5 | 1.8 |
SMA 210 | 210 | 195 | 20 | 19 | 25 | 50 | 25 | 10.5 | 33 | 70 | 43 | 50 | 26 | 98 | 5 | 2.6 |
SMA 270 | 270 | 195 | 20 | 19 | 25 | 50 | 25 | 10.5 | 33 | 70 | 43 | 50 | 26 | 98 | 3 | 3.0 |
SMA 307 | 307 | 213 | 20 | 19 | 25 | 50 | 25 | 10.5 | 33 | 70 | 65 | 50 | 24 | 108 | 3 | 3.2 |
SMA 340 | 340 | 290 | 27 | 22 | 30 | 62 | 30 | 12.5 | 40 | 95 | 90 | 62 | 38 | 165 | 4 | 6.3 |
SMA 380 | 380 | 240 | 27 | 19 | 25 | 43 | 30 | 12 | 33 | 95 | 96 | 43 | 29 | 160 | 3 | 4.5 |
SMA 430 | 430 | 290 | 27 | 22 | 30 | 62 | 30 | 12.5 | 40 | 95 | 90 | 62 | 38 | 165 | 4 | 7.5 |
SMA 450 | 450 | 350 | 40 | 22 | 3O | 55 | 3O | 15 | 40 | 125 | 174 | 55 | 33 | 225 | 4 | 9.7 |
SMA 490 | 490 | 410 | 40 | 22 | 30 | 60 | 30 | 15 | 40 | 95 | 193 | 60 | 48.5 | 284 | 4 | 10.8 |
