Solid Shaft Collars Metric Series

Set Screw Shaft Collars (Shaft Clamps) Metric Series

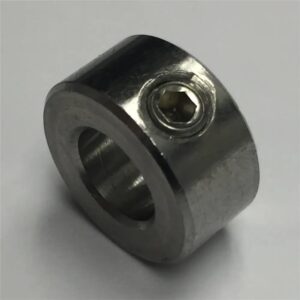

Metric series screw shaft collars(Metric series set screw shaft collars) are mechanical components used to provide mechanical stability and positioning to rotating shafts. These set screw shaft collars are designed to fit onto shafts with a specific diameter and are used to prevent axial movement of the shaft. Attach components such as bearings, sprockets, or pulleys.

The “metric series” designation refers to the fact that these shaft collars are designed using the metric system of measurement, which is commonly used in many countries around the world. The set screw shaft collars are available in a range of sizes to fit different shaft diameters, typically ranging from a few millimeters to several centimeters.

The term “set screw” refers to the method of attachment used to secure the shaft collar onto the shaft. Set screws are threaded fasteners that are tightened against the shaft to hold the shaft collar in place. They are typically located on one or more flat surfaces on the shaft collar and are tightened using a hex key or similar tool. Overall, metric series set screw shaft collars are simple yet effective mechanical components that are widely used in a variety of industrial and commercial applications to provide stability and positioning to rotating shafts.

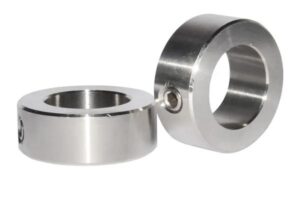

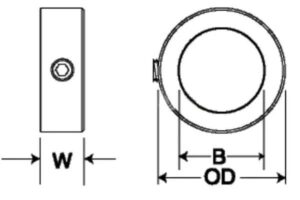

Set Screw Shaft Collar Sizes Chart (Metric Series)

Features of Set Screw Shaft Collar (Metric Series)

Set screw shaft collars have several features that make them a popular choice for mechanical applications. Some of these features include:

1. Easy installation: Set screw shaft collars are very easy to install and remove. They can be quickly attached to a shaft using a hex key or similar tool.

2. Secure attachment: Set screws to provide a secure and reliable attachment of the collar to the shaft. The set screws are tightened against the shaft to hold the shaft collar in place, preventing any axial movement.

3. Durable construction: Set screw shaft collars are made from high-quality materials. Such as steel, stainless steel, or aluminum, which makes them durable and long-lasting.

4. Corrosion resistance: Some set screw shaft collars are made with materials. They are resistant to corrosion, making them suitable for use in harsh environments.

5. Wide range of sizes: Set screw shaft collars are available in a wide range of sizes to fit different shaft diameters, allowing for greater versatility in their applications.

6. Compact design: Set screw shaft collars have a compact design

Set Screw Shaft Collars Vs Split Shaft Collars

A. Set screw shaft collars and split shaft collars are two types of mechanical components used to provide stability.  And positioning to rotating shafts, but they differ in their design and functionality.

B. Set screw shaft collars are designed to fit onto a shaft with a specific diameter and are held in place by one or more set screws that are tightened against the shaft. They are used to prevent axial movement of the shaft and to attach components. Such as bearings, sprockets, or pulleys. Set screw shaft collars have a simple design and are easy to install, making them a popular choice for many applications.

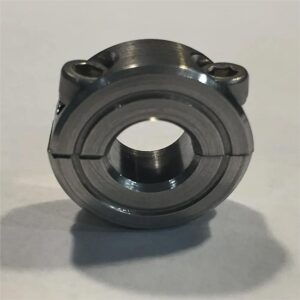

C. Split shaft collars are designed to be split into two pieces, which can be clamped onto a shaft using bolts or screws. They are used in applications where the shaft cannot be disassembled or removed. As the split design allows the collar to be installed or removed without having to slide it over the end of the shaft. Split shaft collars are often used in applications where frequent adjustments or maintenance are required.

Here is a table that summarizes the key differences between set screw shaft collars and split shaft collars:

Feature	Set Screw Shaft Collar	Split Shaft Collar
Cost	Less expensive	More expensive
Security	Less secure	More secure
Shaft damage	Can damage shaft	Does not damage the shaft
Installation	Easier to install	More difficult to install

Set Screw Shaft Collar (Solid Shaft Collar)	Split Shaft Collar

In terms of their advantages and disadvantages, set screw shaft collars are simpler and easier to install but may be more difficult to remove if they are tightly secured to the shaft. Split shaft collars are more versatile and can be easily installed or removed without having to slide them over the end of the shaft, but they may be more complex and time-consuming to install compared to set screw shaft collars. Ultimately, the choice between set screw shaft collars and split shaft collars will depend on the specific requirements of the application, such as the need for frequent adjustments or maintenance, the size of the shaft, and the space available for installation.

Set Screw Shaft Collar Manufacturers

Shaft collars are machine components. Feature a simple design but play an important role in a wide range of industrial applications. They serve three primary functions; holding components in place, locating or positioning components on a shaft. And creating an attachment between the shaft and another component. Designers have a variety of factors to consider. Such as style, material, bore size, and shaft geometry, before a selection can be made. It is important to identify the requirements, parameters, and limitations of your system in order to determine the right style for the application.

Despite their simple design, shaft collars play an important role in a wide range of industrial applications. As such, when choosing one for a particular application. It is essential to use the one with the right design and performance characteristics.

As an experienced manufacturer and distributor of shaft collars suitable for use in power transmission, motion control, automation. And other OEM and ODM operations. We have the knowledge, skills, and inventory to help customers select and source the right shaft collar for their application. In addition to offering standard shaft collars. Including set screw shaft collars, one piece shaft collars, two piece shaft collars, quick release shaft collars, double wide shaft collars, mountable shaft collars, hex shaft collars, D profile shaft collars, and threaded shaft collars, we also provide custom design and engineering services to manufacturing specialized shaft collars for unique customer needs.

FAQ

Q1: What is a set screw shaft collar?
A: A set screw shaft collar is a mechanical component. It is used to hold and position objects on a shaft. It is a shaft collar with set screw that is tightened against the shaft to create a secure grip.

Q2: What materials are set screw shaft collars made from?
A: Set screw shaft collars can be made from a variety of materials, including steel, aluminum, brass, and plastic. The choice of material depends on the application and the environment in which the shaft collar will be used.

Q3: What sizes do set screw shaft collars come in?
A: Set screw shaft collars come in a wide range of sizes, from very small shaft collars used in precision instruments to large shaft collars used in heavy machinery.

Q4: How do you install a set screw shaft collar?
A: To install a set screw shaft collar, slide it onto the shaft and tighten the set screw using a hex key. The set screw should be tightened enough to create a secure grip on the shaft but not so tight that it damages the shaft.

Q5: What are the advantages of using a set screw shaft collar?
A: Set screw shaft collars provide a simple and effective way to hold and position objects on a shaft. They are easy to install and remove and can be adjusted to different positions on the shaft as needed. They are also relatively inexpensive and widely available.

Q6: What are the disadvantages of using a set screw shaft collar?
A: One disadvantage of using a set screw shaft collar is that it may damage the shaft if over-tightened. Additionally, set screw shaft collars may not be suitable for high torque or high-speed applications. As they may slip or become loose under these conditions.

Q7: Can set screw shaft collars to be used in wet or corrosive environments?
A: Yes, set screw shaft collars can be made from materials. That are resistant to corrosion and can be used in wet or corrosive environments. Stainless steel, for example, is a popular material for set screw shaft collars used in marine applications.

Q8: Are there alternatives to set screw shaft collars?
A: Yes, there are several alternatives to set screw shaft collars. Including split shaft collars, clamp-style shaft collars, and threaded shaft collars. The choice of shaft collar depends on the application and the specific requirements of the project.
