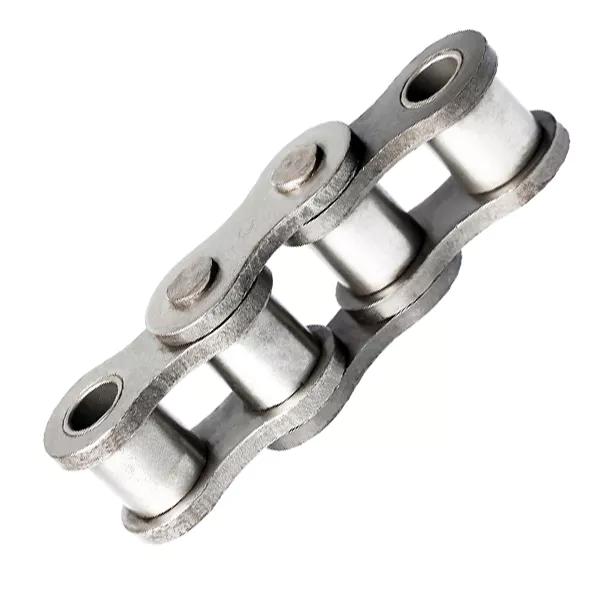

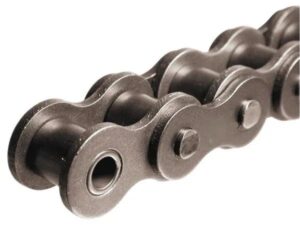

SP Series Roller Chain High Strength Short Pitch Simplex Strands
By adopting an integrated optimum design of the structural dimensions, parts material, and heat treatment process, the ultimate tensile strength of the high strength SP series roller chain is 28% more than that of the A series standard roller chain. Moreover, it has excellent performances of fatigue strength and impact resistance, etc.
SP Series Simplex Strands Roller Chain High Strength Short Pitch
By adopting an integrated optimum design of the structural dimensions(SP Series Simplex Strands Roller Chain), parts material, and heat treatment process, the ultimate tensile strength of the high strength SP series roller chain is 28% more than that of the A series standard roller chain. Moreover, it has excellent performances of fatigue strength and impact resistance, etc.
|
 |

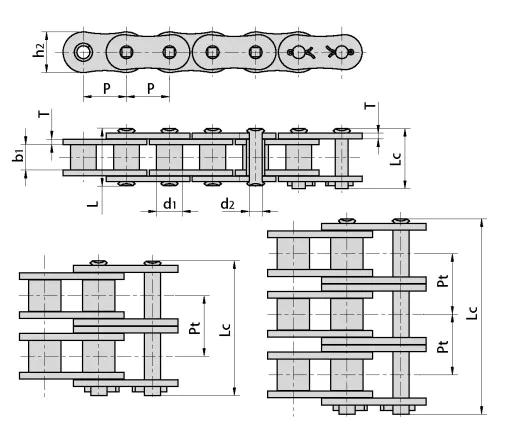

SP Series Simplex Strands Roller Chain Size Chart
Chain No. Pitch Roller dia
Width
between
inner
platesPin
diaPin
lengthInner
plate
depthPlate
thicknessTransverse
pitchUltimate
tensile
strengthAverage
tensile
strengthWeight
per
meterP d1
maxb1
mind2
maxL
maxLc
maxh2
maxT Pt Q
minQ0 q mm mm mm mm mm mm mm mm mm kN/lbf kN kg/m 80SP-1 25.40 15.88 15.75 7.94 32.7 36.5 24.1 3.2 – 77.5/17434 85.3 2.86 100SP-1 31.75 19.05 18.95 9.54 40.4 44.7 30.1 4.0 – 115.5/25982 127.0 4.21 120SP-1 38.10 22.23 25.22 11.11 50.3 54.3 36.2 4.8 – 165.0/37118 186.0 6.36 140SP-1 44.45 25.40 25.22 12.71 54.4 59.0 42.2 5.6 – 222.7/50098 245.0 8.04 160SP-1 50.80 28.58 31.55 14.29 64.8 69.6 48.2 6.4 – 285.5/64215 314.0 10.80 200SP-1 63.50 39.68 37.85 19.85 80.3 87.2 60.3 8.0 – 445.5/100208 490.0 18.00 80SP-2 25.40 15.88 15.75 7.94 62.7 65.8 24.1 3.2 29.29 155.0/34868 170.6 5.68 100SP-2 31.75 19.05 18.95 9.54 76.4 80.5 30.1 4.0 35.76 231.0/51965 255.0 8.34 120SP-2 38.10 22.23 25.22 11.11 95.8 99.7 36.2 4.8 45.44 339.0/76260 373.0 12.63 140SP-2 44.45 25.40 25.22 12.71 103.3 107.9 42.2 5.6 48.87 445.5/100218 490.0 15.92 160SP-2 50.80 28.58 31.55 14.29 123.3 128.1 48.2 6.4 58.55 571.0/128430 628.0 21.43 200SP-2 63.50 39.68 37.85 19.85 151.9 158.8 60.3 8.0 71.55 892.0/200621 981.0 35.00 80SP-3 25.40 15.88 15.75 7.94 91.7 95.1 24.1 3.2 29.29 232.5/52302 255.9 8.18 100SP-3 31.75 19.05 18.95 9.54 112.2 116.3 30.1 4.0 35.76 347.3/78128 382.0 12.47 120SP-3 38.10 22.23 25.22 11.11 141.4 145.2 36.2 4.8 45.44 508.0/114278 559.0 18.90 140SP-3 44.45 25.40 25.22 12.71 152.2 156.8 42.2 5.6 48.87 668.0/150271 735.0 23.84 160SP-3 50.80 28.58 31.55 14.29 181.8 186.6 48.2 6.4 58.55 855.5/192441 941.0 32.10 200SP-3 63.50 39.68 37.85 19.85 223.5 230.4 60.3 8.0 71.55 1336.4/300633 1470.0 52.50
SP Series Simplex Roller Chain Features
- All roller chains incorporate solid rollers, enhancing rotation on the bushing while reducing impact loads on the sprocket tooth during operation.
- All roller chain components are heat treated to achieve maximum strength and greater wear resistance.
- All roller chain is pre-loaded during the manufacturing process to minimize initial elongation.
- Hot dipped lubrication ensures 100% lubrication of all roller chain components to extend wear life and reduce maintenance costs.
- Roller chains feature solid rollers and solid bushings.
SP Series Simplex Roller Chain Applications
- Machinery
- Railway Industry
- Quarries
- Agricultural Equipment
- Textile Machinery
- Printing Equipment
- Transport
- Fairground Rides
Tensile and Fatigue Strength of Roller Chain
Tensile strength is one of the key measurements of roller chains and indicates specifically the one-time load capacity of a chain before it breaks. It is important to note how tensile strength is different from fatigue strength, as both are used to indicate the overall durability of a particular chain. Fatigue strength is defined as the load at which the roller chain will likely begin to fail after continuous use over a period of time. Therefore, the main distinction between tensile strength and fatigue strength has to do with whether one-time load capacity or load capacity over an extended period of time is being measured.
Choose the Right Roller Chains
 |
 |

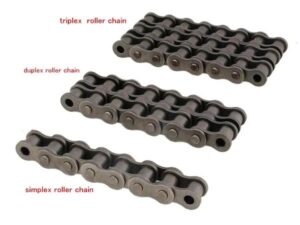

As you can see above in the roller chain size charts, there is a wide range of sizes that are available in this versatile chain. Single and multiple-strand roller chains are available, with different weight and tensile strength ratings based on the manufacturing requirements for their particular use. Since chains are used as a drive and as part of a conveyor system, the range of sizes can be quite significant. Smaller pitch chains are often found in light to moderate load applications while larger pitch chains are used in heavier load applications.
Roller chain sizes are standardized according to ANSI/ASME or ISO British standards, which are meant to provide interchangeability of design and dimensions for chains, sprockets, and attachments. Fortunately, you will find a wide range of options available. Before purchasing your very own roller chain, it is crucial to determine which size component will best suit your operational needs. If you aren’t sure which roller chain will work best for your applications, simply connect with one of our friendly experts.
Matching Single Strand Roller Chain Sprockets
There are six different standard styles of sprockets for single strand roller chain. We stock a complete line of each type! Our standard single strand roller chain sprockets are manufactured with hardened teeth (for tooth counts under 30), used premium quality SAE 1045 steel material, and are finished with black-oxide for corrosion resistance.
| A-Plate | B-Hub | C-Hub | Taper Bushed | QD-Bushed | Weld-On Hub |
 |
 |
 |
 |
 |
 |
To start shopping simply select what chain size you are using with your sprocket. Next select the type needed, lastly select the desired tooth count and possible accessories needed, then you are ready to get your sprockets! If at any point you have questions or trouble finding or picking your sprocket please contact our customer service department and we will be happy to assist you.
Other Roller Chains Related Products
We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber chains, agricultural chains, silent chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
