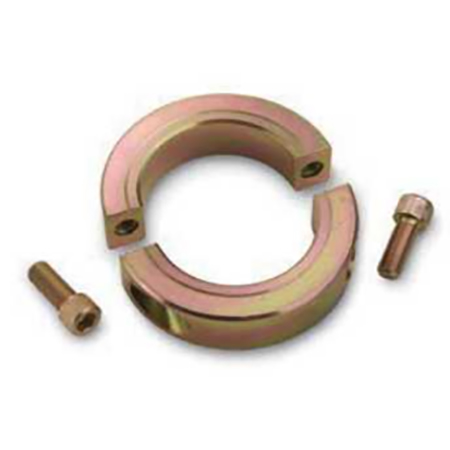

SP two piece clamp style collar
SP two piece clamp style collar
|
 |
Does not mar the shaft.
- Single point faced.
- Available with keyways.
- Opposing screws available.
- Width tolerance: +.003″ – .010″
- Bore tolerance: +.002″ +.0005″

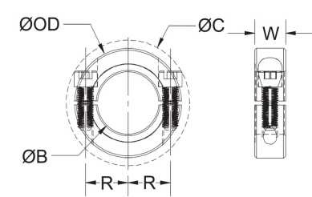

Diameter Data
PART NUMBER SPECIFICATIONS
| BLACK
OXIDE STEEL |
ZINC
PLATED STEEL |
ALUMINUM | STAINLESS
STEEL |
316
STAINLESS STEEL |
PLASTIC | BORE
B(in) |
OUTER DIAM. OD (in) | SCREW
LOCATION R(in) |
CLEARANCE DIAM. C
(in) MAX |
WIDTH
W(in) |
FORGED
CLAMP SCREW |
| SP-2-F | SP-2-FZ | SP-2-A | SP-2-SS | SP-2-ST | SP-2-P | 0.1250 | 5/8 | 0.210 | 0.773 | 0.281 | #4-40 |
| SP-3-F | SP-3-FZ | SP-3-A | SP-3-SS | SP-3-ST | SP-3-P | 0.1875 | 5/8 | 0.210 | 0.773 | 0.281 | #4-40 | |
| SP-4-F | SP-4-FZ | SP-4-A | SP-4-SS | SP-4-ST | SP-4-P | 0.2500 | 5/8 | 0.210 | 0.773 | 0.281 | #4-40 |
| SP-5-F | SP-5-FZ | SP-5-A | SP-5-SS | SP-5-ST | SP-5-P | 0.3125 | 11/16 0.250 | 0.838 | 0.281 | #4-40 | |
| SP-6-F | SP-6-FZ | SP-6-A | SP-6-SS | SP-6-ST | SP-6-P | 0.3750 | 7/8 | 0.313 | 1.027 | 0.343 | #6-32 |
| SP-7-F | SP-7-FZ | SP-7-A | SP-7-SS | SP-7-ST | SP-7-P | 0.4375 | 15/16 0.344 | 1.080 | 0.343 | #6-32 | |
| SP-8-F | SP-8-FZ | SP-8-A | SP-8-SS | SP-8-ST | SP-8-P | 0.5000 | 1-1/8 | 0.406 | 1.281 | 0.406 | #8-32 |
| SP-9-F | SP-9-FZ | SP-9-A | SP-9-SS | SP-9-ST | SP-9-P | 0.5625 | 1-1/4 | 0.448 | 1.448 | 0.437 | #10-32 |
| SP-10-F | SP-10-FZ | SP-10-A | SP-10-SS | SP-10-ST | SP-10-P | 0.6250 | 1-5/16 | 0.479 | 1.500 | 0.437 | #10-32 |
| SP-11-F | SP-ll-FZ | SP-ll-A | SP-ll-SS | SP-ll-ST | SP-ll-P | 0.6875 | 1-3/8 | 0.516 | 1.564 | 0.437 | #10-32 |
| SP-12-F | SP-12-F7 | SP-12-A | SP-12-SS | SP-12-ST | SP-12-P | 0.7500 | 1-1/2 | 0.545 | 1.808 | 0.500 | 1/4-28 |
| SP-13-F | SP-13-FZ | SP-13-A | SP-13-SS | SP-13-ST | SP-13-P | 0.8125 | 1-5/8 | 0.610 | 1.916 | 0.500 | 1/4-28 |
| SP-14-F | SP-14-FZ | SP-14-A | SP-14-SS | SP-14-ST | SP-14-P | 0.8750 | 1-5/8 | 0.610 | 1.916 | 0.500 | 1/4-28 |
| SP-15-F | SP-15-FZ | SP-15-A | SP-15-SS | SP-15-ST | SP-15-P 0.9375 | 1-3/4 | 0.678 | 2.032 | 0.500 | 1/4-28 | |
| SP-16-F | SP-16-FZ | SP-16-A | SP-16-SS | SP-16-ST | SP-16-P | 1.0000 | 1-3/4 | 0.678 | 2.032 | 0.500 | 1/4-28 |
| SP-17-F | SP-17-FZ | SP-17-A | SP-17-SS | SP-17-ST | SP-17-P | 1.0625 | 1-7/8 | 0.740 | 2.140 | 0.500 | 1/4-28 |
| SP-18-F | SP-18-FZ | SP-18-A | SP-18-SS | SP-18-ST | SP-18-P 1.1250 | 1-7/8 | 0.740 | 2.140 | 0.500 | 1/4-28 | |
| SP-19-F | SP-19-F7 | SP-19-A | SP-19-SS | SP-19-ST | SP-19-P | 1.1875 | 2-1/16 | 0.828 | 2.295 | 0.500 | 1/4-28 |
| SP-20-F | SP-20-FZ | SP-20-A | SP-20-SS | SP-20-ST | SP-20-P | 1.2500 | 2-1/16 | 0.828 | 2.295 | 0.500 | 1/4-28 |
| SP-21-F | SP-21-FZ | SP-21-A | SP-21-SS | SP-21-ST | SP-21-P | 1.3125 | 2-1/8 | 0.859 | 2.351 | 0.563 | 1/4-28 |
| SP-22-F | SP-22-FZ | SP-22-A | SP-22-SS | SP-22-ST | SP-22-P | 1.3750 | 2-1/4 | 0.922 | 2.465 | 0.563 | 1/4-28 |
| SP-23-F | SP-23-FZ | SP-23-A | SP-23-SS | SP-23-ST | SP-23-P | 1.4375 | 2-1/4 | 0.922 | 2.465 | 0.563 | 1/4-28 |
| SP-24-F | SP-24-FZ | SP-24-A | SP-24-SS | SP-24-ST | SP-24-P | 1.5000 | 2-3/8 | 0.984 | 2.578 | 0.563 | 1/4-28 |
| SP-25-F | SP-25-FZ | SP-25-A | SP-25-SS | SP-25-ST | 1.5625 | 2-3/8 | 0.984 | 2.578 | 0.563 | 1/4-28 | |
| SP-26-F | SP-26-FZ | SP-26-A | SP-26-SS | SP-26-ST | 1.6250 | 2-5/8 | 1.063 | 2.935 | 0.688 | 5/16-24 | |
| SP-27-F | SP-27-FZ | SP-27-A | SP-27-SS | SP-27-ST | 1.6875 | 2-3/4 | 1.125 | 3.046 | 0.688 | 5/16-24 | |
| SP-28-F | SP-28-FZ | SP-28-A | SP-28-SS | SP-28-ST | 1.7500 | 2-3/4 | 1.125 | 3.046 | 0.688 | 5/16-24 | |
| SP-29-F | SP-29-FZ | SP-29-A | SP-29-SS | SP-29-ST | 1.8125 | 2-7/8 | 1.188 | 3.160 | 0.688 | 5/16-24 | |
| SP-30-F | SP-30-FZ | SP-30-A | SP-30-SS | SP-30-ST | 1.8750 | 2-7/8 | 1.188 | 3.160 | 0.688 | 5/16-24 | |
| SP-31-F | SP-31-FZ | SP-31-A | SP-31-SS | SP-31-ST | 1.9375 | 3 | 1.250 | 3.273 | 0.688 | 5/16-24 | |
| SP-32-F | SP-32-FZ | SP-32-A | SP-32-SS | SP-32-ST | 2.0000 | 3 | 1.250 | 3.273 | 0.688 | 5/16-24 | |
| SP-33-F | SP-33-FZ | SP-33-A | SP-33-SS | SP-33-ST | 2.0625 | 3-1/8 | 1.297 | 3.360 | 0.750 | 5/16-24 | |
| SP-34-F | SP-34-FZ | SP-34-A | SP-34-SS | SP-34-ST | 2.1250 | 3-1/4 | 1.375 | 3.504 | 0.750 | 5/16-24 | |
| SP-35-F | SP-35-FZ | SP-35-A | SP-35-SS | SP-35-ST | 2.1875 | 3-1/4 | 1.375 | 3.504 | 0.750 | 5/16-24 | |
| SP-36-F | SP-36-FZ | SP-36-A | SP-36-SS | SP-36-ST | 2.2500 | 3-1/4 | 1.375 | 3.504 | 0.750 | 5/16-24 | |
| SP-37-F | SP-37-FZ | SP-37-A | SP-37-SS | SP-37-ST | 2.3125 | 3-3/8 | 1.422 | 3.591 | 0.750 | 5/16-24 | |
| SP-38-F | SP-38-FZ | SP-38-A | SP-38-SS | SP-38-ST | 2.3750 | 3-1/2 | 1.484 | 3.707 | 0.750 | 5/16-24 | |
| SP-39-F | SP-39-FZ | SP-39-A | SP-39-SS | SP-39-ST | 2.4375 | 3-1/2 | 1.484 | 3.707 | 0.750 | 5/16-24 | |
| SP-40-F | SP-40-FZ | SP-40-A | SP-40-SS | SP-40-ST | 2.5000 | 3-3/4 | 1.563 | 4.034 | 0.875 | 3/8-24 | |
| SP-41-F | SP-41-FZ | SP-41-A | SP-41-SS | SP-41-ST | 2.5625 | 3-7/8 | 1.625 | 4.148 | 0.875 | 3/8-24 | |
| SP-42-F | SP-42-FZ | SP-42-A | SP-42-SS | SP-42-ST | 2.6250 | 3-7/8 | 1.625 | 4.148 | 0.875 | 3/8-24 | |
| SP-43-F SP-43-FZ | SP-43-A | SP-43-SS | SP-43-ST | 2.6875 | 4 | 1.688 | 4.265 | 0.875 | 3/8-24 | ||
| SP-44-F | SP-44-FZ | SP-44-A | SP-44-SS | SP-44-ST | 2.7500 | 4 | 1.688 | 4.265 | 0.875 | 3/8-24 | |
| SP-45-F | SP-45-FZ | SP-45-A | SP-45-SS | SP-45-ST | 2.8125 | 4-1/4 | 1.813 | 4.499 | 0.875 | 3/8-24 | |
| SP-46-F | SP-46-FZ | SP-46-A | SP-46-SS | SP-46-ST | 2.8750 | 4-1/4 | 1.813 | 4.499 | 0.875 | 3/8-24 | |
| SP-47-F | SP-47-FZ | SP-47-A | SP-47-SS | SP-47-ST | 2.9375 | 4-1/4 | 1.813 | 4.499 | 0.875 | 3/8-24 | |
| SP-48-F | SP-48-FZ | SP-48-A | SP-48-SS | SP-48-ST | 3.0000 | 4-1/4 | 1.813 | 4.499 | 0.875 | 3/8-24 | |
| SP-49-F | 3.0625 | 4-1/2 | 1.938 | 4.742 | 0.875 | 3/8-24 | |||||
| SP-50-F | 3.1250 | 4-1/2 | 1.938 | 4.742 | 0.875 | 3/8-24 | |||||
| SP-51-F | 3.1875 | 4-1/2 | 1.938 | 4.742 | 0.875 | 3/8-24 | |||||
| SP-52-F | 3.2500 | 4-1/2 | 1.938 | 4.742 | 0.875 | 3/8-24 | |||||
| SP-53-F | 3.3125 | 4-3/4 | 2.063 | 4.978 | 0.875 | 3/8-24 | |||||
| SP-54-F | 3.3750 | 4-3/4 | 2.063 | 4.978 | 0.875 | 3/8-24 | |||||
| SP-55-F | 3.4375 | 4-3/4 | 2.063 | 4.978 | 0.875 | 3/8-24 | |||||
| SP-56-F | 3.5000 | 4-3/4 | 2.063 | 4.978 | 0.875 | 3/8-24 | |||||
| SP-57-F | 3.5625 | 5 | 2.188 | 5.216 | 0.875 | 3/8-24 | |||||
| SP-58-F | 3.6250 | 5 | 2.188 | 5.216 | 0.875 | 3/8-24 | |||||
| SP-59-F | 3.6875 | 5 | 2.188 | 5.216 | 0.875 | 3/8-24 | |||||
| SP-60-F | 3.7500 | 5 | 2.188 | 5.216 | 0.875 | 3/8-24 | |||||
| SP-61-F | 3.8125 | 5-1/4 | 2.313 | 5.456 | 0.875 | 3/8-24 | |||||
| SP-62-F | 3.8750 | 5-1/4 | 2.313 | 5.456 | 0.875 | 3/8-24 | |||||
| SP-63-F | 3.9375 | 5-1/4 | 2.313 | 5.456 | 0.875 | 3/8-24 | |||||
| SP-64-F | 4.0000 | 5-1/4 | 2.313 | 5.456 | 0.875 | 3/8-24 | |||||
