SPA series V Belt Pulleys

Description

SPA series V Belt Pulleys

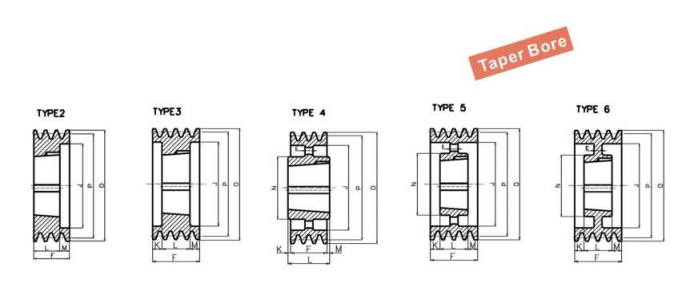

Item		Grooves	P	0	Type	Bush	Max Bore	E	F	J	K	L	M	N
SPA	63-01	1	63	68.5	9	1008	25	–	40	38	18	22	–	–
SPA	67-01	1	67	72.5	1	1108	28	–	20	38	–	22	2	62
SPA	71-01	1	71	76.5	1	1108	28	–	20	–	–	22	2	62
SPA	75-01	1	75	80.5	1	1108	28	–	20	–	–	22	2	62
SPA	80-01	1	80	85.5	1	1210	32	–	20	–	–	25	5	75
SPA	85-01	1	85	90.5	1	1210	32	–	20	–	–	25	5	75
SPA	90-01	1	90	95.5	1	1210	32	–	20	–	–	25	5	75
SPA	95-01	1	95	100.5	1	1210	32	–	20	–	–	25	5	75
SPA	100-01	1	100	105.5	1	1610	42	–	20	–	–	25	5	80
SPA	106-01	1	106	111.5	1	1610	42	–	20	–	–	25	5	80
SPA	112-01	1	112	117.5	1	1610	42	–	20	–	–	25	5	80
SPA	118-01	1	118	123.5	1	1610	42	–	20	–	–	25	5	80
SPA	125-01	1	125	130.5	1	1610	42	–	20	–	–	25	5	80
SPA	132-01	1	132	137.5	1	1610	42	–	20	–	–	25	5	80
SPA	140-01	1	140	145.5	1	1610	42	–	20	–	–	25	5	80
SPA	150-01	1	150	155.5	1	1610	42	–	20	–	–	25	5	80
SPA	160-01	1	160	165.5	1	1610	42	–	20	–	–	25	5	80
SPA	170-01	1	170	175.5	1	1610	42	–	20	–	–	25	5	80
SPA	180-01	1	180	185.5	1	1610	42	–	20	–	–	25	5	80
SPA	190-01	1	190	195.5	1	1610	42	–	20	–	–	25	5	80
SPA	200-01	1	200	205.5	7	2012	50	10	20	165	6	32	6	100
SPA	212-01	1	212	217.5	7	2012	50	10	20	177	6	32	6	100
SPA	224-01	1	224	229.5	7	2012	50	10	20	189	6	32	6	100
SPA	250-01	1	250	255.5	7	2012	50	10	20	215	6	32	6	100
SPA	280-01	1	280	285.5	7	2012	50	10	20	245	6	32	6	100
SPA	315-01	1	315	320.5	7	2012	50	–	20	280	6	32	6	100
SPA	355-01	1	355	360.5	4	2012	50	–	20	320	6	32	6	100
SPA	400-01	1	400	405.5	4	2012	50	–	20	365	6	32	6	100
SPA	450-01	1	450	455.5	4	2012	50	–	20	415	6	32	6	100
SPA	500-01	1	500	505.5	4	2517	60	–	20	465	–	45	25	120
SPA	630-01	1	630	635.5	4	2517	60	–	20	595		45	25	120

Item		Grooves	P	O	Type	Bush	Max Bore	E	F	J	K	L	M	N
SPA	63-02	2	63	68.5	9	1008	28	–	55	36	33	22	–	–
SPA	67-02	2	67	72.5	8	1108	28	–	35	37	13	22	–	–
SPA	71-02	2	71	76.5	8	1108	28	_	35	40	13	22	–	–
SPA	75-02	2	75	80.5	8	1108	28	–	35	44	10	22	–	–
SPA	80-02	2	80	85.5	8	1210	32	–	35	47	10	25	–	–
SPA	85-02	2	85	90.5	8	1210	32	–	35	50	10	25	–	–
SPA	90-02	2	90	95.5	8	1610	42	–	35	60	10	25	–	–
SPA	95-02	2	95	100.5	8	1610	42	–	35	64	10	25	–	–
SPA	100-02	2	100	105.5	8	1610	42	–	35	70	10	25	–	–
SPA	106-02	2	106	111.5	8	1610	42	–	35	76	10	25	–	–
SPA	112-02	2	112	117.5	8	1610	42	–	35	80	10	25	–	–
SPA	118-02	2	118	123.5	8	1610	42	–	35	86	10	25	–	–
SPA	125-02	2	125	130.5	8	1610	42	–	35	90	10	25	–	–
SPA	132-02	2	132	137.5	8	2012	50	–	35	98	3	32	–	–
SPA	140-02	2	140	145.5	8	2012	50	–	35	106	3	32	–	–
SPA	150-02	2	150	155.5	8	2012	50	–	35	116	3	32	–	–
SPA	160-02	2	160	165.5	8	2012	50	15	35	125	3	32	–	–
SPA	170-02	2	170	175.5	8	2012	50	15	35	135	3	32	–	–
SPA	180-02	2	180	185.5	6	2012	50	15	35	148	1.5	32	1,5	100
SPA	190-02	2	190	195.5	6	2012	50	15	35	158	1.5	32	1,5	100
SPA	200-02	2	200	205.5	7	2517	60	15	35	165	5	45	5	120
SPA	212-02	2	212	217.5	7	2517	60	15	35	177	5	45	5	120
SPA	224-02	2	224	229.5	7	2517	60	15	35	189	–	45	10	120
SPA	250-02	2	250	255.5	7	2517	60	20	35	215	5	45	5	120
SPA	280-02	2	280	285.5	7	2517	60	20	35	245	–	45	10	120
SPA	315-02	2	315	320.5	4	2517	60	–	35	280	–	45	10	120
SPA	355-02	2	355	360.5	4	2517	60	_	35	320	–	45	10	120
SPA	400-02	2	400	405.5	4	2517	60	–	35	365	–	45	10	120
SPA	450-02	2	450	455.5	4	2517	60	–	35	465	–	45	10	120
SPA	500-02	2	500	505.5	4	2517	60	–	35	525	–	45	16	150
SPA	630-02	2	630	635.5	4	3020	75	–	35	595	–	51	16	150

Item		Grooves	P	O	Type	Bush	Max Bore	E	F	J	K	L	M	N
SPA	71-03	3	71	76.5	8	1108	28	–	50	40	28	22	_	_
SPA	75-03	3	75	80.5	8	1210	32	–	50	44	25	25	–	–
SPA	80-03	3	80	85.5	8	1210	32	–	50	47	25	25	–	–
SPA	85-03	3	85	90.5	8	1210	32	_	50	50	25	25	–	–
SPA	90-03	3	90	95.5	8	1610	42	_	50	60	25	25	–	–
SPA	95-03	3	95	100.5	8	1610	42	–	50	64	25	25	–	_
SPA	100-03	3	100	105.5	2	1610	42	–	50	70	–	25	25	–
SPA	106-03	3	106	111.5	2	1610	42	–	50	76	–	25	25	–
SPA	112-03	3	112	117.5	8	2012	50	_	50	83	18	32	–	–
SPA	118-03	3	118	123.5	2	2012	50	–	50	86	–	32	18	–
SPA	125-03	3	125	130.5	2	2012	50	–	50	92	–	32	18	–
SPA	132-03	3	132	137.5	2	2012	50	–	50	98	–	32	18	–
SPA	140-03	3	140	145.5	8	2517	60	–	50	106	5	45	–	–
SPA	150-03	3	150	155.5	8	2517	60	–	50	116	5	45	–	–
SPA	160-03	3	160	165.5	8	2517	60	–	50	126	5	45	–	–
SPA	170-03	3	170	175.5	8	2517	60	–	50	138	5	45	–	–
SPA	180-03	3	180	185.5	8	2517	60	–	50	146	5	45	–	–
SPA	190-03	3	190	195.5	8	2517	60	–	50	158	5	45	–	–
SPA	200-03	3	200	205.5	6	2517	60	20	50	165	2.5	45	2.5	120
SPA	212-03	3	212	217.5	6	2517	60	20	50	177	2.5	45	2.5	120
SPA	224-03	3	224	229.5	6	2517	60	20	50	189	2.5	45	2.5	120
SPA	250-03	3	250	255.5	6	2517	60	20	50	215	2.5	45	2.5	120
SPA	280-03	3	280	285.5	6	2517	60	20	50	245	2.5	45	2.5	120
SPA	315-03	3	315	320.5	7	3020	75	25	50	280	0.5	51	0.5	150
SPA	355-03	3	355	360.5	4	3020	75	–	50	320	0.5	51	0.5	150
SPA	400-03	3	400	405.5	4	3020	75	–	50	365	0.5	51	0.5	150
SPA	450-03	3	450	455.5	4	3020	75	–	50	415	0.5	51	0.5	150
SPA	500-03	3	500	505.5	4	3020	75	–	50	465	0.5	51	0.5	150
SPA	560-03	3	560	565.5	4	3020	75	–	50	525	0.5	51	0.5	150
SPA	630-03	3	630	635.5	4	3020	75	–	50	595	0.5	51	0.5	150
SPA	800-03	3	800	805.5	4	3535	90	_	50	765	19.5	89	19.5	170
SPA	1000-03	3	1000	1005.5	4	3535	90	–	50	965	19.5	89	19.5	178

Item	Grooves	P	O	Type	Bush	Max Bore	E	F	J	K	L	M	N
SPA 90-04	4	90	95.5	3	1615	42	–	65	64	13.5	38	13.5	–
SPA 95-04	4	95	100.5	3	1615	42	–	65	64	13.5	38	13.5	–
SPA 100-04	4	100	105.5	2	1615	42	–	65	70	–	38	27	–
SPA 106-04	4	106	111.5	8	2012	50	–	65	76	33	32	–	–
SPA 112-04	4	112	117.5	8	2012	50	–	65	80	33	32	–	–
SPA 118-04	4	118	123.5	2	2012	50	–	65	86	–	32	33	–
SPA 125-04	4	125	130.5	2	2012	50	–	65	92	–	32	33	–
SPA 132-04	4	132	137.5	2	2517	60	–	65	98	–	45	20	–
SPA 140-04	4	140	145.5	2	2517	60	–	65	106	–	45	20	–
SPA 150-04	4	150	155.5	2	2517	60	–	65	116	–	45	20	–
SPA 160-04	4	160	165.5	2	2517	60	–	65	126	–	45	20	–
SPA 170-04	4	170	175.5	2	2517	60	–	65	138	–	45	20	–
SPA 180-04	4	180	185.5	2	2517	60	–	65	146	–	45	20	–
SPA 190-04	4	190	195.5	2	2517	60	–	65	158	–	45	20	–
SPA 200-04	4	200	205.5	2	3020	75	–	65	165	–	51	14	–
SPA 212-04	4	212	217.5	2	3020	75	–	65	177	–	51	14	–
SPA 224-04	4	224	229.5	2	3020	75	–	65	189	–	51	14	–
SPA 250-04	4	250	255.5	6	3020	75	10	65	215	7	51	7	150
SPA 280-04	4	280	285.5	6	3020	75	10	65	245	7	51	7	150
SPA 315-04	4	315	320.5	6	3020	75	10	65	280	7	51	7	150
SPA 355-04	4	355	360.5	5	3020	75	–	65	320	7	51	7	150
SPA 400-04	4	400	405.5	5	3020	75	–	65	365	7	51	7	150
SPA 450-04	4	450	455.5	5	3020	75	–	65	415	7	51	7	150
SPA 500-04	4	500	505.5	5	3020	75	–	65	465	7	51	7	150
SPA 560-04	4	560	565.5	4	3535	90	–	65	525	12	89	12	170
SPA 630-04	4	630	635.5	4	3535	90	–	65	595	12	89	12	170
SPA 800-04	4	800	805.5	4	3535	90	–	65	765	12	89	12	170
SPA 1000-04	4	1000	1005.5	4	4040	90	–	65	965	18.5	102	18.5	216

Item	Grooves	P	0	Type	Bush	Max Bore	E	F	J	K	L	M	N
SPA 100-05	5	100	105.5	2	1615	42	_	80	70	–	38	42	_
SPA 106-05	5	106	111.5	8	2012	50	–	80	76	48	32	–	–
SPA 112-05	5	112	117.5	8	2012	50	–	80	80	48	32	–	–
SPA 118-05	5	118	123.5	2	2012	50	–	80	86	–	32	48	–
SPA 125-05	5	125	130.5	3	2012	50	–	80	92	24	32	24	–
SPA 132-05	5	132	137.5	3	2517	60	–	80	98	17.5	45	17.5	–
SPA 140-05	5	140	145.5	3	2517	60	–	80	106	17.5	45	17.5	–
SPA 150-05	5	150	155.5	3	2517	60	–	80	116	17.5	45	17.5	–
SPA 160-05	5	160	165.5	3	2517	60	–	80	126	17.5	45	17.5	–
SPA 170-05	5	170	175.5	3	2517	75	–	80	146	17.5	45	17.5	–
SPA 180-05	5	180	185.5	3	3020	75	–	80	165	14.5	51	14.5	–
SPA 190-05	5	190	195.5	2	3020	75	–	80	189	–	51	29	–
SPA 200-05	5	200	205.5	3	3020	75	–	80	215	14.5	51	14.5	–
SPA 212-05	5	212	217.5	2	3020	75	–	80	245	–	51	29	–
SPA 224-05	5	224	229.5	2	3020	75	–	80	280	‘一	51	29	–
SPA 250-05	5	250	255.5	6	3020	75	10	80	215	14.5	51	14.5	150
SPA 280-05	5	280	285.5	7	3535	90	10	80	245	4.5	89	4.5	170
SPA 315-05	5	315	320.5	7	3535	90	12	80	280	4.5	89	4.5	170
SPA 355-05	5	355	360.5	4	3535	90	–	80	320	4.5	89	4.5	170
SPA 400-05	5	400	405.5	4	3535	90	–	80	365	4.5	89	4.5	170
SPA 450-05	5	450	455.5	4	3535	90	–	80	415	4.5	89	4.5	170
SPA 500-05	5	500	505.5	4	3535	90	–	80	465	4.5	89	4.5	170
SPA 560-05	5	560	565.5	4	3535	90	–	80	525	4.5	89	4.5	170
SPA 630-05	5	630	635.5	4	3535	90	–	80	595	4.5	89	4.5	170
SPA 800-05	5	800	805.5	4	4040	100	–	80	765	11	102	11	216
SPA 1000-05	5	1000	1005.5	4	4545	110	–	80	965	17	114	17	225

Item	Grooves	P	O	Type	Bush	Max Bore	E	F	J	K	L	M	N
SPA 100-06	6	100	105.5	3	1615	42	_	95	70	28.5	38	28.5	–
SPA 106-06	6	106	111.5	8	2012	50	–	95	76	63	32	–	–
SPA 112-06	6	112	117.5	8	2012	50	–	95	80	63	32	–	–
SPA 118-06	6	118	123.5	8	2012	50	–	95	86	63	32	–	–
SPA 125-06	6	125	130.5	3	2012	50	–	95	92	31.5	32	31.5	–
SPA 132-06	6	132	137.5	3	2517	60	–	95	98	25	45	25	–
SPA 140-06	6	140	145.5	3	2517	60	–	95	106	25	45	25	–
SPA 150-06	6	150	155.5	3	2517	60	–	95	116	25	45	25	–
SPA 160-06	6	160	165.5	3	2517	60	–	95	126	25	45	25	–
SPA 180-06	6	180	185.5	3	3020	75	–	95	146	22	51	22	–
SPA 200-06	6	200	205.5	3	3020	75	–	95	165	22	51	22	–
SPA 224-06	6	224	229.5	3	3020	75	–	95	189	22	51	22	–
SPA 250-06	6	250	255.5	6	3020	75	20	95	215	22	51	22	150
SPA 280-06	6	280	285.5	6	3535	90	25	95	245	3	89	3	170
SPA 315-06	6	315	320.5	6	3535	90	25	95	280	3	89	3	170
SPA 355-06	6	355	360.5	5	3535	90	–	95	320	3	89	3	170
SPA400-06	6	400	405.5	5	3535	90	–	95	365	3	89	3	170
SPA450-06	6	450	455.5	5	3535	90	–	95	415	3	89	3	170
SPA 500-06	6	500	505.5	5	3535	90	–	95	465	3	89	3	170
SPA 560-06	6	560	565.5	5	3535	90	–	95	525	3	89	3	170
SPA 630-06	6	630	635.5	4	4040	100	–	95	595	3.5	102	3.5	216
SPA 800-06	6	800	805.5	4	4040	100	–	95	765	3.5	102	3.5	216
SPA 1000-06	6	1000	1005.5	4	4545	110	–	95	965	9.5	114	9.5	225

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “SPA series V Belt Pulleys”

Packing&Shipping & Delivery

Packing Shipping Delivery

Chains package: First we will use carton package the chains--------then put in wooden box.

We also can custom color package according to your demand

Company Profile

FAQ

How to choose power transmissions parts and industrial products which meet our requirement

Chains	Sprockets	Pulleys	Timing belt Pulley	V-belt Pulley
Sheaves	Coupings	Bush &Hub	Gear& Rack	V-Belt
Locking Assembly	Pulley	Gearbox	Reducer	Shaft Collar
Rod End Bearing	Clevis	PTO	Chain Guide	Belt Guide
Rubber Buffer	Chain Tensioner	PTO Drive Shafts	Universal Joints	Roller Chains
Conveyor Chains	V-Belts	Worm Gearbox	Helical Gear	Worm
Agricultural Chain	CNC Proces Parts	Casting	Stamping
Powder Metallurgy	CNC Proces Parts	Casting	Stamping

What Products Do you sell ?

We are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.

How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.

What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.

What is the producing process?

Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.

How to control the products quality?

Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.

What is the transportation?

-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.

Can we design packaging?

-Yes. Default is regular packing, and we can make customer's own packing.

Can you provide OEM service?

-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.

Can you give me discount on Power Transmissions Parts and Industrial parts?

-Yes, of course. Pls. send me your Email, you'll get more

Q: Are You a trading company or a manufacturer?

A: We Are the factory and have our Own trading company

Q: How Can I get an offer?

A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.

Q: What is your minimum order size?

A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples free of charge, but we don't pay the freight.

Q: What is the lead time for mass production?

A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.

Q: What if the parts don't Work?

A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.

Q: What are your terms of payment?

A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable

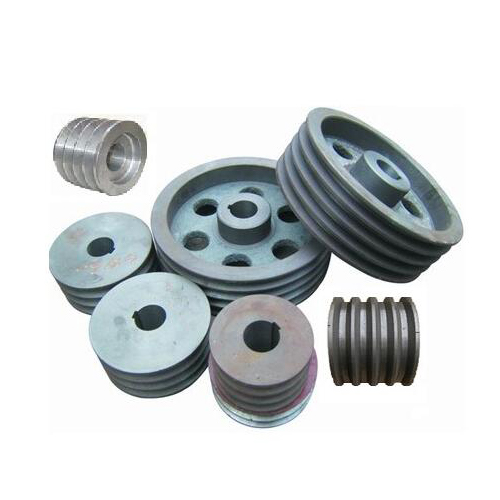

SPA series V Belt Pulleys

SPA series V Belt Pulleys

Reviews

Related products

V belt pulleys with solid hub

Plain bore

Falt belt pulleys for taper bushes

SPC series V Belt Pulleys For Taper Bushes

SPB series V Belt Pulleys

SPZ series V Belt Pulleys

Got a query for Power-Trans Power transmissions Part Product or Services?
