SPB series V Belt Pulleys

Category:
Description

SPB series V Belt Pulleys

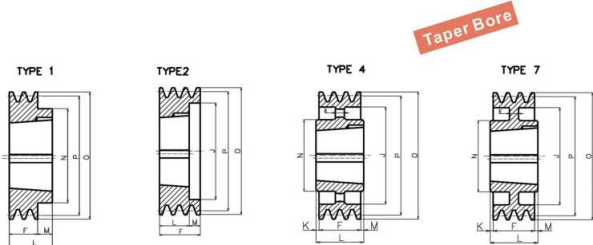

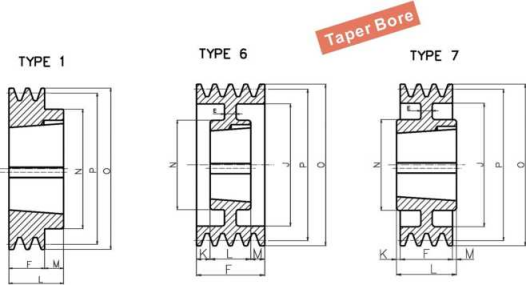

SPB 1 V Belt Pulleys For Taper Bushes

Item Grooves P 0 Type Bush Max

Bore

 E F J K L M N
SPB 100-06 1 100 107 1 1610 42 – 25 – – 25 – –
SPB 106-06 1 106 113 1 1610 42 – 25 – – 25 – –
SPB112-06 1 112 119 1 1610 42 – 25 – – 25 – –
SPB118-06 1 118 125 1 1610 42 – 25 – – 25 – –
SPB 125-06 1 125 132 1 1610 42 – 25 – – 25 – –
SPB 132-06 1 132 139 1 1610 42 – 25 – – 25 – –
SPB 140-06 1 140 147 1 1610 42 – 25 – – 25 – –
SPB 150-06 1 150 157 1 1610 42 – 25 – – 25 – –
SPB 160-06 1 160 167 1 1610 42 – 25 – – 25 – –
SPB 170-06 1 170 177 1 1610 42 – 25 – – 25 – –
SPB 180-06 1 180 187 6 1610 42 10 25 137 – 25 – 80
SPB 190-01 1 190 197 7 2012 50 10 25 147 3.5 32 3.5 100
SPB200-06 1 200 207 7 2012 50 10 25 157 3.5 32 3.5 100
SPB212-01 1 212 219 7 2012 50 10 25 169 3.5 32 3.5 100
SPB 224-06 1 224 231 7 2012 50 10 25 181 3.5 32 3.5 100
SPB236-01 1 236 243 7 2012 50 10 25 193 3.5 32 3.5 100
SPB250-06 1 250 257 7 2012 50 10 25 207 3.5 32 3.5 100
SPB 280-06 1 280 287 7 2012 50 10 25 237 3.5 32 3.5 100
SPB 300-01 1 300 307 7 2012 50 10 25 258 3.5 32 3.5 100
SPB 315-06 1 315 322. 7 2012 50 10 25 272 3.5 32 3.5 100

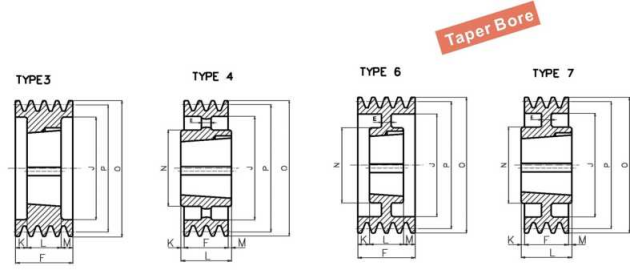

SPB 2 V Belt Pulleys For Taper Bushes

Item Grooves P O Type Bush Max

Bore

 E F J K L M N
SPB 100-02 2 100 107 2 1610 42 – 44 62 ■ 25 19 –
SPB 106-02 2 106 113 2 1610 42 – 44 67 – 25 19 –
SPB 112-02 2 112 119 2 1610 42 – 44 72 – 25 19 –
SPB 118-02 2 118 125 2 1610 42 – 44 78 – 25 19 –
SPB 125-02 2 125 132 2 2012 50 – 44 82 – 32 12 –
SPB 132-02 2 132 139 2 2012 50 – 44 89 – 32 12 –
SPB 140-02 2 140 147 2 2012 50 – 44 97 – 32 12 –
SPB 150-02 2 150 157 2 2012 50 – 44 107 – 32 12 –
SPB 160-02 2 160 167 2 2012 50 – 44 117 – 32 12 –
SPB 170-02 2 170 177 2 2012 50 – 44 127 – 32 12 –
SPB 180-02 2 180 187 1 2517 60 – 44 – – 45 1 120
SPB 190-02 2 190 197 1 2517 60 – 44 – – 45 1 120
SPB 200-02 2 200 207 1 2517 60 – 44 – – 45 1 120
SPB 212-02 2 212 219 7 2517 60 10 44 169 – 45 1 120
SPB 224-02 2 224 231 7 2517 60 10 44 181 – 45 1 120
SPB 236-02 2 236 243 7 2517 60 10 44 193 – 45 1 120
SPB 250-02 2 250 257 7 2517 60 10 44 207 – 45 1 120
SPB 280-02 2 280 287 7 2517 60 12 44 237 – 45 1 120
SPB 300-02 2 300 307 7 2517 60 12 44 257 – 45 1 120
SPB 315-02 2 315 322 7 2517 60 12 44 272 – 45 1 120
SPB 335-02 2 335 342 7 2517 60 12 44 292 – 45 1 120
SPB 355-02 2 355 362 4 3020 75 – 44 312 3.5 51 3.5 120
SPB 400-02 2 400 407 4 3020 75 – 44 357 3.5 51 3.5 150
SPB 450-02 2 450 457 4 3020 75 – 44 407 3.5 51 3.5 150
SPB 500-02 2 500 507 4 3020 75 – 44 457 3.5 51 3.5 150
SPB 560-02 2 560 567 4 3030 75 – 44 517 4 76 28 150
SPB 630-02 2 630 637 4 3030 75 – 44 587 4 76 16 150

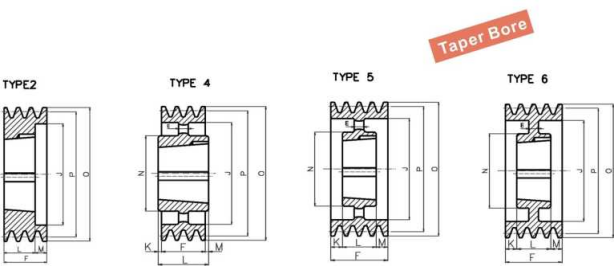

SPB 3 V Belt Pulleys For Taper Bushes

Item Grooves P O Type Bush Max

Bore

 E F J K L M N
SPB 100-03 3 100 107 2 1610 42 – 63 57 – 25 38 –
SPB 106-03 3 106 113 2 1610 42 – 63 67 – 25 38 –
SPB 112-03 3 112 119 2 1610 42 – 63 72 – 25 38 –
SPB 118-03 3 118 125 2 1610 42 – 63 78 – 25 38 –
SPB 125-03 3 125 132 2 2012 50 – 63 82 – 32 31 –
SPB 132-03 3 132 139 2 2012 50 – 63 89 – 32 31 –
SPB 140-03 3 140 147 2 2012 50 – 63 97 – 32 31 –
SPB 150-03 3 150 157 2 2517 60 – 63 107 – 45 18 –
SPB 160-03 3 160 167 2 2517 60 – 63 117 _ 45 18 –
SPB 170-03 3 170 177 2 2517 60 – 63 127 – 45 18 –
SPB 180-03 3 180 187 2 2517 60 – 63 137 – 45 18 –
SPB 190-03 3 190 197 2 2517 60 – 63 147 – 45 18 –
SPB 200-03 3 200 207 2 2517 60 – 63 157 – 45 18 –
SPB 212-03 3 212 219 6 2517 60 15 63 169 – 45 18 120
SPB 224-03 3 224 231 6 2517 60 15 63 181 – 45 18 120
SPB 236-03 3 236 243 6 2517 60 15 63 193 – 45 18 120
SPB 250-03 3 250 257 6 3020 75 20 63 207 – 51 12 150
SPB 280-03 3 280 287 6 3020 75 20 63 237 6 51 6 150
SPB 300-03 3 300 307 6 3020 75 20 63 257 6 51 6 150
SPB 315-03 3 315 322 6 3020 75 20 63 272 6 51 6 150
SPB 335-03 3 335 342 6 3020 75 20 63 292 6 51 6 150
SPB 355-03 3 355 362 5 3020 75 15 63 312 6 51 6 150
SPB 400-03 3 400 407 4 3535 90 – 63 357 13 89 13 170
SPB 450-03 3 450 457 4 3535 90 – 63 407 – 89 26 170
SPB 500-03 3 500 507 4 3535 90 – 63 457 _ 89 26 170
SPB 560-03 3 560 567 4 3535 90 – 63 517 – 89 26 170
SPB 630-03 3 630 637 4 3535 90 – 63 587 – 89 26 170
SPB 710-03 3 710 717 4 3535 90 – 63 664 4 89 22 170
SPB 800-03 3 800 807 4 3535 90 – 63 754 4 89 22 170
SPB 900-03 3 900 907 4 3535 90 – 63 854 4 89 22 170
SPB 1000-03 3 1000 1007 4 4040 100 – 63 954 6 102 33 200
SPB 1250-03 3 1250 1257 4 4040 100 – 63 1204 6 102 33 200
SPB 4 V Belt Pulleys For Taper Bushes

Item Grooves P O Type Bush Max

Bore

 E F J K L M N
SPB 125-04 4 125 132 3 2012 50 – 82 82 25 32 25 –
SPB 132-04 4 132 139 3 2012 50 – 82 89 25 32 25 –
SPB 140-04 4 140 147 3 2517 60 – 82 97 18.5 45 18.5 –
SPB 150-04 4 150 157 3 2517 60 – 82 107 18.5 45 18.5 –
SPB 160-04 4 160 167 3 2517 60 – 82 117 18.5 45 18.5 –
SPB 170-04 4 170 177 3 2517 60 – 82 127 18.5 45 18.5 –
SPB 180-04 4 180 187 3 2517 60 – 82 137 18.5 45 18.5 –
SPB 190-04 4 190 197 3 2517 60 – 82 147 18.5 45 18.5 –
SPB 200-04 4 200 207 3 3020 75 – 82 157 15.5 51 15.5 –
SPB 212-04 4 212 219 3 3020 75 – 82 169 15.5 51 15.5 –
SPB 224-04 4 224 231 3 3020 75 – 82 181 15.5 51 15.5 –
SPB 236-04 4 236 243 3 3020 75 – 82 193 15.5 51 15.5 150
SPB 250-04 4 250 257 6 3020 75 25 82 207 15.5 51 15.5 150
SPB 280-04 4 280 287 6 3020 75 25 82 237 15.5 51 15.5 150
SPB 300-04 4 300 307 6 3535 90 25 82 257 15.5 89 7 170
SPB 315-04 4 315 322 7 3535 90 25 82 272 3.5 89 3.5 170
SPB 335-04 4 335 342 7 3535 90 25 82 292 3.5 89 3.5 170
SPB 355-04 4 355 362 7 3535 90 25 82 312 3.5 89 3.5 170
SPB 400-04 4 400 407 4 3535 90 – 82 357 3.5 89 3.5 170
SPB 450-04 4 450 457 4 3535 90 _ 82 407 – 89 7 170
SPB 500-04 4 500 507 4 3535 90 – 82 457 – 89 7 170
SPB 560-04 4 560 567 4 3535 90 – 82 517 – 89 7 170
SPB 630-04 4 630 637 4 3535 90 – 82 587 – 89 7 170
SPB 710-04 4 710 717 4 3535 90 – 82 664 3.5 89 3.5 187
SPB 800-04 4 800 807 4 4040 100 – 82 754 10 102 10 200
SPB 900-04 4 900 907 4 4040 100 – 82 854 10 102 10 216
SPB 1000-04 4 1000 1007 4 4040 100 – 82 954 10 102 16 216
SPB 1250-04 4 1250 1257 4 4545 110 – 82 1204 16 114 16 225

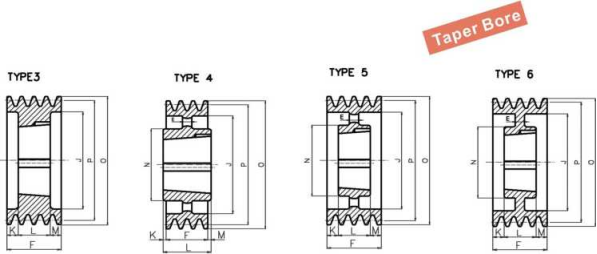

SPB 5  V Belt Pulleys For Taper Bushes

Item Grooves P 0 Type Bush Max

Bore

 E F J K L M N
SPB 125-05 5 125 132 8 2012 50 – 101 87 69 32 – –
SPB 132-05 5 132 139 8 2517 60 – 101 94 56 45 – –
SPB 140-05 5 140 147 3 2517 60 – 101 97 28 45 28 –
SPB 150-05 5 150 157 3 2517 60 – 101 107 28 45 28 –
SPB 160-05 5 160 167 3 2517 60 – 101 117 28 45 28 –
SPB 170-05 5 170 177 3 3020 75 – 101 127 25 51 25 –
SPB 180-05 5 180 187 3 3020 75 – 101 137 25 51 25 –
SPB 190-05 5 190 197 3 3020 75 – 101 147 25 51 25 –
SPB 200-05 5 200 207 3 3020 75 – 101 157 25 51 25 –
SPB 212-05 5 212 219 3 3020 75 – 101 169 25 51 25 –
SPB 224-05 5 224 231 3 3020 75 – 101 181 25 51 25 –
SPB 236-05 5 236 243 3 3535 90 – 101 193 6 89 6 –
SPB 250-05 5 250 257 3 3535 90 – 101 207 6 89 6 –
SPB 280-05 5 280 287 6 3535 90 25 101 237 6 89 6 170
SPB 300-05 5 300 307 6 3535 90 25 101 257 6 89 6 170
SPB 315-05 5 315 322 6 3535 90 25 101 272 6 89 6 170
SPB 335-05 5 335 342 6 3535 90 25 101 292 6 89 6 170
SPB 355-05 5 355 362 6 3535 90 17 101 312 6 89 6 170
SPB 400-05 5 400 407 5 3535 90 – 101 357 6 89 6 170
SPB 450-05 5 450 457 5 3535 90 – 101 407 – 89 12 170
SPB 500-05 5 500 507 5 3535 90 – 101 457 – 89 12 170
SPB 560-05 5 560 567 4 4040 100 – 101 517 – 102 1 200
SPB 630-05 5 630 637 4 4040 100 – 101 587 – 102 1 200
SPB 710-05 5 710 717 4 4040 100 – 101 664 0.5 102 0.5 200
SPB 800-05 5 800 807 4 4040 100 – 101 754 0.5 102 0.5 200
SPB 900-05 5 900 907 4 4040 100 – 101 854 6.5 114 6.5 200
SPB 1000-05 5 1000 1007 4 4545 110 – 101 954 6.5 114 6.5 225
SPB 1250-05 5 1250 1257 4 4545 110 – 101 1204 6.5 114 6.5 225

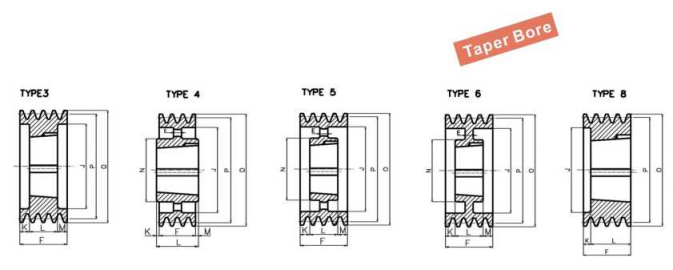

SPB 6 V Belt Pulleys For Taper Bushes

Item Grooves P 0 Type Bush Max

Bore

 E F J K L M N
SPB 140-06 6 140 147 3 2517 60 – 120 97 37.5 45 37.5 –
SPB 150-06 6 150 157 3 2517 60 – 120 107 37.5 45 37.5 –
SPB 160-06 6 160 167 3 3020 75 – 120 117 34.5 51 34.5 –
SPB 170-06 6 170 177 3 3020 75 – 120 127 34.5 51 34.5 –
SPB 180-06 6 180 187 3 3020 75 – 120 137 34.5 51 34.5 –
SPB 190-06 6 190 197 3 3020 75 – 120 147 34.5 51 34.5 –
SPB 200-06 6 200 207 3 3020 75 – 120 157 34.5 51 34.5 –
SPB 212-06 6 212 219 3 3535 90 – 120 169 15.5 89 15.5 –
SPB 224-06 6 224 231 3 3535 90 – 120 181 15.5 89 15.5 –
SPB 236-06 6 236 243 3 3535 90 – 120 193 15.5 89 15.5 –
SPB 250-06 6 250 257 3 3535 90 – 120 207 15.5 89 15.5 –
SPB 280-06 6 280 287 6 3535 90 18 120 237 15.5 89 15.5 170
SPB 300-06 6 300 307 6 3535 90 18 120 257 15.5 89 15.5 170
SPB 315-06 6 315 322 6 3535 90 18 120 272 15.5 89 15.5 170
SPB 335-06 6 335 342 6 3535 90 18 120 292 15.5 89 15.5 170
SPB 355-06 6 355 362 6 3535 90 18 120 312 15.5 89 15.5 170
SPB 400-06 6 400 407 5 3535 90 – 120 357 15.5 89 15.5 170
SPB 450-06 6 450 457 5 4040 100 – 120 407 – 102 18 200
SPB 500-06 6 500 507 5 4040 100 – 120 457 – 102 18 200
SPB 560-06 6 560 567 5 4040 100 – 120 517 – 102 18 200
SPB 630-06 6 630 637 5 4040 100 – 120 587 – 102 18 200
SPB 710-06 6 710 717 5 4040 100 – 120 664 9 102 9 216
SPB 800-06 6 800 807 5 4545 110 – 120 754 3 114 3 225
SPB 900-06 6 900 907 5 4545 110 – 120 854 3 114 3 225
SPB 1000-06 6 1000 1007 5 4545 110 – 120 954 3 114 3 225
SPB 1250-06 6 1250 1257 4 4545 110 – 120 1204 3.5 127 3.5 245
SPB 8 V Belt Pulleys For Taper Bushes

Item Grooves P 0 Type Bush Max

Bore

 E F J K L M N
SPB 140-08 8 140 147 3 2517 60 – 158 97 56.5 45 56.5 –
SPB 160-08 8 160 167 3 3020 75 – 158 117 53.5 51 53.5 –
SPB 170-08 8 170 177 3 3030 75 – 158 127 41 76 41 –
SPB 180-08 8 180 187 3 3030 75 – 158 137 41 76 41 –
SPB 190-08 8 190 197 3 3030 75 – 158 147 41 76 41 –
SPB 200-08 8 200 207 3 3535 90 – 158 157 34.5 89 34.5 –
SPB 212-08 8 212 219 3 3535 90 – 158 169 34.5 89 34.5 –
SPB 224-08 8 224 231 3 3535 90 – 158 181 34.5 89 34.5 –
SPB 236-08 8 236 243 3 3535 90 – 158 193 34.5 89 34.5 –
SPB 250-08 8 250 257 3 3535 90 – 158 207 34.5 89 34.5 –
SPB 280-08 8 280 287 3 3535 90 – 158 237 34.5 89 34.5 –
SPB 300-08 8 300 307 6 3535 90 20 158 257 34.5 89 34.5 170
SPB 315-08 8 315 322 6 3535 90 18 158 272 34.5 89 34.5 170
SPB 335-08 8 335 342 6 3535 90 18 158 292 34.5 89 34.5 170
SPB 355-08 8 355 362 6 3535 90 18 158 312 34.5 89 34.5 170
SPB 400-08 8 400 407 5 4040 100 – 158 357 28 102 28 200
SPB 450-08 8 450 457 5 4040 100 – 158 407 28 102 28 200
SPB 500-08 8 500 507 5 4040 100 – 158 457 28 102 28 200
SPB 560-08 8 560 567 5 4545 110 – 158 517 22 114 22 225
SPB 630-08 8 630 637 5 4545 110 – 158 587 22 114 22 225
SPB 710-08 8 710 717 5 4545 110 – 158 664 22 114 22 225
SPB 800-08 8 800 807 5 4545 110 – 158 754 22 114 22 225
SPB 900-08 8 900 907 5 4545 110 – 158 854 22 114 22 225
SPB 1000-08 8 1000 1007 5 5050 125 – 158 954 15.5 127 15.5 245
SPB 1250-08 8 1250 1257 5 5050 125 – 158 1204 15.5 127 15.5 245
SPB 10 V Belt Pulleys For Taper Bushes

Item Grooves p 0 Type Bush Max

Bore

 E F J K L M N
SPB 224-10 10 224 231 3 3535 90 – 196 181 53.5 89 53.5 –
SPB 236-10 10 236 243 3 3535 90 – 196 193 53.5 89 53.5 –
SPB 250-10 10 250 257 3 3535 90 – 196 207 53.5 89 53.5 –
SPB 280-10 10 280 287 3 3535 90 – 196 237 53.5 89 53.5 –
SPB 315-10 10 315 322 6 3535 90 18 196 272 53.5 89 53.5 170
SPB 335-10 10 335 342 6 4040 100 20 196 292 47 102 47 200
SPB 355-10 10 355 362 6 4040 100 20 196 312 47 102 47 200
SPB 400-10 10 400 407 5 4040 100 – 196 357 47 102 47 200
SPB 450-10 10 450 457 5 4545 110 – 196 407 41 114 41 225
SPB 500-10 10 500 507 5 4545 110 – 196 457 41 114 41 225
SPB 560-10 10 560 567 5 4545 110 – 196 517 41 114 41 225
SPB 630-10 10 630 637 5 4545 110 – 196 587 41 114 41 225
SPB 710-10 10 710 717 5 4545 110 – 196 664 41 114 41 225
SPB 800-10 10 800 807 5 4545 110 – 196 754 41 114 41 225
SPB 900-10 10 900 907 5 5050 125 – 196 854 34.5 127 34.5 245
SPB 1000-10 10 1000 1007 5 5050 125 – 196 954 34.5 127 34.5 245



Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “SPB series V Belt Pulleys”

Your email address will not be published. Required fields are marked *

Packing&Shipping & Delivery

china Packing Shipping Delivery

Packing Shipping Delivery

Chains package: First we will use carton package the chains--------then put in wooden box.
We also can custom color package according to your demand
Company Profile
Company Profile
FAQ

How to choose power transmissions parts and industrial products which meet our requirement

Chains Sprockets Pulleys Timing belt Pulley V-belt Pulley
Sheaves Coupings Bush &Hub Gear& Rack V-Belt
Locking Assembly Pulley Gearbox Reducer Shaft Collar
Rod End Bearing Clevis PTO Chain Guide Belt Guide
Rubber Buffer Chain Tensioner PTO Drive Shafts Universal Joints Roller Chains
Conveyor Chains V-Belts Worm Gearbox Helical Gear Worm
Agricultural Chain CNC Proces Parts Casting Stamping
Powder Metallurgy CNC Proces Parts Casting Stamping

What Products Do you sell ?

We  are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.

How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.

What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.

What is the producing process?

Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.

How to control the products quality?

Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.

What is the transportation?

-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.

Can we design packaging?

-Yes. Default is regular packing, and we can make customer's own packing.

Can you provide OEM service?

-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.

Can you give me discount on Power Transmissions Parts and Industrial parts?

-Yes, of course. Pls. send me your Email, you'll get more

Q: Are You a trading company or a manufacturer?

A: We Are the factory and have our Own trading company

Q: How Can I get an offer?

A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.

Q: What is your minimum order size?

A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples free of charge, but we don't pay the freight.

Q: What is the lead time for mass production?

A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.

Q: What if the parts don't Work?

A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.

Q: What are your terms of payment?

A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable







Related products

V belt pulleys with solid hub

V belt pulleys with solid hub

Plain bore

Plain bore

Falt belt pulleys for taper bushes

Falt belt pulleys for taper bushes

V belt pulley

SPC series V Belt Pulleys For Taper Bushes

V belt pulley

SPA series V Belt Pulleys

V belt pulley

SPZ series V Belt Pulleys

,
