SPC series V Belt Pulleys For Taper Bushes

Category:
Description

SPC series V Belt Pulleys For Taper Bushes

SPC 3 V Belt Pulleys For Taper Bushes

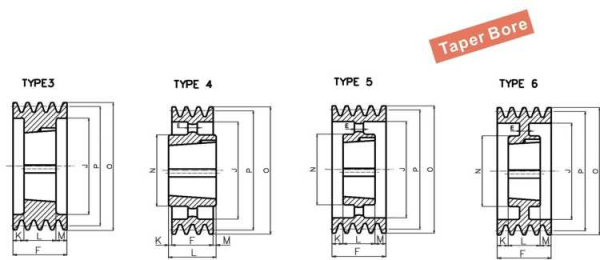

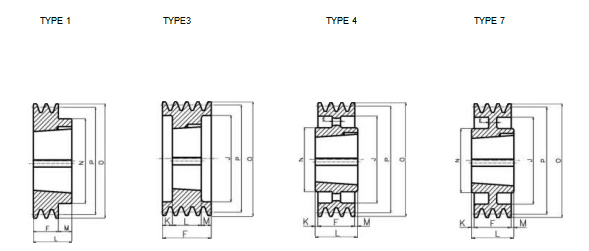

Item Grooves P O Type Bush Max

Bore

 F J K L M N E
SPC 200-03 3 200 209,6 3 2517 60 85 150 20 45 20 – –
SPC 212-03 3 212 221,6 3 3020 75 85 162 17 51 17 – –
SPC 224-03 3 224 233,6 3 3020 75 85 173 17 51 17 – –
SPC 236-03 3 236 245,6 3 3020 75 85 185 17 51 17 – –
SPC 250-03 3 250 259,6 3 3020 75 85 100 17 51 17 – –
SPC 265-03 3 265 274,6 1 3535 90 85 209 – 89 4 170 –
SPC 280-03 3 280 289,6 1 3535 90 85 224 – 89 4 170 –
SPC 300-03 3 300 309,6 7 3535 90 85 249 2 89 2 170 18
SPC 315-03 3 315 324,6 7 3535 90 85 264 2 89 2 170 18
SPC 335-03 3 335 344,6 7 3535 90 85 284 2 89 2 170 18
SPC 355-03 3 355 364,6 7 3535 90 85 304 2 89 2 170 18
SPC 375-03 3 375 384,6 7 3535 90 85 324 2 89 2 170 20
SPC 400-03 3 400 409,6 4 3535 90 85 344 2 89 2 170 –
SPC 425-03 3 425 434,6 4 3535 90 85 369 2 89 2 170 –
SPC 450-03 3 450 459,6 4 3535 90 85 394 2 89 2 170 –
SPC 475-03 3 475 484,6 4 3535 90 85 419 2 89 2 170 –
SPC 500-03 3 500 509,6 4 3535 90 85 444 2 89 2 170 –
SPC 530-03 3 530 539,6 4 3535 90 85 474 2 89 2 170 –
SPC 560-03 3 560 569,6 4 3535 90 85 504 2 89 2 170 –
SPC 630-03 3 630 639,6 4 4040 100 85 574 8,5 102 8,5 200 –
SPC 800-03 3 800 809,6 4 4545 110 85 737 14,5 114 14,5 225 –
SPC 1000-03 3 1000 1009,6 4 5050 125 85 937 21 127 21 245 –
SPC 1250-03 3 1250 1259,6 4 5050 125 85 1187 21 127 21 245 –
SPC 4 V Belt Pulleys For Taper Bushes

Item Grooves P 0 Type Bush Max

Bore

 E F J K L M N
SPC 200-04 4 200 209,6 3 3020 75 – 111 144 30 51 30 –
SPC 212-04 4 212 221,6 3 3020 75 – 111 156 30 51 30 –
SPC 224-04 4 224 233,6 3 3535 90 – 111 168 11 89 11 –
SPC 236-04 4 236 245,6 3 3535 90 – 111 180 11 89 11 –
SPC 250-04 4 250 259,6 3 3535 90 – 111 194 11 89 11 –
SPC 265-04 4 265 274,6 3 3535 90 – 111 209 11 89 11 –
SPC 280-04 4 280 289,6 3 3535 90 – 111 224 11 89 11 –
SPC 300-04 4 300 309,6 6 3535 90 20 111 244 11 89 11 170
SPC 315-04 4 315 324,6 6 3535 90 20 111 259 11 89 11 170
SPC 335-04 4 335 344,6 6 3535 90 20 111 279 11 89 11 170
SPC 355-04 4 355 364,6 6 3535 90 20 111 299 11 89 11 170
SPC 375-04 4 375 384,6 6 3535 90 25 111 319 11 89 11 170
SPC 400-04 4 400 409,6 5 3535 90 – 111 344 11 89 11 170
SPC 425-04 4 425 434,6 5 3535 90 – 111 369 11 89 11 170
SPC 450-04 4 450 459,6 5 3535 90 – 111 394 11 89 11 170
SPC 475-04 4 475 484,6 5 3535 90 – 111 419 11 89 11 170
SPC 500-04 4 500 509,6 5 3535 90 – 111 444 11 89 11 170
SPC 530-04 4 530 539,6 5 4040 100 – 111 474 4.5 102 4.5 170
SPC 560-04 4 560 569,6 5 4040 100 – 111 504 4,5 102 4,5 200
SPC 630-04 4 630 639,6 4 4545 110 – 111 574 1,5 114 1,5 225
SPC 710-04 4 710 719,6 4 5050 125 – 111 654 4 127 12 245
SPC 800-04 4 800 809,6 4 5050 125 – 111 737 4 127 12 245
SPC 1000-04 4 1000 1009,6 4 5050 125 – 111 937 4 127 12 245
SPC 1250-04 4 1250 1259,6 4 5050 125 – 111 1187 4 127 12 245
SPC 5 V Belt Pulleys For Taper Bushes

Item Grooves P O Type Bush Max

Bore

 E F J K L M N
SPC 200-05 5 200 209,6 3 3535 90 – 136 150 23.5 89 23.5 –
SPC 212-05 5 212 221,6 3 3535 90 – 136 160 23.5 89 23.5 –
SPC 224-05 5 224 233,6 3 3535 90 – 136 173 23.5 89 23.5 –
SPC 236-05 5 236 245,6 3 3535 90 – 136 185 23.5 89 23.5 –
SPC 250-05 5 250 259,6 3 3535 90 – 136 198 23.5 89 23.5 –
SPC 265-05 5 265 274,6 3 3535 90 – 136 213 23.5 89 23.5 –
SPC 280-05 5 280 289,6 3 3535 90 – 136 228 23.5 89 23.5 –
SPC 300-05 5 300 309,6 6 3535 90 20 136 247 23.5 89 23.5 170
SPC 315-05 5 315 324,6 6 3535 90 20 136 264 23.5 89 23.5 170
SPC 335-05 5 335 344,6 6 3535 90 20 136 280 23.5 89 23.5 170
SPC 355-05 5 355 364,6 6 3535 90 20 136 304 23.5 89 23.5 170
SPC 375-05 5 375 384,6 6 3535 90 20 136 324 23.5 89 23.5 170
SPC 400-05 5 400 409,6 5 3535 90 – 136 344 23.5 89 23.5 170
SPC 425-05 5 425 434,6 5 3535 90 – 136 369 23.5 89 23.5 170
SPC 450-05 5 450 459,6 5 4040 100 – 136 394 17 102 17 200
SPC 475-05 5 475 484,6 5 4040 100 – 136 419 17 102 17 200
SPC 500-05 5 500 509,6 5 4040 100 – 136 444 17 102 17 200
SPC 530-05 5 530 539,6 5 4545 110 – 136 474 17 102 17 200
SPC 560-05 5 560 569,6 5 4545 110 – 136 504 11 114 11 200
SPC 630-05 5 630 639,6 5 5050 125 – 136 574 4.5 127 4.5 245
SPC 710-05 5 710 719,6 5 5050 125 – 136 654 4.5 127 4.5 245
SPC 800-05 5 800 809,6 5 5050 125 – 136 737 4.5 127 4.5 245
SPC 1000-05 5 1000 1009,6 5 5050 125 – 136 937 4.5 127 4.5 245
SPC 1250-05 5 1250 1259,6 5 5050 125 – 136 1187 4.5 127 4.5 245
SPC 6 V Belt Pulleys For Taper Bushes

Item Grooves P O Type Bush Max

Bore

 E F J K L M N
SPC 200-06 6 200 209,6 3 3535 90 – 162 148 36.5 89 36.5 –
SPC 212-06 6 212 221,6 3 3535 90 – 162 160 36.5 89 36.5 –
SPC 224-06 6 224 233,6 3 3535 90 – 162 173 36.5 89 36.5 –
SPC 236-06 6 236 245,6 3 3535 90 – 162 185 36.5 89 36.5 –
SPC 250-06 6 250 259,6 3 3535 90 – 162 198 36.5 89 36.5 –
SPC 265-06 6 265 274,6 3 3535 90 – 162 213 36.5 89 36.5 –
SPC 280-06 6 280 289,6 3 3535 90 – 162 228 36.5 89 36.5 –
SPC 300-06 6 300 309,6 6 3535 90 20 162 247 36.5 89 36.5 170
SPC 315-06 6 315 324,6 6 3535 90 20 162 264 36.5 89 36.5 170
SPC 335-06 6 335 344,6 6 3535 90 20 162 280 36.5 89 36.5 170
SPC 355-06 6 355 364,6 6 3535 90 20 162 304 36.5 89 36.5 170
SPC 375-06 6 375 384,6 6 4040 100 20 162 324 30 102 30 200
SPC 400-06 6 400 409,6 6 4040 100 20 162 348 30 102 30 200
SPC 425-06 6 425 434,6 6 4040 100 30 162 369 30 102 30 225
SPC 450-06 6 450 459,6 6 4545 110 30 162 394 24 114 24 225
SPC 475-06 6 475 484,6 6 4545 110 30 162 419 24 114 24 225
SPC 500-06 6 500 509,6 5 4545 110 30 162 444 24 114 24 225
SPC 530-06 6 530 539,6 5 5050 125 30 162 474 17.5 114 17.5 245
SPC 560-06 6 560 569,6 5 5050 125 – 162 504 24 127 24 245
SPC 630-06 6 630 639,6 5 5050 125 – 162 574 17.5 127 17.5 245
SPC 710-06 6 710 719,6 5 5050 125 – 162 654 17.5 127 17.5 245
SPC 800-06 6 800 809,6 5 5050 125 – 162 737 17.5 127 17.5 245
SPC 1000-06 6 1000 1009,6 5 5050 125 – 162 937 17.5 127 17.5 245
SPC 1250-06 6 1250 1259,6 5 5050 125 – 162 1187 17.5 127 17.5 245
SPC 8 V Belt Pulleys For Taper Bushes

Item Grooves P 0 Type Bush Max

Bore

 E F J K L M N
SPC 200-08 8 200 209,6 3 3535 90 – 213 148 62 89 62 –
SPC 212-08 8 212 221,6 3 3535 90 – 213 160 62 89 62 –
SPC 224-08 8 224 233,6 3 3535 90 – 213 170 62 89 62 –
SPC 236-08 8 236 245,6 3 3535 90 – 213 184 62 89 62 –
SPC 250-08 8 250 259,6 3 3535 90 – 213 198 62 89 62 –
SPC 265-08 8 265 274,6 3 3535 90 – 213 213 62 89 62 –
SPC 280-08 8 280 289,6 3 3535 90 – 213 228 62 89 62 –
SPC 300-08 8 300 309,6 3 4040 100 – 213 207 55,5 102 55,5 –
SPC 315-08 8 315 324,6 3 4040 100 – 213 258 55,5 102 55,5 –
SPC 335-08 8 335 344,6 6 4040 100 – 213 280 55,5 102 55,5 –
SPC 355-08 8 355 364,6 3 4040 100 – 213 304 55,5 102 55,5 –
SPC 375-08 8 375 384,6 3 4545 110 – 213 324 49,5 114 49,5 –
SPC 400-08 8 400 409,6 6 4545 110 20 213 348 49,5 114 49,5 220
SPC 425-08 8 425 434,6 6 4545 110 30 213 369 49,5 114 49,5 245
SPC 450-08 8 450 459,6 6 5050 125 30 213 394 43 127 43 245
SPC 475-08 8 475 484,6 6 5050 125 30 213 419 43 127 43 245
SPC 500-08 8 500 509,6 6 5050 125 30 213 444 43 127 43 245
SPC 530-08 8 530 539,6 6 5050 125 30 213 474 43 127 43 245
SPC 560-08 8 560 569,6 5 5050 125 – 213 504 43 127 43 245
SPC 630-08 8 630 639,6 5 5050 125 – 213 574 43 127 43 245
SPC 710-08 8 710 719,6 5 5050 125 – 213 656 43 127 43 245
SPC 800-08 8 800 809,6 5 5050 125 – 213 737 43 127 43 245
SPC 1000-08 8 1000 1009,6 5 5050 125 – 213 937 43 127 43 245
SPC 1250-08 8 1250 1259,6 5 5050 125 – 213 1187 43 127 43 245
SPC 10 V Belt Pulleys For Taper Bushes

Item Grooves p O Type Bush Max

Bore

 E F J K L M N
SPC 250-10 10 250 259,6 3 4040 100 – 264 196 81 102 81 –
SPC 280-10 10 280 289,6 3 4040 100 – 264 226 81 102 81 –
SPC 300-10 10 300 309,6 3 4545 110 – 264 245 75 114 75 –
SPC 315-10 10 315 324,6 3 4545 110 – 264 258 75 114 75 –
SPC 355-10 10 355 364,6 3 4545 110 – 264 299 75 114 75 –
SPC 400-10 10 400 409,6 3 5050 125 – 264 342 68.5 127 68.5 245
SPC 450-10 10 450 459,6 6 5050 125 40 264 394 68.5 127 68.5 245
SPC 500-10 10 500 509,6 6 5050 125 40 264 444 68.5 127 68.5 245
SPC 560-10 10 560 569,6 5 5050 125 – 264 504 68.5 127 68.5 245
SPC 630-10 10 630 639,6 5 5050 125 ■ 264 574 68.5 127 68.5 245
SPC 710-10 10 710 719,6 5 5050 125 – 264 654 68.5 127 68.5 245
SPC 800-10 10 800 809,6 5 5050 125 – 264 737 68.5 127 68.5 245
SPC 1000-10 10 1000 1009,6 5 5050 125 – 264 937 68.5 127 68.5 245
SPC 1250-10 10 1250 1259,6 5 5050 125 – 264 1187 68.5 127 68.5 245
