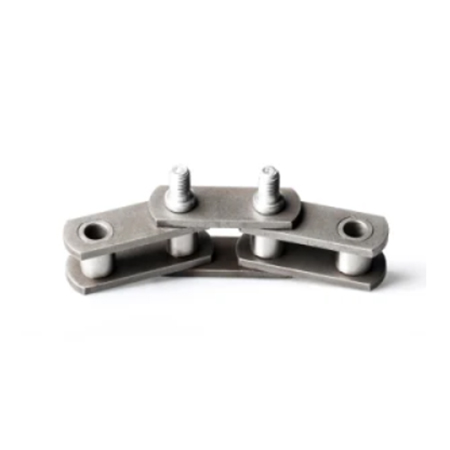

Spray plated production line conveyor chains
Conveyor chains for spray plated production line

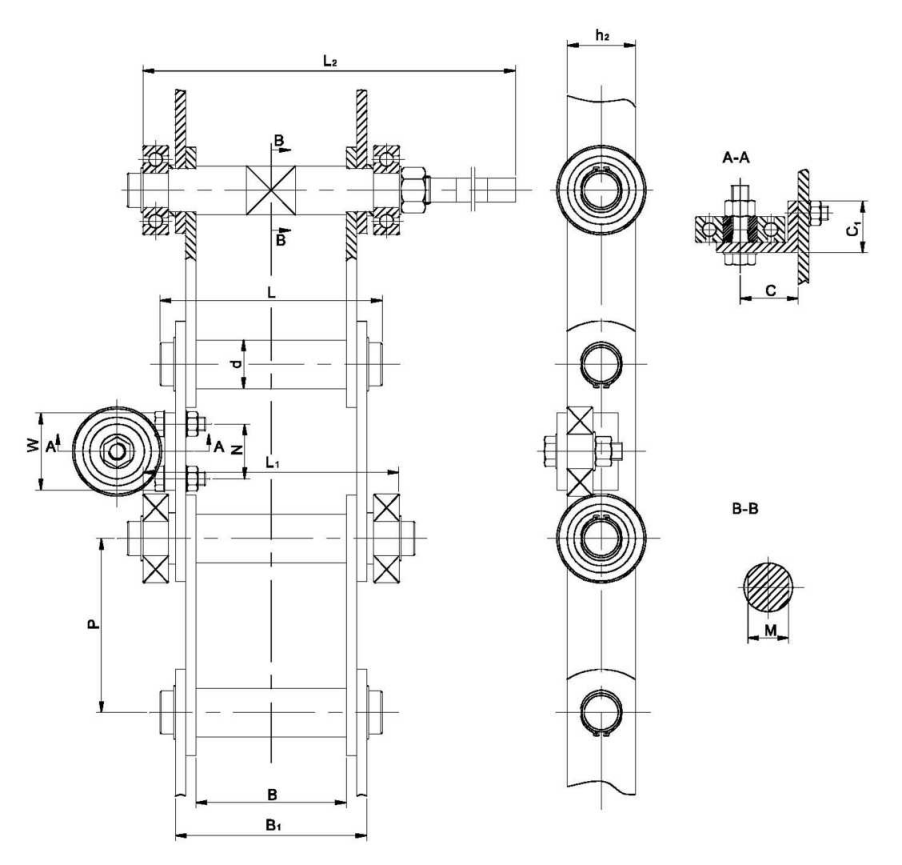

| p | B | B1 | d | L | L1 | L2 | M | C | C1 | W | N | h2 | 轴承
bearing |
| 101.60 | 86 | 112 | 28.58 | 130 | 150 | 270 | 24 | 34 | 30 | 45 | 32 | 40 | 6304 |
Things to consider when choosing a conveyor for paint finishing
Size and Weight of Parts: The conveyor must be capable of handling the size and weight of the parts being finished. This includes considering the dimensions and mass of the largest and heaviest parts to ensure the conveyor can support and transport them reliably.
Material Type: Different materials (metal, plastic, wood, etc.) may require different handling and finishing techniques. The conveyor system should be compatible with the material being finished to avoid damage and ensure proper coating adhesion.
Physical Space: Evaluate the available space for installing the conveyor system. Consider not only the floor space but also the overhead clearance if considering an overhead conveyor. Ensure there’s adequate room for maneuvering parts and access for maintenance.
Conveyor Type: Decide whether an overhead conveyor or a floor-level conveyor (possibly using carts) is more suitable for the specific parts and the layout of the finishing line. Overhead conveyors save floor space but require suitable overhead support structures.
Type of Paint or Finishing Process: Different finishing processes such as wet spray painting, powder coating, plating, or chemical washes have specific requirements. The conveyor system must be compatible with the chosen finishing method to ensure consistent and high-quality results.
Finishing Environment: Consider the environmental conditions of the finishing area, including temperature (ovens for curing), exposure to chemicals (dip tanks, cleaning solutions), and potential hazards. The conveyor system should be constructed from materials that can withstand these conditions without degradation.
Quality Requirements: The level of finish quality required dictates the precision and reliability needed from the conveyor system. Smooth and controlled movement of parts is crucial to achieve uniform coating thickness and appearance.
Maintenance and Cleaning: Ensure the conveyor system is designed for easy maintenance and cleaning. This includes accessibility to critical components, resistance to corrosion from cleaning agents, and ease of lubrication for moving parts.
