Sprockets & Idler Wheels for Magnetflex Chain 1050/1060 and for Chain S4090A/S4090B F54 RT114

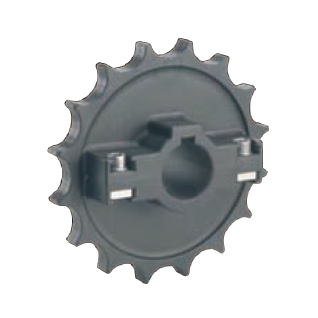

Sprockets & Idler Wheels for Magnetflex Chain
Our plastic sprocket(Idler Wheels for Magnetflex Chain) tooth deflection is much more significant than a standard steel sprocket. This means that several teeth will bear the load roller chain. If contact with a few teeth means the load capacity of the chain pulley will, all the workload is roughly matched with the chain.
Our company is the leading supplier of plastic power transmission components. We can produce plastic metric, double pitch, duplex, engineering heads of the sprocket, and custom designs. Using some of the significant advantages of plastic roller sprocket is quieter. They run and produce better wear life on the roller chain. The sprocket also has high corrosion resistance, is lightweight, and has a high resistance to impact.

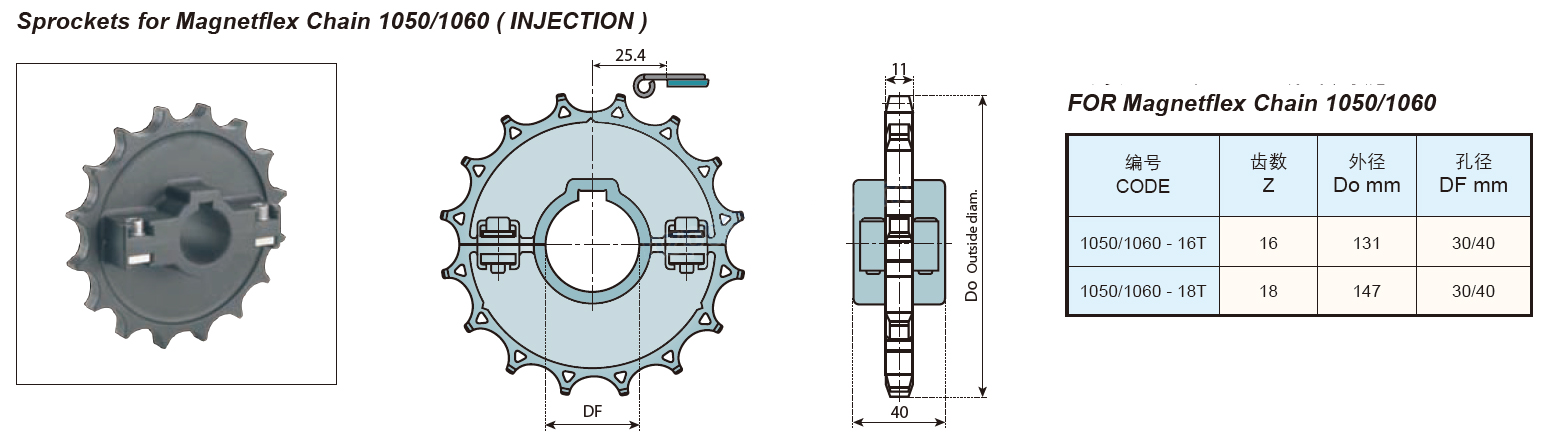

Idler Wheels for Magnetflex Chain 1050/1060 ( INJECTION )
| CODE | teeth | Do mm | DF mm |
| 1050/1060-16T | 16 | 131 | 30/40 |
| 1050/1060-18T | 18 | 147 | 30/40 |
MACHINED Sprockets for Chain S4090A/S4090B
| CODE | Z | Do mm | DF mm |
| F54-9T | 9 | 98.0 | 20/25/30 |
| F54-10T | 10 | 107.2 | 20/25/30 |
| F54-12T | 12 | 126.8 | 20/25/30 |
| F54-20T | 20 | 147.3 | 20/25/30 |

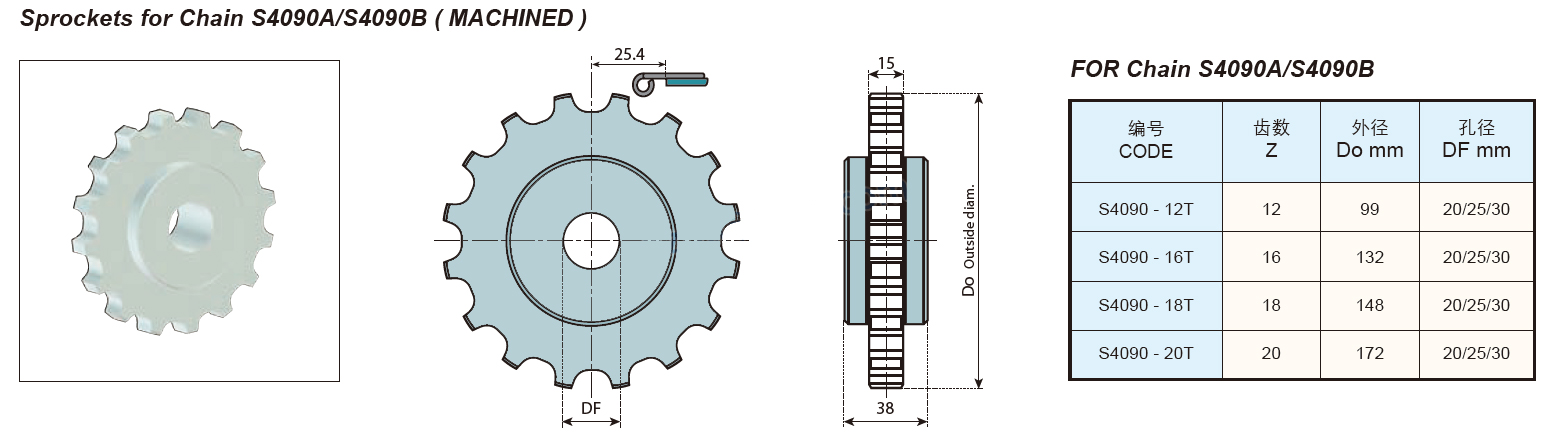

Sprockets for Chain F54 ( MACHINED )
| CODE | Z | Do mm | DF mm |
| S4090-12T | 12 | 99 | 20/25/30 |
| S4090-16T | 16 | 132 | 20/25/30 |
| S4090-18T | 18 | 148 | 20/25/30 |
| S4090-20T | 20 | 172 | 20/25/30 |

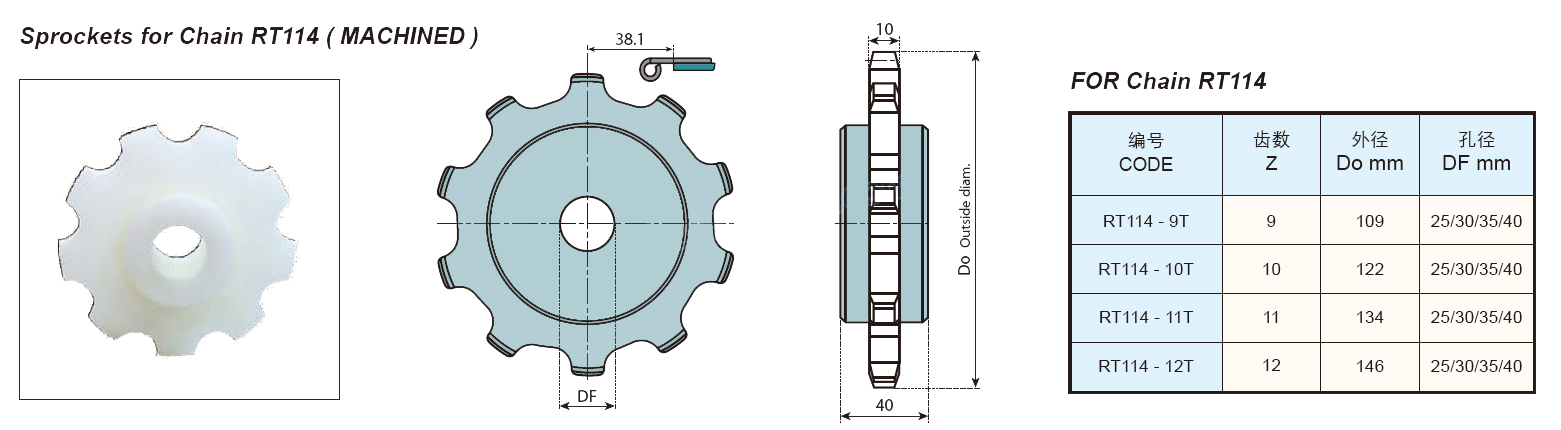

Sprockets for Chain RT114 ( MACHINED )
| CODE | teeth | Do mm | DF mm |
| RT114-9T | 9 | 109 | 25/30/35/40 |
| RT114-10T | 10 | 122 | 25/30/35/40 |
| RT114-11T | 11 | 134 | 25/30/35/40 |
| RT114-12T | 12 | 146 | 25/30/35/40 |
Chains and Sprockets
Chains and sprockets are mainly working in the transport industry and machine building industry to rotate wheels by means of motors or engines. These drive chains and sprocket both help the wheelbase to run fast according to the engine speed. The chain hangs between the motor and the sprockets,the motor turns the sprocket and the chain is connecting to the sprocket teeth, which can turn simultaneously with the motor wheel,thus making the vehicle or machine run smoothly. We’re one of the leading manufacturers and suppliers in China.We can offer various high-quality chains and sprockets.
