SPZ series V Belt Pulleys

V-belt Pulleys

Proposed by CDT in this catalogue are all manufactured according to ISO 4183 and DIN 2211 norms.

The material used forthe construction of these pulleys is cast iron GG25 and after machining all pulleys are being PHOSPHATED.

Each pulley is strictly DYNAMICALLY BALANCED with high precision dynamical balancing machining tools. Unbalanced volume will corrected accurately.

Each pulley

can be used safely and reliably.

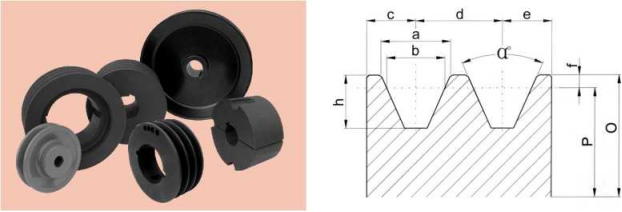

Pulley Dimensions

a b c d e f h 34° 38°
SPZ 9.7 8.5 8 12 8 2.5 12 p<=80 p>=80
SPA 12.7 11 10 15 10 3.5 15 p< = 118 p> = 118
SPB 16.3 14 12.5 19 12.5 4 18 p< = 190 p> = 190
SPC 22 19 16 25 16 5 24 p<=315 p>=315

Belt Dimensions

m s n
SPZ 9.7 8 8.5
SPA 12.7 10 11.0
SPB 16.3 13 14.0
SPC 22.0 18 19.0
Item Grooves P 0 Type Bush Max

Bore

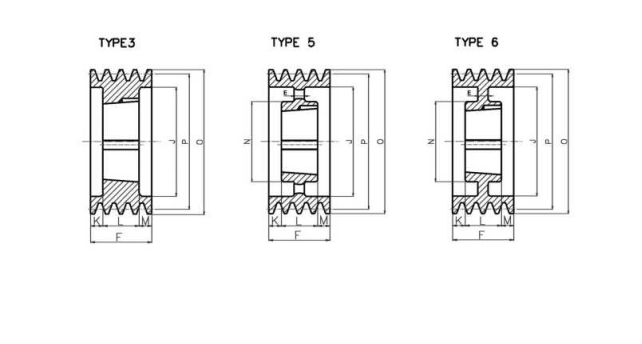

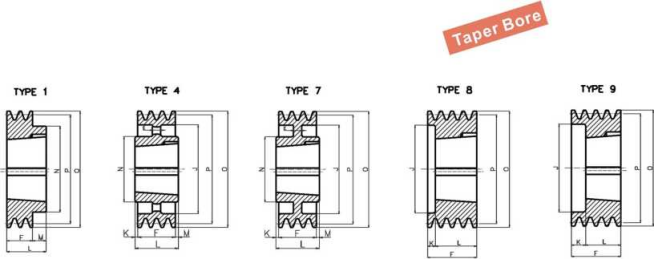

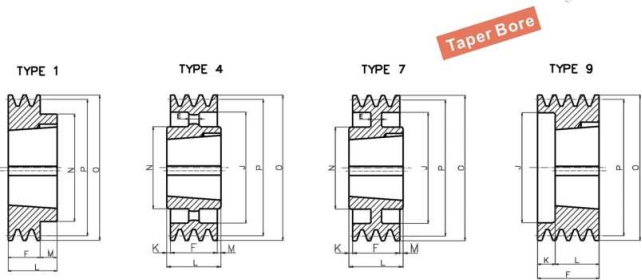

 E F J K L M N
SPZ 50-01 1 50 54 9 1008 25 37 28 15 22 – –
SPZ 56-01 1 56 60 9 1008 25 – 37 23 15 22 – –
SPZ 60-01 1 60 64 9 1008 25 – 22 – – 22 – –
SPZ 63-01 1 63 67 1 1108 28 – 16 – – 22 6 62
SPZ 67-01 1 67 71 1 1108 28 – 16 – – 22 6 62
SPZ 71-01 1 71 75 1 1108 28 – 16 – – 22 6 62
SPZ 75-01 1 75 79 1 1108 28 – 16 – – 22 6 62
SPZ 80-01 1 80 84 1 1210 32 – 16 – – 25 9 75
SPZ 85-01 1 85 89 1 1210 32 – 16 – – 25 9 75
SPZ 90-01 1 90 94 1 1210 32 – 16 – – 25 – 75
SPZ 95-01 1 95 99 1 1210 32 – 16 – – 25 9 75
SPZ 100-01 1 100 104 1 1210 32 – 16 – – 25 9 75
SPZ 106-01 1 106 110 1 1610 42 – 16 – – 25 9 80
SPZ 112-01 1 112 116 1 1610 42 – 16 – – 25 9 80
SPZ 118-01 1 118 122 1 1610 42 – 16 – – 25 9 80
SPZ 125-01 1 125 129 1 1610 42 – 16 – – 25 9 80
SPZ 132-01 1 132 136 1 1610 42 – 16 – – 25 9 80
SPZ 140-01 1 140 144 1 1610 42 – 16 – – 25 9 80
SPZ 150-01 1 150 154 1 1610 42 – 16 – – 25 9 80
SPZ 160-01 1 160 164 1 1610 42 麵 16 – – 25 9 80
SPZ 170-01 1 170 174 1 1610 42 麵 16 – – 25 9 80
SPZ 180-01 1 180 184 1 1610 42 – 16 – – 25 9 80
SPZ 190-01 1 190 194 7 1610 42 – 16 161 – 25 9 80
SPZ 200-01 1 200 204 7 2012 50 – 16 172 – 32 16 100
SPZ 224-01 1 224 228 7 2012 50 – 16 196 – 32 16 100
SPZ 250-01 1 250 254 4 2012 50 – 16 222 8 32 8 100
SPZ 280-01 1 280 284 4 2012 50 – 16 252 8 32 8 100
SPZ 315-01 1 315 319 4 2012 50 – 16 287 8 32 8 100
SPZ 355-01 1 355 359 4 2012 50 – 16 326 8 32 8 112
SPZ 400-01 1 400 404 4 2012 50 – 16 371 8 32 8 112
SPZ 450-01 1 450 454 4 2517 60 – 16 421 14.5 45 14.5 120

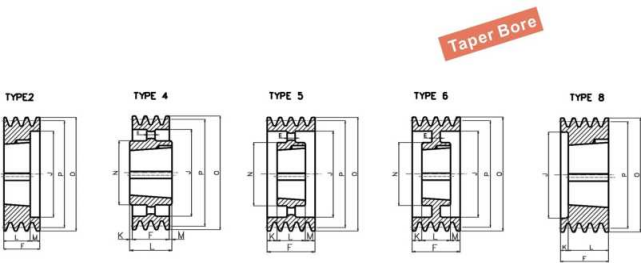

Item Grooves P 0 Type Bush Max

Bore

 E F J K L M N
SPZ 50-02 2 50 54 9 1008 25 _ 49 28 27 22 – –
SPZ 56-02 2 56 60 9 1108 28 – 49 35 27 22 – –
SPZ 60-02 2 60 64 9 1108 28 _ 49 36 27 22 – –
SPZ 63-02 2 63 67 8 1108 28 – 28 40 6 22 – –
SPZ 67-02 2 67 71 8 1108 28 – 28 42 6 22 – –
SPZ 71-02 2 71 75 8 1108 28 – 28 42 6 22 – –
SPZ 75-02 2 75 79 8 1210 32 – 28 51 3 25 – –
SPZ 80-02 2 80 84 8 1210 32 – 28 51 3 25 – –
SPZ 85-02 2 85 89 8 1610 42 – 28 60 3 25 – –
SPZ 90-02 2 90 94 8 1610 42 – 28 61 3 25 – –
SPZ 95-02 2 95 99 8 1610 42 – 28 66 3 25 – –
SPZ 100-02 2 100 104 8 1610 42 – 28 71 3 25 – –
SPZ 106-02 2 106 110 8 1610 42 – 28 76 3 25 – –
SPZ 112-02 2 112 116 8 1610 42 – 28 84 3 25 – –
SPZ 118-02 2 118 122 8 1610 42 – 28 90 3 25 – –
SPZ 125-02 2 125 129 8 1610 42 – 28 97 3 25 – –
SPZ 132-02 2 132 136 8 1610 42 – 28 104 3 25 – –
SPZ 140-02 2 140 146 8 1610 42 – 28 112 3 25 – –
SPZ 150-02 2 150 154 1 2012 50 – 28 – – 32 4 100
SPZ 160-02 2 160 164 1 2012 50 – 28 – – 32 4 100
SPZ 170-02 2 170 174 1 2012 50 – 28 – – 32 4 100
SPZ 180-02 2 180 184 7 2012 50 10 28 152 – 32 4 100
SPZ 190-02 2 190 194 7 2012 50 10 28 161 – 32 4 100
SPZ 200-02 2 200 204 7 2012 50 10 28 171 – 32 4 100
SPZ 224-02 2 224 228 7 2012 50 10 28 196 – 32 4 100
SPZ 250-02 2 250 254 4 2012 50 – 28 222 2 32 2 100
SPZ 280-02 2 280 284 4 2012 50 – 28 252 2 32 2 100
SPZ 315-02 2 315 319 4 2012 50 – 28 286 2 32 2 100
SPZ 355-02 2 355 359 4 2012 50 – 28 326 2 32 2 112
SPZ 400-02 2 400 404 4 2517 60 – 28 371 8.5 45 8.5 120
SPZ 450-02 2 450 454 4 2517 60 – 28 421 8.5 45 8.5 120

Item Grooves P O Type Bush Max

Bore

 E F J K L M N
SPZ 63-03 3 63 67 8 1108 28 – 40 40 18 22 _ –
SPZ 67-03 3 67 71 8 1108 28 – 40 42 18 22 – –
SPZ 71-03 3 71 75 8 1108 28 – 40 42 18 22 – –
SPZ 75-03 3 75 79 8 1210 32 – 40 48 15 25 – –
SPZ 80-03 3 80 84 8 1210 32 – 40 51 15 25 – –
SPZ 85-03 3 85 89 8 1610 42 – 40 60 15 25 – –
SPZ 90-03 3 90 94 8 1610 42 – 40 61 15 25 – –
SPZ 95-03 3 95 99 8 1610 42 – 40 66 15 25 – –
SPZ 100-03 3 100 104 8 1610 42 – 40 71 15 25 – –
SPZ 106-03 3 106 110 8 1610 42 – 40 78 15 25 – –
SPZ 112-03 3 112 116 8 2012 50 – 40 84 8 32 – –
SPZ 118-03 3 118 122 8 2012 50 – 40 92 8 32 – –
SPZ 125-03 3 125 129 2 2012 50 – 40 97 – 32 8 –
SPZ 132-03 3 132 136 2 2012 50 – 40 104 – 32 8 –
SPZ 140-03 3 140 144 2 2012 50 – 40 112 – 32 8 –
SPZ 150-03 3 150 154 2 2012 50 – 40 122 – 32 8 –
SPZ 160-03 3 160 164 2 2012 50 – 40 132 – 32 8 –
SPZ 170-03 3 170 174 2 2012 50 – 40 141 – 32 4 –
SPZ 180-03 3 180 184 2 2012 50 – 40 152 – 32 8 –
SPZ 190-03 3 190 194 6 2012 50 20 40 161 4 32 4 100
SPZ 200-03 3 200 204 6 2012 50 20 40 172 4 32 4 100
SPZ 224-03 3 224 228 6 2012 50 20 40 196 4 32 4 100
SPZ 250-03 3 250 254 5 2012 50 – 40 222 4 32 4 100
SPZ 280-03 3 280 284 4 2517 60 – 40 252 2,5 45 2,5 120
SPZ 315-03 3 315 319 4 2517 60 – 40 287 2,5 45 2,5 120
SPZ 355-03 3 355 359 4 2517 60 – 40 326 2,5 45 2,5 120
SPZ 400-03 3 400 404 4 2517 60 _ 40 371 2,5 45 2,5 120
SPZ 450-03 3 450 454 4 2517 60 – 40 421 2,5 45 2,5 120
SPZ 500-03 3 500 504 4 2517 60 – 40 471 2,5 45 2,5 120
SPZ 630-03 3 630 634 4 3020 75 – 40 601 5,5 51 2,5 120
SPZ 800-03 3 800 804 4 3020 75 – 40 771 5,5 51 2,5 150

Item Grooves P O Type Bush Max

Bore

 E F J K L M N
SPZ 80-04 4 80 84 8 1210 32 _ 52 51 27 25 _ –
SPZ 85-04 4 85 89 8 1610 42 – 52 60 27 25 – –
SPZ 90-04 4 90 94 8 1610 42 – 52 61 27 25 – –
SPZ 95-04 4 95 99 8 1610 42 – 52 66 27 25 – –
SPZ 100-04 4 100 104 8 1610 42 – 52 72 27 25 – –
SPZ 106-04 4 106 110 8 1610 42 – 52 80 27 25 – –
SPZ 112-04 4 112 116 8 2012 50 – 52 86 20 32 – –
SPZ 118-04 4 118 122 8 2012 50 – 52 92 20 32 – –
SPZ 125-04 4 125 129 2 2012 50 – 52 99 20 32 20 –
SPZ 132-04 4 132 136 2 2012 50 – 52 104 20 32 20 –
SPZ 140-04 4 140 144 2 2012 50 – 52 112 7 32 20 –
SPZ 150-04 4 150 154 2 2517 60 – 52 122 7 45 7 –
SPZ 160-04 4 160 164 2 2517 60 – 52 132 – 45 7 –
SPZ 170-04 4 170 174 2 2517 60 – 52 141 – 45 7 –
SPZ 180-04 4 180 184 2 2517 60 – 52 152 – 45 7 –
SPZ 190-04 4 190 194 6 2517 60 10 52 161 3.5 45 3.5 120
SPZ 200-04 4 200 204 6 2517 60 10 52 172 3.5 45 3.5 120
SPZ 224-04 4 224 228 6 2517 60 10 52 196 3.5 45 3.5 120
SPZ 250-04 4 250 254 5 2517 60 – 52 222 3.5 45 3.5 120
SPZ 280-04 4 280 284 5 2517 60 – 52 252 3.5 45 3.5 120
SPZ 315-04 4 315 319 5 2517 60 – 52 287 3.5 45 3.5 120
SPZ 355-04 4 355 359 5 2517 60 – 52 326 3.5 45 3.5 120
SPZ 400-04 4 400 404 5 2517 60 – 52 371 3.5 45 3.5 120
SPZ 450-04 4 450 454 5 3020 75 – 52 421 0.5 51 0.5 150
SPZ 500-04 4 500 504 5 3020 75 – 52 471 0.5 51 0.5 150
SPZ 630-04 4 630 634 4 3030 75 – 52 601 12 76 12 150
SPZ 800-04 4 800 804 4 3030 75 – 52 771 12 76 12 150

Item Grooves P 0 Type Bush Max

Bore

 E F J K L M N
SPZ 85-05 5 85 89 8 1610 42 _ 64 60 39 25 _ _
SPZ 90-05 5 90 94 8 1610 42 – 64 61 39 25 – –
SPZ 95-05 5 95 99 8 1610 42 – 64 66 39 25 – –
SPZ 100-05 5 100 104 8 2012 50 – 64 72 32 32 – –
SPZ 106-05 5 106 110 8 2012 50 – 64 78 32 32 – –
SPZ 112-05 5 112 116 8 2012 50 – 64 84 32 32 – –
SPZ 118-05 5 118 122 8 2012 50 – 64 90 32 32 – –
SPZ 125-05 5 125 129 8 2012 50 – 64 97 32 32 – –
SPZ 132-05 5 132 136 8 2517 60 – 64 104 19 45 – –
SPZ 140-05 5 140 144 2 2517 60 – 64 112 – 45 19 –
SPZ 150-05 5 150 154 2 2517 60 – 64 122 – 45 19 –
SPZ 160-05 5 160 164 2 2517 60 – 64 132 45 19 –
SPZ 170-05 5 170 174 2 2517 60 – 64 141 – 45 19 –
SPZ 180-05 5 180 184 2 2517 60 – 64 152 – 45 19 –
SPZ 190-05 5 190 194 6 2517 60 10 64 161 9.5 45 9.5 –
SPZ 200-05 5 200 204 6 2517 60 10 64 172 9.5 45 9.5 –
SPZ 224-05 5 224 228 6 2517 60 10 64 196 9.5 45 9.5 120
SPZ 250-05 5 250 254 5 2517 60 – 64 222 9.5 45 9.5 120
SPZ 280-05 5 280 284 5 2517 60 – 64 252 9.5 45 9.5 120
SPZ 315-05 5 315 319 5 2517 60 – 64 287 9.5 45 9.5 120
SPZ 355-05 5 355 359 5 2517 60 – 64 326 9.5 45 9.5 120
SPZ 400-05 5 400 404 5 3020 75 – 64 371 6.5 51 6.5 150
SPZ 450-05 5 450 454 5 3020 75 – 64 421 6.5 51 6.5 150
SPZ 500-05 5 500 504 4 3030 75 – 64 471 6 76 6 150
SPZ 630-05 5 630 634 4 3030 75 – 64 601 6 76 6 150
SPZ 800-05 5 800 804 4 3535 90 – 64 771 12.5 89 12.5 170

Item Grooves P 0 Type Bush Max

Bore

 E F J K L M N
SPZ 90-06 6 90 94 8 1610 42 ■ 76 61 51 25 –
SPZ 95-06 6 95 99 8 1610 42 – 76 66 51 25 – –
SPZ 100-06 6 100 104 8 2012 50 – 76 72 44 32 – –
SPZ 106-06 6 106 110 8 2012 50 – 76 78 44 32 – –
SPZ 112-06 6 112 116 8 2012 50 – 76 84 44 32 – –
SPZ 118-06 6 118 122 8 2517 60 – 76 90 31 45 – –
SPZ 125-06 6 125 129 8 2517 60 – 76 97 31 45 – –
SPZ 132-06 6 132 136 8 2517 60 – 76 104 31 45 – –
SPZ 140-06 6 140 144 2 2517 60 – 76 112 – 45 31 –
SPZ 150-06 6 150 154 2 2517 60 – 76 122 – 45 31 –
SPZ 160-06 6 160 164 2 2517 60 – 76 132 – 45 31 –
SPZ 170-06 6 170 174 2 2517 60 – 76 141 – 45 31 –
SPZ 180-06 6 180 184 2 2517 60 – 76 152 – 45 31 –
SPZ 190-06 6 190 194 6 2517 60 10 76 161 15.5 45 15.5 120
SPZ 200-06 6 200 204 6 2517 60 10 76 172 15.5 45 15.5 120
SPZ 224-06 6 224 228 6 2517 60 10 76 196 15.5 45 15.5 120
SPZ 250-06 6 250 254 5 2517 60 – 76 222 15.5 45 15.5 120
SPZ 280-06 6 280 284 5 2517 60 – 76 252 15.5 45 15.5 120
SPZ 315-06 6 315 319 5 2517 60 – 76 287 15.5 45 15.5 120
SPZ 355-06 6 355 359 5 2517 60 – 76 326 15.5 45 15.5 125
SPZ 400-06 6 400 404 5 3030 75 – 76 371 – 76 – 150
SPZ 450-06 6 450 454 5 3030 75 – 76 421 – 76 – 150
SPZ 500-06 6 500 504 5 3030 75 – 76 471 – 76 – 150
SPZ 630-06 6 630 634 4 3535 90 – 76 601 6.5 89 6.5 170
SPZ 800-06 6 800 804 4 3535 90 – 76 771 6.5 89 6.5 170

Item Grooves P O Type Bush Max

Bore

 E F J K L M N
SPZ 140-08 8 140 144 3 2517 60 – 100 112 27.5 45 27.5 –
SPZ 150-08 8 150 154 3 2517 60 – 100 122 27.5 45 27.5 –
SPZ 160-08 8 160 164 3 2517 60 – 100 132 27.5 45 27.5 –
SPZ 180-08 8 180 184 3 2517 60 – 100 152 27.5 45 27.5 –
SPZ 200-08 8 200 204 3 3020 75 – 100 171 24.5 51 24.5 –
SPZ 224-08 8 224 228 3 3020 75 – 100 195 24.5 51 24.5 –
SPZ 250-08 8 250 254 6 3020 75 – 100 221 24.5 51 24.5 150
SPZ 280-08 8 280 284 5 3020 75 – 100 252 24.5 51 24.5 150
SPZ 355-08 8 355 359 5 3030 75 – 100 326 12 76 12 150
SPZ 400-08 8 400 404 5 3030 75 – 100 371 12 76 12 150
SPZ 450-08 8 450 454 5 3035 90 – 100 421 5.5 89 5.5 170



Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “SPZ series V Belt Pulleys”

Your email address will not be published. Required fields are marked *

Packing&Shipping & Delivery

china Packing Shipping Delivery

Packing Shipping Delivery

Chains package: First we will use carton package the chains--------then put in wooden box.
We also can custom color package according to your demand
Company Profile
Company Profile
FAQ

How to choose power transmissions parts and industrial products which meet our requirement

Chains Sprockets Pulleys Timing belt Pulley V-belt Pulley
Sheaves Coupings Bush &Hub Gear& Rack V-Belt
Locking Assembly Pulley Gearbox Reducer Shaft Collar
Rod End Bearing Clevis PTO Chain Guide Belt Guide
Rubber Buffer Chain Tensioner PTO Drive Shafts Universal Joints Roller Chains
Conveyor Chains V-Belts Worm Gearbox Helical Gear Worm
Agricultural Chain CNC Proces Parts Casting Stamping
Powder Metallurgy CNC Proces Parts Casting Stamping

What Products Do you sell ?

We  are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.

How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.

What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.

What is the producing process?

Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.

How to control the products quality?

Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.

What is the transportation?

-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.

Can we design packaging?

-Yes. Default is regular packing, and we can make customer's own packing.

Can you provide OEM service?

-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.

Can you give me discount on Power Transmissions Parts and Industrial parts?

-Yes, of course. Pls. send me your Email, you'll get more

Q: Are You a trading company or a manufacturer?

A: We Are the factory and have our Own trading company

Q: How Can I get an offer?

A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.

Q: What is your minimum order size?

A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples free of charge, but we don't pay the freight.

Q: What is the lead time for mass production?

A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.

Q: What if the parts don't Work?

A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.

Q: What are your terms of payment?

A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable







Related products

V belt pulleys with solid hub

V belt pulleys with solid hub

Plain bore

Plain bore

Falt belt pulleys for taper bushes

Falt belt pulleys for taper bushes

V belt pulley

SPC series V Belt Pulleys For Taper Bushes

V belt pulley

SPB series V Belt Pulleys

V belt pulley

SPA series V Belt Pulleys
