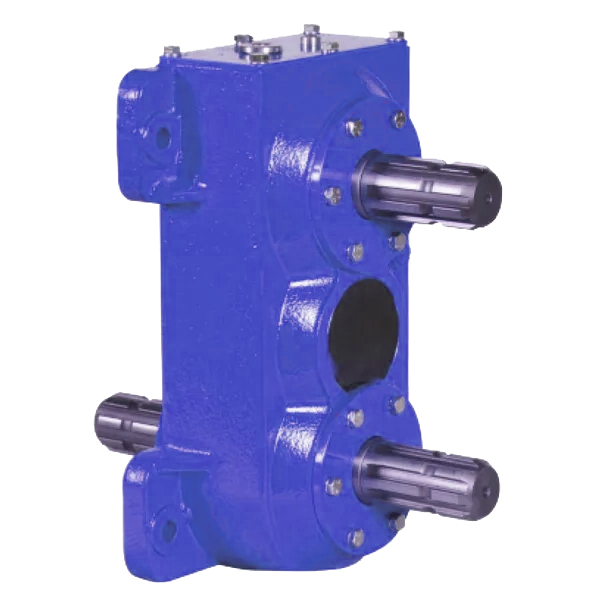

Square Baler Gearbox FK270
The Square Baler Gearbox FK270 is a key component of a square baler machine used in agricultural operations. It plays a crucial role in the baling process by providing the necessary power and mechanical advantage to compress and form rectangular bales of hay, straw, or other crops.
The FK270 Square Baler Gearbox is specifically designed for square balers and is known for its durability, reliability, and efficient performance. It is typically mounted on the baler frame and connected to the power source, such as a tractor’s power take-off (PTO) shaft.
The gearbox consists of several gears and shafts that work in harmony to convert the rotational motion from the power source into the desired motion required for the baler’s plunger and other moving parts. It utilizes a combination of gears, including spur gears and bevel gears, to transmit power and torque effectively.
The FK270 Square Baler Gearbox incorporates various features to ensure smooth operation and minimize wear and tear. These features may include high-quality bearings, robust housing, lubrication systems, and cooling mechanisms to prevent overheating. The gearbox is also designed to withstand the demanding conditions typically encountered in agricultural environments, such as dusty or wet conditions.

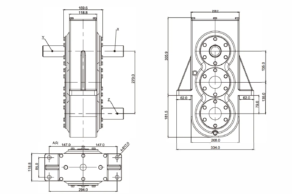

Dimensions

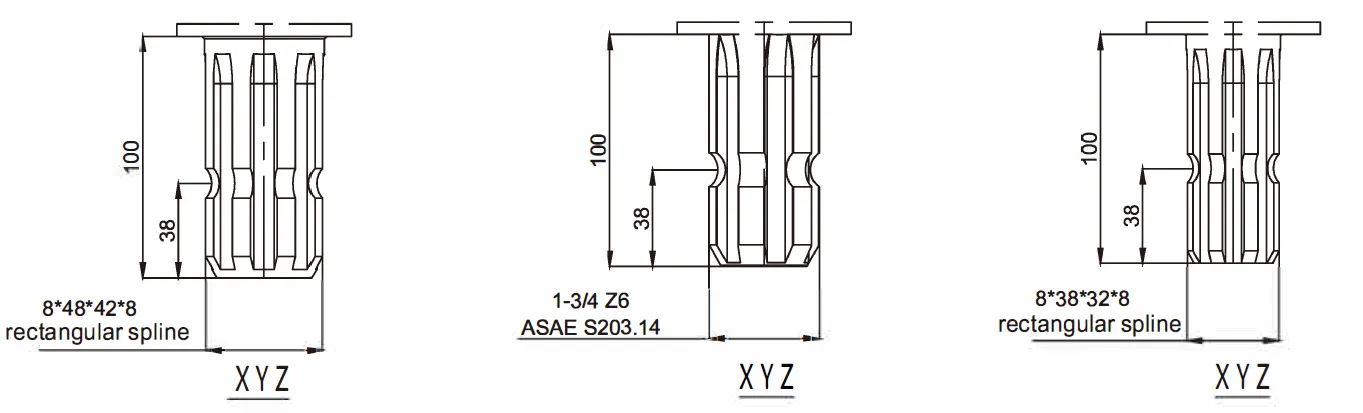

Shaft Dimensions
Square Baler Gearbox FK270 Technical Data
i | Suitable | Rpm input | Rpm output | KW(Nom) | KW(Max) | Toothing | |
r/min | r/min | hp | hp | ||||
Decelerate | 1:1 | Square Baler, etc | 540 | 540 | 120 | 140 | Gleason Straight Teeth |
Remark: If you have any special require feel free let me know, we also accept custom. |
Features of Square Baler Gearbox FK270
The Square Baler Gearbox FK270 is engineered to meet the demanding needs of agricultural baling operations. It is a key component in square balers, ensuring the efficient and reliable transformation of raw crop materials into compact, manageable bales. Here are the notable features of the Square Baler Gearbox FK270:
1. Robust Construction: Made from high-quality, sturdy materials that can withstand the stresses and strains of baling operations, ensuring longevity and reliability.
2. High Torque and Speed Adaptation: Designed to efficiently handle and transmit the high torque and speed generated by the tractor’s PTO to the baler’s mechanisms. Capable of adjusting the operational speed of the baler, ensuring that it matches the required pace for optimal baling performance.
3. Precision-Engineered Gears: Contains precision-engineered gears that ensure smooth power transmission and reduce the risk of breakdowns during operation. Offers various gear configurations to suit different models of square balers and operational requirements.
4. Advanced Bearing System: Equipped with high-quality bearings that minimize friction, allowing for smoother operation and extended lifespan of the gearbox. Bearings are designed to effectively distribute the load, preventing excessive wear on individual components.
5. Protective Housing: The housing of the FK270 gearbox is designed to protect its internal components from dust, debris, moisture, and other environmental factors that could impair its functionality. The robust housing ensures that the internal components remain aligned and secure, even under heavy operational stress.
6. Compatibility and Versatility: The FK270 gearbox is designed to be compatible with a wide range of square baler models and brands, making it a versatile choice for many farming operations.

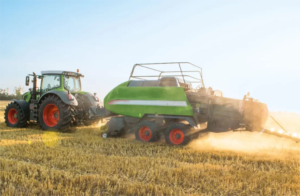

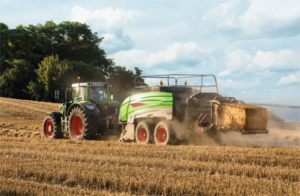

Applications of Square Baler Gearbox FK270
The Square Baler Gearbox FK270 is a pivotal component designed for efficient power transmission in square balers, making it an essential part of modern agricultural operations. The gearbox’s robust design and efficient power handling capabilities make it suitable for a wide range of applications within the square baling process. Here are some of the primary applications of the Square Baler Gearbox FK270:
1. Hay Baling: The FK270 gearbox plays a critical role in driving the mechanisms of square balers used for baling hay. It ensures that the baler operates at the correct speed and power to compress the hay into compact, uniform square bales. These bales are convenient for handling, storage, and transportation, making them ideal for livestock feed and other uses.
2. Straw Baling: In straw baling, the gearbox facilitates the smooth functioning of the baler as it processes and bales straw, a by-product of cereal crops like wheat and barley. The resulting bales are used for various purposes such as animal bedding, feed, or as raw material in industries like construction (e.g., straw-bale houses) and manufacturing.
3. Cotton Baling: The FK270 gearbox ensures the efficient operation of the baler in compressing cotton into bales, which is crucial for ease of handling, storage, and further processing in the cotton industry. Efficient baling of cotton is essential for maintaining the quality of the fiber and optimizing the supply chain from the farm to textile mills.
4. Silage Baling: The gearbox also powers balers used for compacting silage – fermented, high-moisture fodder stored in bales for livestock feeding. Baling silage helps preserve its nutritional value and ensures a steady supply of quality feed for livestock, especially in regions with long winters or dry seasons.
Square Baler Gearbox FK270 Installation and Maintenance
The installation and maintenance of the Square Baler Gearbox FK270 are crucial for ensuring its efficient operation and longevity. Proper installation ensures that the gearbox functions as intended, while regular maintenance prevents breakdowns and extends the life of the gearbox. Below are the guidelines for the installation and maintenance of the Square Baler Gearbox FK270:
Installation
1. Preparation:
Ensure the baler is on a stable and level surface. Read the gearbox and baler manuals thoroughly for specific instructions and safety warnings.
2. Alignment:
Align the gearbox with the drive shaft of the baler. Ensure that the input shaft of the gearbox aligns with the PTO shaft of the tractor.
3. Mounting:
Secure the gearbox to the baler using the appropriate bolts and mounting brackets as specified in the manual. Ensure that the gearbox is mounting firmly to avoid any misalignment.
4. PTO Connection:
Attach the PTO shaft of the tractor to the input shaft of the gearbox. Make sure the connection is secure.
5. Safety Checks:
Ensure all safety guards and shields are in place to protect the operator and the machinery.
Maintenance
1. Regular Inspection: Regularly inspect the gearbox for any signs of wear, damage, or oil leaks. Pay special attention to the seals, bearings, and gears.
2. Lubrication: Check the oil level and quality regularly. Change the gearbox oil according to the manufacturer’s recommendations or if the oil is contaminat.
3. Bearing Maintenance: Inspect the bearings for any signs of wear or damage. Replace the bearings if you notice any issues to prevent gearbox failure.
4. Gear Inspection: Check the gears for signs of wear, such as pitting, scoring, or chipping. Replace worn gears to maintain the efficiency and performance of the gearbox.
5. Fasteners Check: Regularly check and tighten any bolts or fasteners that may have loosened due to vibration or operation.
6. Storage: Stored for an extended period, ensure they are keeping in a dry, covered area to protect against corrosion. Consider running the gearbox periodically during the off-season to keep the internal components lubricated.
We Also Offer Other Agricultural Gearboxes
We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, gearbox for rotary rakes, gearbox for hay tedders, etc. If you want to buy an agricultural gearbox, please get in touch with us.
