Stainless Steel Double Pitch Chains With Extended Pins
The Double Pitch Chains With Extended Pins is a deformed product derived from the standard roller chain. Its structural characteristics are the same as the standard roller chain, except that the pin shaft is lengthened according to special requirements to fix the raw materials or semi-finished products used in production.

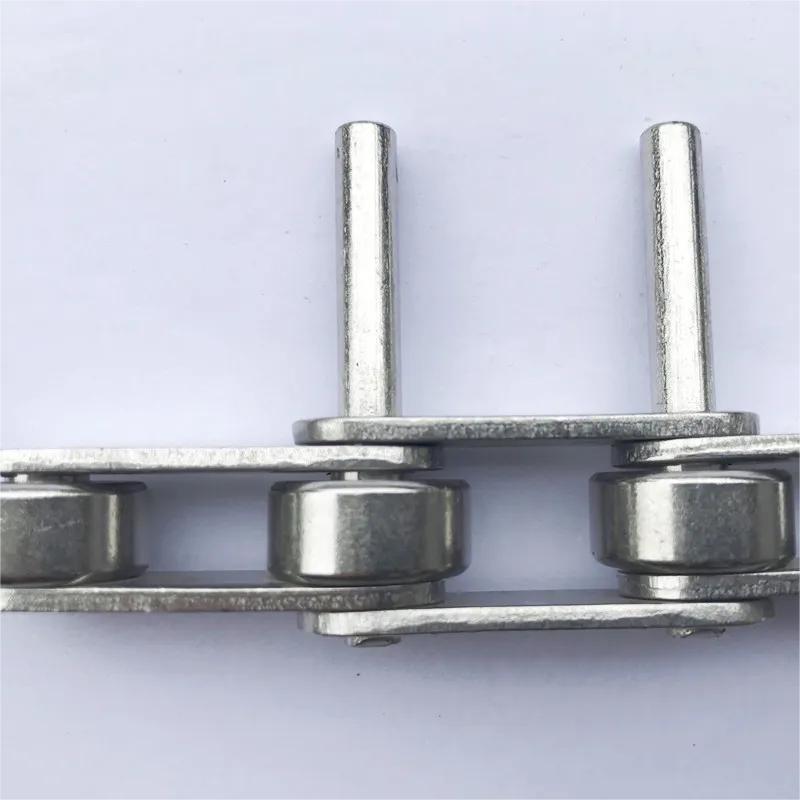

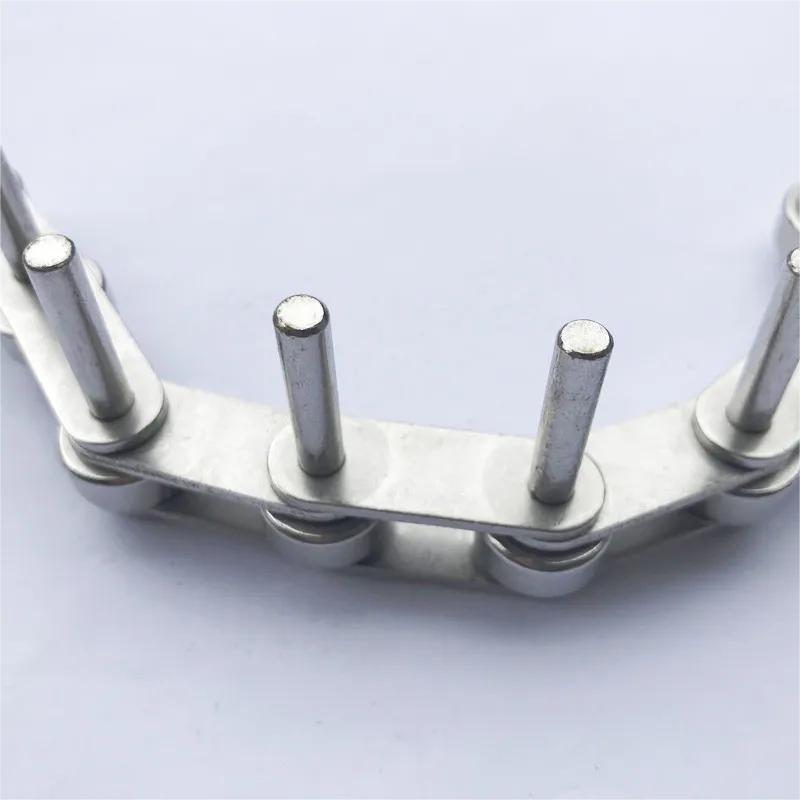

Stainless Steel Double Pitch Conveyor Chains with Extended Pins
The Double Pitch Chains With Extended Pins is a deformed product derived from the standard roller chain. Its structural characteristics are the same as the standard roller chain, except that the pin shaft is lengthened according to special requirements to fix the raw materials or semi-finished products used in production.
 |
 |
| Chain No. | P | b1 | d2 | L3 | L | Lc |
| mm | mm | mm | mm | mm | mm | |
| C2040SS C2042SS |
25.40 | 7.85 | 3.96 | 9.5 | 25.1 | 26.2 |
| C2050SS C2052SS |
31.75 | 9.40 | 5.08 | 11.9 | 31.3 | 33.1 |
| C2060SS C2062SS |
38.10 | 12.57 | 5.94 | 14.3 | 38.6 | 40.6 |
| C2060HSS C2062HSS |
38.10 | 12.57 | 5.94 | 14.3 | 42.0 | 43.8 |
| C2080SS C2082SS |
50.80 | 15.75 | 7.92 | 19.1 | 50.3 | 53.3 |
| C2080HSS C2082HSS |
50.80 | 15.75 | 7.92 | 19.1 | 53.5 | 55.0 |
| C2100SS C2102SS |
63.50 | 18.90 | 9.53 | 23.8 | 61.8 | 66.1 |
| C2100HSS C2102HSS |
63.50 | 18.90 | 9.53 | 23.8 | 65.0 | 68.3 |
| C2120HSS C2122HSS |
76.20 | 25.22 | 11.10 | 28.6 | 79.6 | 83.6 |
| C2160HSS C2162HSS |
101.60 | 31.75 | 14.27 | 38.1 | 103.0 | 107.8 |
Features of Stainless Steel Double Pitch Conveyor Chains with Extended Pins
Stainless steel double pitch conveyor chains with extended pins are designing to be more robust and impact-resistant than standard roller chains. They feature high-tensile strength pins, heat-treated plates, and heavy-duty roller bushes to ensure maximum durability. The chains are highly corrosion-resistant, making them ideal for applications in corrosive environments. They also feature low noise levels, making them suitable for use in noise-sensitive applications. The pitch is twice as long as standard roller chains, making them suitable for larger loads, and the attachment points are available in both standard carbon steel and stainless steel for extra strength and corrosion resistance.
Welcome customers to visit, negotiate and guide.
 |
 |
What to Look for when Selecting a Roller Chain with Extended Pins
One of the key factors to consider when selecting a roller chain with extended pins is the type of application it will be used in.
For example, if the chain will be used in a conveyor system, it is important to choose a chain that is designed for this specific application. The conveyor chain is typically made from high-strength steel and features a special chain construction that is designed to withstand the high loads and shock loads that are typical in conveyor systems.
Extended Pins Chains Usage Areas
Roller chains with extended pins are widely working in a variety of industrial applications, including material handling equipment, conveyor systems, and other machinery that requires reliable and efficient power transmission. These chains offer a number of benefits, including increased load-carrying capacity, smooth and quiet operation, and a longer lifespan. By carefully considering the specific requirements of the application, it is possible to select the right roller chain with extended pins to meet the needs of your business.
Applications of Stainless Steel Double Pitch Conveyor Chains with Extended Pins
The Stainless Steel Double Pitch Roller Chain with Extended Pins is mainly used for conveying purposes. Adopts high-quality SS304 or SS316 to make the chain which owns characteristics such as acid and alkali resistance, cold and heat resistance, long life, etc. This chain is widely used in food, chemical, pharmaceutical, rubber, printing, silk, and other industries.
Other Chains Related Products
We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, and many other types. Different kinds of attachments are available.
| One-stop Supplier of Chain Transmission Products | |||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
We Also Provide Other Types of Chain Sprockets
Stainless Steel Double Pitch Conveyor Chain Manufacturers
Our company was established in 1997, it is one of the earliest professional manufacturers. Products sell well in China, America, France, Japan, Korea, the Middle East, and other national areas for many years.
Our factory passed ISO9002 quality system certification in 1999 and products meet ISO, ANSI, BS, DIN, and JIS standards. All the chains and chain wheels are made of 304, 316L, and 310S high-quality stainless steel. Our products are widely used in industrial mechanical production lines. Such as food, baking, rubber, printing and dyeing,electroplating, and cooling and provide convenience for imported equipment parts localization.
In recent years, on the basis of original single stainless steel roller chain. We have developed six series of more than three hundred kinds of products. Such as sheet-type net belt chains, differential chains, nylon stainless steel composite chains, nylon flat top chain, stainless steel flat top chain, special window opener chain, etc. And provide convenience for our customers to design and manufacture more reasonable and professional conveying equipment.
Our factory can also produce various kinds of nonstandard stainless steel chains and sprockets according to customers’ requirements. We warmly welcome domestic and foreign customers to visit, negotiate, and guide.
 |
 |
