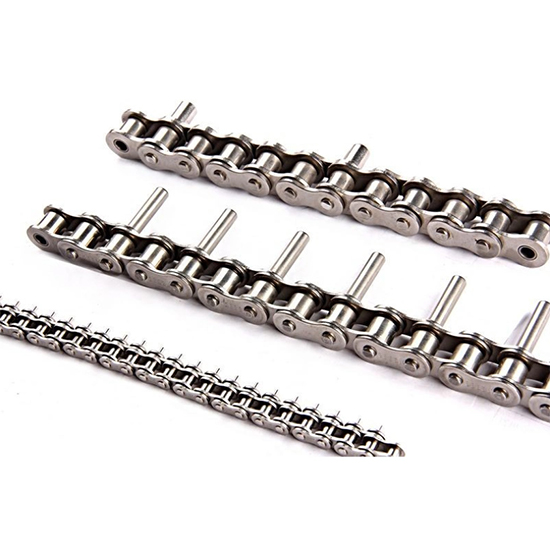

Stainless steel double pitch conveyor chain with extended pins
- Corrosion Resistance: The stainless steel material ensures superior resistance to corrosion, making it ideal for use in environments where exposure to chemicals, moisture, or other corrosive elements is common.
- Versatility: The design of the chain, combined with extended pins, makes it suitable for various applications, including those that require specific dimensions or configurations to fit unique conveyor setups.
- Performance: Our chain is engineered to provide smooth and reliable performance, reducing noise and vibration while handling heavy loads efficiently.

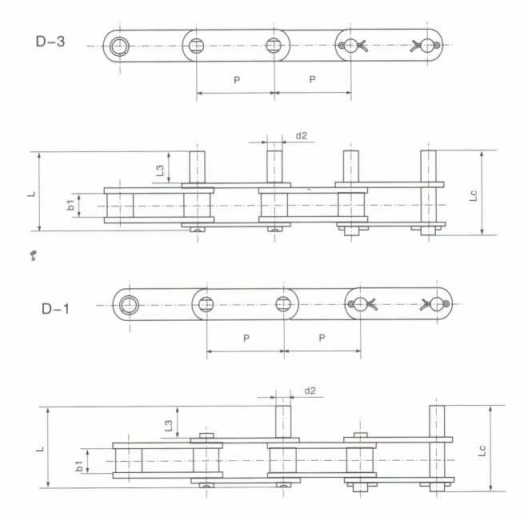

Diameter Data
DIN/ISO
Chain |
ANSI
Chain |
P | b1 | d2 | L3 | L | Lc |
N〇. | NO . | mm | mm | mm | mm | mm | mm |
C208ASS
C208ALSS |
C2040SS
C2042SS |
25.40 | 7.85 | 3.96 | 9.5 | 25.1 | 26.2 |
C210ASS
C210ALSS |
C2050SS
C2052SS |
31.75 | 9.40 | 5.08 | 11.9 | 31.3 | 33.1 |
C212ASS
C212ALSS |
C2060SS
C2062SS |
38.10 | 12.57 | 5.94 | 14.3 | 38.6 | 40.6 |
C212AHSS
C212AHLSS |
C2060HSS
C2062HSS |
38.10 | 12.57 | 5.94 | 14.3 | 42.0 | 43.8 |
C216ASS
C216ALSS |
C2080SS
C2082SS |
50.80 | 15.75 | 7.92 | 19.1 | 50.3 | 53.3 |
C216AHSS
C216AHLSS |
C2080HSS
C2082HSS |
50.80 | 15.75 | 7.92 | 19.1 | 53.5 | 55.0 |
C220ASS
C220ALSS |
C2100SS
C2102SS |
63.50 | 18.90 | 9.53 | 23.8 | 61.8 | 66.1 |
C220AHSS
C220AHLSS |
C2100HSS
C2102HSS |
63.50 | 18.90 | 9.53 | 23.8 | 65.0 | 68.3 |
C224AHSS
C224AHLSS |
C2120HSS
C2122HSS |
76.20 | 25.22 | 11.10 | 28.6 | 79.6 | 83.6 |
C232AHSS
C232AHLSS |
C2160HSS
C2162HSS |
101.60 | 31.75 | 14.27 | 38.1 | 103.0 | 107.8 |
