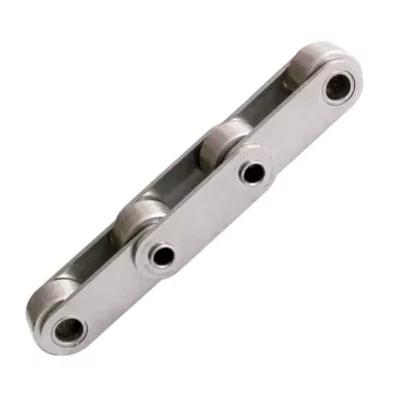

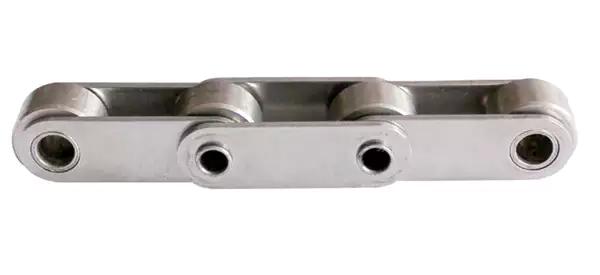

Stainless Steel Double Pitch Hollow Pin Chains
Hollow Pin chains are constructed with cold-forged solid bushings. This process assures the inside diameter of the bushing is completely cylindrical all the way through. This unique hollow pin feature allows easy insertion of cross rods without damaging the chain or rods. Hollow Pin chain operates on standard sprockets and standard double pitch sprockets.
For food handling conveyors, Hollow Pin Chains are available in ANSI standard short pitch series (40HP – 80HP), double pitch series with standard rollers (C2040HP – C2080HP), and large rollers (C2042HP – C2082HP). Attachments or cross-rods can be inserted at any desired spacing, which provided great design versatility. Changes can be made without removing the chain from the conveyor. Our Hollow pin chains are as following items:
1. Hollow pin conveyor chains(MC series
2. Hollow pin conveyor chains(FVC series)
3. Non-standard hollow pin conveyor chains
4. Hollow pin conveyor chains(ZC series)
5. Hollow pin chains
6. Stainless steel hollow pin chains
Stainless Hollow Pin Chains Related Products
Automobile chains | Drive chains | Conveyor chains |
Engineering chains | Traction chains | Agricultural machinery chains |
Stainless steel chains | Escalator chains | Chain wheel |
We also provide sprockets to match your roller chains
Packaging Display of Roller Chains
Our chain is packing in 10ft boxes including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability please contact us at any time.
