Stainless Steel Flat-top Chain With Rubber Top
Flat top chains, also called flat top chain plates, slat top chains, or table top chain plates, are efficient chains used in the glass industry, food industry, wine, and other industries for conveying. The flat top chains are making of carbon steel, stainless steel, or galvanized steel for high tensile strength and bearing load. Compared with a flat weave belt, it supplies a flat and smooth surface for high-performance conveying. We can provide you with all kinds of flat top chains in different specs and materials. We can customize the flat top chains according to your equipment and requirements.
Stainless Steel Flat-top Chain With Rubber Top
Stainless Steel Flat-top Chain With Rubber Top, also called flat top chain plates, slat top chains, or table top chain plates, are efficient chains used in the glass industry, food industry, wine, and other industries for conveying. The flat top chains can be made of carbon steel, stainless steel, or galvanized steel for high tensile strength and bearing load. Compared with a flat weave belt, it supplies a flat and smooth surface for high-performance conveying. We can provide you with all kinds of flat top chains in different specs and materials. We can customize the flat top chains according to your equipment and requirements.
Flat top chain plate types
Standard flat top chains are not curved, which is suitable for the straight conveying machine. But in some workshops, the space is limited, so the conveying line will be made into an L shape, U shape, or rectangular shape. So it needs an adjutor st the machine for smooth conveying. Here we can supply the standard flat top chains and the side flex flat top chains.
- Straight running flat-top chains. Linear flat top chains supply high loading capacity and smooth surfaces in the straight conveying machines. It is combined with several regular rectangular chain plates and high pins.
- Side flex flat top chains. The side flex flat top chains can ensure fast, smooth and steady conveying. Side flex flat top chains are suitable for flex machines, which may be L shape, U shape, or rectangular shape.

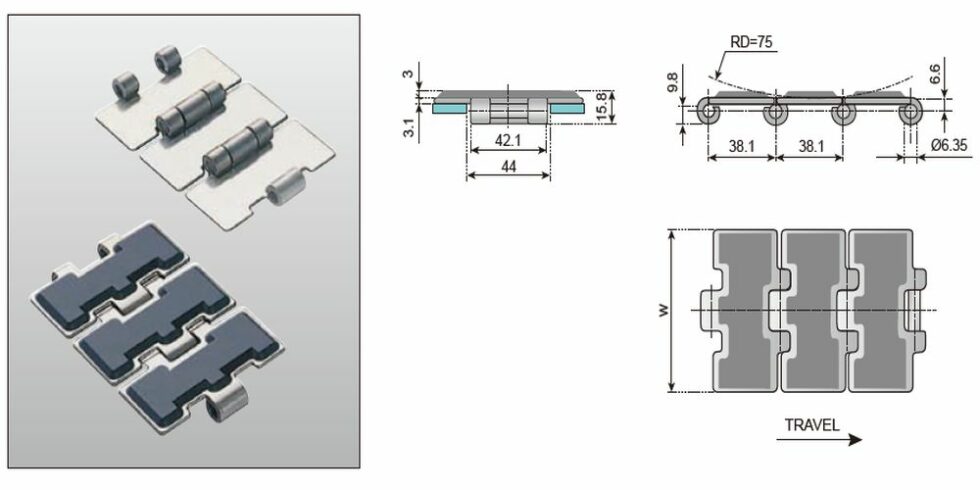

(1) SS812/815G Single Hinge Straight Running Flat-top Chain With Rubber Top
 |
Chain No. | Width ( W ) | |
| mm | inch | ||
| SS812/815 – K325G | 82.6 | 3.25 | |
| SS812/815 – K450G | 114.3 | 4.50 | |
| SS812/815 – K750G | 190.5 | 7.50 | |
(2) SS802/805G Double Hinge Straight Running Flat-top Chain With Rubber Top
 |
Chain No. | Width ( W ) | |
| mm | inch | ||
| SS802/805 – K750G | 190.5 | 7.50 | |
| SS802/805 – K1000G | 254 | 10.00 | |
| SS802/805 – K1200G | 304.8 | 12.00 | |

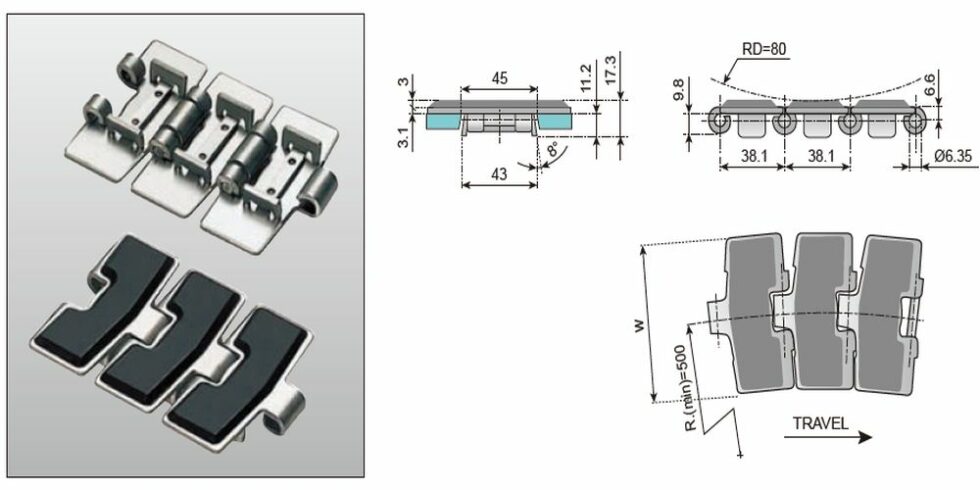

(3) SS881G Side flex Flat-top Chain With Rubber Top
 |
Chain No. | Width ( W ) | |
| mm | inch | ||
| SS881 – K325G | 82.6 | 3.25 | |
| SS881 – K450G | 114.3 | 4.50 | |
| SS881 – K600G | 152.4 | 6.00 | |
| SS881 – K750G | 190.5 | 7.50 | |

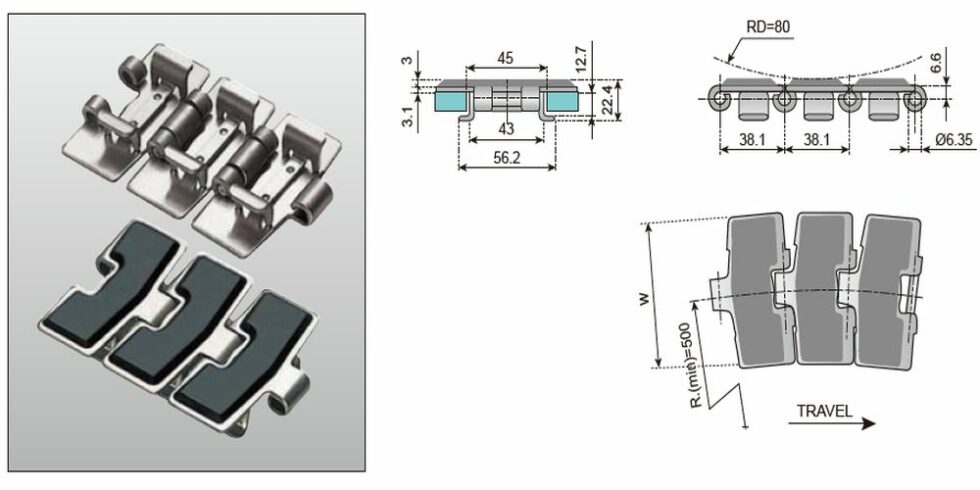

(4) SS881TAB-G Side flex Flat-top Chain With Rubber Top
 |
Chain No. | Width ( W ) | |
| mm | inch | ||
| SS881TAB – K325G | 82.6 | 3.25 | |
| SS881TAB – K450G | 114.3 | 4.50 | |
| SS881TAB – K600G | 152.4 | 6.00 | |
| SS881TAB – K750G | 190.5 | 7.50 | |
| SS881TAB – K1000G | 254 | 10.0 | |
| SS881TAB – K1200G | 304.8 | 12.00 | |
Features of Flat-top Chain
- High performance. The flat and smooth surface has little friction for high-performance conveying.
- High friction. The rubber top plates improve the surface chain to protect products from falling.
- Smooth and steady conveying. Straight running and side flexing types to suit different representing lines.
- Easy cleaning and low maintenance. Clean them with flow water or soak them in water for easy and fast cleaning.
- Corrosion and rust resistance. Stainless steel and other anti-corrosive materials ensure the flat op chain’s long service life.
- High load capacity. The chain plates have a larger loading surface than balanced weave conveyor belts and other conveyor belts made of steel wires. This way, it can load more products for heavy-duty applications.
- Customization. All the products can be customized according to your requirements and drawing.
- Wide range of applications. It serves many conveying applications in many industries, such as beverage, food processing, and glass bottling.

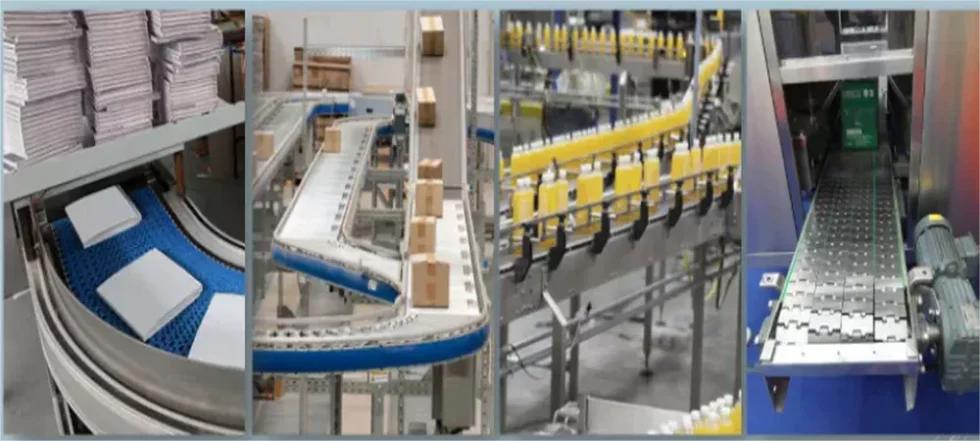

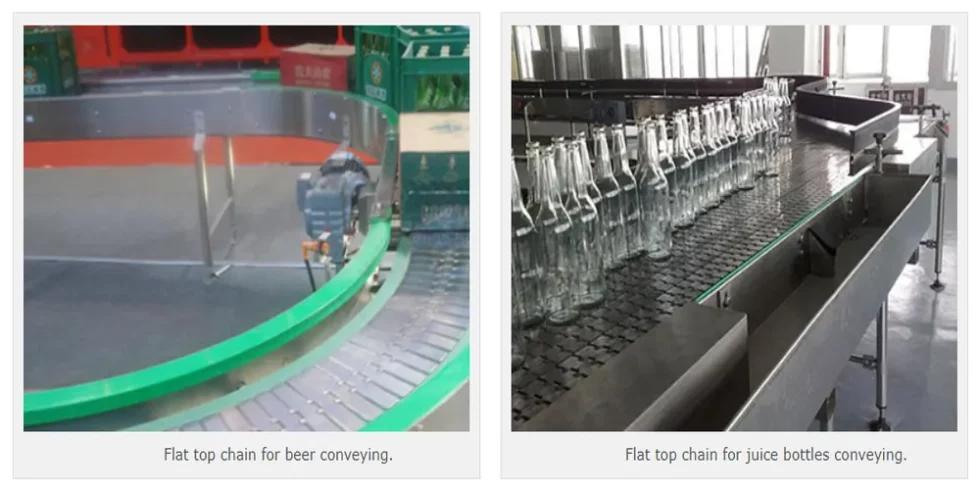

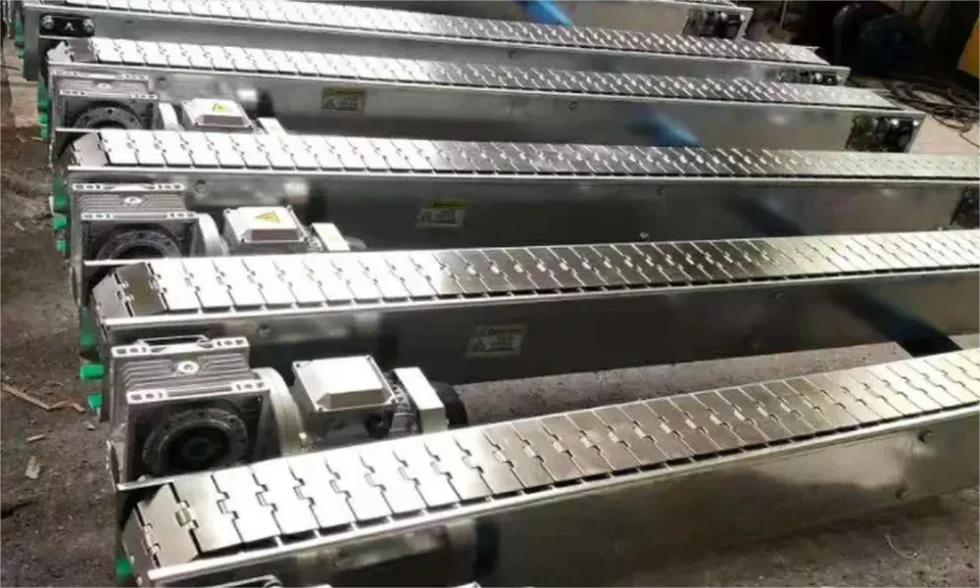

Applications of Flat-top Chain
|
|
 |
 |
Why Choose Our Stainless Steel Flat-top Chain?
We care about our valued buyers. If you have any questions, our Customer Service staff will be happy to help you. As a leading mechanical transmission parts supplier. We can offer a wide range of drive chains and sprockets for sale. We try our best to reply to your emails as soon as possible. However, due to the high volume of daily incoming emails and time zone difference, we may not be able to reply to your emails immediately. Please allow 24 business hours for us to respond.

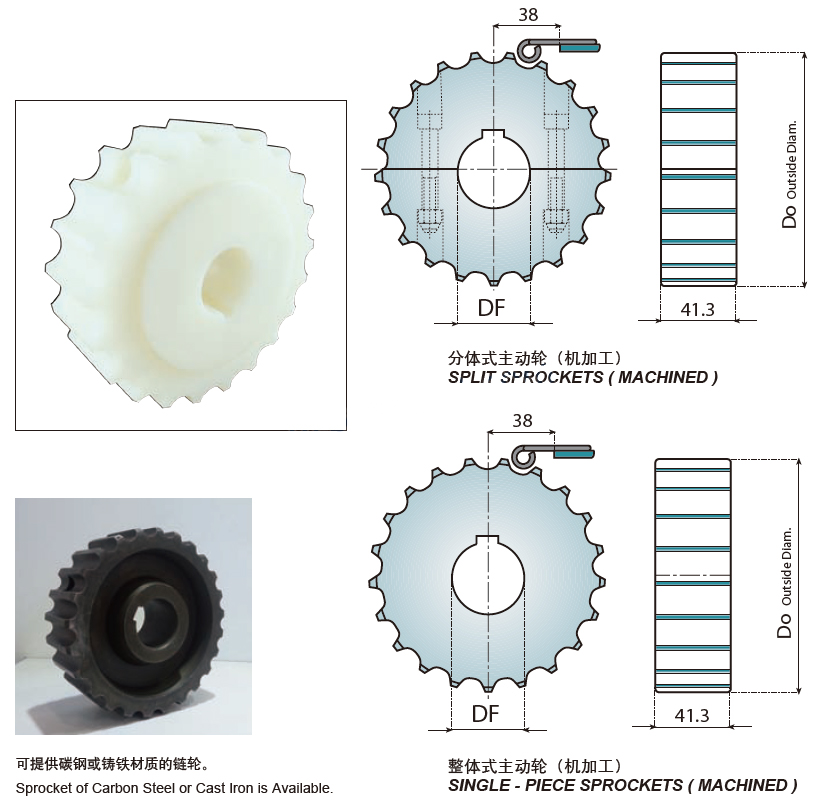

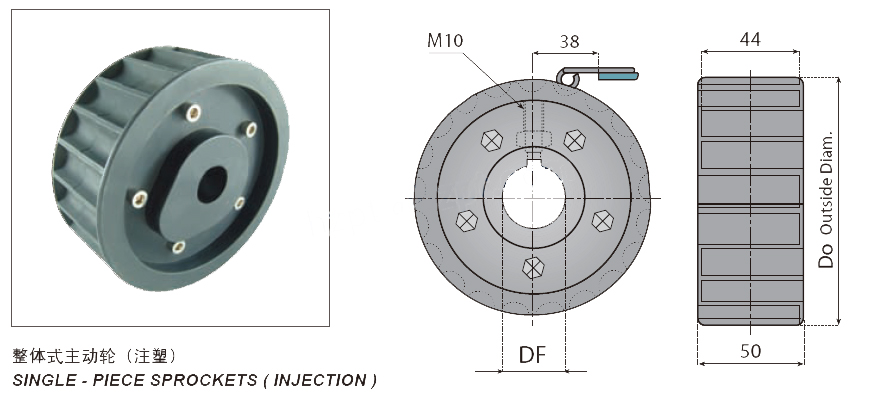

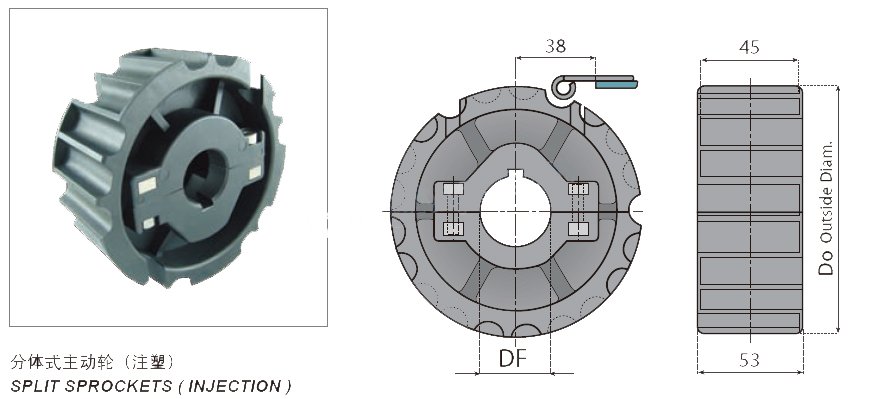

We Can Also Provide Matching Sprockets and Idler Wheels.
 |
 |
 |
|---|
Finding Your Ideal Chain and Sprocket
Do you need a sprocket but aren’t sure exactly what you need? This common problem is one that our professionals hear about every week. We excel at working with you to ensure that you get the roller chain sprocket or conveyor chain sprocket that will keep your project or machinery moving again.
Sprockets are available for various uses, from forestry to agriculture and everything in between. It’s equally as important to select the correct sprocket as it is to use the proper drive chain — a mismatch can be catastrophic, causing damage to expensive machinery and even dangerous accidents. We help you find the right pairing.
