Stainless Steel Hollow Pin Chains
We specialize in the chains made to customers’ drawings and specification. Our advantage is reliable quality, competitive price, prompt delivery and good service. Standard products include various transmission and conveyor chains, like Roller Chain, double pitch Conveyor Chain, Hollow Pin Chain, Leaf Chain, Table Top Chain, Side Bow Chain, Lumber Chain, Agriculture Chain, Silent Chain, PIV Chain, Stainless Steel Chain, Nickel/ Zinc plated Chain, Dacromet Chain, Engineering Chain, Steel Pintle Chain, Welded steel chain, Forged chain, Malleable Iron chain, and many other types. Different kinds of attachment are available.
Stainless Steel Hollow Pin Chains

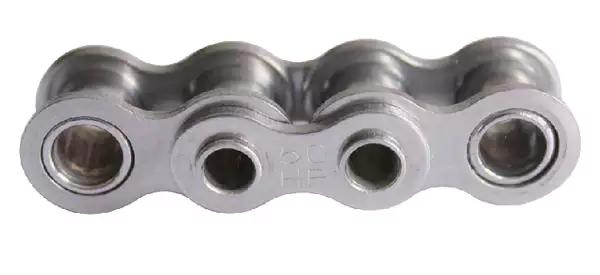

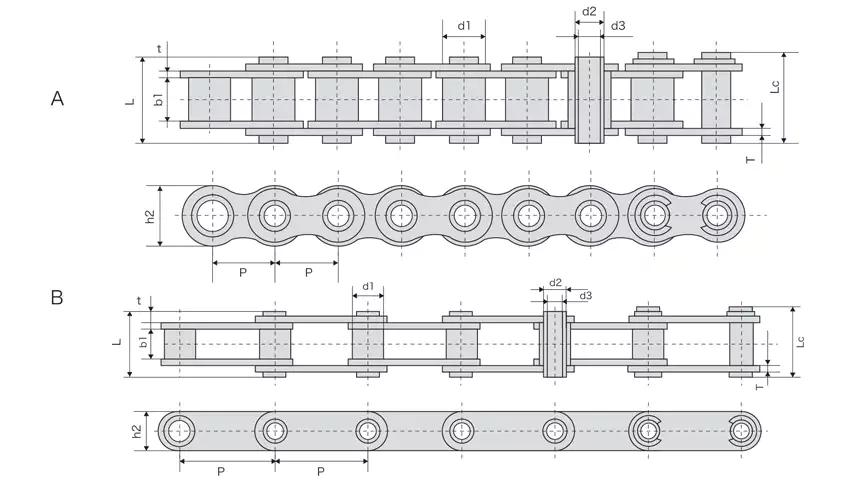

Stainless Steel Short Pitch Hollow Pin Chains
 |
 |
| South Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | Type form | ||
| P | d1
(max) |
b1
(min) |
d2
(max) |
d3
(min) |
L
(max) |
Lc
(max) |
h2
(max) |
t/T
(max) |
Q
(min) |
Q0 | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | ||
| 08BHPFSS | 12.7 | 8.5 | 7.75 | 6.55 | 4.5 | 16.4 | 17.6 | 11.8 | 1.6/1.3 | 6.66 | 7.26 | 0.56 | A |
| 40HPSS | 12.7 | 7.95 | 7.85 | 5.63 | 4 | 16.5 | 17.6 | 12 | 1.5 | 6.6 | 7.32 | 0.54 | A |
| 50HPSS | 15.875 | 10.16 | 9.4 | 7.03 | 5.13 | 20.7 | 21.9 | 15.09 | 2.03 | 12 | 13.56 | 0.91 | A |
| 60HPSS | 19.05 | 11.91 | 12.7 | 8.31 | 6 | 25.8 | 26.8 | 18 | 2.42 | 14.4 | 16.14 | 1.29 | A |
| 60HPF1SS | 19.05 | 11.91 | 12.7 | 8.31 | 5.01 | 25.5 | 26.8 | 18 | 2.42 | 16.8 | 18.54 | 1.37 | A |
| 80HPSS | 25.4 | 15.88 | 15.75 | 11.4 | 8.05 | 32.5 | 33.8 | 24 | 3.25 | 30 | 34.98 | 2.26 | A |
| C2040HPSS | 25.4 | 7.95 | 7.85 | 5.63 | 4 | 16.5 | 17.6 | 12 | 1.5 | 6.6 | 7.56 | 0.046 | B |
| C2050HPSS | 31.75 | 10.16 | 9.4 | 7.22 | 5.12 | 20.5 | 21.8 | 15 | 2.03 | 12.24 | 13.68 | 0.76 | B |
| C2060HPSS | 38.1 | 11.91 | 12.7 | 8.31 | 6 | 25.8 | 26.8 | 17 | 2.42 | 14.4 | 16.26 | 1.02 | B |
| C2080HPSS | 50.8 | 15.88 | 15.75 | 11.4 | 8.05 | 32.5 | 33.8 | 24 | 3.25 | 30 | 33.12 | 1.81 | B |
| HP50F1SS | 50 | 26 | 14.5 | 20 | 14.7 | 35.3 | 36.2 | 40 | 3.1 | 18 | 20.16 | 3.98 | B |

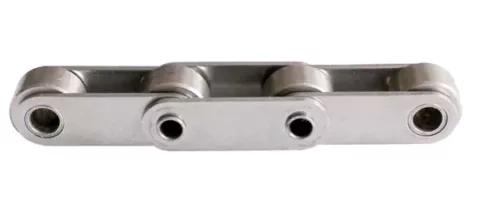

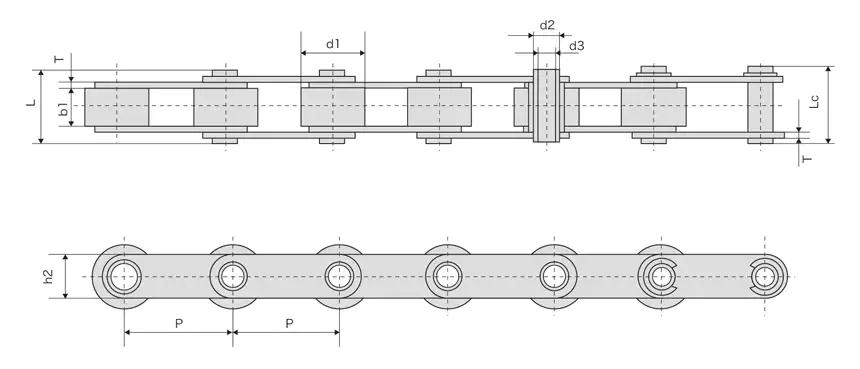

Stainless Steel Double Pitch Hollow Pin Chains
| South Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | Type form | ||
| P | d1
(max) |
b1
(min) |
d2
(max) |
d3
(min) |
L
(max) |
Lc
(max) |
h2
(max) |
t/T
(max) |
Q
(min) |
Q0 | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | ||
| 10BHBSS | 15.875 | 10.16 | 9.65 | 5.94 | 4.04 | 19.3 | 20.6 | 14.7 | 1.7 | 10.2 | 12.48 | 0.86 | A |
| 12BHPSS | 19.05 | 12.07 | 11.68 | 6.5 | 4 | 21.6 | 22.8 | 15.9 | 1.85 | 14.16 | 15.54 | 1.09 | A |
| 60HBSS | 19.05 | 11.91 | 12.7 | 7 | 5.01 | 25.5 | 26.6 | 18 | 2.42 | 12 | 13.44 | 1.35 | A |
| HP35SS | 35 | 20 | 16 | 13.35 | 10.2 | 30.4 | 31.6 | 26.3 | 2.5 | 14.11 | 15.84 | 2.02 | A |
| HP50F2SS | 50 | 31 | 15 | 13.2 | 10.2 | 36.5 | 38 | 25 | 4 | 24 | 25.92 | 3.4 | B |
| HB38.1SS | 38.1 | 20 | 8 | 8 | 5.3 | 19.6 | 20.7 | 17.3 | 2.03 | 15 | 17.28 | 0.98 | B |
| HB50.8SS | 50.8 | 30 | 10.5 | 11.4 | 8.2 | 27.4 | 28.6 | 26 | 3.1 | 30 | 32.16 | 2.56 | B |
| HB63SS | 63 | 30 | 10 | 11.4 | 8.1 | 26.7 | 28.1 | 26.5 | 3.1 | 30 | 32.16 | 2.07 | B |
| HB100SS | 100 | 30 | 10.5 | 11.4 | 8.2 | 27.4 | 28.6 | 26 | 3.1 | 30 | 32.16 | 1.56 | B |
Stainless Steel Hollow Pin Conveyor Chains
 |
 |
| South Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | ||
| P | d1
(max) |
b1
(min) |
d2
(max) |
d3
(min) |
L
(max) |
Lc
(max) |
h2
(max) |
t/T
(max) |
Q
(min) |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | |
| C2042HPSS | 25.4 | 15.88 | 7.85 | 5.63 | 4 | 16.5 | 17.6 | 12 | 1.5 | 6.6 | 7.56 | 0.78 |
| C2052HPSS | 31.75 | 19.05 | 9.53 | 7.22 | 5.12 | 20.5 | 21.8 | 15 | 2.03 | 12.24 | 13.68 | 1.25 |
| C2062HPSS | 38.1 | 22.23 | 12.7 | 8.31 | 6 | 25.8 | 26.8 | 17 | 2.42 | 14.4 | 16.26 | 1.72 |
| C2082HPSS | 50.8 | 28.58 | 15.75 | 11.4 | 8.05 | 32.4 | 33.8 | 24 | 3.25 | 30 | 33.12 | 2.82 |
| C2052HPF1SS | 31.75 | 19.05 | 9.4 | 7.03 | 5.12 | 20 | 21.5 | 15.3 | 1.85 | 9 | 10.38 | 1.21 |
| C2042H-HPSS | 25.4 | 15.88 | 7.85 | 5.63 | 4 | 18.8 | 19.9 | 12 | 2.03 | 6.6 | 7.92 | 0.95 |
| C2052H-HPSS | 31.75 | 19.05 | 9.53 | 7.22 | 5.12 | 22.1 | 23.4 | 15 | 2.42 | 12.24 | 14.1 | 1.44 |
| C2062H-HPSS | 38.1 | 22.23 | 12.7 | 8.31 | 6 | 29.2 | 30.2 | 17 | 3.25 | 14.4 | 16.56 | 1.99 |
| C2082H-HPSS | 50.8 | 28.58 | 15.75 | 11.4 | 8.05 | 36.2 | 37.6 | 24 | 4 | 30 | 33.9 | 3.26 |
HP40SS |
40 | 22 | 8.75 | 9 | 6 | 23 | 24.2 | 18 | 2.5 | 12 | 12.6 | 1.49 |
| HP50SS | 50 | 31 | 14.5 | 13.2 | 10.4 | 31.1 | 32.5 | 25 | 3.1 | 18 | 40.86 | 3.29 |
| HP50F4SS | 50 | 31 | 15 | 13.2 | 10.2 | 36.5 | 38 | 28.5 | 4 | 24 | 26.88 | 3.73 |
| 63HPF1SS | 63 | 40 | 15 | 16 | 12.1 | 35 | 36.2 | 26 | 4 | 30 | 34.02 | 4.2 |
| DH4202HPSS | 50.8 | 31.8 | 15 | 14 | 10.1 | 36.6 | 39 | 26 | 3.8 | 25.2 | 33.96 | 3.75 |
| DH4203HPSS | 76.2 | 31.8 | 15 | 14 | 10.1 | 36.3 | 39 | 26 | 3.8 | 25.2 | 28.26 | 3.01 |
| DH42035HPSS | 88.9 | 31.8 | 15 | 14 | 10.1 | 36.3 | 39 | 26 | 3.8 | 25.2 | 33.66 | 2.79 |
| DH4204HPSS | 101.6 | 31.8 | 15 | 14 | 10.1 | 36.3 | 39 | 26 | 3.8 | 25.2 | 33.96 | 2.63 |
| DH8403HPSS | 76.2 | 47.6 | 19 | 19.05 | 13.6 | 43.8 | 46.3 | 39 | 5.1/3.8 | 50.58 | 78.18 | 6.81 |
| DH8404HPSS | 101.6 | 47.6 | 19 | 19.05 | 13.6 | 43.8 | 46.3 | 39 | 5.1/3.8 | 50.58 | 78.18 | 5.78 |
| DH8406HPSS | 152.4 | 47.6 | 19 | 19.05 | 13.6 | 43.8 | 46.3 | 39 | 5.1/3.8 | 50.4 | 78.18 | 5.18 |
Chain No. |
Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | Type form | ||
| P | d1
(max) |
b1
(min) |
d2
(max) |
d3
(min) |
L
(max) |
Lc
(max) |
h2
(max) |
t/T
(max) |
Q
(min) |
Q0 | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | ||
| 08BHPF2SS | 12.7 | 8.51 | 13.2 | 6.65 | 5.2 | 18 | 19.2 | 11.8 | 1.6/1.3 | 6 | 6.83 | 0.5 | A |
| 10BHPF1SS | 15.875 | 10.16 | 13.41 | 7.03 | 5 | 19.2 | 20.2 | 14 | 1.85 | 10.2 | 12.36 | 0.83 | A |
| 12BHPF1SS | 19.05 | 12.07 | 16 | 8.03 | 5.4 | 22.7 | 23.9 | 15.8 | 1.85 | 15 | 17.28 | 1.09 | A |
| 16BHPF1SS | 25.4 | 15.88 | 25.58 | 11.5 | 8.1 | 36 | 37.6 | 21 | 4.15/3.1 | 27 | 31.32 | 2.21 | A |
| 60HPF2SS | 19.05 | 11.91 | 11.23 | 5.63 | 4.05 | 16.5 | 17.6 | 10.4 | 1.5 | 6 | 6.48 | 0.62 | A |
| 63HPSS | 63 | 40 | 23.5 | 16 | 8.1 | 35.3 | 38.3 | 28.6 | 4 | 39 | 10.5 | 4.14 | B |
| 63HPF2SS | 63 | 40 | 25.8 | 14 | 4.05 | 39.1 | 41.1 | 20 | 5 | 30 | 39.42 | 4.17 | B |
| 63HPF4SS | 63 | 40 | 23.5 | 16 | 12 | 34.7 | 37.7 | 28.6 | 4 | 26.4 | 34.32 | 4.13 | B |
| 63HPF6SS | 63 | 40 | 28.94 | 16 | 8.2 | 41.8 | 43.4 | 28.6 | 4 | 26.4 | 34.32 | 5.18 | B |
| C2122HPF1SS | 76.2 | 47.6 | 29 | 17.81 | 12.3 | 43.3 | 44.7 | 38.1 | 4.8 | 32 | 35.52 | 7.05 | B |
