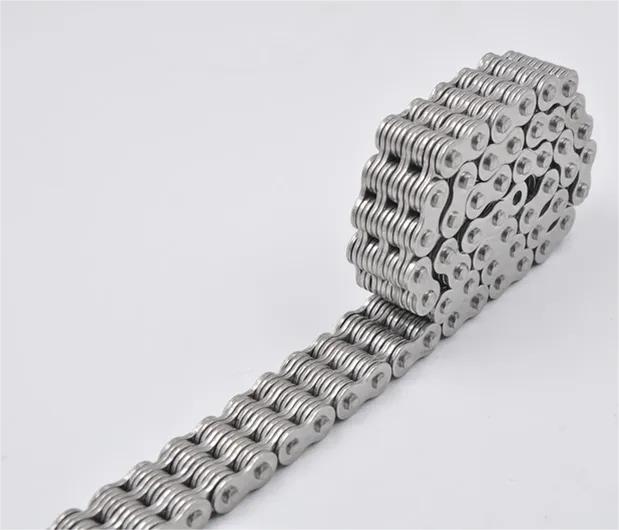

Stainless Steel Leaf Chain

The stainless steel leaf chain consists of staggering plates and is fixed together by rivet pins. Their manufacturing accuracy is as high as our roller chains. Selected steel and unique heat treatment ensure high strength and durability. Stainless steel leaf chains are ideal for heavy-duty hanging, balancing, or motion transmission applications like forklifts, material handling, lift trucks, and container lifts.

Description

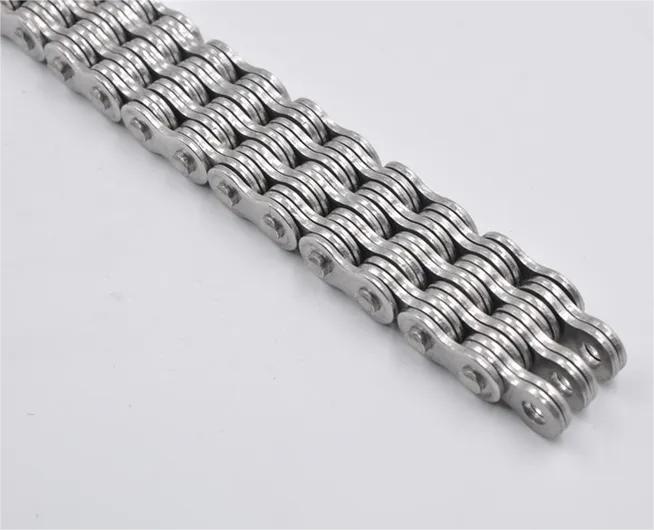

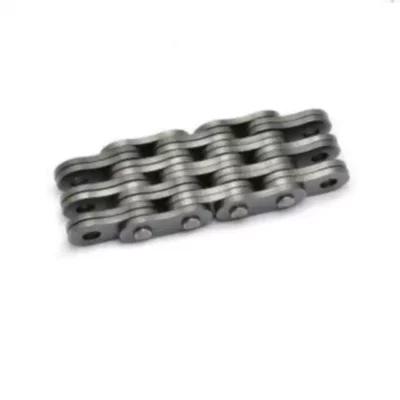

Stainless Steel Leaf Chain

The stainless steel leaf chain consists of staggering plates and is fixed together by rivet pins. Their manufacturing accuracy is as high as our roller chains. Leaf chains are used in applications that require strong, flexible links to transmit motion or lift. Selected steel and unique heat treatment ensure high strength and durability. The first or more numbers in the leaf chain represent the chain pitch, and the last two numbers represent the tie of the chain.

We have the best prices and quality available on leaf chains with our premium and economy lines. You’ll find the right product whether you need a leaf chain for forklifts, machine tools, rolling door counterbalances, or any other application. We vet all leaf chain suppliers and products for the highest-quality, most durable leaf chains. All of our leaf chains are heavy-duty with tensile strengths that vary from thousands to tens of thousands of pounds. Our store features two types of leaf chains, the AL-series leaf chain for lighter lifting and the BL series leaf chain for more heavy-duty work. Additionally, our leaf chains meet both ANSI and ASME standards.
When you buy leaf chains from Power-trans tech, you won’t have to reorder for a good while. We have confidence in our products. If you’re not sure what chain you need to reorder for your machine, please don’t hesitate to give us a call. We get calls from customers regarding this issue all the time, and we’re happy to help.

Stainless Steel Leaf Chain Size Chart

(1) LH Stainless Steel Leaf Chain

ISO Chain No.	ANSI Chain No.	Pitch	Chain Lacing	Plate depth	Plate thickness	Pin diameter	Pin length	Ultimate tensile strength	Average tensile strength	Weight per meter
		P		h2(max)	T(max)	d2(max)	L(max)	Q(min)	Q0	q
		mm		mm	mm	mm	mm	kN	kN	kg/m
LH0822SS	BL422SS	12.7	2X2	12.07	2.08	5.09	11.05	13.32	16.56	0.64
LH0823SS	BL423SS		2X3				13.16	13.32	16.56	0.8
LH0834SS	BL434SS		3X4				17.4	20.04	24.84	1.12
LH0844SS	BL444SS		4X4				19.51	26.7	33.6	1.28
LH0846SS	BL446SS		4X6				23.75	26.7	33.6	1.6
LH0866SS	BL466SS		6X6				17.99	10.02	49.02	1.92
LH0888SS	BL488SS		8X8				36.45	53.4	65.64	2.56
LH1022SS	BL522SS	15.875	2X2	15.09	2.44	5.96	12.9	20.04	25.86	0.88
LH1023SS	BL523SS		2X3				15.37	20.04	25.86	1.1
LH1034SS	BL634SS		3X4				20.32	29.34	39.36	1.5
LH1044SS	BL544SS		4X4				22.78	40.02	50.7	1.8
LH1046SS	BL546SS		4X6				17.74	40.02	50.7	2.2
LH1066SS	BL566SS		6X6				32.69	60.06	75.06	2.65
LH1088SS	BL588SS		8X8				42.57	80.04	101.7	3.5
LH1222SS	BL622SS	19.05	2X2	18.11	3.3	7.94	17.37	29.34	38.16	1.45
LH1223SS	BL623SS		2X3				20.73	29.34	38.16	1.8
LH1234SS	BL634SS		3X4				27.43	45.36	61.68	2.5
LH1244SS	BL644SS		4X4				30.78	58.74	72.54	2.9
LH1246SS	BL646SS		4X6				37.49	58.74	72.54	3.6
LH1266SS	BL666SS		6X6				44.2	88.08	114.48	4.3
LH1288SS	BL688SS		8X8				57.61	117.42	143.28	5.8
LH1622SS	BL822SS	25.4	2X2	24.13	4.09	9.54	21.34	50.7	64.92	2.2
LH1623SS	BL823SS		2X3				25.48	50.7	64.92	2.7
LH1634SS	BL834SS		3X4				33.76	77.4	102	3.8
LH1644SS	BL844SS		4X4				37.9	101.4	128.76	4.3
LH1646SS	BL846SS		4X6				46.18	101.4	128.76	5.4
LH1666SS	BL866SS		6X6				54.46	152.16	194.7	6.5
LH1688SS	BL888SS		8X8				71.02	202.86	259.62	8.6

(2) BL Stainless Steel Leaf Chain

DIN ISO Chain No.	ANSI Chain No.	Pitch	Chain Lacing	Plate depth	Plate thickness	Pin diameter	Pin length	Ultimate tensile strength	Average tensile strength	Weight per meter
		P		h2(max)	T(max)	d2(max)	L(max)	Q(min)	Q0	q
		mm		mm	mm	mm	mm	kN	kN	kg/m
LH2022SS	BL1022SS	31.75	2X2	30.18	4.9	11.11	25.37	69.36	90.48	3.4
LH2023SS	BL1023SS		2X3				30.33	69.36	90.48	4.3
LH2034SS	BL1034SS		3X4				40.23	109.44	138.96	6
LH2044SS	BL1044SS		4X4				45.19	138.78	174.84	6.9
LH2046SS	BL1046SS		4X6				55.09	138.78	174.84	8.6
LH2066SS	BL1066SS		6X6				65	208.2	258.18	10.3
LH2088SS	BL1088SS		8X8				84.81	277.56	333.06	13.8
LH2422SS	BL1222SS	38.1	2X2	36.2	5.77	12.71	29.62	90.72	115.2	4.6
LH2423SS	BL1223SS		2X3				35.43	90.72	115.2	5.8
LH2434SS	BL1234SS		3X4				47.07	146.76	189.54	8.1
LH2444SS	BL1244SS		4X4				52.88	181.5	228.6	9.3
LH2446SS	BL1246SS		4X6				64.52	181.5	228.6	11.6
LH2466SS	BL1266SS		6X6				76.15	272.22	326.16	13.9
LH2488SS	BL1288SS		8X8				99.42	363	435.6	18.6
LH2822SS	BL1422SS	44.45	2X2	42.24	6.55	14.29	33.55	114.78	135.42	6.1
LH2823SS	BL1423SS		2X3				40.16	114.78	135.42	7.6
LH2834SS	BL1434SS		3X4				53.37	189.48	196.56	10.6
LH2844SS	BL1444SS		4X4				59.97	229.56	270.72	12.2
LH2846SS	BL1446SS		4X6				73.18	229.56	270.72	15.2
LH2866SS	BL1466SS		6X6				86.39	346.98	409.44	18.2
LH2888SS	BL1488SS		8X8				112.8	459.06	541.68	24.3
LH3222SS	BL1622SS	50.8	2X2	48.26	7.52	17.46	39.01	173.46	204.66	8
LH3223SS	BL1623SS		2X3				46.58	173.46	204.66	10
LH3234SS	BL1634SS		3X4				61.72	264.24	311.76	14
LH3244SS	BL1644SS		4X4				69.29	346.98	408.24	16
LH3246SS	BL1646SS		4X6				84.43	346.98	408.24	20
LH3266SS	BL1666SS		6X6				99.57	514.44	600.42	24
LH3288SS	BL1688SS		8X8				129.84	693.9	818.76	32
LH4022SS	BL2022SS	63.5	2X2	60.33	9091	23.81	51.74	260.22	307.02	15.87
LH4023SS	BL2023SS		2X3				61.7	260.22	307.02	19.8
LH4034SS	BL2034SS		3X4				81.61	389.64	459.72	27.7
LH4044SS	BL2044SS		4X4				91.57	520.44	614.1	31.6
LH4046SS	BL2046SS		4X6				111.48	520.44	614.1	39.5
LH4066SS	BL2066SS		6X6				131.39	780.66	921.12	47.4
LH4088SS	BL2088SS		8X8				171.22	1040.88	1227.9	63.2

(3) LL Stainless Steel Leaf Chain

DIN ISO Chain No.	Pitch	Chain Lacing	Plate depth	Plate thickness	Pin diameter	Pin length	Ultimate tensile strength	Average tensile strength	Weight per meter
	P		h2(max)	T(max)	d2(max)	L(max)	Q(min)	Q0	q
	mm		mm	mm	mm	mm	kN	kN	kg/m
LL0822SS	12.7	2X2	10.6	1.3	4.45	7.6	10.68	12.24	0.35
LL0844SS		4X4				13	18.66	21.42	0.069
LL0866SS		6X6				18.2	26.7	30.54	1
LL0888SS		8X8				23.5	37.32	42.72	1.33
LL1022SS	15.875	2X2	13.7	1.6	5.08	9.2	13.38	15.3	0.54
LL1044SS		4X4				15.8	26.7	30.6	1.06
LL1066SS		6X6				22.1	40.02	45.78	1.57
LL1088SS		8X8				28.8	53.4	61.14	2.1
LL1222SS	19.05	2X2	16	1.85	5.72	10.4	17.34	19.92	0.73
LL1244SS		4X4				17.9	34.68	39.84	1.44
LL1266SS		6X6				25.4	52.02	59.82	2.15
LL1288SS		8X8				32.9	69.36	79.74	2.84

Stainless Steel Leaf Chains Design Characteristics

Select high-quality stainless steel material
High strength and precision
Corrosion resistance, high and low-temperature resistance
Long life, clean and sanitary

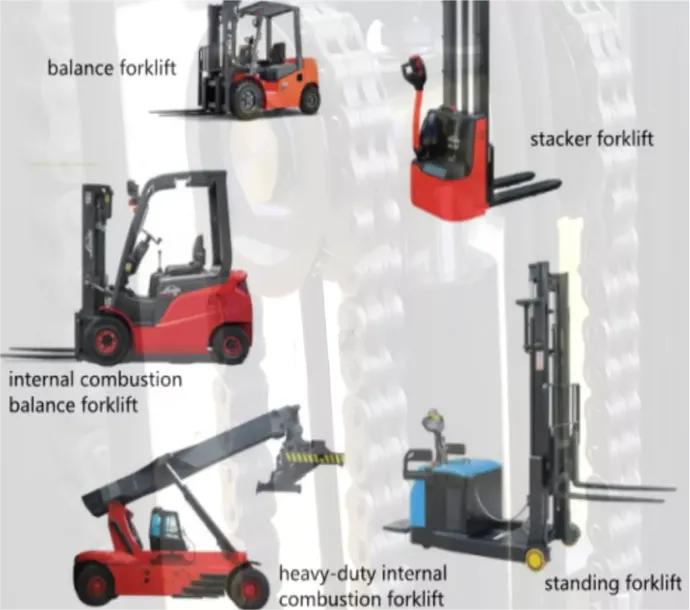

Stainless Steel Leaf Chain Applications

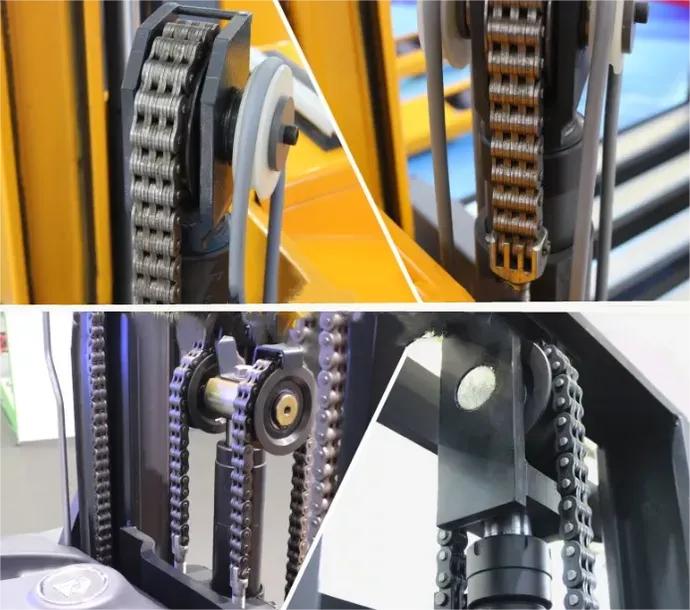

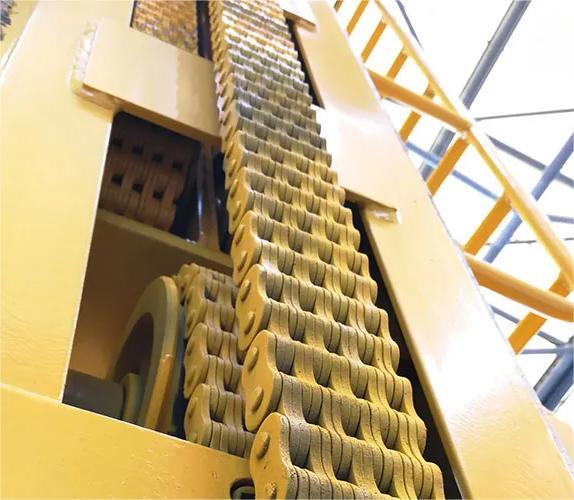

Stainless steel leaf chains are constructed with stacked plates and pins to provide high strength for various high-load applications. Stainless steel leaf chains is ideal for heavy-duty hanging, balancing, or motion transmission applications like:

Forklifts

Material Handling

Lift trucks

Container lifts

Machine tools

Elevator and oven doors

Spinning frames

Why Does the Leaf Chain Have a Deviation Problem?

1. Too fast chain starting speed can also cause deviation. Start at a slow pace at this time. If the winding motor is used, it can be restarted after two jogs and can also get rid of the deviation condition reasonably.
2. The initial supporting force of the chain is minimal. The lack of support at the conveyor belt leaving the drum causes the conveyor belt to deviate. This type of situation usually occurs at startup, and the way to deal with it is to adjust the tensioning device to increase the initial support force.
3. The end transmission roller bearing is damaged and does not rotate, or the left and right roller bearings are damaged and do not rotate too much. The cause of the damage is that the tail sinks and floats too much. There is no immediate repair and replacement of the components that have been damaged or rotated inefficiently, which increases the frictional resistance and leads to deviation.
4. If the load of the stainless steel chain is too large, it will run off if it exceeds the electrical working capacity. The beneficial side of running deviation at this time is the maintenance effect on electricity. Otherwise, the electricity will be damaged after a long time. But for the operation, it is a deviation accident.
5. To eliminate the deviation of the stainless steel chain conveyor belt, first look for the reason for the departure and then take measures to deal with it. In that way, many conveniences have been produced for everyone’s work.

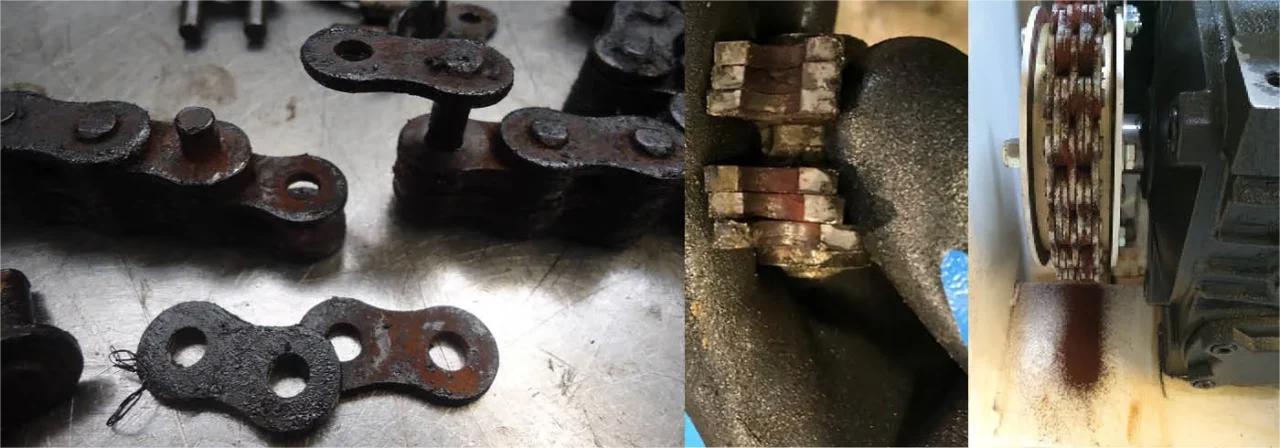

Inspection

It is important to inspect your stainless steel leaf chains regularly to prevent catastrophic failure that can result in equipment and person damage. The chart below indicates several common wear and protocols for your stainless steel leaf chain.

Problem Possible Cause Solution

Circumferential Wear of Plate Wear Replace the chain if wear is or exceeds 5% of original side-plate height.

Oblique Wear of Plate and Pin Head Misalignment of Guide or Pulleys Re-Align Machine

Stiff Link Dust or foreign substances are contained in a bending portion
corrosion and rust
Bent Pin Wash Chain and Lubricate

Abnormal Protrusion or Rotation of Pin Head Excessive Tension by Overload or Insufficient Lubrication Replace the chain, lubricate, and eliminate overload

Wear Elongation This occurs with normal wear over time or can be the result of a permanent deformation due to overload. Replace the chain when its length becomes 1.03L.
Note: Wear elongation of a chain will lower its tensile strength (wear elongation of 3% lowers the tensile strength by 18%)
The wear life of the chain can be increased by using lubrication.

Cracked Plate (1) where the crack from hole of a link plate in the direction perpendicular to tension direction. Load exceeding the allowable tension of chain Replace the chain with a chain of higher maximum allowable tension, or lower the load of dynamic shock load.

Cracked Plate (2) where the crack takes place in an oblique direction against tension direction Heavy rust or corrosion to a corrosive material. Replace the chain and protect it from corrosive circumstances.

Broken Plate by High Tension Overload Replace the chain and eliminate the cause of overload.

Enlarged plate hole Overload Replace the chain and eliminate the cause of overload.

Corrosion of pit Corrosive Circumstances Replace the chain, and protect from corrosive circumstances

Wear of Connecting Pin Normal Wear Replace the Worn Component

Problem	Possible Cause	Solution
Circumferential Wear of Plate	Wear	Replace the chain if wear is or exceeds 5% of original side-plate height.
Oblique Wear of Plate and Pin Head	Misalignment of Guide or Pulleys	Re-Align Machine
Stiff Link	Dust or foreign substances are contained in a bending portion corrosion and rust Bent Pin	Wash Chain and Lubricate
Abnormal Protrusion or Rotation of Pin Head	Excessive Tension by Overload or Insufficient Lubrication	Replace the chain, lubricate, and eliminate overload
Wear Elongation	This occurs with normal wear over time or can be the result of a permanent deformation due to overload.	Replace the chain when its length becomes 1.03L. Note: Wear elongation of a chain will lower its tensile strength (wear elongation of 3% lowers the tensile strength by 18%) The wear life of the chain can be increased by using lubrication.
Cracked Plate (1) where the crack from hole of a link plate in the direction perpendicular to tension direction.	Load exceeding the allowable tension of chain	Replace the chain with a chain of higher maximum allowable tension, or lower the load of dynamic shock load.
Cracked Plate (2) where the crack takes place in an oblique direction against tension direction	Heavy rust or corrosion to a corrosive material.	Replace the chain and protect it from corrosive circumstances.
Broken Plate by High Tension	Overload	Replace the chain and eliminate the cause of overload.
Enlarged plate hole	Overload	Replace the chain and eliminate the cause of overload.
Corrosion of pit	Corrosive Circumstances	Replace the chain, and protect from corrosive circumstances
Wear of Connecting Pin	Normal Wear	Replace the Worn Component

Other Chain Products


Automobile chains	Drive chains	Conveyor chains

Engineering chains	Traction chains	Agricultural machinery chains

Stainless steel chains	Escalator chains	Chain wheel

We Also Provide Sprockets to Match Your Roller Chains

Agricultural Sprockets	Cast iron sprockets	Conveyor sprockets	Double pitch sprockets

Finished bore sprocket	Idler sprockets	QD sprocket	Plastic Sprockets

Plate wheel sprockets	Steel Sprockets	Welded steel chain sprockets	Specialty Sprockets
