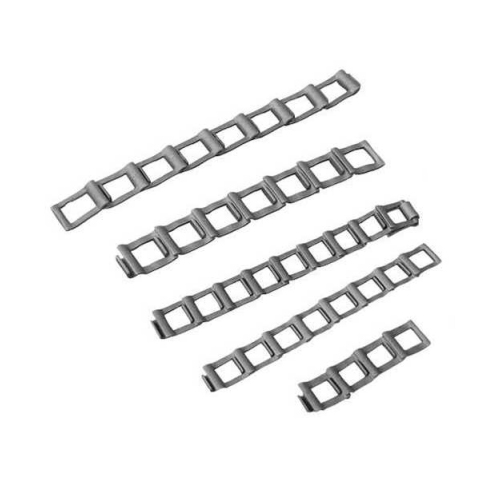

Steel detachable chain 25 32 32W 51 52 55 62
Steel detachable chain is one of the oldest styles chains that are still in use today. Since the early 1900s steel detachable chains work in agricultural and industrial applications around the world. They stemmed from the orginal cast detachable chain desian patented in 1873) and are making to be light-weant, economica, and durable

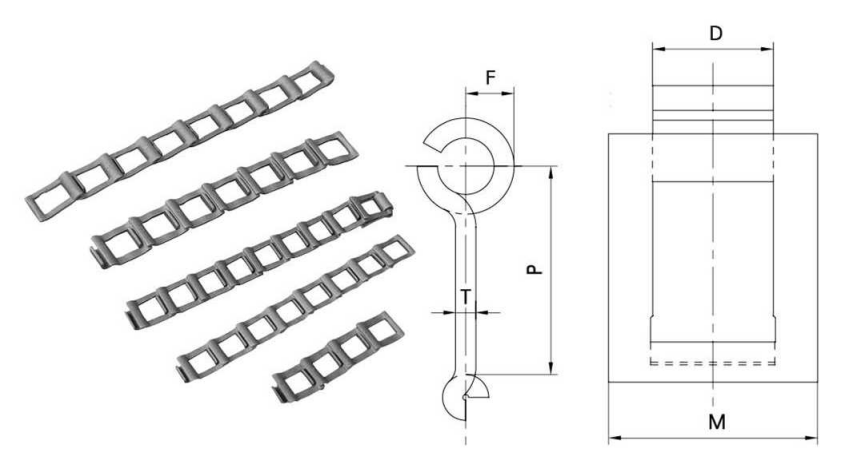

Diameter Data
Chain No. | P | D | F | M | T | 10FT | ||
(mm) | (KN) | (Kg/m) | (Pitch) | |||||
25 | 22.96 | 10.72 | 4.572 | 17.8 | 1.854 | 3.382 | 0.30 | 133 |
32 | 29.39 | 15.09 | 5-842 | 23.8 | 2.286 | 5.874 | 0.48 | 104 |
32W | 29.39 | 15.09 | 5.893 | 27 | 2.413 | 5.874 | 0.58 | 104 |
51 | 28.78 | 17.86 | 5.893 | 27.8 | 2.540 | 7.496 | 0.60 | 106 |
52 | 38.30 | 21.44 | 7.696 | 35.7 | 2.048 | 9.612 | 0.983 | 80 |
55 | 41.4 | 20.22 | 8.128 | 32.5 | 3.175 | 9.968 | 0.924 | 74 |
62 | 42.01 | 24.99 | 8.51 | 39.7 | 3.76 | 15.56 | 1.35 | 73 |
