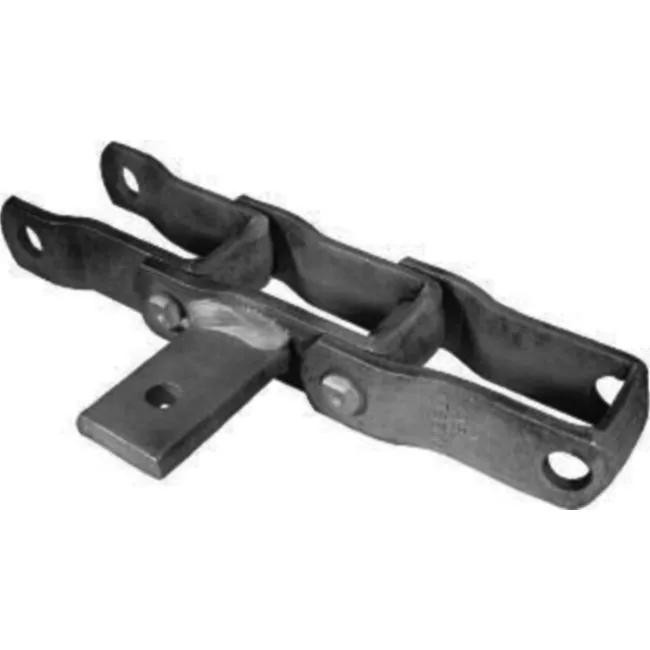

Steel Pintle Chain With AS Attachment
Steel Pintle Chain With AS Attachment
Steel Pintle Chain With AS Attachment
Steel Pintle Chain(Steel Pintle Chain With AS Attachment) is designed for dependability and quality, at a great price. The Steel Pintle Chain is well suited for a wide range of applications, such as salt- sand-fertilizer spreaders, bunk feeders, hay handling equipment and other similar conveying systems.
|
 |
Steel Pintle Chains feature all heat treated parts with quad staked pins. The open barrel construction minimizes pin surface contact with the barrel, eliminating freezing due to corrosion. The open barrel design eliminates material build up in the roots of sprockets. This assures smoother operation, uniform link wear, greater resistance to fatigue and longer service life.
|

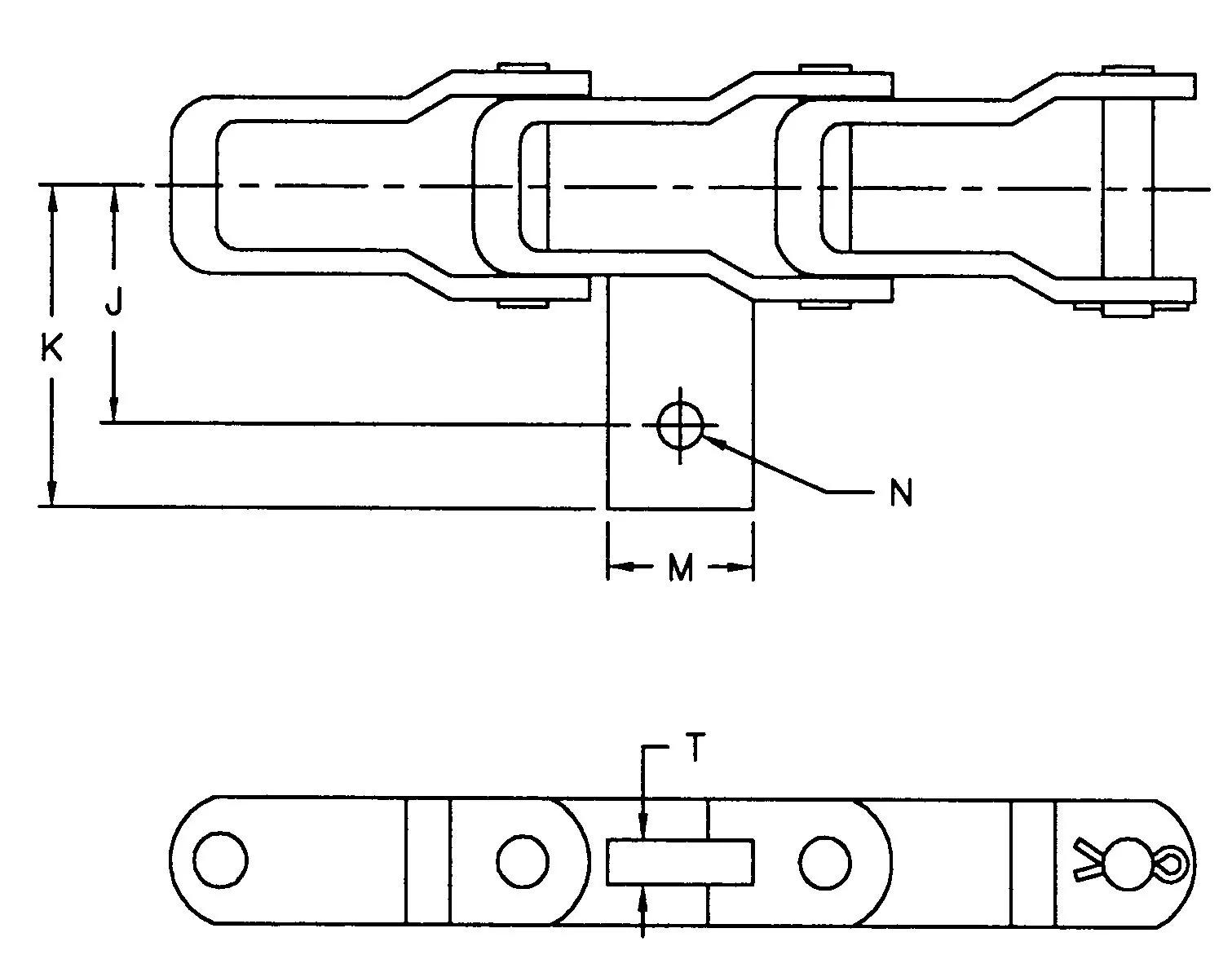

Attachment
|
Chain No.
|
J
|
K
|
M
|
N
|
T
|
|
AS
|
AL662
|
1.375
|
1.891
|
.938
|
.266
|
.188
|
|
AS
|
AL667H
|
2.031
|
2.594
|
1.125
|
.328
|
.250
|
|
AS
|
AL667X
|
2.031
|
2.688
|
1.125
|
.328
|
.313
|
|
AS
|
AL667XH
|
2.031
|
2.750
|
1.250
|
.391
|
.375
|
|
AS
|
AL88K
|
2.031
|
2.750
|
1.250
|
.391
|
.375
|
|
AS
|
AL88XH
|
2.031
|
2.813
|
1.250
|
.391
|
.375
|
We are specialised in producing Agricultural Roller Chain, Flat Top Chain,Caterpillar Track Chain,Hollow Pin Chain,Conveyor Chain for Beer Filling and Packing Line,Paver Chain,Attachment Sidebar Elevator Chain,Bucket Elevator Chain (Cement Mill Chain),Forging Scraper Chain,Loading Chain for Automobile Industry,Loading Chain for Metallurgical Industry,Conveyor Chain for Mine Machinery,Trencher Chain,Sugar Mill Chain,Double Flex Chain,etc. Welcome calls and emails to inquiry!
