Steel Sprockets
A sprocket(Steel Sprockets 40 60) is a rotating mechanical wheel with teeth that engage with roller or conveyor chains to facilitate their movement in various applications and equipment. As the sprocket rotates around a central shaft, the specially designed teeth engage the gaps in the chain to pull it with a secure grip regardless of whether it is in dirty or oily environments. Although they may resemble gears, sprockets are designed solely to work with drive chains, not other sprockets or gears.
We specialize in high-quality drive and conveyance components, power transmission parts, and custom-designed products. The integrity and performance of your transmission system rely on the suitability of your sprockets, and our team can help you find the perfect solution.
(1) 40 Steel Sprockets for Chain 843 / 845 / 1843
CODE | TYPE A | TYPE B | ||||||
Do Outer dia. (mm) |
Dp Pitch dia. (mm) |
D Bore dia. (mm) |
Do Outer dia. (mm) |
Dp Pitch dia. (mm) |
D Bore dia. (mm) |
d Hub dia. (mm) |
H Overall length (mm) |
|
13T | 59 | 53.07 | 13.5 | 59 | 53.07 | 13.5 | 37 | 22 |
14T | 63 | 57.07 | 13.5 | 63 | 57.07 | 13.5 | 42 | 22 |
15T | 67 | 61.08 | 13.5 | 67 | 61.08 | 13.5 | 46 | 22 |
16T | 71 | 65.10 | 13.5 | 71 | 65.10 | 13.5 | 50 | 22 |
17T | 76 | 69.12 | 13.5 | 76 | 69.12 | 13.5 | 54 | 22 |
18T | 80 | 73.14 | 13.5 | 80 | 73.14 | 13.5 | 57 | 22 |
19T | 84 | 77.16 | 13.5 | 84 | 77.16 | 13.5 | 62 | 22 |
20T | 88 | 81.18 | 14 | 88 | 81.18 | 14 | 67 | 25 |
21T | 92 | 85.21 | 14 | 92 | 85.21 | 14 | 71 | 25 |
22T | 96 | 89.24 | 14 | 96 | 89.24 | 14 | 75 | 25 |
23T | 100 | 93.27 | 14 | 100 | 93.27 | 14 | 77 | 25 |
24T | 104 | 97.30 | 14 | 104 | 97.30 | 14 | 63 | 25 |
25T | 108 | 101.33 | 14 | 108 | 101.33 | 14 | 63 | 25 |
26T | 112 | 105.36 | 14 | 112 | 105.36 | 14 | 63 | 25 |
27T | 116 | 109.40 | 14 | 116 | 109.40 | 14 | 63 | 25 |
28T | 120 | 113.43 | 14 | 120 | 113.43 | 14 | 63 | 25 |
29T | 124 | 117.46 | 14 | 124 | 117.46 | 14 | 63 | 25 |
30T | 128 | 121.50 | 14 | 128 | 121.50 | 14 | 63 | 25 |
NOTE: Material: Carbon Steel / Stainless Steel (Plastic Material is Available)
(2) 60 Steel Sprockets for Chain 863 / 963 / 1864 / 1873 / 1874 / 3873
This series of sprockets can be used with 1874TAB-G Flat Top Chains Sideflexing(link).

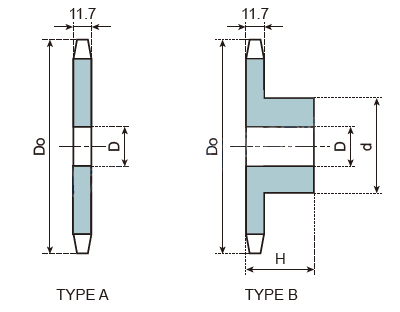

CODE | TYPE A | TYPE B | ||||||
Do Outer dia. (mm) |
Dp Pitch dia. (mm) |
D Bore dia. (mm) |
Do Outer dia. (mm) |
Dp Pitch dia. (mm) |
D Bore dia. (mm) |
d Hub dia. (mm) |
H Overall length (mm) |
|
13T | 89 | 79.60 | 14 | 89 | 79.60 | 14 | 57 | 32 |
14T | 95 | 85.61 | 16 | 95 | 85.61 | 16 | 62 | 32 |
15T | 101 | 91.62 | 16 | 101 | 91.62 | 16 | 68 | 32 |
16T | 107 | 97.65 | 16 | 107 | 97.65 | 16 | 73 | 32 |
17T | 113 | 103.67 | 16 | 113 | 103.67 | 16 | 73 | 32 |
18T | 119 | 109.71 | 16 | 119 | 109.71 | 16 | 83 | 40 |
19T | 126 | 115.74 | 16 | 126 | 115.74 | 16 | 83 | 40 |
20T | 132 | 121.78 | 16 | 132 | 121.78 | 16 | 83 | 40 |
21T | 138 | 127.82 | 16 | 138 | 127.82 | 16 | 83 | 40 |
22T | 144 | 133.86 | 16 | 144 | 133.86 | 16 | 83 | 40 |
23T | 150 | 139.90 | 16 | 150 | 139.90 | 16 | 83 | 40 |
24T | 156 | 145.95 | 16 | 156 | 145.95 | 16 | 83 | 40 |
25T | 162 | 151.99 | 16 | 162 | 151.99 | 16 | 83 | 40 |
26T | 168 | 158.04 | 16 | 168 | 158.04 | 16 | 83 | 40 |
27T | 174 | 164.09 | 20 | 174 | 164.09 | 20 | 83 | 40 |
28T | 180 | 170.14 | 20 | 180 | 170.14 | 20 | 83 | 40 |
29T | 187 | 176.20 | 20 | 187 | 176.20 | 20 | 83 | 40 |
30T | 193 | 182.25 | 20 | 193 | 182.25 | 20 | 83 | 40 |
NOTE: Material: Carbon Steel / Stainless Steel (Plastic Material is Available)
Applications for Sprockets
Finding Your Ideal Chain and Sprocket
Do you need a sprocket but aren’t sure exactly what you need? This common problem is one that our professionals hear about every week. We excel at working with you to ensure that you get the roller chain sprocket or conveyor chain sprocket that will keep your project or machinery moving again.
Sprockets are available for various uses, from forestry to agriculture and everything in between. It’s equally as important to select the correct sprocket as it is to use the proper chain — a mismatch can be catastrophic, causing damage to expensive machinery and even dangerous accidents. We help you find the right pairing.
Choose Us for high-quality sprockets.
Sprockets transmit reliable mechanical force using simple yet highly essential mechanisms; therefore, it is crucial to choose the right parts to ensure a long life for your critical system, considering loads and manufacturing conditions. Our company has been creating high-quality roller chains and conveyance parts for over 25 years, and we have an extensive line of standard and specialized sprockets. Contact us to find suitable sprockets for your systems or equipment today.
