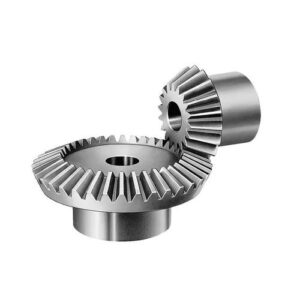

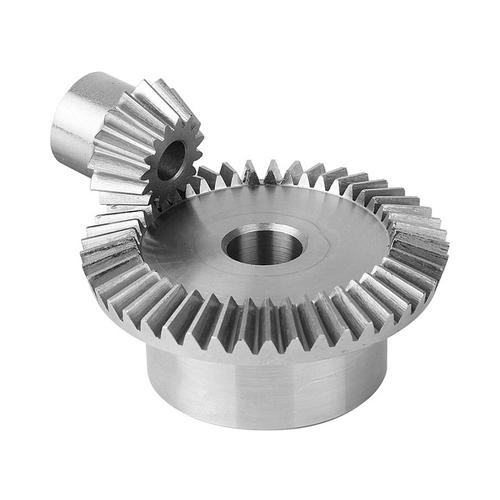

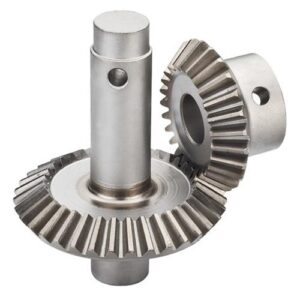

Straight Bevel Gear
The straight bevel gear is the simplest type of bevel gear. The pitch cone tooth line is a radial straight line, and each tooth line passes through the tip of the pitch cone, and its gear teeth follow the direction of the cone generatrix, and gradually shrink from the large end of the gear truncated cone to the small end in proportion.
Straight Bevel Gear
The straight bevel gear is the simplest type of bevel gear. The pitch cone tooth line is a radial straight line, and each tooth line passes through the tip of the pitch cone, and its gear teeth follow the direction of the cone generatrix and gradually shrink from the large end of the gear truncated cone to the small end in proportion. Finally, they intersect at the intersection of the two-phase meshing gear axis in space.
Straight Bevel Gear Description
| Model Number | M3,M4,M5,M8,M12 and etc. |
| Material | Brass, C45 steel, Stainless steel, Copper, POM, Aluminum, Alloy, and so on |
| Surface treatment | Zinc-plated, Nickel plated, Passivation, Oxidation, Anodization, Geomet, Dacromet, Black Oxide, Phosphatizing, Powder Coating, and Electrophoresis |
| Standard | ISO, DIN, ANSI, JIS, BS, and Non-standard. |
| Precision | DIN6,DIN7,DIN8,DIN9. |
| Teeth treatment | Hardened, Milled, or Ground |
| Tolerance | 0.001mm-0.01mm-0.1mm |
| Finish | shot/sandblast, heat treatment, annealing, tempering, polishing, anodizing, zinc-plated |
| Items packing | Plastic bag+Cartons Or Wooden Packing |
| Payment terms | T/T, L/C |
| Production lead time | 20 business days for sample,25 days for the bulk |
| Samples | Sample price range from $2 to $100. sample express request paid by clients |
| Application | 1. Automatic controlling machine 2. Semi-conductor industry 3. General industry machinery 4. Medical equipment 5. Solar energy equipment 6. Machine tool 7. Parking system 8. High-speed rail and aviation transportation equipment, etc. |
