Straight Running Flat-top Chain with Low Noise Accumulation Rollers

This new series of thermoplastic chains is the solution to the pressure created between products and the conveying surface created by the accumulation of products. This is achieved by having a series of small-width rollers, which provides a stable conveying surface and enables the product to be handled without damage; however, the chain still provides a positive forward motion and is based on our standard series. These chains feature rollers made of low-friction and low-noise materials for reduced packing line stress and quiet operation.

Category:
Description

Straight Running Flat-top Chain with Low Noise Accumulation Rollers

This new series of thermoplastic chains(Straight Running Flat-top Chain) is the solution to the pressure created between products and the conveying surface created by the accumulation of products. This is achieved by having a series of small-width rollers, which provides a stable conveying surface and enables the product to be handled without damage; however, the chain still provides a positive forward motion and is based on our standard series. These chains feature rollers made of low-friction and low-noise materials for reduced packing line stress and quiet operation.
Application:
Ideal for the food and beverage industry packaging lines and general purpose conveying applications to reduce pressure created between product and flite surface. The small-width rollers provide a stable conveying surface and enable the product to be handled without damage while continuing a positive forward motion.

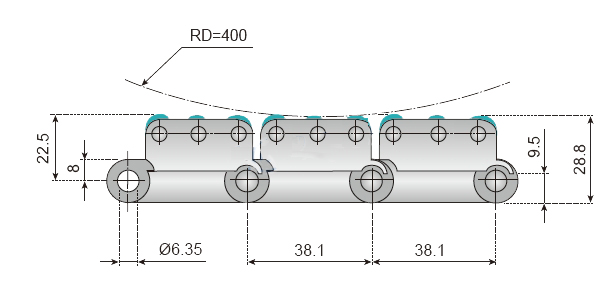

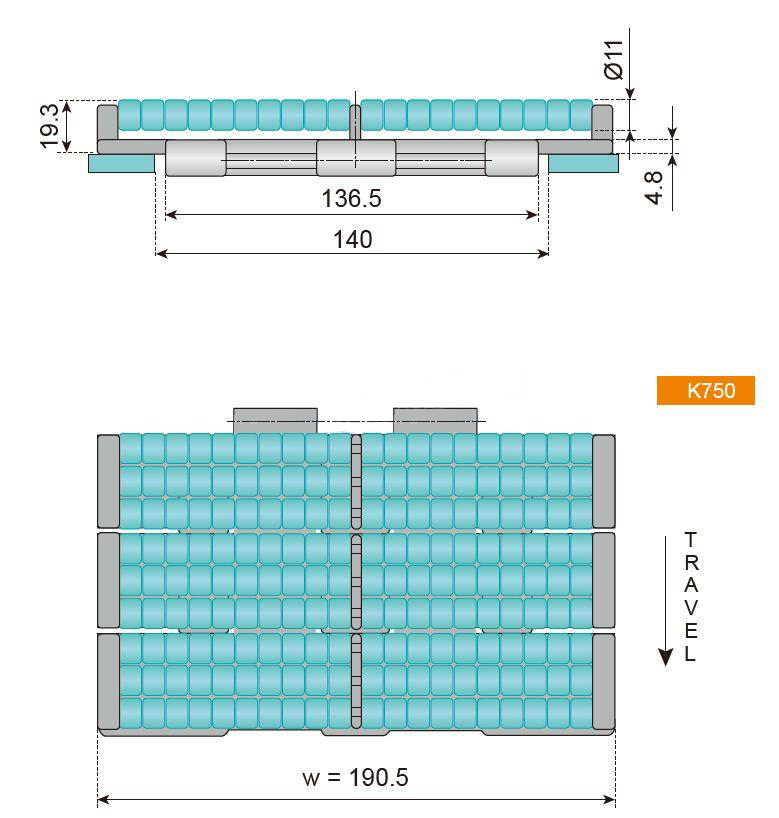

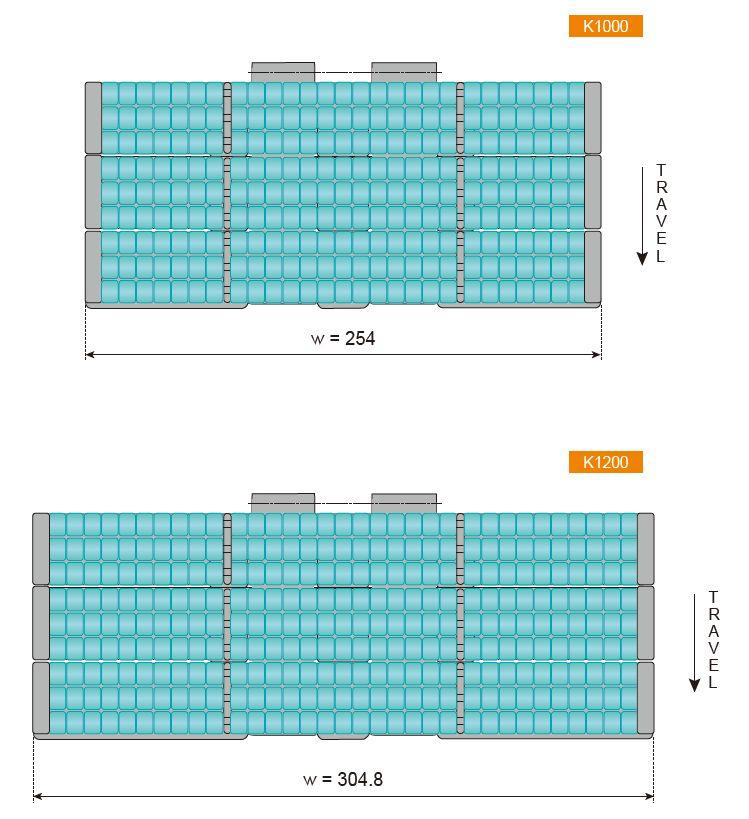

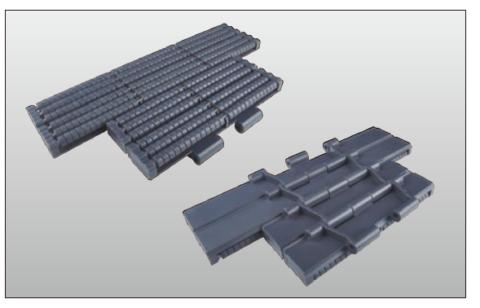

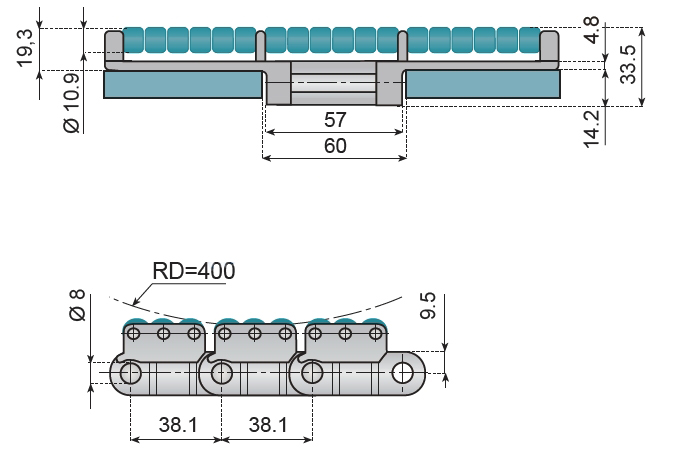

(1) LBP821 Double Hinge Straight Running Chian with Low Noise Accumulation Rollers

Straight Running Flat-top Chain Straight Running Flat-top Chain

Product Specifications

Chain No. Width ( W )  Weight
mm inch kg/m
LBP821 – K750 190.5 7.5 5.4
LBP821 – K1000 254.0 10 6.8

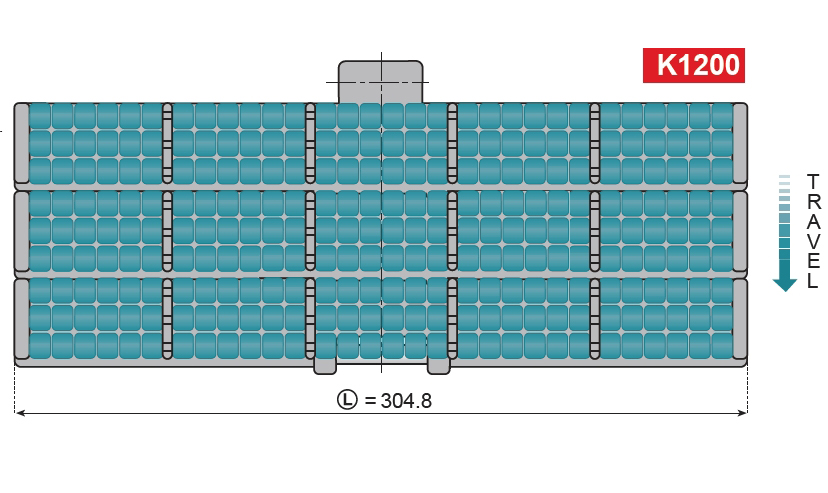

LBP821 – K1200 304.8 12 8.1

Mainly used for food industries, such as beverage, bottle, can, and other conveyors wrap packing.
The longest distance: 12M
Working load: 2750N
Pin material: austenitic stainless steel
Plate and rollers material: POM acetal
(Temperature: -40 ~ 90℃)
Packing: 5 feet = 1.524 M/box 26pcs/M

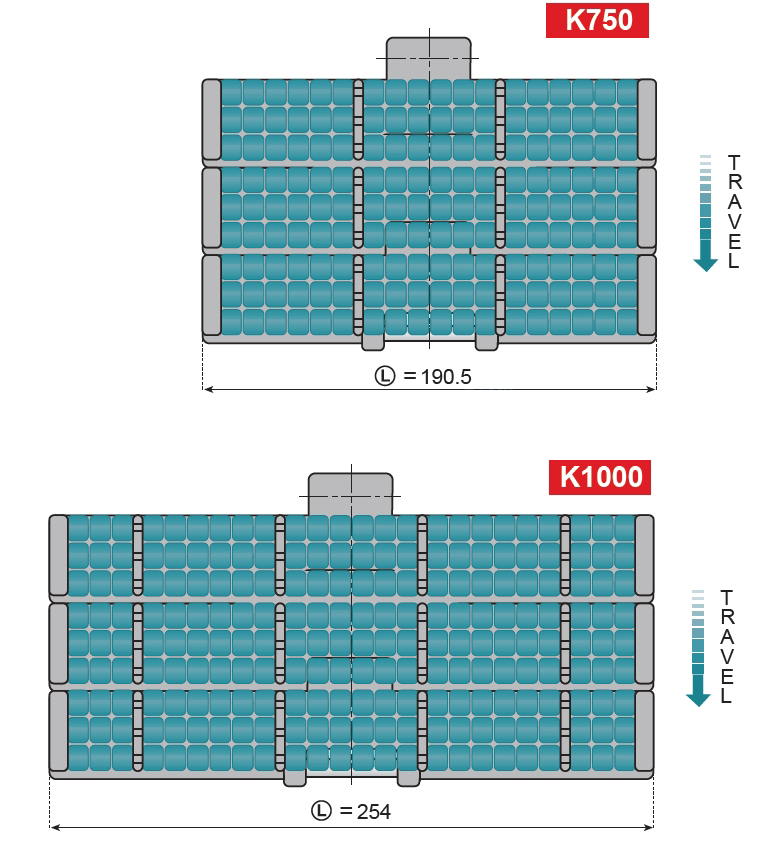

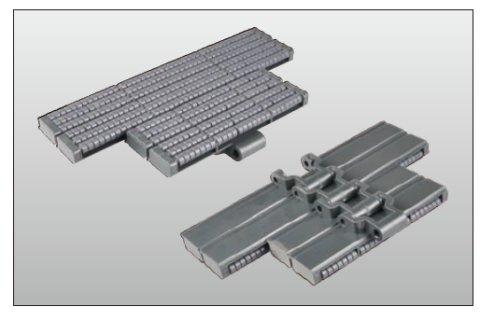

(2) LBP8257 Heavy Duty Single Hinge Straight Running Chains with Low Noise Accumulation Rollers

Product Specifications

Chain No.  Width ( W ) Weight
mm inch kg/m
LBP8257 – K750 190.5 7.5 5.6
LBP8257 – K1000 254.0 10 7.2
LBP8257 – K1200 304.8 12 8.1

Mainly used for food industries, such as beverage, bottle, can, and other conveyors wrap packing.
The longest distance: 12M
Working load: 2750N
Pin material: austenitic stainless steel
Plate and rollers material: POM acetal
(Temperature: -40 ~ 90℃)
Packing: 5 feet = 1.524 M/box 26pcs/M

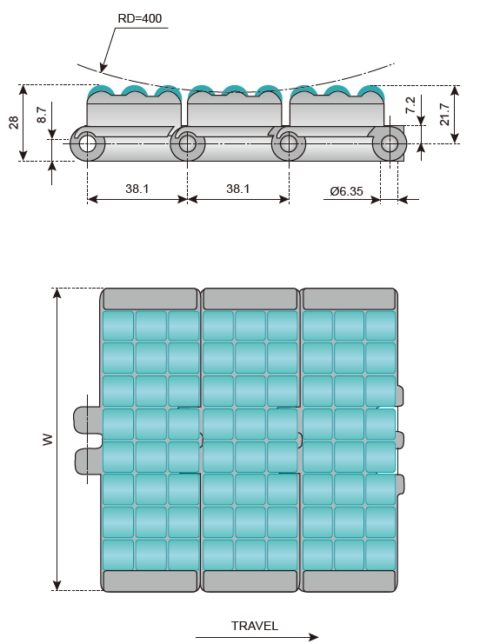

(3) LBP831 Single Hinge Straight Running Chain with Low Noise Accumulation Rollers

Product Specifications

Chain No.  Width ( W )  Weight
mm inch kg/m
LBP831 – K325 82.5 3.25 2.2
LBP831 – K450 114.3 4.5 2.6

Mainly used for food industries, such as beverage, bottle, can, and other conveyors wrap packing.
The longest distance: 12M
Working load: 2750N
Pin material: austenitic stainless steel
Plate and rollers material: POM acetal
(Temperature: -40 ~ 90℃)
Packing: 10 feet = 3.048 M/box 26pcs/M

Why Choose Our Straight Running Flat-top Chain?

We care about our valued buyers. If you have any questions, our Customer Service staff will be happy to help you. As a leading mechanical transmission parts supplier, Power-trans can offer a wide range of drive chains and sprockets for sale. We try our best to reply to your emails as soon as possible. However, due to the high volume of daily incoming emails and time zone difference, we may not be able to reply to your emails immediately. Please allow 24 business hours for us to respond.

Company Profile

We are a professional manufacturer and supplier of chains and sprockets. It mainly produces mechanical transmission chains and mechanical accessories. We supply many roller chains, drive chains, engineering chains, conveyor chains, agricultural machinery chains, leaf chains, car parking chains, escalator chains, welded chains, and forged chains, totaling over 3000 varieties. At the same time, we also supply transmission products of other brands. We have exported our products to clients worldwide and earned a good reputation because of our superior product quality and after-sales service. If you need it, please get in touch with us immediately.

We Promise:

1. High quality.
The quality of products will be strictly checked, and our Quality Control Dept will test every part or machine. To ensure it can work well before packaging.
2. Your request is first.
We accept customized products according to your description or drawing. Not until you confirm your product details altogether will we start manufacturing.
3. Timely After-service.
After-sales service will be provided Timely.

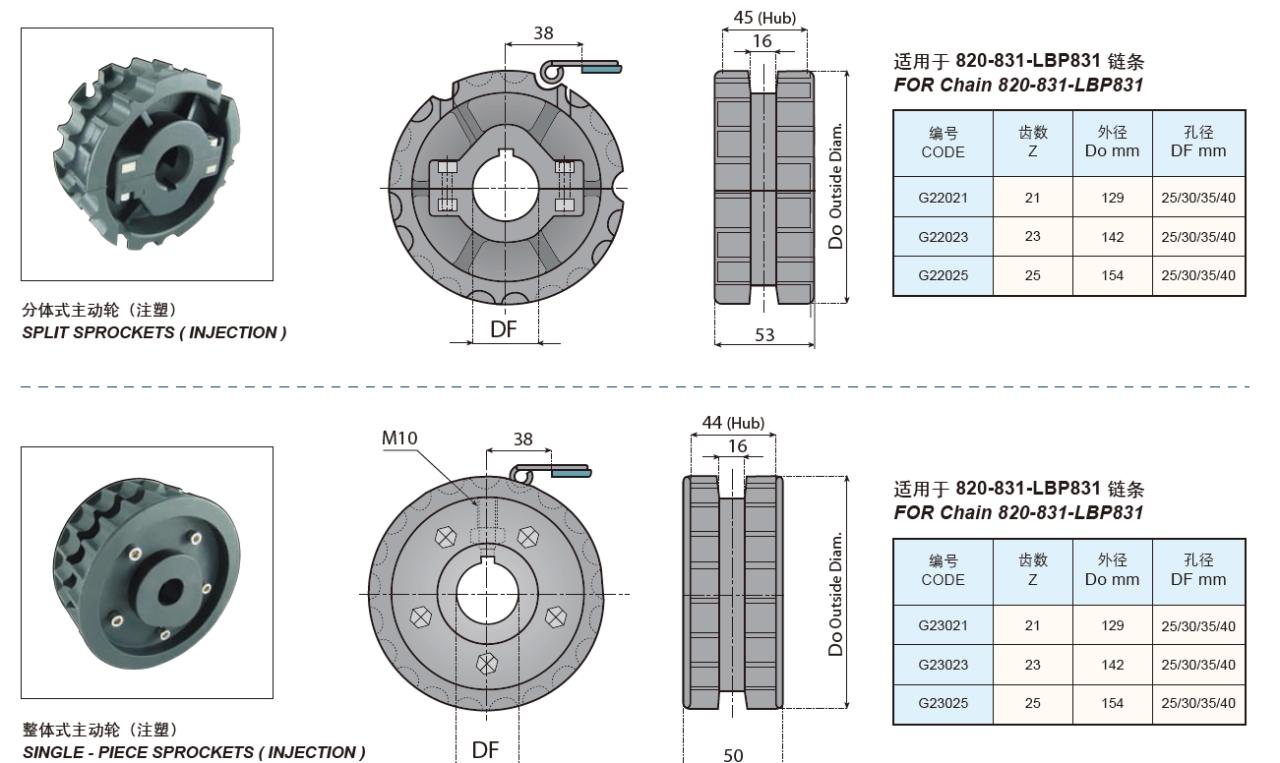

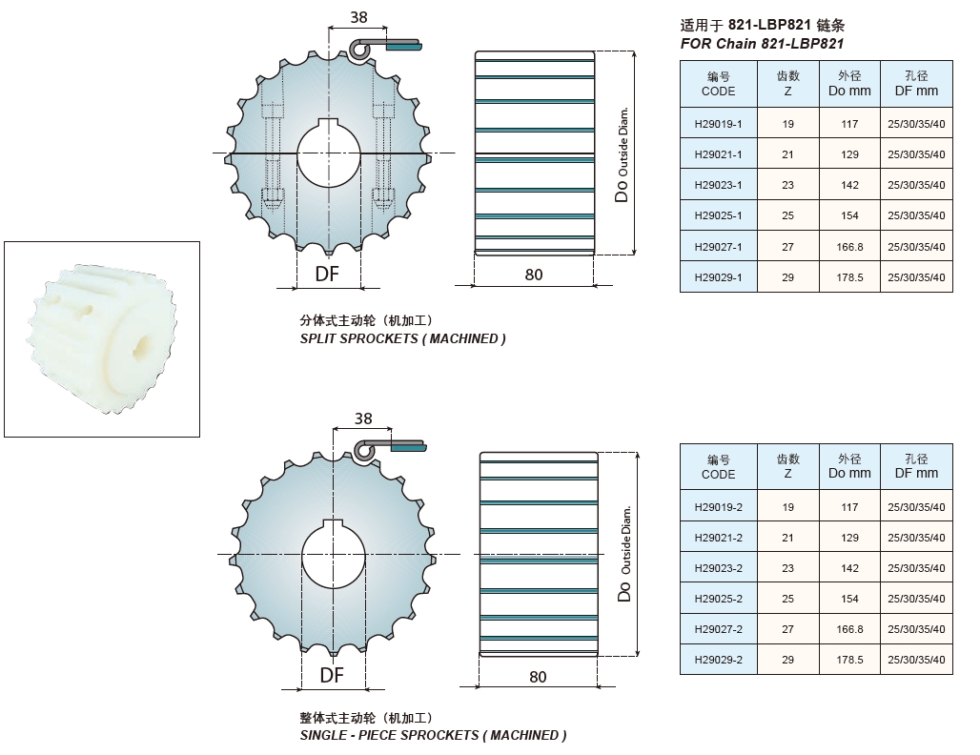

We Can Also Provide Matching sprockets and Idler Wheels.

A drive chain and sprocket drive is a type of power transmission in which a roller chain meshes with two or more gears or sprockets used in an engine as the drive from the crankshaft to the camshaft. Using the right sprocket is just as important as choosing a suitable chain. We offer a wide selection of standard roller chain sprockets at unbeatable prices. Our sprockets are engineered to perform well under pressure and to last.

Finding Your Ideal Chain and Sprocket

Do you need a sprocket but aren’t sure exactly what you need? This common problem is one that our professionals hear about every week. We excel at working with you to ensure that you get the roller chain sprocket or conveyor chain sprocket that will keep your project or machinery moving again.

Sprockets are available for various uses, from forestry to agriculture and everything in between. It’s equally as important to select the correct sprocket as it is to use the proper chain — a mismatch can be catastrophic, causing damage to expensive machinery and even dangerous accidents. At Power-trans, we help you find the right pairing.
