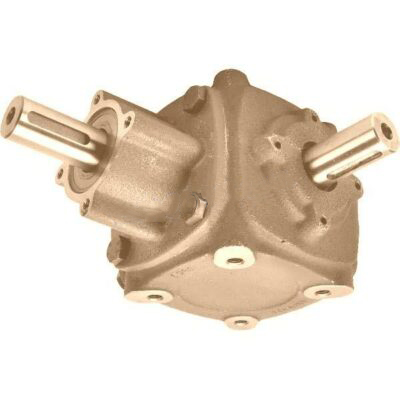

Angular Gearboxes – Replacement of Comer Code T-19B 1.84:1
Description |
Angular Gearboxes – Replacement of Comer Code T-19A/B/G speed increasing
|
---|---|
Application |
|
Consists of |
|
Technical information |
|
Max. output torque |
27.8 daNm
|
Contains oil |
No
|
Max. oil capacity |
0.9 l
|
Max. oil change interval |
500 h
|
Oil SAE viscosity grade |
80W-90
|
Housing material |
Cast iron GG25
|
Weight |
14 kg
|
Gear arrangement Increasing |
25 – 26 – 27 – 28
|
Gear arrangement Reducing |
5 – 6
|
Input power kW / HP Increasing |
12.5 / 17 kW/HP
|
Input shaft Increasing |
X – Y
|
Input shaft Reducing |
Z
|
Input power KW / HP Reducing |
8.8 / 12 kW/HP
|
Output Torque DaNm Increasing |
11.6 daNm
|
Ratio Increasing |
1 : 1,84
|
Ratio Reducing |
1,84 : 1
|
Shaft X |
30 (B)
|
Shaft Y |
30 (B)
|
Shaft Z |
30 (D)
|
