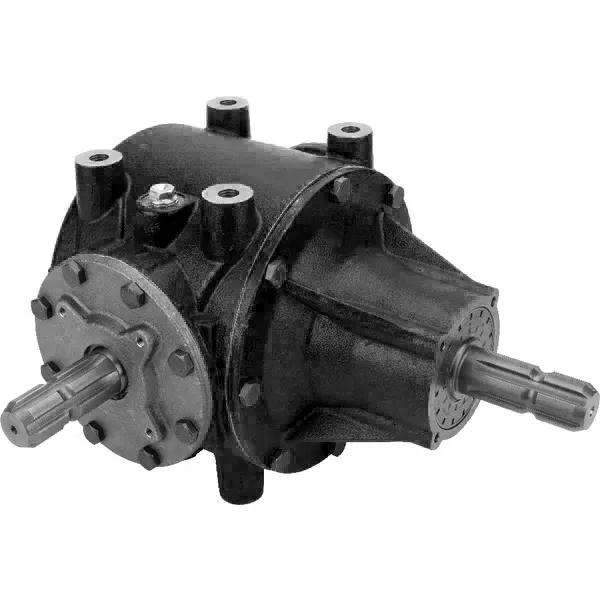

Flail Mower Gearbox – Replacement of Comer Code T-269B (3:1)
The gearbox T-269B is a type of gearbox(Flail Mowers Gearbox) used in flail mowers. Flail mowers are a type of agricultural machinery that is used to cut or shred vegetation such as grass, weeds, and brush. The flail mower gearbox T-269B is a critical component of the flail mower and is responsible for transmitting power from the tractor engine to the mower blades. The flail mower gearbox T-269B is a heavy-duty gearbox designed to withstand the high loads and stresses of flail mower operation. It is typically made of cast iron or other durable materials and features a rugged design that is built to last.
The flail mower gearbox is designed to be easy to maintain, with easily accessible oil fill and drain ports. It typically requires regular maintenance, such as oil changes and lubrication of the moving parts, to ensure proper operation and prevent premature wear. Overall, the flail mower gearbox T-269B is an essential component of the flail mower and plays a crucial role in its operation. It is important to choose a high-quality gearbox and to maintain it properly to ensure reliable performance and long service life.
Specifications of Flail Mower Gearbox T-269B (3:1)
Description |
Flail Mower Gearbox – Replacement of Comer Gearbox T-269B (3:1)
|
---|---|
Application |
Various (agricultural) applications, Flail Mowers
|
Consists of |
|
Technical information |
|
Max. input rotation speed |
540 r/min
|
Max. input power |
39 kW
|
Max. output torque |
2005 nm
|
Contains oil |
No
|
Max. oil capacity |
3.3 l
|
Max. oil change interval |
500 h
|
Oil SAE viscosity grade |
80W-90
|
Housing material |
Cast iron GGG40
|
Weight |
36.5 kg
|
Gear arrangement |
33 – 34
|
Ratio |
3: 1
|
Input shaft |
Z
|
Shaft X |
1 3/8″ (6)
|
Shaft Y |
1 3/8″ (6)
|
Shaft Z |
1 3/8″ (6)
|
Benefit of Flail Mower Gearbox T-269B (3:1)
The flail mower gearbox T-269B has many benefits that make it a popular choice for flail mowers. Here are some of the flail mower gearbox primary benefits:
- Durable Construction: The flail mower gearbox T-269B is built to withstand the stresses of flail mower operation. It is typically made of robust materials like cast iron and features a rugged design that is built to last.
- High Performance: The flail mower gearbox is designed to provide high-performance power transmission from the tractor engine to the mower blades, resulting in efficient and effective cutting of vegetation.
- Easy Maintenance: The flail mower gearbox T-269B is designed to be easy to maintain, with easily accessible oil fill and drain ports. It requires regular maintenance, such as oil changes and lubrication, to ensure proper operation and prevent premature wear.
- Versatility: Flail mowers equipped with the flail mower gearbox T-269B are versatile and can be used for a variety of applications, including cutting and shredding grass, weeds, and brush.
- Smooth Operation: The flail mower gearbox is designed to provide smooth operation for the flail mower, resulting in reduced vibration and noise levels for the operator.
Overall, the flail mower gearbox T-269B is a reliable and efficient component of the flail mower, providing high-performance power transmission and easy maintenance for long service life.
Common Uses for Flail Mower Gearboxes
Flail mowers are heavy-duty machines that use a flail mower gearbox to rotate the blades to mulch and cut vegetation effectively. Here are some of the common uses for flail mower gearboxes:
- Lawn and garden care: Flail mowers are ideal for maintaining large lawns and gardens. The flail mower gearbox helps ensure a smooth and even cut, making it easier to maintain a neat and professional-looking lawn.
- Agricultural work: Flail mowers are used in the farming industry for cutting grass and weeds in pastures and fields. The flail mower gearbox helps ensure that the mower blades continue to function properly even when cutting through tough vegetation.
- Road maintenance: Flail mowers are often used to maintain roadsides and medians. The flail mower gearbox allows for maneuverability in hard-to-reach areas.
- Forestry work: Flail mowers are often used for forestry work, particularly for removing underbrush and maintaining trails. The flail mower gearbox ensures that the cutting blades are properly aligned and functioning at the correct speed for safe and efficient operation.
- Landscaping and groundskeeping: Flail mowers are used in landscaping and groundskeeping to maintain large properties such as golf courses, city parks, and large estates. The flail mower gearbox provides precision in cutting and height adjustments, ensuring that the property always looks its best.
Overall, flail mower gearboxes are essential tools for maintaining large areas of vegetation in a precise and efficient manner, making them valuable in a wide range of applications.
Flail Mower Gearbox Oil Level Check
Checking the oil level in your flail mower gearbox is an important maintenance task that should be performed at regular intervals. Here are the steps you can follow to check the flail mower gearbox oil level:
- Turn off the flail mower and allow it to cool down for at least ten minutes.
- Locate the oil level dipstick on the flail mower gearbox. It is typically located on the top or side of the gearbox housing.
- Remove the dipstick from the flail mower gearbox.
- Wipe the dipstick clean with a clean cloth or paper towel.
- Reinsert the dipstick into the flail mower gearbox, making sure it is fully seated.
- Remove the dipstick and check the oil level. The flail mower gearbox oil level should be between the minimum and maximum marks on the dipstick.
- Add more oil if the level is below the minimum mark. Use the oil specified in your flail mower’s owner manual.
- Replace the dipstick and ensure it is fully seated.
- Turn on the mower and run it for a few minutes, then turn it off and recheck the oil level. The oil level may change after running the mower.
It is important to check the flail mower gearbox oil level regularly and top up the oil when necessary to ensure the flail mower gearbox is properly lubricated and functioning correctly.
How to Install Flail Mower Gearbox to the Flail Mower?
The installation of a flail mower gearbox to a flail mower can vary depending on the specific model and manufacturer, but here are some general steps that can guide you through the process:
(1) First, make sure that the new flail mower gearbox is compatible with your flail mower. Check the manufacturer’s specifications to ensure that it is the correct model and size.
(2) Disconnect the power takeoff (PTO) shaft and remove the old flail mower gearbox if necessary.
(3) Position the new flail mower gearbox onto the flail mower frame in the correct position. The gearbox should be centered and level, with the flange facing toward the PTO shaft.
(4) Secure the flail mower gearbox in place using the bolts provided. Make sure to tighten them evenly and to the manufacturer’s specified torque.
(5) Install the PTO shaft onto the flail mower gearbox input shaft, following the manufacturer’s instructions for alignment and installation.
(6) Check the oil level in the flail mower gearbox and add more oil if necessary, following the manufacturer’s specifications. Make sure to use the recommended type of oil.
(7) Finally, test the flail mower to ensure that the flail mower gearbox is functioning correctly. Check for any leaks or abnormal noises, and adjust the flail mower height, speed, and settings if necessary.
Remember that the installation of a flail mower gearbox requires precision and attention to detail, so if you’re not confident in your abilities, it is recommended to seek professional help.

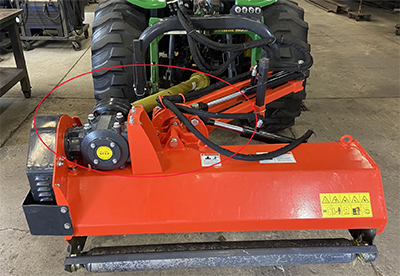

PTO Shaft and Flail Mower Gearboxes
The power take-off (PTO) shaft is a mechanism that transfers power from a tractor to an attached implement, such as a flail mower gearbox. The PTO shaft connects to the tractor’s transmission and transfers rotational energy to the gearbox through the driveline.
Flail mower gearboxes are typically driven by a PTO shaft from the tractor and are designed to withstand the high torque loads generated by the mower blades. The flail mower gearboxes are also equipped with a variety of gears and bearings that help to transmit power and reduce friction, ensuring smooth operation.
When selecting a flail mower gearbox, it is important to consider the torque and horsepower requirements of the attached mower. The flail mower gearbox must be able to handle the sustained torque demands of the mower blades without overheating or malfunctioning, which can cause damage to the gearbox and result in premature failure.
Proper maintenance of the PTO shaft and flail mower gearbox is also critical for their longevity and performance. Regular lubrication and inspection of the flail mower gearbox components and driveline can help to detect and prevent issues before they escalate into more costly repairs.
In summary, the PTO shaft and flail mower gearbox work together to provide the necessary power and speed for cutting and shredding vegetation. Proper selection, installation, and maintenance of these components can help to ensure a reliable and efficient operation for the life of the machines.
We Also Offer Other Agricultural Gearboxes
We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearboxes, post hole digger gearboxes, rotary tiller gearbox, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, gearbox for rotary rakes, gearbox for hay tedders, etc. If you want to buy rotary mower gearboxes, please get in touch with us.
