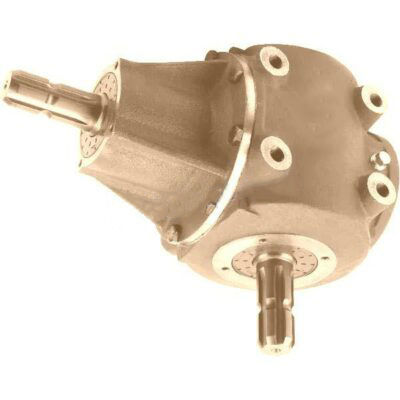

Angular Gearboxes – Replacement of Comer Code T-278A 1:1
Description |
Angular Gearboxes – Replacement of Comer Code T-278A 1:1
|
---|---|
Application |
|
Consists of |
|
Technical information |
|
Max. input power |
40.5 kW
|
Max. output torque |
693 nm
|
Contains oil |
No
|
Max. oil capacity |
1.7 l
|
Max. oil change interval |
500 h
|
Oil SAE viscosity grade |
80W-90
|
Housing material |
Cast iron GG25
|
Weight |
23.5 kg
|
Gear arrangement |
5 – 6
|
Ratio |
1 : 1
|
Input shaft |
Z
|
Shaft X |
1 3/8″ Z6
|
Shaft Y |
1 3/8″ Z6
|
Shaft Z |
1 3/8″ Z6
|
