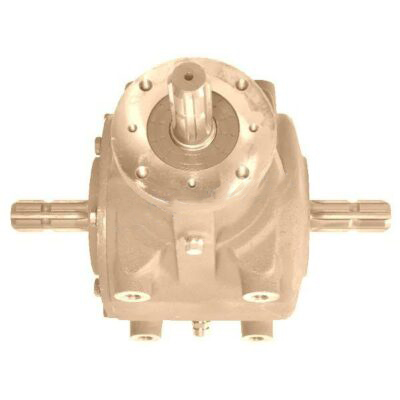

Angular Gearboxes – Replacement of Comer Code T-290A 1:1
Description |
Angular Gearboxes – Replacement of Comer Code T-290A 1:1
|
---|---|
Application |
Various (agricultural) applications
|
Consists of |
|
Technical information |
|
Max. input power |
66.2 kW
|
Max. output torque |
1135 nm
|
Contains oil |
No
|
Max. oil capacity |
2.3 l
|
Max. oil change interval |
500 h
|
Oil SAE viscosity grade |
80W-90
|
Housing material |
Cast iron GG25
|
Weight |
30 kg
|
Gear arrangement |
5 – 6
|
Ratio |
1: 1
|
Input shaft |
Z
|
Shaft X |
1 3/8″ (6) (A)
|
Shaft Y |
1 3/8″ (6) (A)
|
Shaft Z |
1 3/8″ (6) (B)
|
