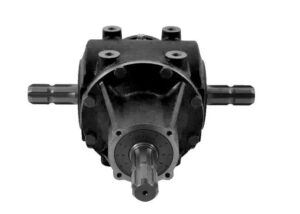

Rotary Tiller Gearboxes – Replacement of Comer Code T-292B
Rotary tiller gearbox T-292B is a type of gearbox that is used in rotary tillers. It is designed to transfer power from the driveshaft of the tractor to the tines of the rotary tiller. The rotary tiller gearbox T-292B is a compact gearbox that is typically mounted directly onto the rotary tiller, and it consists of a housing, a set of gears, and bearings. The rotary tiller gearbox helps to convert the high-speed, low-torque rotational power of the tractor’s driveshaft into the slower-speed, higher-torque rotational power that is required to turn the tines of the rotary tiller. This allows the rotary tiller to break up soil and prepare seedbeds efficiently.
Rotary Tiller Gearboxes – Replacement of Comer Code T-292B 1.86:1
Rotary tiller gearboxes T-292B are a type of gearbox that is used in rotary tillers. It is designed to transfer power from the driveshaft of the tractor to the tines of the rotary tiller. The rotary tiller gearbox T-292B is a compact gearbox that is typically mounted directly onto the rotary tiller, and it consists of a housing, a set of gears, and bearings. The rotary tiller gearbox helps to convert the high-speed, low-torque rotational power of the tractor’s driveshaft into the slower-speed, higher-torque rotational power that is required to turn the tines of the rotary tiller. This allows the rotary tiller to break up soil and prepare seedbeds efficiently. The rotary tiller gearbox T-292B is known for its durability and reliability, and it is widely used in a variety of agricultural applications around the world.
Specifications
Specifications| Description |
Rotary Tiller Gearboxes – Replacement of Comer Gearbox T-292B (1.86:1)
|
|---|---|
| Application |
|
| Consists of |
|
| Technical information |
|
| Contains oil |
No
|
| Max. oil capacity |
2.5 l
|
| Max. oil change interval |
500 h
|
| Oil SAE viscosity grade |
80W-90
|
| Housing material |
Cast iron GGG40
|
| Weight |
33 kg
|
| Gear arrangement Increasing |
33 – 34
|
| Input power kW / HP Increasing |
58.9 / 80 kW/HP
|
| Input shaft Increasing |
Z
|
| Output Torque DaNm Increasing |
54.2 daNm
|
| Ratio Increasing |
1: 1.86
|
| Ratio Reducing |
1.86: 1
|
| Shaft X |
1 3/8″ (6) (B)
|
| Shaft Y |
1 3/8″ (6) (B)
|
| Shaft Z |
1 3/8″ (6) (A)
|
Why Choose Our Rotary Tiller Gearbox T-292B (1.86:1)?
The advantages of our rotary tiller gearboxes include the following:
- Efficient: Rotary tiller gearboxes are highly efficient in tilling and cultivating the soil. Their strong rotating blades can break down tough soils with ease.
- Durable: Rotary tiller gearboxes are sturdy in construction and built to last. They can withstand harsh and demanding conditions, ensuring their longevity.
- Versatile: Rotary tiller gearboxes have many different uses, which include tilling, mixing, and cultivating the soil. They work in different fields, such as agriculture, horticulture, and landscaping.
- Compact size: The compact design of the rotary tiller gearbox makes it easy to install in tight spaces. It is also easier to transport and store when it is not in use.
- Low maintenance: Rotary tiller gearboxes require minimal maintenance, which makes them a cost-effective option for farmers and gardeners. They need little to no lubrication or inspections, saving time and money.
- Affordable: Rotary tiller gearboxes are generally reasonably priced, making them an economical option for buyers. Their efficiency, durability, and versatility make them a sound investment for farmers and gardeners.
