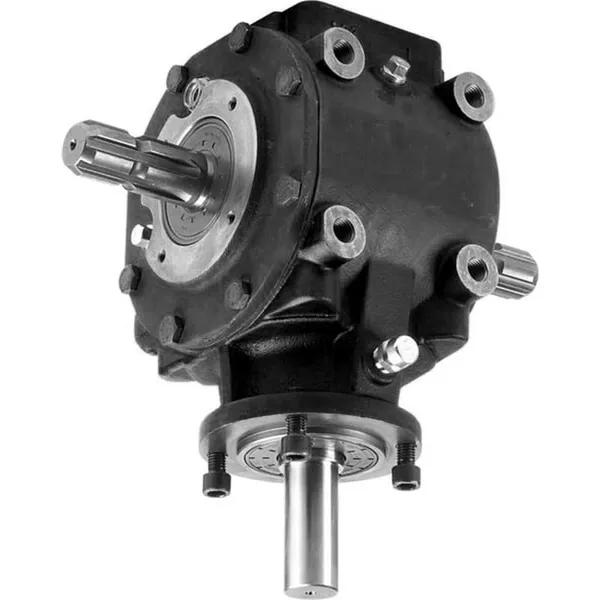

Flail Mower Gearbox – Replacement of Comer Code T-312A 1:1.6
The flail mower gearbox T-312A is a specific model of flail mower gearbox. It is commonly used in agricultural and forestry applications and is designed to be heavy-duty and durable. A flail mower gearbox is a mechanical device that transfers power from the tractor or other power source to the flail mower. The gearbox also helps to balance and stabilize the mower blades as they spin at high speeds, reducing the risk of vibration and uneven mowing.
This flail mower gearbox has a 1:1.6 gear ratio and is equipped with four internal gears and three bearings to ensure smooth operation and longevity. It is also designed with a quick-change blade system that allows operators to easily replace and maintain the flail mower blades. The flail mower gearbox T-312A is compatible with a variety of different flail mower models, giving farmers and forestry workers the flexibility to choose the right equipment for their specific needs.

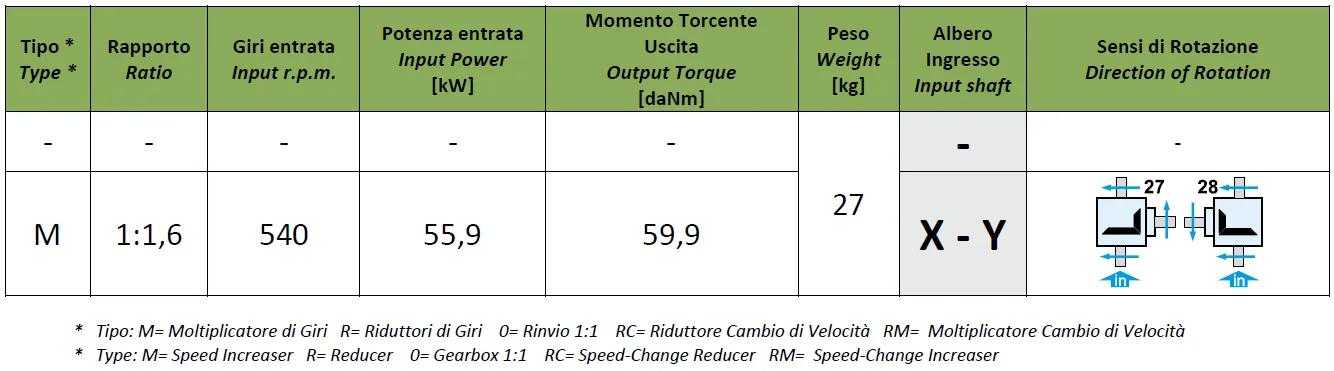

Specifications of Flail Mower Gearbox T-312A (1:1.6)
Product Description |
Flail Mower Gearbox – Replacement of Comer Gearbox T-312A 1:1.6
|
---|---|
Product details |
|
Application range |
Mowers
|
Model |
Gearbox T-312A
|
Max. input rotation speed |
540 r/min
|
Contains oil |
No
|
Max. oil capacity |
1.5 l
|
Max. oil change interval |
500 h
|
Oil SAE viscosity grade |
80W-90
|
Housing material |
Cast iron GG25
|
Weight |
27 kg
|
Gear arrangement Increasing |
27-28
|
Input power kW / HP Increasing |
55.9 kW
|
Input shaft Increasing |
X – Y
|
Output Torque DaNm Increasing |
59.9 daNm
|
Ratio Increasing |
1: 1.6
|
Ratio Reducing |
1.6: 1
|
Shaft X |
1 3/8″ (6) (A)
|
Shaft Y |
1 3/8″ (6) (A)
|
Shaft Z |
33 h7 (B)
|
Features of Flail Mower Gearbox T-312A (1:1.6)
The flail mower gearbox T-312A is a heavy-duty gearbox designed for use in flail mowers. Here are Some features of a flail mower gearbox T-312A include:
- Gear ratio: The flail mower gearbox T-312A has a gear ratio of 1:1.6, allowing the operator to adjust the cutting speed to the desired level.
- Clutch system: The flail mower gearbox T-312A features a friction clutch system for engaging and disengaging the mower blades. This allows the user to control the height and width of the cut.
- Lubrication system: The flail mower gearbox T-312A features an oil bath lubrication system, which provides constant and reliable lubrication to the gearbox, reducing wear and tear.
- Cooling system: The flail mower gearbox T-312A has an integrated cooling system that maintains optimal operating temperature and prevents overheating during prolonged use.
- Compatibility: The flail mower gearbox T-312A is compatible with various types of tractors and PTO systems, making it versatile and adaptable to different conditions and applications.
- Durability: The flail mower gearbox T-312A is made with high-quality materials and features a robust design, ensuring durability and longevity.
Overall, the flail mower gearbox T-312A offers a range of advanced features that make it ideal for heavy-duty and demanding applications, such as agricultural and landscaping operations.
Benefits of Using a Flail Mower Gearboxes
Some benefits of using flail mower gearboxes may include the following:
(1) Versatility – flail mower gearbox can be used on a variety of terrain types, including rough or steep areas, as they are able to handle larger and thicker materials than rotary mowers can.
(2) Reduced noise and vibration – Compared to other types of mower gearboxes, flail mower gearboxes are often quieter and less prone to vibration, which can lead to increased operator comfort and safety.
(3) Efficient cutting – The design of the flail mower gearbox allows for a more efficient cutting pattern, as the rotating blades are able to chop and mulch the vegetation more thoroughly, resulting in a cleaner, more even finish.
(4) Increased safety – Flail mower gearbox typically incorporates safety features such as an overrunning clutch which protects the operator and the machinery from damage if the mower is overloaded or if the blades encounter obstacles such as rocks or debris.
(5) Longer lifespan – The use of a flail mower gearbox can help to reduce wear and tear on the machine, resulting in a longer lifespan and reduced maintenance costs over time.
How to Choose the Right Flail Mower Gearbox for Flail Mowers?
When selecting a flail mower gearbox for a flail mower, it is important to consider the specific requirements of the mower and the application. Flail mower gearboxes come in different sizes and power capacities, so it is important to choose a gearbox that is appropriate for the size and type of material being cut. Here are some factors to consider when choosing the right flail mower gearbox:
- The size of your flail mower. The size of your flail mower will determine the size of the flail mower gearbox you need. For example, a small flail mower will need a smaller gearbox than a large flail mower.
- The type of PTO you have. Flail mower gearboxes come in different PTO types, such as 540 rpm PTO shaft and 1000 rpm PTO shaft. Make sure to choose a flail mower gearbox that is compatible with the PTO shaft on your tractor or other power sources.
- The number of flails. The number of flails on your flail mower will also affect the size of the flail mower gearbox you need. A flail mower with more flails will need a larger gearbox than a flail mower with fewer flails.
- The type of material you will be mowing. The type of material you will be mowing will also affect the type of gearbox you need. For example, if you are mowing heavy brush, you will need a flail mower gearbox that is designed for heavy-duty use.
- Your budget. Flail mower gearboxes come at a variety of prices. Choose a flail mower gearbox that fits your budget and your needs.
Once you have considered all of these factors, you can start shopping for a flail mower gearbox.

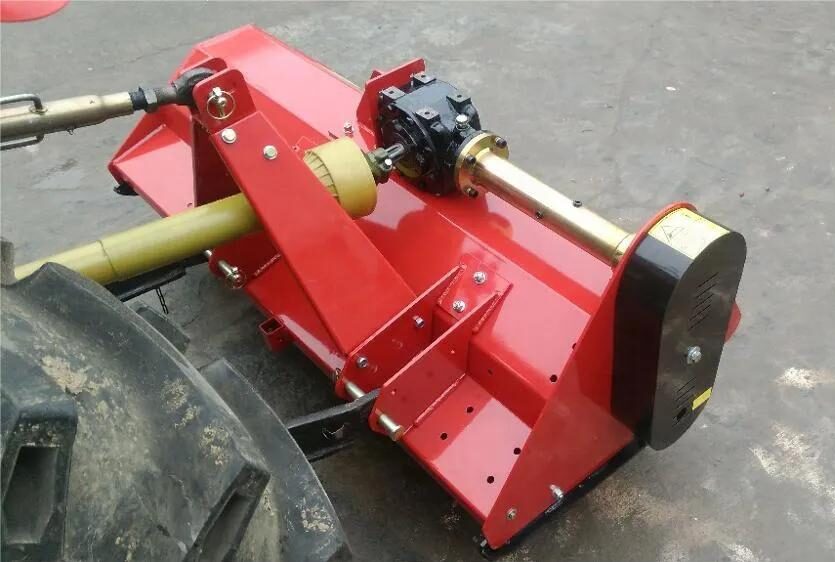

How to Properly Maintain the Flail Mower Gearbox?
Proper maintenance of the flail mower gearbox is essential for safe and efficient operation, as well as for extending the life of the equipment. Here are some tips for maintaining your flail mower gearbox:
|
Overall, proper maintenance of the flail mower gearbox involves regular inspections, lubrication, and cleaning, as well as using the equipment properly and storing it correctly when not in use.

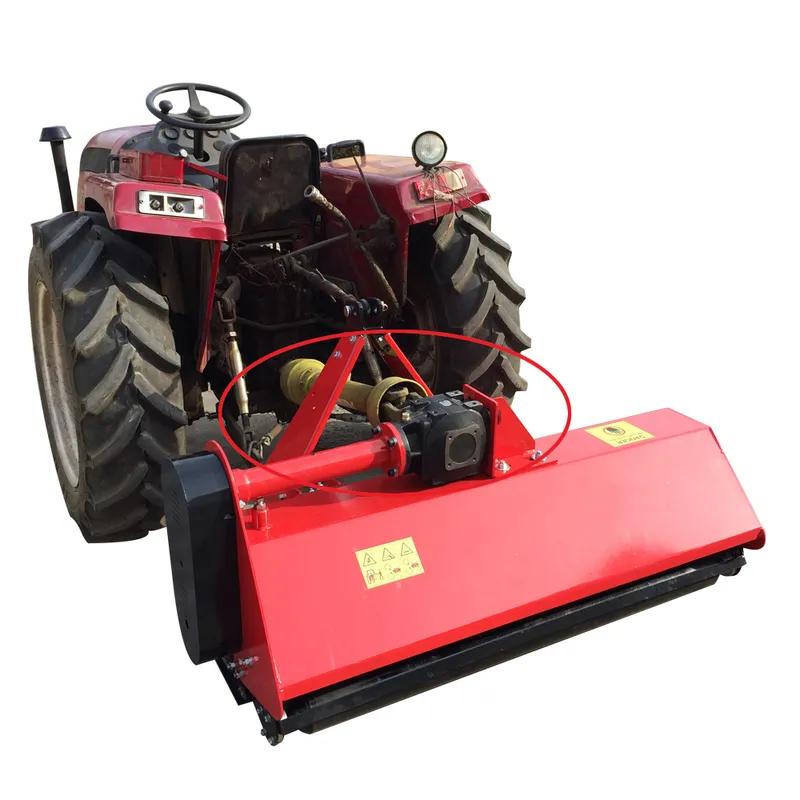

Agricultural PTO Shaft for Flail Mower Gearbox
An agricultural PTO (Power Take-Off) shaft is an essential component of a flail mower gearbox. The PTO shaft connects the tractor’s engine to the flail mower gearbox, allowing power to be transmitted from the tractor to the mower. The PTO shaft should be designed to handle the speed and torque requirements of the flail mower gearbox and must be properly sized for the specific application.
When selecting an agricultural PTO shaft for a flail mower gearbox, several factors need to be considered, such as the compatibility with the tractor, the length of the shaft, the safety features, and the torque capacity. It’s essential to choose a PTO shaft that is correctly rated for the horsepower of the tractor and the torque requirements of the flail mower gearbox.
The PTO shaft for a flail mower gearbox should be connected and disconnected safely using a compatible attachment method that can handle the rotation of the shaft during operation. It is important to ensure that the PTO shaft is properly lubricated. And maintained to prevent wear and tear that can lead to equipment failure or injury.
Some of the key features of an agricultural PTO shaft for a flail mower gearbox include:
- Durability: The PTO shaft must be durable and strong enough to handle the constant rotational forces generated by the tractor.
- Safety: The PTO shaft must have safety features such as shields and guards to prevent injury to the operator.
- Compatibility: The PTO shaft must be compatible with both the tractor and the flail mower gearbox.
- Lubrication System: The PTO shafts have built-in lubrication systems that ensure proper lubrication and reduce maintenance.
- Ease of Installation: The PTO shaft should be easy to install and remove, providing a quick. And effortless connection with the tractor and the flail mower gearbox.
In summary, selecting the right agricultural PTO shaft for the flail mower gearbox is crucial to ensure efficient and safe operation. Choosing a high-quality, durable, and compatible shaft with the required safety features can help to increase productivity and reduce maintenance costs.
We Also Provide Other Agricultural Gearboxes
We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, micro tiller gearboxes, gearbox for rotary rakes, gearbox for hay tedders, etc. If you want to buy flail mower gearboxes, please get in touch with us.
