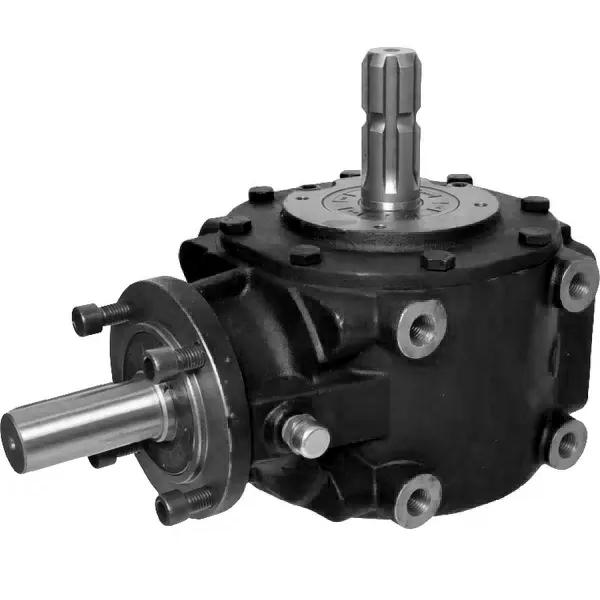

Flail Mower Gearboxes – Replacement of Comer Code T-313J 1:3
Flail mower gearbox T-313J is a heavy-duty gearbox that is used in flail mowers. It is made of high-quality materials and is designed to withstand the rigors of agricultural use. The flail mower gearbox has a large capacity and can handle a wide range of workloads. It is also easy to operate and maintain. The flail mower gearbox is made up of a number of different components, including the input shaft, the output shaft, the gears, and the bearings.
Applications
The input shaft is connected to the power source, such as a tractor or a PTO shaft. The output shaft is connectting to the flail mower head. The gears transfer the power from the input shaft to the output shaft. The bearings support the gears and allow them to rotate smoothly.
The flail mower gearbox is an important part of the flail mower, and it is essential for its proper operation. It is important to choose a flail mower gearbox that is the right size for the mower, and that is making of high-quality materials. It is also important to maintain the flail mower gearbox regularly to ensure that it continues to operate properly.

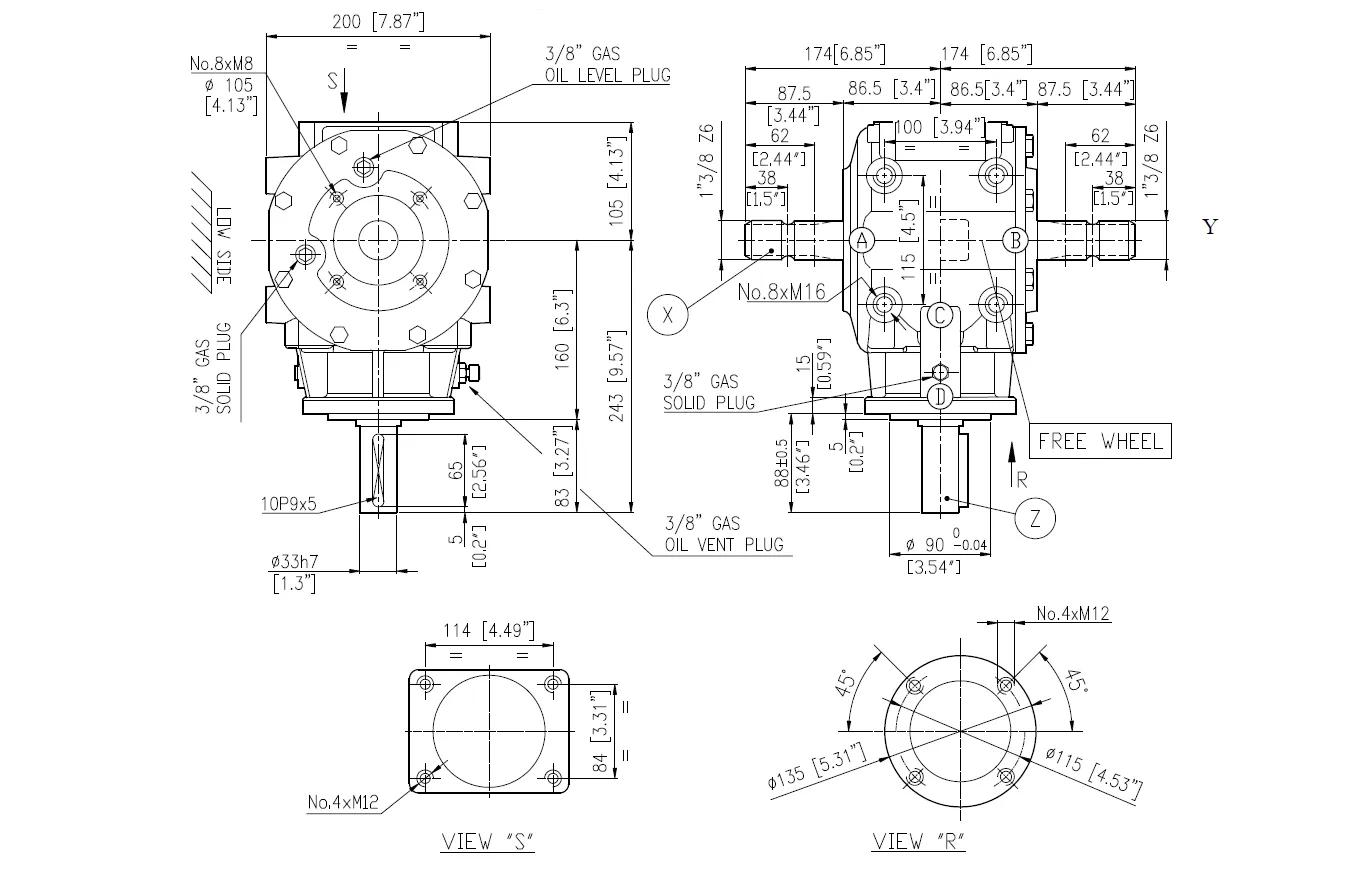

Specifications of Flail Mower Gearbox T-313J (1:3)
Description |
Flail Mower Gearboxes – Replacement of Comer Gearbox T-313J 1:3
|
---|---|
Application |
Mowers
|
Consists of |
|
Technical information |
|
Contains oil |
No
|
Max. oil capacity |
1.5 l
|
Oil SAE viscosity grade |
80W-90
|
Weight |
27 kg
|
Gear arrangement Increasing |
21-22
|
Input power kW / HP Increasing |
45.6 / 62 kW/HP
|
Input shaft Increasing |
X
|
Output Torque DaNm Increasing |
26.1 daNm
|
Ratio Increasing |
1 : 3
|
Ratio Reducing |
3: 1
|
Shaft X |
1.3/8 (A)
|
Shaft Z |
33h7 (B)
|
Characteristic of Flail Mower Gearbox T-313J (1:3)
Flail mower gearbox T-313J has several characteristics that make it stand out from other gearboxes available in the market. Some of its characteristics are:
- Multi-purpose: This flail mower gearbox T-313J can be used in a variety of agricultural machinery, including flail mowers, cultivators, and harvesters, making it a versatile choice for farmers and agricultural workers.
- High efficiency: Flail mower gearbox T-313J is designed with high-precision gears, which ensures the efficient transfer of power from the tractor to the mower. This makes it a highly efficient gearbox.
- Easy maintenance: The flail mower gearbox T-313J is designed for easy maintenance, with accessible grease points and an oil plug for oil changes. This makes it easy to keep the gearbox in good working condition.
- Durable construction: Flail mower gearbox T-313J is made with high-quality materials, including high-strength steel, which ensures its durability and longevity.
- Reduced noise: The flail mower gearbox T-313J is designed to operate with minimal noise and vibrations, which makes it a comfortable choice for the operator and minimizes its impact on the environment.
- Safety features: The flail mower gearbox T-313J has several safety features, including an overload protection mechanism and a shear bolt that will break if the mower strikes a solid object, preventing damage to the mower and the gearbox.
Overall, the flail mower gearbox T-313J is a multi-purpose, efficient, durable, and safe choice for agricultural machinery.
Where Is the Flail Mower Gearbox Commonly Used?

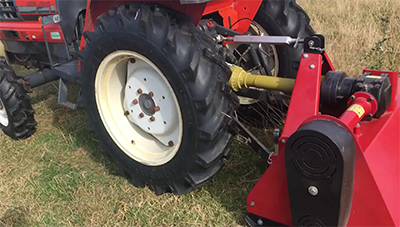

The flail mower gearbox is commonly used in flail mowers, which are agricultural machines used to cut or shred grass, weeds, and other vegetation. Flail mowers are often used in applications such as highway mowing, park maintenance, landscaping, and orchard management. The flail mower gearbox is an important component of the flail mower that drives the rotating blades and controls the cutting height. Different flail mower models may have different gearbox designs depending on their specific applications and requirements.
How to Connect Flail Mower Gearbox to Flail Mower?
Connecting a flail mower gearbox to a Flail Mower requires a few steps:
- Select a flail mower that is compatible with the flail mower gearbox selected. The flail mower gearbox should have specifications for the horsepower rating and shaft size, which should be compatible with the mower that is being used.
- Install the flail mower gearbox onto the mower’s power take-off (PTO) shaft. Use the correct tools to make sure that the gearbox is properly fitted and secure.
- Connect the flail mower blades to the rotor shaft of the flail mower gearbox. Make sure that the blades are installed properly and securely. Adjust the height of the cutting blades to ensure that they are at an appropriate height.
- Connect the flail mower gearbox to the tractor’s PTO shaft. Make sure that the PTO shaft has been properly lubricated before use.
- Start the tractor’s engine and engage the PTO shaft. The flail mower gearbox should start working, and the cutting blades should start rotating.
I hope these steps help you in connecting your flail mower gearbox to your flail mower. If you have any other questions or concerns, please let me know.
How to Remove Flail Mower Gearbox from Flail Mower?
To remove a flail mower gearbox from a flail mower, follow these steps:
- Disconnect the cutting blades from the rotor shaft of the flail mower gearbox. Remove the pins that hold the blades in place and carefully slide them off the shaft.
- Disconnect the gearbox from the tractor’s PTO shaft. Some flail mower gearboxes may have a locking collar or yoke that needs to be removed before the flail mower gearbox can be detached from the PTO shaft.
- Remove any mounting bolts or hardware that are securing the flail mower gearbox to the mower’s frame. Set the mounting hardware aside in a safe place.
- Once the flail mower gearbox is free from the mower, inspect it for any visible damage or wear. If the gearbox is damaged or worn, it may need to be replaced or repaired.
- Transport the flail mower gearbox to a safe and clean work area, and place it on a sturdy workbench. Be sure to keep the gearbox in a clean and dry location, free from any excess moisture or debris.
I hope these steps help you remove your flail mower gearbox from your flail mower. If you have any further questions or concerns, please let me know.

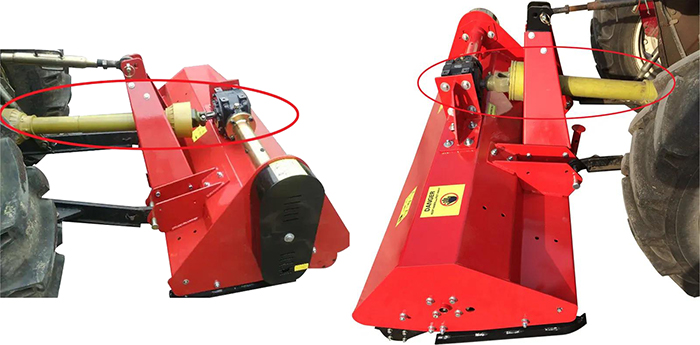

Tractor PTO Shaft for Flail Mower Gearboxes
The tractor PTO shaft is an essential component that connects the tractor to the flail mower gearbox. It is responsible for transmitting power from the tractor’s engine to the gearbox and ultimately the mower blades. Here are some things you should know about tractor PTO shafts for flail mower gearboxes:
- Sizing: It is crucial to select the right size of the tractor PTO shaft that matches the horsepower of the tractor and the flail mower gearbox’s RPM. The wrong size of the PTO shaft could cause it to bend or break.
- Maintenance: The tractor PTO shaft requires regular maintenance and lubrication to ensure its longevity and optimal performance.
- Safety: The tractor PTO shaft poses certain risks to the operator if not used correctly. Its moving parts can cause injury if it is not adequately shielded, and operators must take precautions when working with or around the shaft.
- Compatibility: It is essential to ensure that the tractor PTO shaft is compatible with the flail mower gearbox’s input shaft before making any purchases. Compatibility issues can result from differences in sizes or shaft types.
In summary, the tractor PTO shaft is a critical component that connects the tractor to the flail mower gearbox, and it is essential to select the right size, maintain it regularly, and consider safety when working with or around the PTO shaft.
We Also Offer Other Agricultural Gearboxes
We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearboxes, post hole digger gearbox, rotary tiller gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearbox, gearbox for hay tedders, etc. If you want to buy rotary mower gearboxes, please get in touch with us.
