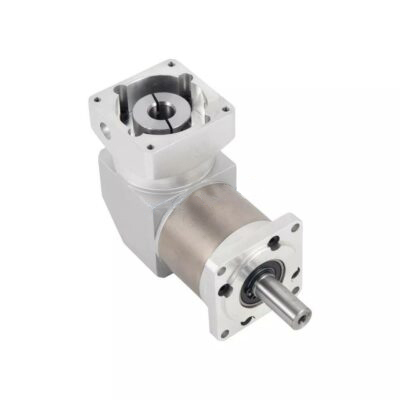

T Right Angle Precision Planetary Gearbox
Overview of T Right Angle Gearbox
- Space-saving with right angle structure
- High torque and high strength due to high-quality material
- Wide range reduction ratio from 1: 3 to 1: 1000
- No leakage with high viscosity anti-separation grease
- Low in noise and light in weight

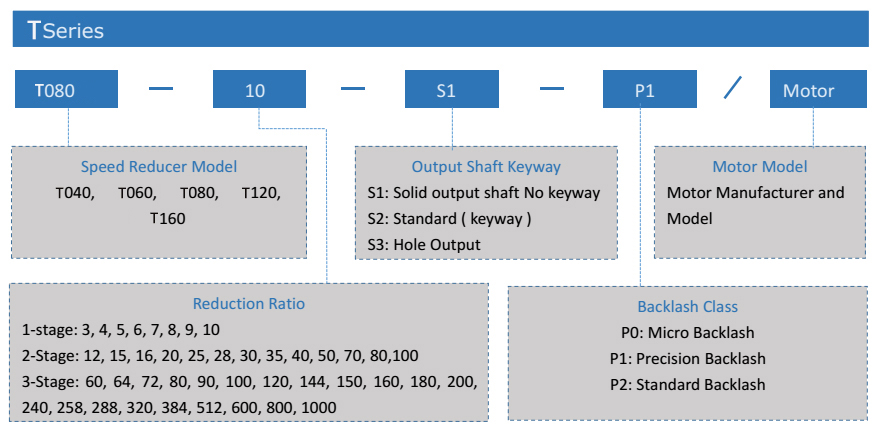

Indication of Model Numbers of T Speed Reducers
T Right Angle Precision Planetary Gearbox
Description of T Right Angle Precision Planetary Gearbox
T right angle precision planetary gearboxes are equipped with a right angle structure with round flanges. Using spiral bevel gears, the motor can be installed at 90 degrees to meet the special requirements of the small installation space. More importantly, the spiral bevel gear ensures the high strength and high transmission torque. And long service life of the T 90-degree precision planetary reducer. In addition, T series gearboxes are economical versions of T high-precision planetary gearboxes, with the same high quality and high positioning accuracy, and low price.
Materials of T Right Angle Precision Planetary Gearbox
- The use of cageless needle roller bearings with a smaller cross-section enables the high load-carrying capacity of the reducer, especially for support structures with limited radial mounting.
- Planetary reducer and helical gear structure with small vibration and low noise can maximize the strength of precision planetary gearbox.
- The gears are made of high-quality alloy steel, carbonitrided, and ground to obtain the best wear resistance and impact toughness.
- The surface is painted to ensure that the gearbox will never rust.
Applications
The T precision planetary 90-degree gearbox is widely used in transportation machinery, engineering machinery, metallurgical machinery, mining machinery, petrochemical machinery, construction machinery, light industry, textile machinery, medical instruments, injection molding machines, linear slides, pick and place automation, gantries, cutting and welding machines and instrument machinery.
Specification Table of T Planetary Gear Reducer

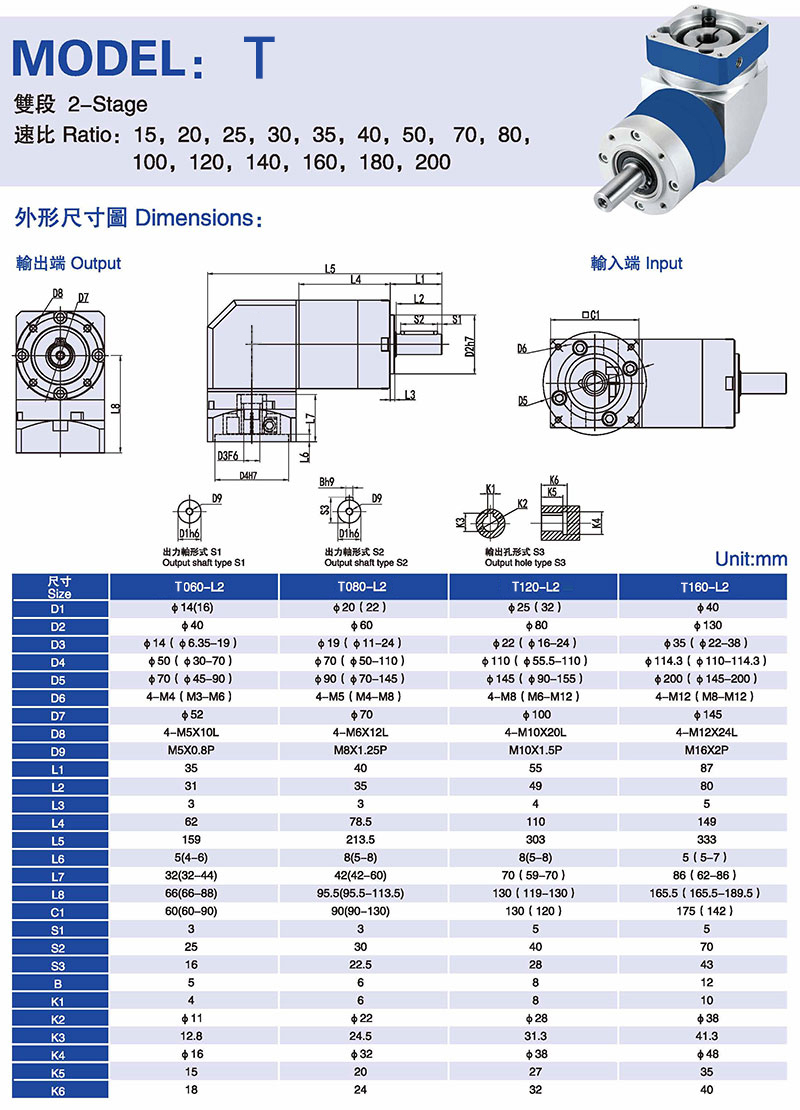

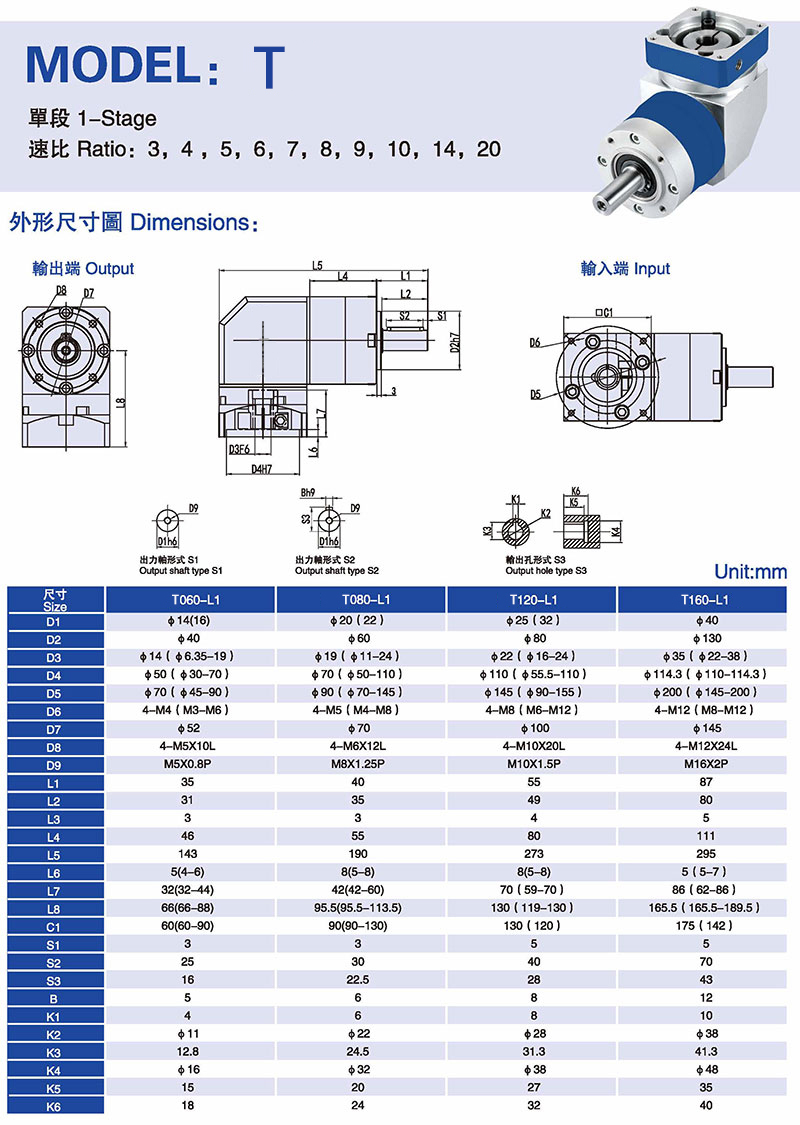

Catalog of T Precision Speed Reducer
Catalog of T Precision Speed Reducer
