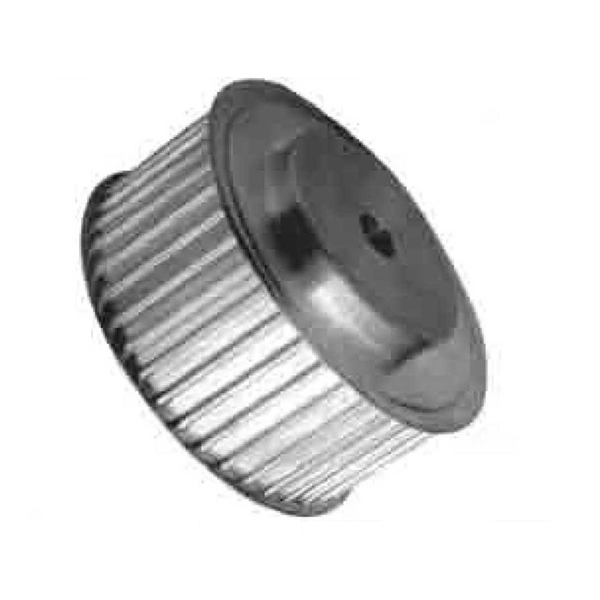

Timing Belt Pulleys T2.5-T10

T2.5 T10T2.5-T10

T 2.5 (Pitch=2.5mm) for belt width 6 mm
Part Code Number of Teeth

Type

 Mat Dp De Df Dm F L d

Flange

Code
12T2.5-16 12 1F   9.60 9.00 13 13 9 16   501
14T2.5-16 14 1F   11.20 10.60 15 15 9 16   502
15T2.5-16 15 1F   12.00 11.40 15 15 9 16   502
16T2.5-16 16 1F   12.80 12.20 16 16 9 16   503
18T2.5-16 18 6F   14.40 13.80 17.5 10 10 16 – 504
19T2.5-16 19 6F   15.20 14.60 20 10 10 16   505
20T2.5-16 20 6F   16.00 15.40 20 11 10 16   505
22T2.5-16 22 6F   16.60 17.00 22 11 10 16   512
24T2.5-16 24 6F   19.15 18.55 22 12 10 16   512
25T2.5-16 25 6F AL 19.95 19.35 23 13 10 16 – 506
26T2.5-16 26 6F   20.75 20.15 25 14 10 16   507
28T2.5-16 28 6F   22.35 21.75 25 14 10 10   507
30T2.5-16 30 6F   23.95 23.35 26 16 10 16   508
32T2.5-16 32 6F   25.95 24.95 32 16 10 16   509
36T2.5-16 36 6F   28.75 28.10 36 20 10 16 – 510
40T2.5-16 40 6F   31.90 31.30 38 22 10 16   511
44T2.5-16 44 6F   35.10 34.50 42 24 10 16   513
48T2.5-16 48 6   38.30 37.70 – 26 10 16   –
60T2.5-16 60 6   47.85 47.25 – 34 10 16 8 –

T 5 (Pitch=5mm) for belt width 10 mm



Part Code



Number

of Teeth

 Type Mat Pp De Df Dm F L d

Flange

Code
10T5-21 10 6F AL 16.05 15.05 19.5 8 15 21 – 3
12T5-21 12 6F 19.25 18.25 23 11 15 21 – 1
14T5-21 14 6F 22.45 21.45 25 13 15 21 – 2
15T5-21 15 6F 24.05 23.05 28 16 15 21 – 4
16T5-21 16 6F 25.60 24.60 32 18 15 21 – 5
18T5-21 18 6F 28.80 27.80 32 10 15 21 – 6
19T5-21 19 6F 30.40 29.40 36 20 15 21 – 8
20T5-21 20 6F 32.00 31.00 36 22 15 21 – 8
22T5-21 22 6F 32.15 34.15 38 23 15 21 – 9
24T5-21 24 6F 38.40 37.40 42 24 15 21 – 13
25T5-21 25 6F 39.95 38.95 44 26 15 21 – 12
26T5-21 26 6F 41.60 40.60 44 26 15 21 – 12
27T5-21 27 6F 43.20 42.20 48 30 15 21 8 11
28T5-21 28 6F 44.75 43.75 48 32 15 21 8 11
30T5-21 30 6F 47.95 46.95 51 34 15 21 8 16
32T5-21 32 6F 51.10 50.10 54 38 15 21 8 18
36T5-21 36 6F 57.45 56.45 64 38 15 21 8 23
40T5-21 40 6F 63.85 62.85 67 40 15 21 8 24
42T5-21 42 0F 67.00 66.00 70 40 15 21 8 26
44T5-21 44 6 70.20 69.20 – 45 15 21 8 –
48T5-21 48 6 76.55 75.55 – 50 15 21 8 –
60T5-21 60 6 95.65 94.65 – 65 15 21 8 –

T 5 (Pitch=5mm) for belt width 16 mm

Part Code

Number

ofTeeth

 Type

Mat

 Dp De Df Dm F L d Flange Code
10T5-27 10 6F   16.05 15.05 19.5 8 21 27 – 3
12T5-27 12 6F   19.25 18.25 23 11 21 27   1
14T5-27 14 6F   22.45 21.45 25 13 21 27   2
15T5-27 15 6F   24.05 23.05 28 16 21 27   4
16T5-27 16 6F   25.60 24.60 32 18 21 27 – 5
18T5-27 18 6F   28.80 27.80 32 20 21 27   6
19T5-27 19 6F   30.40 29.40 36 20 21 27   8
20T5-27 20 6F   32.00 31.00 36 22 21 27   8
22T5-27 22 6F   35.15 34.15 38 23 21 27   9
24T5-27 24 6F   38.40 37.40 42 24 21 27 – 13
25T5-27 25 6F   39.95 38.95 44 26 21 27   12
26T5-27 26 6F AL 41.60 40.60 44 26 21 27   12
27T5-27 27 6F   43.20 42.20 48 30 21 27 8 11
28T5-27 28 6F   44.75 43.75 48 32 21 27 8 11
30T5-27 30 6F   47.95 46.95 51 34 21 27 8 16
32T5-27 32 6F   51.10 50.10 54 38 21 27 6 18
36T5-27 36 6F   57.45 56.45 64 38 21 27 8 23
40T5-27 40 6F   63.85 62.85 67 40 21 27 8 24
42T5-27 42 6F   67.00 66.00 70 40 21 27 8 26
44T5-27 44 6   70.20 69.20 ■ 45 21 27 8 –
48T5-27 48 6   70.55 75.55 – 50 21 27 6 –
60T5-27 60 6   95.65 94.65 – 65 21 27 8 –

T 5 (Pitch=5mm) for belt width 25 mm

Part Code

Number

ofTeeth



Type



Mat

 DP De Df Dm F L d Flange

Code
10T5-36 10 6F   16.05 15.05 19.5 8 30 36 – 3
12T5-36 12 6F   19.25 18.25 23 11 30 36 – 1
14T5-36 14 6F   22.45 21.45 25 13 30 36 – 2
15T5-36 15 6F   24.05 23.05 28 16 30 36 – 4
16T5-36 16 6F   25.60 24.60 32 18 30 36 – 5
18T5-36 18 6F   28.80 27.80 32 20 30 36 – 6
19T5-36 19 6F   30.40 29.40 36 20 30 36 – 8
20T5-36 20 6F   32.00 31.00 36 22 30 36 – 8
22T5-36 22 6F   32.15 34.15 38 23 30 36 – 9
24T5-36 24 6F   38.40 37.40 42 24 30 36 8 13
25T5-36 25 6F   39.95 38.95 44 26 30 36 8 12
26T5-36 26 6F AL 41.60 40.60 44 26 30 36 8 12
27T5-36 27 6F   43.20 42.20 48 30 30 36 8 11
28T5-36 28 6F   44.75 43.75 48 32 30 36 8 11
30T5-36 30 6F   47.95 46.95 51 34 30 36 8 16
32T5-36 32 6F   51.10 50.10 54 38 30 36 8 18
36T5-36 36 6F   57.45 56.45 64 38 30 36 8 23
40T5-36 40 6F   63.85 62.85 67 40 30 36 8 24
42T5-36 42 6F   67.00 66.00 70 40 30 36 6 26
44T5-36 44 6   70.20 69.20 – 45 30 36 8 –
48T5-36 48 6   76.55 75.55 – 50 30 36 8 –
60T5-36 60 6   95.65 94.65 – 65 30 36 8 –

T 10 (Pitch=10mm) for belt width 16 mm

        Dp De Df Dm F   d
Part Code Number

ofTeeth

 Type Mat L Flange

Code
12T10-31 6F 12   38.35 36.35 42 26 21 31 6 13
14T10-31 6F 14   44.70 42.70 48 32 21 31 8 11
15T10-31 6F 15   47.90 45.90 51 32 21 31 8 16
16T10-31 6F 16   51.10 49.10 54 35 21 31 8 18
18T10-31 6F 18   57.45 55.45 60 40 21 31 8 21
19T10-31 6F 19   60.65 58.65 66 44 21 31 8 24
20T10-31 6F 20   63.80 61.80 66 46 21 31 8 24
22T10-31 6F 22   70.20 68.20 75 52 21 31 8 27
24T10-31 6F 24   76.55 74.55 83 58 21 31 8 29
25T10-31 6F 25 AL 79.55 77.75 63 60 21 31 8 29
26T10-31 6F 26 82.90 80.90 87 60 21 31 8 31
27T10-31 6F 27   86.10 84.10 91 60 21 31 8 32
28T10-31 6F 28   80.25 87.25 93 60 21 31 8 33
30T10-31 6F 30   95.65 93.65 97 60 21 31 8 35
32T10-31 6F 32   102.00 100.00 106 65 21 31 10 38
36T10-31 6F 36   114.75 112.75 119 70 21 31 10 43
40T10-31 6F 40   127.45 125.45 131 80 21 31 10 47
44T10-31 6 44   140.20 138.20 – 88 21 31 10 –
48T10-31 6 48   152.95 150.95 – 95 21 31 16 –
60T10-31 6 60   191.15 189.10 – 110 21 31 16 –

T10 (Pitch=10mm) for belt width 25 mm



Part Code

 Number ofTaoth

Type



Mat

 Dp De Df Dm F L d Flange

Code
12T10-40 12 6F AL 38.35 36.35 42 28 30 40 6 13
14T10-40 14 6F 44.70 42.70 48 32 30 40 8 11
15T10-40 15 6F 47.90 45.90 51 32 30 40 8 16
16T10-40 16 6F 51.10 49.10 54 35 30 40 8 18
18T10-40 18 6F 57.45 55.45 60 40 30 40 8 21
19T10-40 19 6F 60.65 58.65 66 44 30 40 8 24
20T10-40 20 6F 63.80 61.80 66 46 30 40 8 24
22T10-40 22 8F 70.20 68.20 75 52 30 40 8 27
24T10-40 24 6F 76.55 74.55 83 58 30 40 8 29
25T10-40 25 6F 79.70 77-70 83 60 30 40 8 29
26T10-40 26 6F 82.90 80.90 87 60 30 40 8 31
27T10-40 27 6F 86.10 84.10 91 60 30 40 8 32
28T10-40 28 6F 89.25 87.25 93 60 30 40 8 33
30T10-40 30 6F 95.65 93.65 97 60 30 40 8 35
32T10-40 32 6F 102.00 100.00 106 65 30 40 10 38
36T10-40 36 6F 114.75 112.75 119 70 30 40 10 43
40T10-40 40 6F 127.45 125.45 131 80 30 40 10 47
44T10-40 44 6 140.20 138.20 – 86 30 40 10 –
48T10-40 48 6 152.95 150.95 – 95 30 40 16 –
60T10-40 60 6 191.15 189.10 – 110 30 40 16 –

T 10 (Pitch=10mm) for belt width 32 mm

Part Code Number

ofTeeth

 Type Mat Dp De Df Dm F L d Flange

Code
18T10-47 6F 18   57.45 55.45 60 40 37 47 10 21
19T10-47 6F 19   60.65 58.65 66 44 37 47 10 24
20T10-47 6F 20   63.80 61.80 66 46 37 47 12 24
22T10-47 6F 22   70.20 68.20 75 52 37 47 12 27
24T10-47 6F 24   76.55 74.55 83 58 37 47 12 29
25T10-47 6F 25   79.70 77.70 83 60 37 47 12 29
26T10-47 6F 26   82.90 80.90 87 60 37 47 12 31
27T10-47 6F 27 AL 86.10 84.10 91 60 37 47 12 32
28T10-47 6F 28 89.25 87.25 93 60 37 47 12 33
30T10-47 6F 30   95.65 93.65 97 60 37 47 12 35
32T10-47 6F 32   102.00 100.00 106 65 37 47 12 38
36T10-47 6F 36   114.75 112.75 119 70 37 47 16 43
40T10-47 6F 40   127.45 125.45 131 80 37 47 16 47
44T10-47 6 44   140.20 138.20 – 88 37 47 16 –
48T10-47 6 48   152.95 150.95 – 95 37 47 16 –
60T10-47 6 60   191.15 189.10 – 110 37 47 16 –

T10 (Pitch=10mm) for belt width 50 mm

Part Code Number

ofTeeth

 Type Mat Dp De Df Dm F L d Flange

Code
18T10-66 6F 18   57.45 55.45 60 40 56 66 10 21
19T10-66 6F 19   60.65 58.65 66 44 56 66 10 24
20T10-66 6F 20   63.80 61.80 66 46 56 66 12 24
22T10-66 6F 22   70.20 68.20 75 52 56 66 12 27
24T10-66 6F 24   76.55 74.55 83 58 56 66 12 29
25T10-66 6F 25   79.70 77.70 83 60 56 66 12 29
26T10-66 6F 26   82.90 80.90 87 60 56 66 12 31
27T10-66 6F 27 AL 86.10 84.10 91 60 56 66 12 32
28T10-66 6F 26 89.25 87.25 93 60 56 66 12 33
30T10-66 6F 30   95.65 93.65 97 60 56 66 12 35
32T10-66 6F 32   102.00 100.00 106 65 56 66 12 38
36T10-66 6F 36   114.75 112.75 119 70 56 66 16 43
40T10-66 6F 40   127.45 125.45 131 80 56 66 16 47
44T10-66 6 44   140.20 138.20 – 88 56 66 16 –
48T10-66 6 48   152.95 150.95 – 95 56 66 16 –
60T10-66 6 60   191.15 189.10 – 110 56 66 16 –
