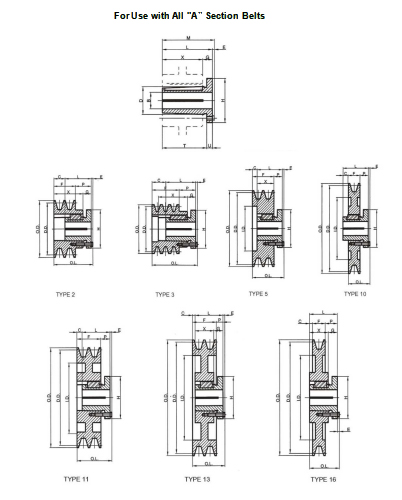

TA Gripbelt Sheaves with Split Taper Bushings
For Use with All “A” Section Belts
Bore Range | Keyseat |
1/2″—9/16″ | 1/8″x1/16″ |
5/8—7/8 | 3/16×3/32 |
15/16—1 1/4 | 1/4×1/8 |
1 5/16—1 3/8 | 5/16×5/32 |
1 7/16—1 3/4 | 3/8×3/16 |
1 13/16—2 1/4 | 1/2×1/4 |
2 5/16—2 11/16 | 5/8×5/16 |
1TA Gripbelt Sheaves with Split Taper Bushings
table 1
Standard Table No.1 | Keyseats |
Bore Range | Keyseat |
1/2″—9/16″ | 1/8″x1/16″ |
5/8—7/8 | 3/16×3/32 |
15/16—1 1/4 | 1/4×1/8 |
1 5/16—1 3/8 | 5/16×5/32 |
1 7/16—1 3/4 | 3/8×3/16 |
1 13/16—2 1/4 | 1/2×1/4 |
2 5/16—2 11/16 | 5/8×5/16 |
Table 2
Part No. | Dimension | Bore | Wt | ||||||||
M | L | G | X | E | T | U | D | H | Range | .Lbs. | |
P1 | 2 3/16″ | 1 15/16″ | 5/8″ | 1 5/16″ | 1/4″ | 1 17/32″ | 13/32 | 1 15/16″ | 3″ | 1/2″-1 3/4″ | 1 1/4 |
Q1 | 2 25/32 | 2 1/2 | 3/4 | 1 3/4 | 9/32 | 1 31/32 | 17/32 | 2 7/8 | 4 1/8 | 3/4-2 11/16 | 3 1/2 |
Table 3
Datum
“A” |
Outside | Inside | Part Number | Type | Dimensions | Wt.Less
Bush. |
||||||||
Sheave | Bushing | O.L. | L | P | C | H | G | X | E | |||||
3.0″ | 3.25″ | _ | 1TA30 | P1 | 2 | 2 3/16″ | 1 15/16″ | 1 3/16″ | 0″ | 3″ | 5/8″ | 1 5/16″ | 1/4″ | 1.4 |
3.2 | 3.45 | _ | 1TA32 | P1 | 2 | 2 3/16 | 1 15/16 | 13/16 | 0 | 3 | 5/8 | 1 5/16 | 1/4 | 1.6 |
3.4 | 3.65 | _ | 1TA34 | P1 | 2 | 2 3/16 | 1 15/16 | 1 3/16 | 0 | 3 | 5/8 | 1 5/16 | 1/4 | 1.9 |
3.6 | 3.85 | _ | 1TA36 | P1 | 2 | 2 3/16 | 1 15/16 | 1 3/16 | 0 | 3 | 5/8 | 1 5/16 | 1/4 | 2.3 |
3.8 | 4.05 | — | 1TA38 | P1 | 2 | 2 3/16 | 1 15/16 | 1 3/16 | 0 | 3 | 5/8 | 1 5/16 | 1/4 | 2.5 |
4.0 | 4.25 | 1TA40 | P1 | 2 | 2 3/16 | 1 15/16 | 1 3/16 | 0 | 3 | 5/8 | 1 5/16 | 1/4 | 2.7 | |
4.2 | 4.45 | — | 1TA42 | P1 | 10-Sol | 2 3/16 | 1 15/16 | 5/8 | 9/16 | 3 | — | — | 1/4 | 1.8 |
4.4 | 4.65 | — | 1TA44 | P1 | 10-Sol | 2 3/16 | 1 15/16 | 5/8 | 9/16 | 3 | _ | — | 1/4 | 2.1 |
4.6 | 4.85 | — | 1TA46 | P1 | 10-Sol | 2 3/16 | 1 15/16 | 5/8 | 9/16 | 3 | _ | 1/4 | 2.5 | |
4.8 | 5.05 | — | 1TA48 | P1 | 10-Sol | 2 3/16 | 1 15/16 | 5/8 | 9/16 | 3 | — | — | 1/4 | 2.6 |
5.0 | 5.25 | _ | 1TA50 | P1 | 10-Sol | 2 3/16 | 1 15/16 | 5/8 | 9/16 | 3 | 一 | _ | 1/4 | 3.0 |
5.2 | 5.45 | _ | 1TA52 | P1 | 10-Sol | 2 3/16 | 1 15/16 | 5/8 | 9/16 | 3 | — | — | 1/4 | 3.4 |
5.4 | 5.65 | — | 1TA54 | P1 | 10-Sol | 2 3/16 | 1 15/16 | 5/8 | 9/16 | 3 | — | — | 1/4 | 3.5 |
5.6 | 5.85 | — | 1TA56 | P1 | 10-Sol | 2 3/16 | 1 15/16 | 5/8 | 9/16 | 3 | _ | _ | 1/4 | 3.8 |
5.8 | 6.05 | — | 1TA58 | P1 | 10-Sol | 2 3/16 | 1 15/16 | 5/8 | 9/16 | 3 | — | — | 1/4 | 4.1 |
6.0 | 6.25 | 4 3/4″ | 1TA60 | P1 | 10-Web | 2 3/16 | 1 15/16 | 5/8 | 9/16 | 3 | — | 1/4 | 4.0 | |
6.2 | 6.45 | 4 15/16 | 1TA62 | P1 | 10-Web | 2 3/16 | 1 15/16 | 5/8 | 9/16 | 3 | _ | _ | 1/4 | 4.0 |
6.4 | 6.65 | 5 3/16 | 1TA64 | P1 | 10-Web | 2 3/16 | 1 15/16 | 5/8 | 9/16 | 3 | — | _ | 1/4 | 4.3 |
7.0 | 7.25 | 5 13/16 | 1TA70 | P1 | 16-Arm | 2 3/16 | 1 15/16 | 29/32 | 9/32 | 3 | 5/8 | 1 5/16 | 1/4 | 5.1 |
8.2 | 8.45 | 6 15/16 | 1TA82 | P1 | 16-Arm | 2 3/16 | 1 15/16 | 29/32 | 9/32 | 3 | 5/8 | 1 5/16 | 1/4 | 6.6 |
9.0 | 9.25 | 7 13/16 | 1TA90 | P1 | 16-Arm | 2 3/16 | 1 15/16 | 29/32 | 9/32 | 3 | 5/8 | 1 5/16 | 1/4 | 7.3 |
10.6 | 10.85 | 9 3/8 | 1TA106 | P1 | 16-Arm | 2 3/16 | 1 15/16 | 29/32 | 9/32 | 3 | 5/8 | 1 5/16 | 1/4 | 8.3 |
12.0 | 12.25 | 10 13/16 | 1TA120 | Q1 | 16-Arm | 2 25/32 | 2 1/2 | 1 1/4 | 1/2 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 13.4 |
15.0 | 15.25 | 13 13/16 | 1TA150 | Q1 | 16-Arm | 2 25/32 | 2 1/2 | 1 1/4 | 1/2 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 16.0 |
18.0 | 18.25 | 16 13/16 | 1TA180 | Q1 | 16-Arm | 2 25/32 | 2 1/2 | 1 1/4 | 1/2 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 19.3 |
19.5 | 19.75 | 18 1/4 | 1TA195 | Q1 | 16-Arm | 2 25/32 | 2 1/2 | 1 1/4 | 1/2 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 23.5 |
24.5 | 24.75 | 23 1/4 | 1TA245 | Q1 | 16-Arm | 2 25/32 | 2 1/2 | 1 1/4 | 1/2 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 27.3 |
2TA Gripbelt Sheaves with Split Taper Bushings
Table No.1
Bore Range | Keyseat |
1/2″—9/16″ | 1/8″x1/16″ |
5/8—7/8 | 3/16×3/32 |
15/16—1 1/4 | 1/4×1/8 |
1 5/16—1 3/8 | 5/16×5/32 |
1 7/16—1 3/4 | 3/8×3/16 |
1 13/16—2 1/4 | 1/2×1/4 |
2 5/16—2 11/16 | 5/8×5/16 |
Table No.2
Part
No. |
Dimension | Bore Range | Wt
.Lbs. |
||||||||
M | L | G | X | E | T | U | D | H | |||
P1 | 2。/16″ | 1 15/16″ | 5/8″ | 1 5/16″ | 1/4″ | 1 17/32″ | 13/32″ | 1 15/16″ | 3″ | 1/2″-1 3/4″ | 1 1/4 |
P2 | 33/16″ | 2 15/16 | 5/8 | 2 5/16 | 1/4 | 2 17/32 | 13/32 | 1 15/16 | 3 | 3/4-1 3/4 | 1 1/2 |
Q1 | 2 25/32 | 2 1/2 | 3/4 | 1 3/4 | 9/32 | 1 31/32 | 17/32 | 2 7/8 | 4 1/8 | 3/4-2 11/16 | 3 1/2 |
Table No.3 Specifications Stock “TA”Sheaves
DIAMETERS | 2 GROOVES, F | =1 3/8″ | ||||||||||||
Datum
“A” |
Outside | Inside | Part Number | Type | Dimensions | Wt.
Less Bush. |
||||||||
Sheave | Bushing | O.L. | L | P | C | H | G | X | E | |||||
3.0″ | 3.25″ | — | 2TA30 | P1 | 2 | 2 13/16″ | 1 15/16″ | 1 3/16″ | 5/8″ | 3″ | 5/8″ | 1 15/16″ | 1/4″ | 2.0 |
3.2 | 3.45 | _ | 2TA32 | P1 | 2 | 2 13/16 | 1 15/16 | 1 3/16 | 5/8 | 3 | 5/8 | 1 15/16 | 1/4 | 2.4 |
3.4 | 3.65 | — | 2TA34 | P1 | 2 | 2 13/16 | 1 15/16 | 1 3/16 | 5/8 | 3 | 5/8 | 1 15/16 | 1/4 | 2.8 |
3.6 | 3.85 | 一 | 2TA36 | P1 | 5 | 2 3/16 | 1 15/16 | 5/8 | 1/16 | 3 | — | 1 3/8 | 1/4 | 2.3 |
3.8 | 4.05 | — | 2TA38 | P1 | 5 | 2 3/16 | 1 15/16 | 5/8 | 1/16 | 3 | — | 1 3/8 | 1/4 | 2.5 |
4.0 | 4.25 | _ | 2TA40 | P1 | 5 | 2 3/16 | 1 15/16 | 5/8 | 1/16 | 3 | 一 | 1 3/8 | 1/4 | 2.9 |
4.2 | 4.45 | — | 2TA42 | P1 | 5 | 2 3/16 | 1 15/16 | 5/8 | 1/16 | 3 | _ | 1 3/8 | 1/4 | 3.4 |
4.4 | 4.65 | — | 2TA44 | P1 | 5-Web | 2 3/16 | 1 15/16 | 5/8 | 1/16 | 3 | _ | 1 3/8 | 1/4 | 3.8 |
4.6 | 4.85 | — | 2TA46 | P1 | 5-Web | 2 3/16 | 1 15/16 | 5/8 | 1/16 | 3 | — | 1 3/8 | 1/4 | 4.5 |
4.8 | 5.05 | — | 2TA48 | P1 | 5-Web | 2 3/16 | 1 15/16 | 5/8 | 1/16 | 3 | — | 1 3/8 | 1/4 | 5.0 |
5.0 | 5.25 | 一 | 2TA50 | P1 | 5-Web | 2 3/16 | 1 15/16 | 5/8 | 1/16 | 3 | 一 | 1 3/8 | 1/4 | 5.3 |
5.2 | 5.45 | 2TA52 | P1 | 5-Web | 2 3/16 | 1 15/16 | 5/8 | 1/16 | 3 | _ | 1 3/8 | 1/4 | 5.9 | |
5.4 | 5.65 | — | 2TA54 | P1 | 5-Web | 2 3/16 | 1 15/16 | 5/8 | 1/16 | 3 | — | 1 3/8 | 1/4 | 6.4 |
5.6 | 5.85 | — | 2TA56 | P1 | 5-Web | 2 3/16 | 1 15/16 | 5/8 | 1/16 | 3 | — | 1 3/8 | 1/4 | 6.9 |
5.8 | 6.05 | — | 2TA58 | P1 | 5-Web | 2 3/16 | 1 15/16 | 5/8 | 1/16 | 3 | — | 1 3/8 | 1/4 | 7.6 |
6.0 | 6.25 | 4 3/4″ | 2TA60 | P1 | 11-Web | 2 3/16 | 1 15/16 | 5/8 | 1/16 | 3 | 一 | 一 | 1/4 | 6.3 |
6.2 | 6.45 | 4 15/16 | 2TA62 | P1 | 11-Web | 2 3/16 | 1 15/16 | 5/8 | 1/16 | 3 | — | — | 1/4 | 6.4 |
6.4 | 6.65 | 5 3/16 | 2TA64 | P1 | 11-Web | 2 3/16 | 1 15/16 | 5/8 | 1/16 | 3 | _ | — | 1/4 | 6.9 |
7.0 | 7.25 | 5 13/16 | 2TA70 | Q1 | 16-Web | 2 25/32 | 2 1/2 | 15/16 | 3/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 8.6 |
8.2 | 8.45 | 6 15/16 | 2TA82 | Q1 | 16-Arm | 2 25/32 | 2 1/2 | 15/16 | 3/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 11.6 |
9.0 | 9.25 | 7 13/16 | 2TA90 | Q1 | 16-Arm | 2 25/32 | 2 1/2 | 15/16 | 3/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 12.5 |
10.6 | 10.85 | 9 3/8 | 2TA106 | Q1 | 16-Arm | 2 25/32 | 2 1/2 | 15/16 | 3/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 14.4 |
12.0 | 12.25 | 10 13/16 | 2TA120 | Q1 | 16-Arm | 2 25/32 | 2 1/2 | 15/16 | 3/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 16.3 |
15.0 | 15.25 | 13 13/16 | 2TA150 | Q1 | 16-Arm | 2 25/32 | 2 1/2 | 15/16 | 3/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 21.3 |
18.0 | 18.25 | 16 13/16 | 2TA180 | Q1 | 16-Arm | 2 25/32 | 2 1/2 | 15/16 | 3/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 25.8 |
19.5 | 19.75 | 18 1/4 | 2TA195 | Q1 | 16-Arm | 2 25/32 | 2 1/2 | 15/16 | 3/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 29.8 |
24.5 | 24.75 | 23 1/4 | 2TA245 | Q1 | 16-Arm | 2 25/32 | 2 1/2 | 15/16 | 3/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 38.1 |
3TA Gripbelt Sheaves with Split Taper Bushings
For Use with All “A” Section Belts
Table No.1
Bore Range | Keyseat |
1/2″—9/16″ | 1/8″x1/16″ |
5/8—7/8 | 3/16×3/32 |
15/16—1 1/4 | 1/4×1/8 |
1 5/16—1 3/8 | 5/16×5/32 |
1 7/16—1 3/4 | 3/8×3/16 |
1 13/16—2 1/4 | 1/2×1/4 |
2 5/16—2 11/16 | 5/8×5/16 |
Table No.2
Bushing Dimension
Part | Dimension | Wt | |||||||||
No. | M | L | G | X | E | T | U | D | H | Bore Range | .Lbs. |
P1 | 2 3/16″ | 1 15/16″ | 5/8″ | 1 5/16″ | 1/4″ | 1 17/32″ | 13/32 | 1 15/16″ | 3″ | 3/4″ | 1.25 |
Q1 | 2 25/32 | 2 1/2 | 3/4 | 1 3/4 | 9/32 | 1 31/32 | 17/32 | 2 7/8″ | 4 1/8 | 3/4-2 11/1 | 3.5 |
Table No.3
Specifications_Stock “TA”Sheaves
DIAMETERS | 3 GROOVES, F=2″ | |||||||||||||
Datum
“A” |
Part Number | Dimensions | Wt. | |||||||||||
Outside | Inside | Sheave | Bushing | TYPE | O.L. | L | P | C | H | G | X | E | Less
Bush. |
|
3.0″ | 3.25″ | — | 3TA30 | P1 | 3 | 3 7/16″ | 1 15/16″ | 1 3/16″ | 1 1/4″ | 3″ | 5/8″ | 2 9/16″ | 1/4″ | 2.6 |
3.2 | 3.45 | _ | 3TA32 | P1 | 3 | 3 7/16 | 1 15/16 | 1 3/16 | 1 1/4 | 3 | 5/8 | 2 9/16 | 1/4 | 3.1 |
3.4 | 3.65 | _ | 3TA34 | P1 | 3 | 3 7/16 | 1 15/16 | 1 3/16 | 1 1/4 | 3 | 5/8 | 2 9/16 | 1/4 | 3.5 |
3.6 | 3.85 | 2 3/8 | 3TA36 | P1 | 5 | 2 7/8 | 1 15/16 | 5/8 | 11/16 | 3 | _ | 1 3/8 | 1/4 | 2.9 |
3.8 | 4.05 | 2 9/16 | 3TA38 | P1 | 5 | 2 7/8 | 1 15/16 | 5/8 | 11/16 | 3 | — | 1 3/8 | 1/4 | 3.3 |
4.0 | 4.25 | 2 3/4 | 3TA40 | P1 | 5 | 2 7/8 | 1 15/16 | 5/8 | 11/16 | 3 | _ | 1 3/8 | 1/4 | 3.6 |
4.2 | 4.45 | 2 15/16 | 3TA42 | P1 | 13-Sol | 2 1/4 | 1 15/16 | 0 | 1/16 | 3 | 5/8 | 1 3/8 | 1/4 | 4.0 |
4.4 | 4.65 | 3 3/16 | 3TA44 | P1 | 13-Sol | 2 1/4 | 1 15/16 | 0 | 1/16 | 3 | 5/8 | 1 3/8 | 1/4 | 4.5 |
4.6 | 4.85 | 3 3/8 | 3TA46 | P1 | 13-Web | 2 1/4 | 1 15/16 | 0 | 1/16 | 3 | 5/8 | 1 3/8 | 1/4 | 5.3 |
4.8 | 5.05 | 3 9/16 | 3TA48 | P1 | 13-Web | 2 1/4 | 1 15/16 | 0 | 1/16 | 3 | 5/8 | 1 3/8 | 1/4 | 5.8 |
5.0 | 5.25 | 3 3/4 | 3TA50 | P1 | 13-Web | 2 1/4 | 1 15/16 | 0 | 1/16 | 3 | 5/8 | 1 3/8 | 1/4 | 6.3 |
5.2 | 5.45 | 3 15/16 | 3TA52 | P1 | 13-Web | 2 1/4 | 1 15/16 | 0 | 1/16 | 3 | 5/8 | 1 3/8 | 1/4 | 7.0 |
5.4 | 5.65 | 4 3/16 | 3TA54 | P1 | 13-Web | 2 1/4 | 1 15/16 | 0 | 1/16 | 3 | 5/8 | 1 3/8 | 1/4 | 7.8 |
5.6 | 5.85 | 4 3/8 | 3TA56 | P1 | 13-Web | 2 1/4 | 1 15/16 | 0 | 1/16 | 3 | 5/8 | 1 3/8 | 1/4 | 8.1 |
5.8 | 6.05 | 4 9/16 | 3TA58 | P1 | 13-Web | 2 1/4 | 1 15/16 | 0 | 1/16 | 3 | 5/8 | 1 3/8 | 1/4 | 8.8 |
6.0 | 6.25 | 4 3/4″ | 3TA60 | P1 | 13-Web | 2 1/4 | 1 15/16 | 0 | 1/16 | 3 | 5/8 | 1 3/8 | 1/4 | 7.3 |
6.2 | 6.45 | 4 15/16 | 3TA62 | P1 | 13-Web | 2 1/4 | 1 15/16 | 0 | 1/16 | 3 | 5/8 | 1 3/8 | 1/4 | 7.8 |
6.4 | 6.65 | 5 3/16 | 3TA64 | P1 | 13-Web | 2 1/4 | 1 15/16 | 0 | 1/16 | 3 | 5/8 | 1 3/8 | 1/4 | 8.6 |
7.0 | 7.25 | 5 13/16 | 3TA70 | Q1 | 13-Web | 2 29/32 | 2 1/2 | 5/8 | 1/8 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 10.4 |
8.2 | 8.45 | 6 15/16 | 3TA82 | Q1 | 13-Arm | 2 29/32 | 2 1/2 | 5/8 | 1/8 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 13.5 |
9.0 | 9.25 | 7 13/16 | 3TA90 | Q1 | 13-Arm | 2 29/32 | 2 1/2 | 5/8 | 1/8 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 14.6 |
10.6 | 10.85 | 9 3/8 | 3TA106 | Q1 | 13-Arm | 2 29/32 | 2 1/2 | 5/8 | 1/8 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 17.0 |
12.0 | 12.25 | 10 13/16 | 3TA120 | Q1 | 13-Arm | 2 29/32 | 2 1/2 | 5/8 | 1/8 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 19.0 |
15.0 | 15.25 | 13 13/16 | 3TA150 | Q1 | 13-Arm | 2 29/32 | 2 1/2 | 5/8 | 1/8 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 25.3 |
18.0 | 18.25 | 16 13/16 | 3TA180 | Q1 | 13-Arm | 2 29/32 | 2 1/2 | 5/8 | 1/8 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 31.1 |
19.5 | 19.75 | 18 1/4 | 3TA195 | Q1 | 13-Arm | 2 29/32 | 2 1/2 | 5/8 | 1/8 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 36.8 |
24.5 | 24.75 | 23 1/4 | 3TA245 | Q1 | 13-Arm | 2 29/32 | 2 1/2 | 5/8 | 1/8 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 46.8 |
TA Gripbelt Sheaves with Split Taper Bushings
For Use with All “A” Section Belts
Table No.1
Bore Range | Keyseat |
1/2″—9/16″ | 1/8″x1/16″ |
5/8—7/8 | 3/16×3/32 |
15/16—1 1/4 | 1/4×1/8 |
1 5/16—1 3/8 | 5/16×5/32 |
1 7/16—1 3/4 | 3/8×3/16 |
1 13/16—2 1/4 | 1/2X1/4 |
2 5/16—2 11/16 | 5/8×5/16 |
Table No.2 TA Gripbelt Split Taper Bushings Sheaves
Bushing Dimension
Part | Dimension | Bore Range | Wt | ||||||||
No. | M | L | G | X | E | T | U | D | H | .Lbs. | |
P1 | 2 3/16 | 1 15/16″ | 5/8″ | 1 5/16″ | 1/4″ | 1 17/32″ | 13/32 | 1 15/16″ | 3″ | 1/2″-1 3/4″ | 1 1/4 |
Q1 | 2 25/32 | 2 1/2 | 3/4 | 1 3/4 | 9/32 | 1 31/32 | 17/32 | 2 7/8″ | 4 1/8 | 3/4-2 11/16 | 3 1/2 |
Table No.3
Specifications—Stock “TA”Sheaves TA Gripbelt Split Taper Bushings Sheaves
DIAMETERS | 4 GROOVES, F=2 5/8″ | |||||||||||||
Datum
“A” |
Part Number | Dimensions | Wt. | |||||||||||
Outside | Inside | Sheave | Bushing | Type | O.L. | L | P | C | H | G | X | E | Less
Bush. |
|
3.0″ | 3.25″ | 2″ | 4TA30 | P2 | 3 | 4 1/16″ | 2 15/16″ | 1 3/16″ | 7/8″ | 3″ | 5/8″ | 2 5/16″ | 1/4″ | 2.9 |
3.2 | 3.45 | 2 | 4TA32 | P2 | 3 | 4 1/16 | 2 15/16 | 1 3/16 | 7/8 | 3 | 5/8 | 2 5/16 | 1/4 | 3.6 |
3.4 | 3.65 | 2 3/16 | 4TA34 | P2 | 3 | 4 1/16 | 2 15/16 | 13/16 | 7/8 | 3 | 5/8 | 2 5/16 | 1/4 | 4.4 |
3.6 | 3.85 | 2 3/8 | 4TA36 | P1 | 5 | 3 1/2 | 1 15/16 | 5/8 | 15/16 | 3 | — | 15/16 | 1/4 | 3.6 |
3.8 | 4.05 | 2 9/16 | 4TA38 | P1 | 5 | 3 1/2 | 1 15/16 | 5/8 | 15/16 | 3 | — | 15/16 | 1/4 | 4.0 |
4.0 | 4.25 | 2 3/4 | 4TA40 | P1 | 5 | 3 1/2 | 1 15/16 | 5/8 | 1 5/16 | 3 | _ | 15/16 | 1/4 | 4.5 |
4.2 | 4.45 | 215/16 | 4TA42 | P1 | 13-Web | 2 7/8 | 1 15/16 | 0 | 11/16 | 3 | 5/8 | 1 5/16 | 1/4 | 5.0 |
4.4 | 4.65 | 3 3/16 | 4TA44 | P1 | 13-Web | 2 7/8 | 1 15/16 | 0 | 11/16 | 3 | 5/8 | 15/16 | 1/4 | 5.3 |
4.6 | 4.85 | 3 3/8 | 4TA46 | P1 | 13-Web | 2 7/8 | 1 15/16 | 0 | 11/16 | 3 | 5/8 | 1 5/16 | 1/4 | 6.3 |
4.8 |
5.05 | 3 9/16 | 4TA48 | P1 | 13-Web | 2 7/8 | 1 15/16 | 0 | 11/16 | 3 | 5/8 | 15/16 | 1/4 | 6.8 |
5.0 | 5.25 | 3 3/4 | 4TA50 | P1 | 13-Web | 2 7/8 | 1 15/16 | 0 | 11/16 | 3 | 5/8 | 15/16 | 1/4 | 7.6 |
5.2 | 5.45 | 315/16 | 4TA52 | P1 | 13-Web | 2 7/8 | 1 15/16 | 0 | 11/16 | 3 | 5/8 | 15/16 | 1/4 | 7.9 |
5.4 | 5.65 | 4 3/16 | 4TA54 | P1 | 13-Web | 2 7/8 | 1 15/16 | 0 | 11/16 | 3 | 5/8 | 15/16 | 1/4 | 9.0 |
5.6 | 5.85 | 4 3/8 | 4TA56 | P1 | 13-Web | 2 7/8 | 1 15/16 | 0 | 11/16 | 3 | 5/8 | 1 5/16 | 1/4 | 9.3 |
5.8 | 6.05 | 4 9/16 | 4TA58 | P1 | 13-Web | 2 7/8 | 1 15/16 | 0 | 11/16 | 3 | 5/8 | 15/16 | 1/4 | 10.3 |
6.0 | 6.25 | 4 3/4 | 4TA60 | P1 | 13-Web | 2 7/8 | 1 15/16 | 0 | 11/16 | 3 | 5/8 | 15/16 | 1/4 | 8.9 |
6.2 | 6.45 | 4 15/16 | 4TA62 | P1 | 13-Web | 2 7/8 | 1 15/16 | 0 | 11/16 | 3 | 5/8 | 1 5/16 | 1/4 | 9.3 |
6.4 | 6.65 | 5 3/16 | 4TA64 | P1 | 13-Web | 2 7/8 | 1 15/16 | 0 | 11/16 | 3 | 5/8 | 15/16 | 1/4 | 10.3 |
7.0 | 7.25 | 5 13/16 | 4TA70 | Q1 | 13-Web | 3 7/32 | 2 1/2 | 5/16 | 7/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 11.9 |
8.2 | 8.45 | 6 15/16 | 4TA82 | Q1 | 13-Arm | 3 7/32 | 2 1/2 | 5/16 | 7/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 15.9 |
9.0 | 9.25 | 7 13/16 | 4TA90 | Q1 | 13-Arm | 3 7/32 | 2 1/2 | 5/16 | 7/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 16.1 |
10.6 |
10.85 | 9 3/8 | 4TA106 | Q1 | 13-Arm | 3 7/32 | 2 1/2 | 5/16 | 7/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 19.8 |
12.0 | 12.25 | 10 13/16 | 4TA120 | Q1 | 13-Arm | 3 7/32 | 2 1/2 | 5/16 | 7/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 21.3 |
15.0 | 15.25 | 13 13/16 | 4TA150 | Q1 | 13-Arm | 3 7/32 | 2 1/2 | 5/16 | 7/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 29.5 |
18.0 | 18.25 | 16 13/16 | 4TA180 | Q1 | 13-Arm | 3 7/32 | 2 1/2 | 5/16 | 7/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 36.0 |
19.5 | 19.75 | 18 1/4 | 4TA195 | Q1 | 13-Arm | 3 7/32 | 2 1/2 | 5/16 | 7/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 43.3 |
24.5 | 24.75 | 23 1/4 | 4TA245 | Q1 | 13-Arm | 3 7/32 | 2 1/2 | 5/16 | 7/16 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 51.8 |
